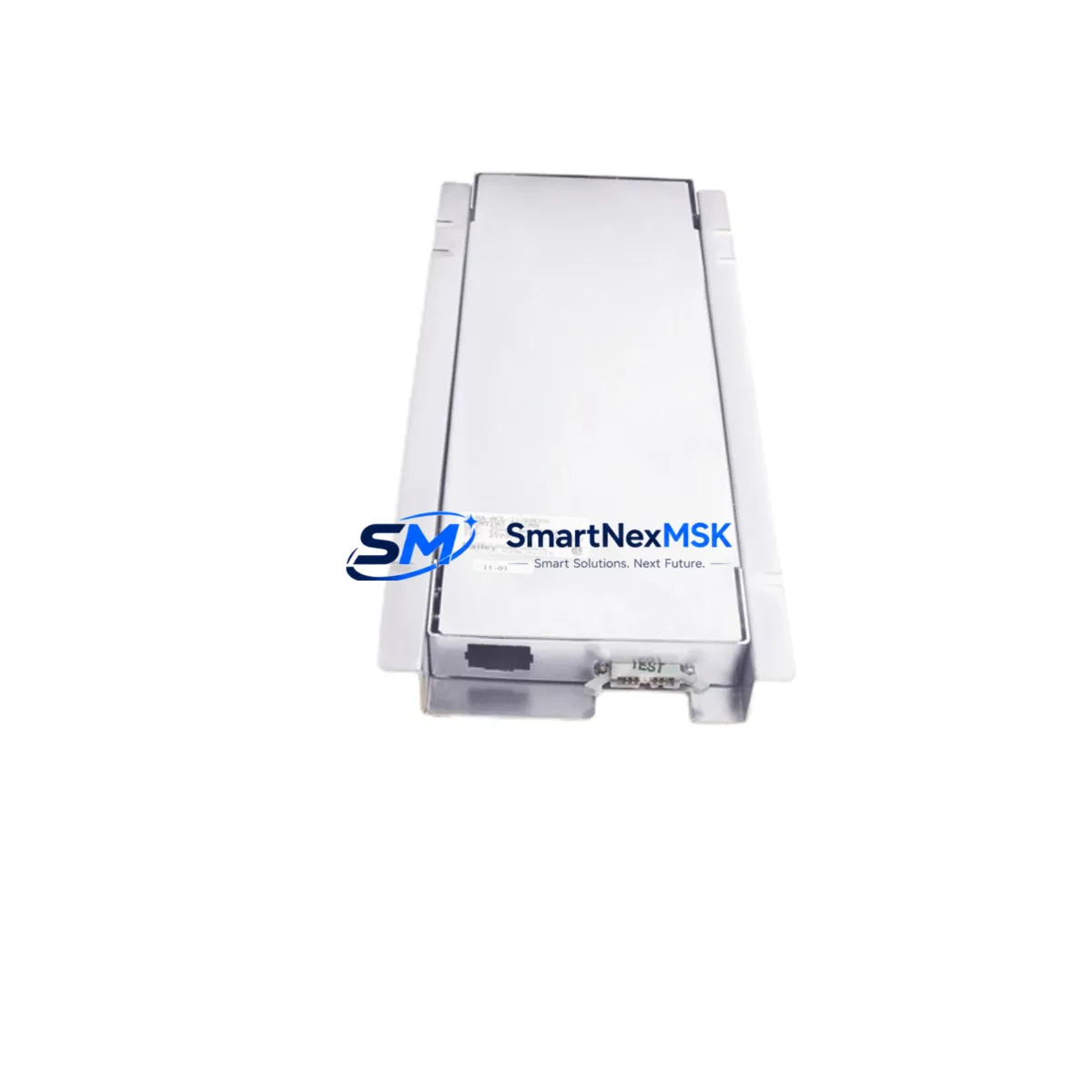

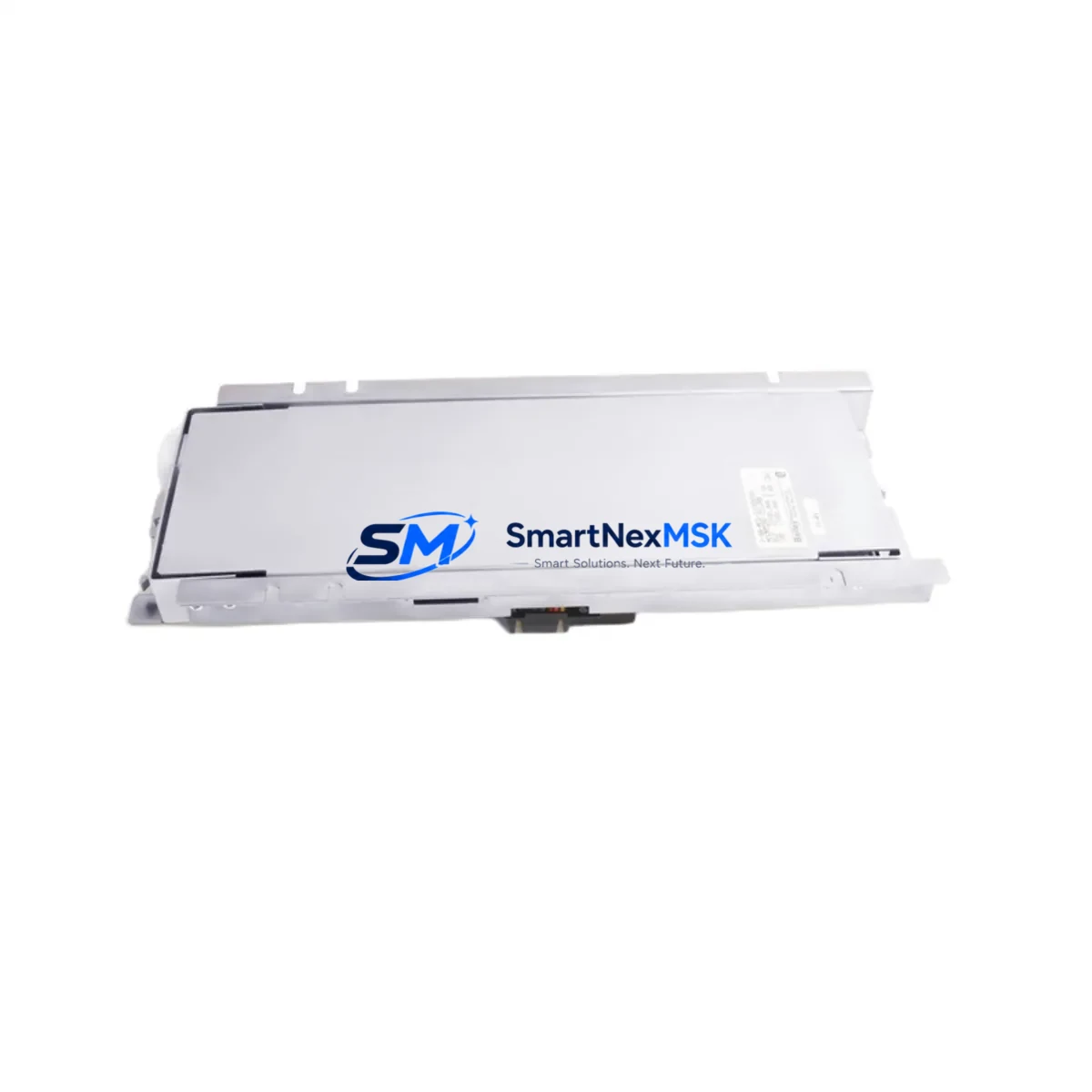

ABB P-HA-MCL-110RB000 Retrofit-Ready Mounting Column for P-HA Series Control Systems
The ABB P-HA-MCL-110RB000 is a precision-engineered mounting column designed for seamless integration into ABB P-HA Series field housings used across industrial process control, distributed control systems (DCS), and automation panel installations. As legacy field housing assemblies reach end-of-life or require structural refurbishment, the P-HA-MCL-110RB000 provides a verified drop-in replacement path that eliminates the need for full enclosure replacement — significantly reducing retrofit cost and downtime.
This mounting column is a critical mechanical interface component within the P-HA Series field housing ecosystem. It provides the structural backbone for mounting terminal blocks, I/O sub-assemblies, DIN rail sections, and cable management accessories inside the housing. When upgrading aging control cabinets or replacing corroded or mechanically damaged mounting infrastructure, the P-HA-MCL-110RB000 restores full structural integrity without requiring modification to the housing shell, backplate, or existing wiring harness.
In retrofit projects involving ABB Freelance, ABB 800xA, or legacy PROCONTIC control platforms, field engineers frequently encounter P-HA Series housings that remain electrically functional but require mechanical refurbishment. The P-HA-MCL-110RB000 is the correct replacement column for 110mm rail-depth configurations, and it is compatible with standard ABB P-HA-MCL mounting hardware and associated locking brackets. Before installation, engineers should verify the housing depth, column length, and rail pitch against the existing assembly to confirm dimensional compatibility.
Upgrade Compatibility Table
| Parameter | Details |
|---|---|
| SKU / Part Number | P-HA-MCL-110RB000 |
| Brand | ABB |
| Compatible Series | ABB P-HA Series Field Housings |
| Column Length | 110 mm |
| Mounting Interface | Standard ABB P-HA rail and bracket system |
| Installation Type | Drop-in replacement; no housing modification required |
| Communication Compatibility | N/A (mechanical component); compatible with all P-HA-housed I/O and comms modules |
| Replacement Recommendation | Direct replacement for worn, corroded, or damaged P-HA-MCL-110 columns |
| Commissioning Notes | Verify column seating, bracket torque, and DIN rail alignment post-installation |
| Warranty | 12 Months |
Retrofit Planning for Existing Automation Systems
When planning a field housing retrofit involving the P-HA-MCL-110RB000, the scope of work typically extends beyond the mounting column itself. A complete mechanical refurbishment of a P-HA Series housing may also involve replacing the ABB P-HA-TRM terminal block carriers, re-securing the DIN rail sections, and inspecting the ABB P-HA-BPL backplate assembly for corrosion or deformation. In installations where the housing supports active I/O modules — such as ABB AI810 analog input modules or ABB DI810 digital input modules from the S800 I/O family — care must be taken to de-energize and safely isolate each module before disassembly.
For control cabinets running ABB AC800M controllers or ABB AC800F Freelance controllers, the P-HA Series housings often serve as remote I/O enclosures connected via PROFIBUS DP or FOUNDATION Fieldbus H1. During the retrofit, the communication link between the remote I/O and the main controller must be maintained or safely interrupted with proper handshaking to avoid spurious alarms or process trips. Engineers should document the current module slot assignments, I/O addresses, and fieldbus node addresses before beginning any mechanical work.
Power supply continuity is another critical consideration. Many P-HA Series housings are powered by dedicated 24VDC rail-mount power supplies such as the ABB CP-E 24/2.5 or equivalent units. Before removing the mounting column, confirm that all powered sub-assemblies are de-energized and that the power supply output is isolated. Terminal wiring should be photographed and labeled to ensure accurate reconnection after the column replacement. Where the housing also supports an ABB CI854 PROFIBUS communication interface module or an ABB CI801 AF100 fieldbus module, these should be carefully extracted and stored in anti-static packaging during the mechanical work.
After installing the P-HA-MCL-110RB000, re-seat all DIN rail-mounted components, verify bracket torque to specification, and perform a continuity check on all terminal connections before re-energizing. If the housing supports an ABB TP830 operator panel or a local HMI display, verify that the panel mounting hardware is correctly re-engaged and that the display communication link is restored before returning the system to service. All retrofit work should be logged in the plant maintenance management system with before/after photographs and a signed commissioning record.
Downtime Control During System Migration
Minimizing unplanned downtime is the primary concern in any field housing retrofit. For the P-HA-MCL-110RB000 replacement, the mechanical swap itself is typically completable within a planned maintenance window of two to four hours, provided all replacement parts, tools, and documentation are staged in advance. The key to downtime control is pre-commissioning: obtain the replacement column, verify its dimensional match against the existing assembly, and prepare a step-by-step isolation and reconnection procedure before the maintenance window begins.
Where process continuity is critical, consider implementing a temporary bypass or manual control mode for the affected I/O loops before beginning the retrofit. For PROFIBUS DP-connected remote I/O nodes, the AC800M or AC800F controller can often be configured to hold last-known values on the affected node during the disconnection period, preventing downstream process upsets. After mechanical reassembly, perform a structured recommissioning sequence: restore power, verify fieldbus communication, confirm I/O signal integrity against the control system’s diagnostic display, and release the affected loops back to automatic control one at a time.
All original program logic, function block configurations, and HMI faceplate assignments should remain intact throughout the mechanical retrofit, as the P-HA-MCL-110RB000 replacement does not affect the electrical or software configuration of the system. Retain the original mounting column for reference until the replacement has been fully commissioned and the system has operated stably through at least one full process cycle.
Retrofit Support FAQ
Q1: Is the P-HA-MCL-110RB000 a direct drop-in replacement for my existing P-HA Series mounting column?
A: Yes, the P-HA-MCL-110RB000 is designed as a direct mechanical replacement for 110mm-depth P-HA Series mounting columns. No modification to the housing shell, backplate, or existing wiring is required. Verify the column length and bracket interface against your existing assembly before installation.
Q2: What commissioning steps are required after installing the P-HA-MCL-110RB000?
A: After installation, re-seat all DIN rail components, verify bracket torque, perform a terminal continuity check, restore power, and confirm fieldbus communication and I/O signal integrity via the control system diagnostic display before returning loops to automatic control.
Q3: Can I install the P-HA-MCL-110RB000 without disconnecting my PROFIBUS or fieldbus communication modules?
A: It is strongly recommended to safely isolate all powered modules and communication interfaces before beginning the mechanical replacement. For PROFIBUS DP nodes, configure the controller to hold last-known values during the disconnection window to minimize process impact.
Q4: What warranty coverage applies to the P-HA-MCL-110RB000?
A: All P-HA-MCL-110RB000 units supplied by SMARTNEXMSK are covered by a 12-month warranty against manufacturing defects. Each unit is functionally tested prior to shipment. For warranty claims or technical support, contact [email protected].
