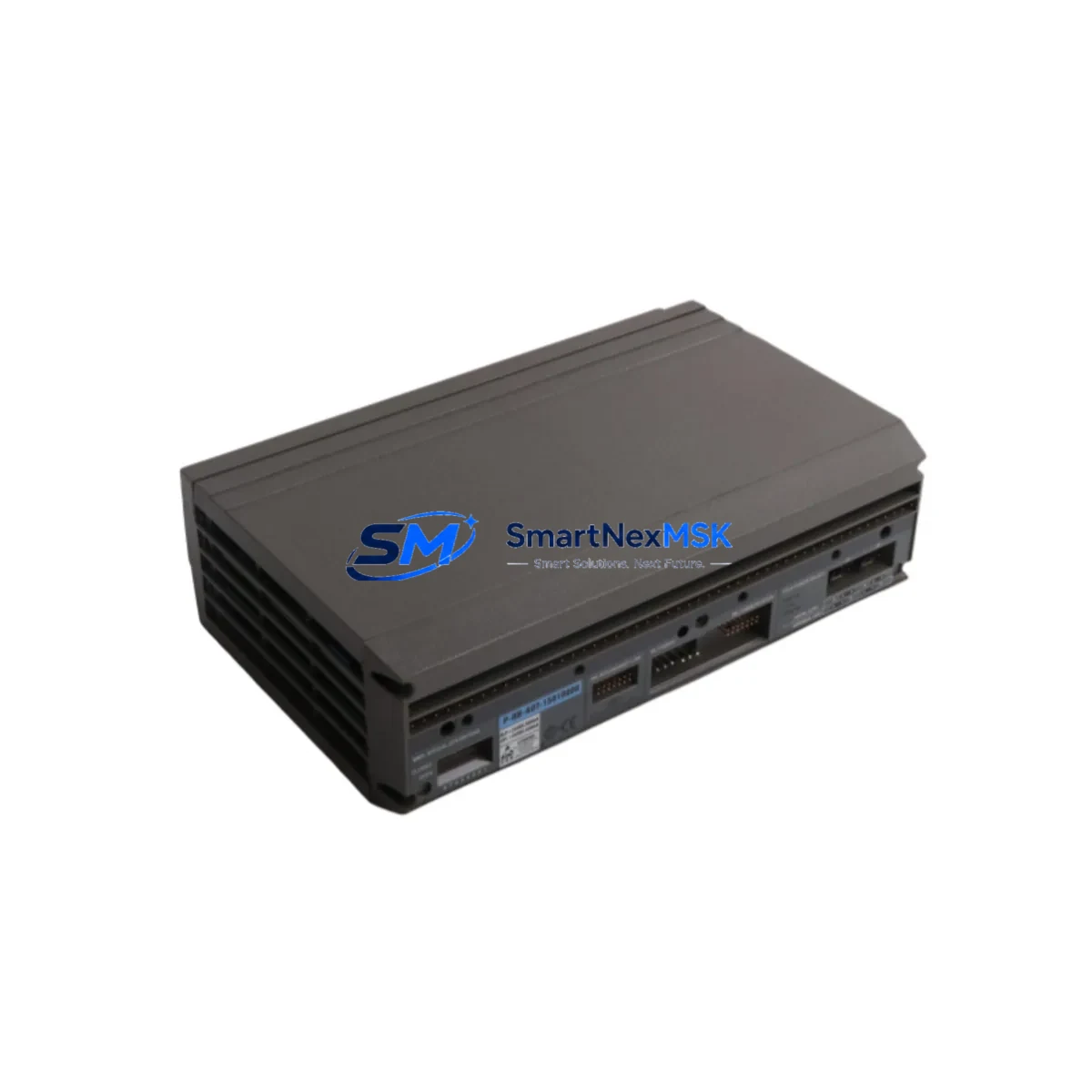

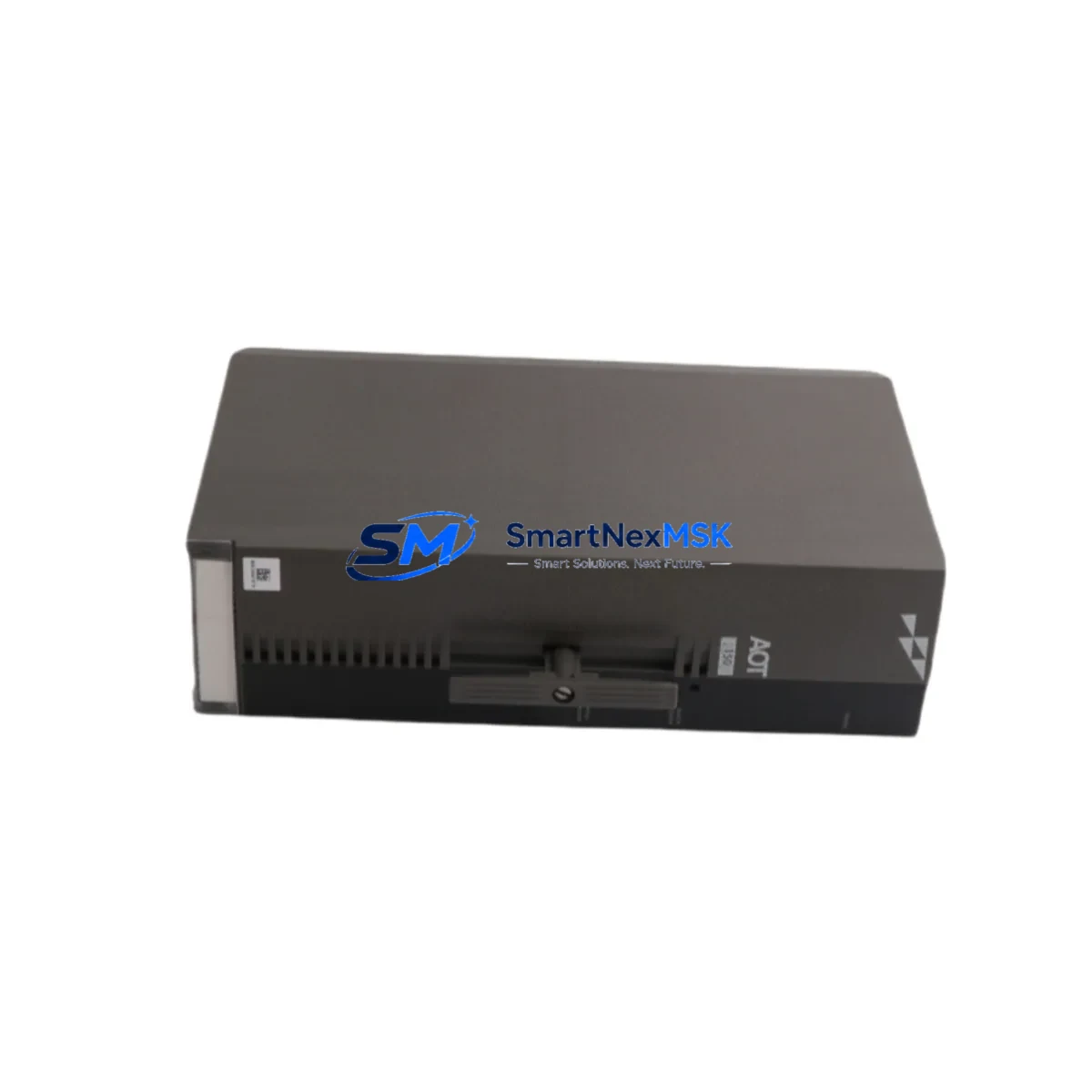

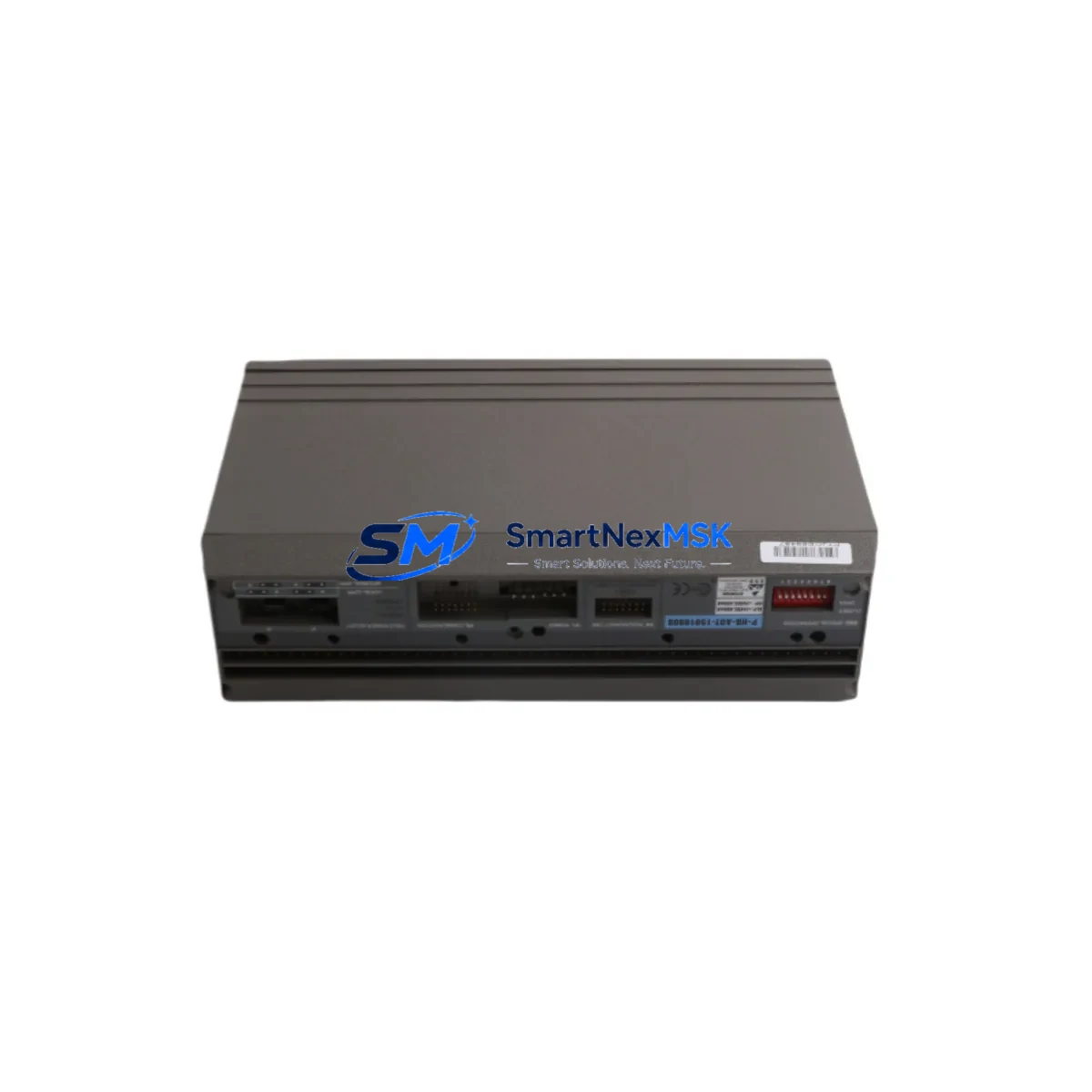

ABB P-HB-AOT-15010000 Retrofit-Ready Analog Output for Harmony HB Control Systems
The ABB P-HB-AOT-15010000 (also referenced as PHBAOT15010000) is a DCS analog output module engineered for the ABB Harmony HB distributed control system platform. As legacy Harmony HB installations approach end-of-life support cycles, this module serves as the primary retrofit solution for facilities seeking to extend operational continuity without committing to a full platform migration. Whether you are replacing a failed output card in a running process unit, upgrading a control cabinet to meet revised I/O specifications, or consolidating spare-parts inventory ahead of a planned turnaround, the P-HB-AOT-15010000 delivers verified drop-in compatibility with existing Harmony HB backplane architectures.
Industrial sites operating ABB Harmony HB systems frequently encounter the challenge of sourcing discontinued output modules on short notice. The P-HB-AOT-15010000 addresses this directly: units are pre-tested against ABB factory acceptance criteria, carry a 12-month warranty covering both hardware defects and functional performance, and ship from verified stock with full traceability documentation. For procurement teams managing critical spares budgets, this eliminates the lead-time risk associated with new-build orders and the quality uncertainty of unverified surplus channels.
When integrating the P-HB-AOT-15010000 into an existing control cabinet, engineers should confirm the following before installation: available power budget on the Harmony HB power supply module (typically the P-HB-PS-xxx series), backplane slot assignment and module address configuration via the Harmony HB engineering workstation, terminal block wiring compatibility with existing field cable schedules (4–20 mA loop wiring, HART signal integrity), and the firmware revision of the Harmony HB controller card seated in the same rack. In multi-rack configurations using the Harmony HB I/O bus expander, verify that the rack address DIP switch settings do not conflict with existing module assignments.
For sites running ABB System 800xA as the supervisory layer over a Harmony HB I/O subsystem, the P-HB-AOT-15010000 integrates without requiring changes to the 800xA control structure or OPC DA/UA server configuration. HMI faceplates referencing the analog output channel will continue to function normally once the replacement module is seated and the channel is re-commissioned through the Harmony HB field bus diagnostic tool. Engineers performing the swap should document the existing channel scaling parameters (engineering units, range limits, fault-state output value) from the Harmony HB configuration database before removing the original module.
Upgrade Compatibility Table
| Parameter | Detail |
|---|---|
| Module SKU | P-HB-AOT-15010000 / PHBAOT15010000 |
| Platform Compatibility | ABB Harmony HB DCS |
| Module Type | Analog Output (Transmitter) |
| Signal Type | 4–20 mA (HART-compatible) |
| Backplane Interface | Harmony HB I/O backplane (direct slot insertion) |
| Installation Requirement | Confirm slot address and power budget before insertion |
| Communication Compatibility | Harmony HB field bus; compatible with System 800xA supervisory layer |
| Replacement Recommendation | Direct replacement for failed or end-of-life P-HB-AOT-15010000 units |
| Commissioning Notes | Re-enter channel scaling via Harmony HB engineering workstation post-swap |
| Warranty | 12 months — hardware defects and functional performance |
| Origin | Germany (DE) |
| Testing | Pre-shipment functional test against ABB factory acceptance criteria |
Retrofit Planning for Existing Automation Systems
A successful retrofit of the P-HB-AOT-15010000 into an aging Harmony HB control system requires a structured approach that accounts for the interdependencies between hardware, firmware, and process control logic. Begin by auditing the existing rack configuration: identify the Harmony HB controller module (P-HB-CTL series), the power supply module capacity, and the current I/O map as documented in the Harmony HB project database. If the site uses a Harmony HB redundant controller pair, confirm that the redundancy synchronization link is healthy before initiating any module swap.
Terminal block wiring is a common source of delay during analog output retrofits. The P-HB-AOT-15010000 uses the standard Harmony HB marshalling terminal block, which should be verified against the existing field cable schedule. In older installations, terminal blocks may have been re-labeled or re-wired during previous modifications; cross-reference the as-built drawings against the physical wiring before disconnecting any field loops. For HART-enabled field devices connected to this output channel — such as control valves, positioners, or variable-speed drives with HART interfaces — confirm that the HART pass-through configuration in the Harmony HB module is preserved after replacement.
Sites that have migrated their supervisory layer from the legacy Harmony HB operator station to ABB System 800xA, or that are running a mixed environment with both the Harmony HB engineering workstation and a modern DCS console, should pay particular attention to the module address assignment. The Harmony HB I/O bus uses a fixed addressing scheme; inserting the replacement module into the correct physical slot is necessary but not sufficient — the address must also be confirmed in the Harmony HB configuration tool and reconciled with the 800xA aspect system if applicable.
For facilities planning a phased migration from Harmony HB to a newer ABB platform such as ABB Ability System 800xA with AC800M controllers, the P-HB-AOT-15010000 provides a cost-effective bridge solution. Rather than replacing the entire I/O subsystem immediately, engineering teams can maintain the existing Harmony HB I/O backplane and power supply infrastructure while upgrading the controller layer incrementally. This approach reduces capital expenditure and allows process engineers to validate the new control logic against the existing field instrumentation before committing to a full cutover. Companion modules commonly required in this scenario include the Harmony HB analog input module (P-HB-AIT series), the Harmony HB digital output module (P-HB-DOT series), the Harmony HB communication interface module for Modbus or PROFIBUS migration, and the Harmony HB rack termination panel for field wiring consolidation.
Downtime Control During System Migration
Minimizing unplanned downtime during a Harmony HB analog output module replacement requires preparation that begins well before the maintenance window. The most effective strategy is to pre-configure the replacement P-HB-AOT-15010000 offline using a spare Harmony HB backplane or a bench test fixture, loading the channel configuration — including engineering unit scaling, output range, fault-state value, and HART device tag — before the module enters the live control cabinet. This reduces the in-cabinet commissioning time to slot insertion, wiring verification, and a functional loop check.
For processes that cannot tolerate even brief interruptions to the analog output signal, consider placing the affected control loop in manual mode at the DCS console before removing the original module. Document the current output value and any active interlocks or permissives associated with the channel. After inserting the P-HB-AOT-15010000 and confirming the channel is live, ramp the output back to the documented value before returning the loop to automatic control. This procedure protects the original program logic — no changes to the Harmony HB control strategy are required for a like-for-like module replacement.
In multi-loop control cabinets where the P-HB-AOT-15010000 shares a rack with other critical I/O modules — such as the Harmony HB analog input modules serving flow, pressure, or temperature transmitters — ensure that the rack power supply is not interrupted during the swap. The Harmony HB backplane supports hot-swap insertion on most firmware revisions; confirm this capability with the site’s Harmony HB firmware version documentation before proceeding without a full rack power-down. After reinsertion, use the Harmony HB diagnostic display or the 800xA hardware health monitor to confirm the module status is “OK” and that no channel faults are reported before releasing the loop to automatic operation.
Retrofit Support FAQ
Q: Is the P-HB-AOT-15010000 a direct drop-in replacement for the original ABB Harmony HB analog output module?
A: Yes. The P-HB-AOT-15010000 is designed for direct slot-for-slot replacement within the Harmony HB I/O backplane. No mechanical modifications to the rack or cabinet are required. Channel configuration parameters must be re-entered via the Harmony HB engineering workstation after installation, as these are stored in the module’s non-volatile memory and will reflect factory defaults on a new unit.
Q: What commissioning steps are required after installing the replacement module?
A: After physical installation, connect to the Harmony HB engineering workstation and navigate to the I/O configuration for the affected rack slot. Verify the module address, re-enter channel scaling parameters (4–20 mA range, engineering units, fault-state output), and confirm HART device tag assignments if applicable. Perform a loop check by commanding a known output value from the DCS and verifying the corresponding signal at the field device. Document the commissioning result in the site’s maintenance management system.
Q: Can this module be used in a Harmony HB system that has been integrated with ABB System 800xA?
A: Yes. The P-HB-AOT-15010000 is fully compatible with Harmony HB installations operating under System 800xA supervision. The 800xA aspect system recognizes the module through the existing Harmony HB I/O bus interface; no changes to the 800xA control structure, OPC server configuration, or HMI faceplates are required for a like-for-like replacement.
Q: What does the 12-month warranty cover, and what is the process for a warranty claim?
A: The 12-month warranty covers hardware defects and functional performance failures under normal operating conditions consistent with ABB Harmony HB system specifications. Units are pre-tested prior to shipment. In the event of a warranty claim, contact our technical support team with the module serial number, installation date, and a description of the fault. Replacement or repair will be coordinated with minimum lead time to support your site’s operational continuity requirements.
