ABB P-HB-DOT-12010000 Safety Digital Output for Harsh Sites

ABB P-HB-DOT-12010000 Safety Digital Output for Harsh Industrial Sites

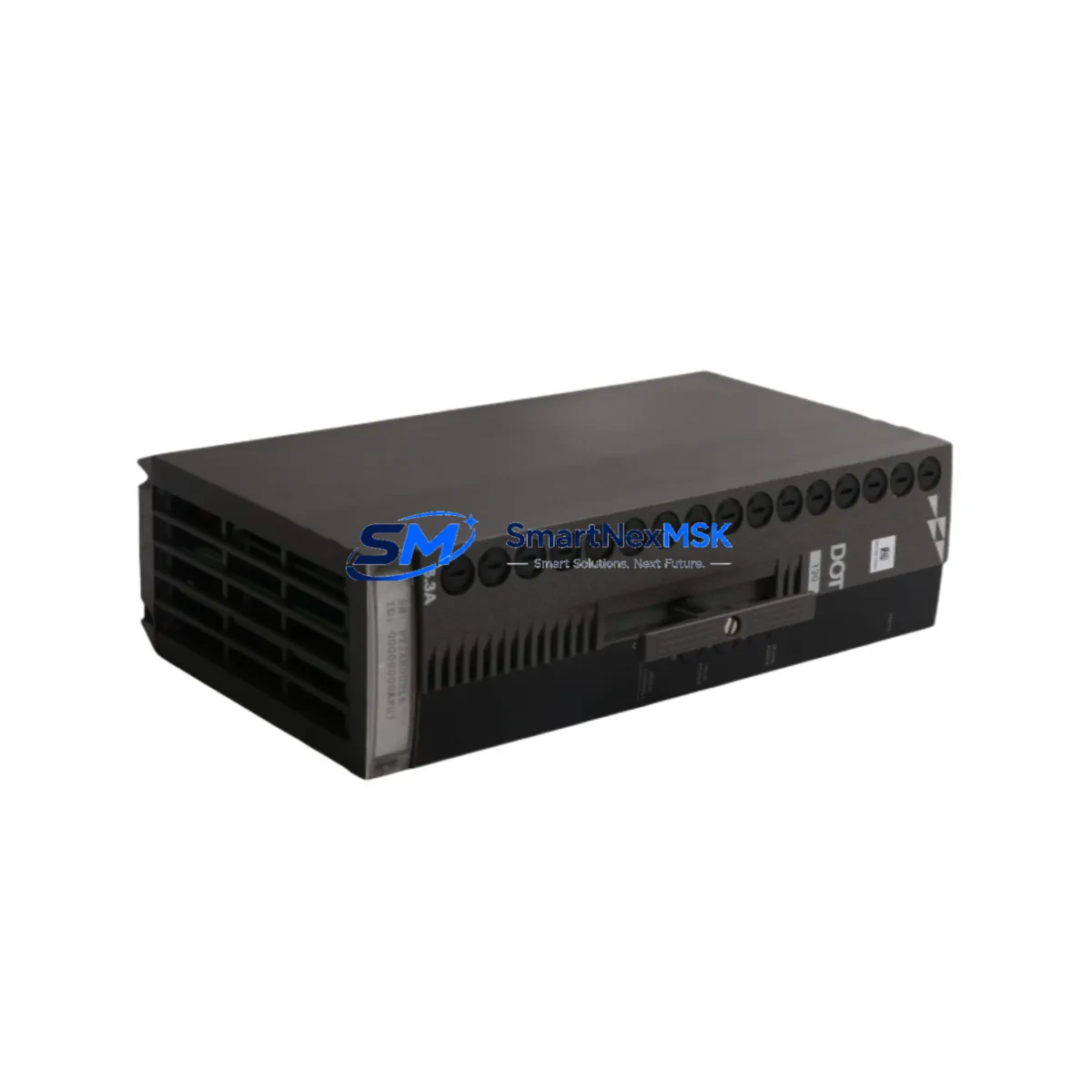

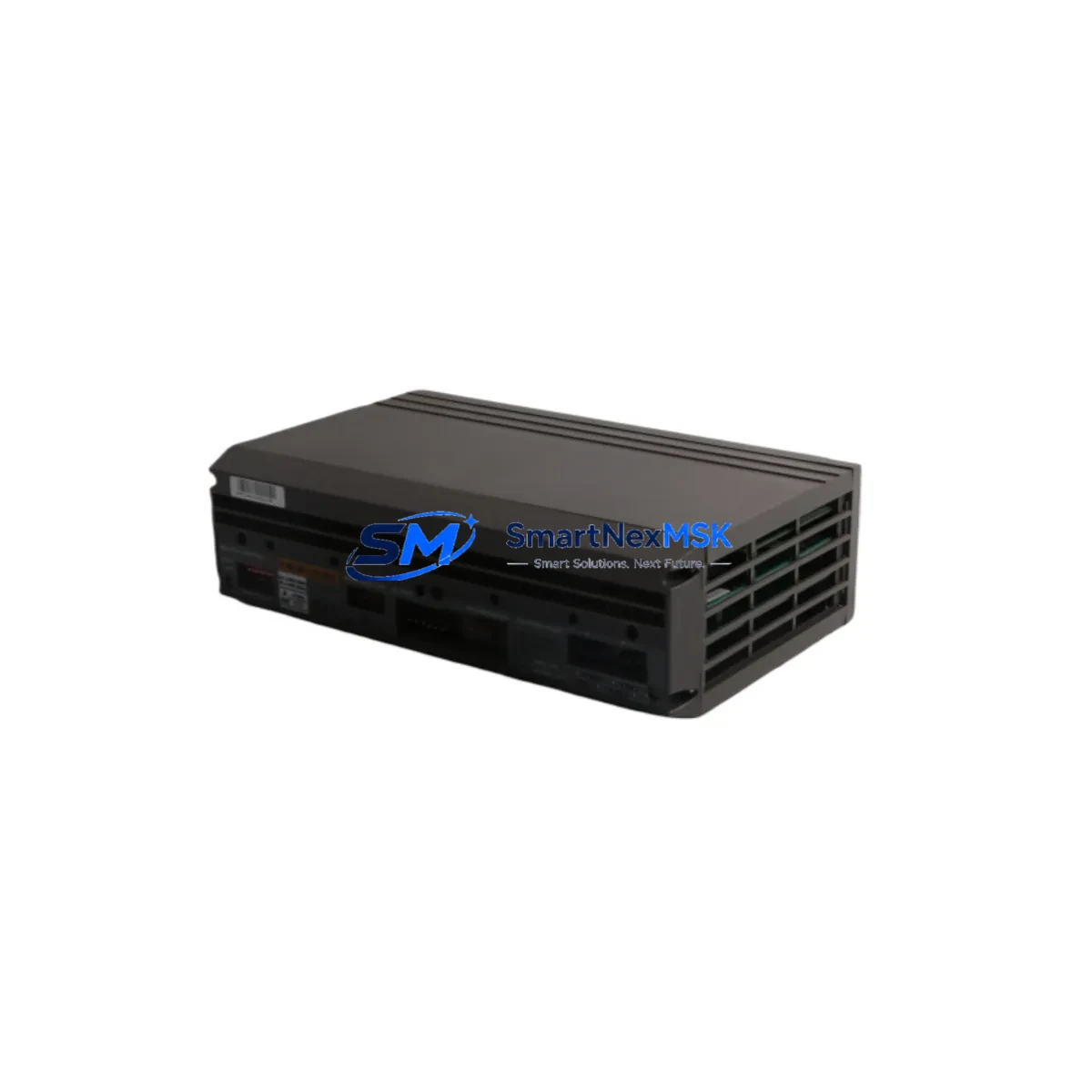

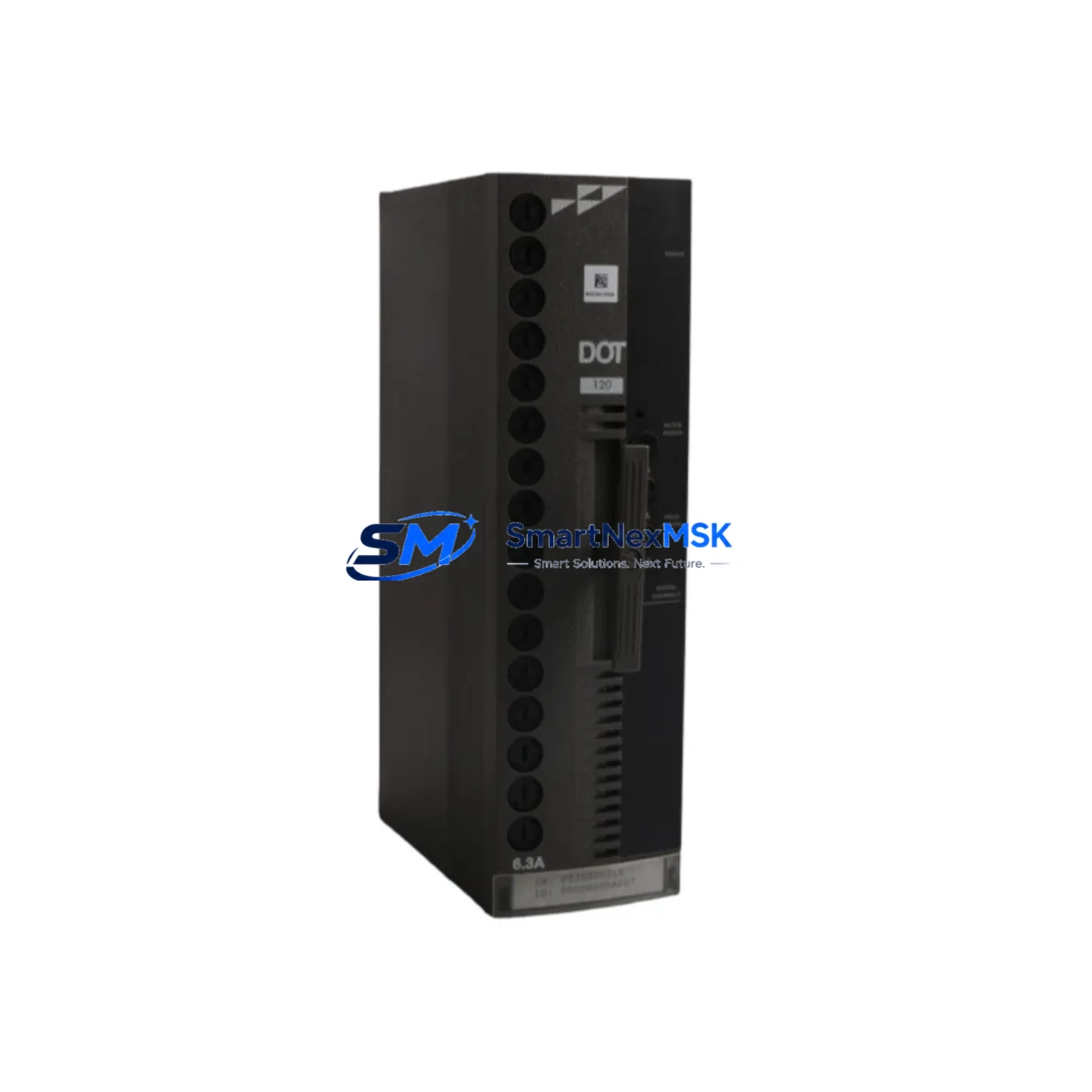

The ABB P-HB-DOT-12010000 is a 12-channel, 24 VDC Safety Digital Output Module engineered for the AC500-S Safety PLC platform. Certified to IEC 61508 SIL 3 and EN ISO 13849-1 PLe / Cat. 4, it is purpose-built for mission-critical control loops where output integrity, surge immunity, and continuous availability are non-negotiable. Whether deployed in petrochemical emergency shutdown systems, power-plant turbine protection, mining conveyor interlocks, or water-treatment dosing control, this module delivers the deterministic, fault-tolerant switching performance that harsh industrial environments demand.

Safety Reliability Table

Control Cabinet Protection Strategy

In a high-integrity safety control cabinet, the P-HB-DOT-12010000 does not operate in isolation — it is the final switching element in a layered protection architecture. Its 12 output channels are typically driven by an ABB AC500-S PM564-TP-ETH Safety CPU, which executes the safety application program and monitors the module’s internal diagnostics via the backplane bus. Upstream, a redundant ABB CP600 HMI panel or SCADA gateway provides operator visibility into output states and trip logs.

Power integrity is critical. The module’s 24 VDC supply rail is commonly conditioned by an ABB CP-E 24/10.0 TRIO power supply paired with a CP-UPS 24/5.0 buffer module, ensuring that transient voltage dips — common in heavy motor-start environments — do not cause spurious output de-energisation. A CP-DCF 24/10.0 DC/DC filter module further attenuates conducted emissions before they reach the safety backplane.

On the input side, the ABB P-HB-DIT-08010000 Safety Digital Input Module captures field-device feedback signals — emergency-stop buttons, gate switches, and pressure-switch contacts — and feeds them into the same safety CPU that commands the P-HB-DOT-12010000 outputs. This closed-loop architecture enables cross-monitoring between input states and output responses, a requirement for SIL 3 proof-test automation.

For installations requiring analogue process variables alongside digital safety switching, the ABB P-HB-AOT-04010000 Safety Analogue Output Module and P-HB-AIT-08010000 Safety Analogue Input Module share the same AC500-S backplane, allowing a single safety CPU to manage both continuous control and discrete interlock functions without gateway latency. Communication to the plant DCS or safety instrumented system (SIS) is handled through an ABB AC500 CM579-PNIO PROFINET I/O coupler or a CM577-ETH Modbus TCP communication module, both of which support redundant ring topologies to eliminate single-point network failures.

Surge protection at the field-wiring terminals is provided by Phoenix Contact PTME 24DC-ST surge arresters or equivalent DIN-rail transient voltage suppressors, clamping inductive load kickback and lightning-induced surges before they reach the module’s output drivers. This is especially important in outdoor substations, port crane control panels, and open-pit mining switchrooms where cable runs exceed 100 m and are exposed to high electromagnetic interference.

Critical Industrial Safety Applications

Petrochemical & Refinery ESD: The P-HB-DOT-12010000 is widely deployed in emergency shutdown (ESD) and fire-and-gas (F&G) systems at refineries and LNG terminals. Its SIL 3 rating satisfies IEC 61511 requirements for final elements in high-demand safety instrumented functions (SIFs), such as de-energising solenoid valves on high-pressure hydrocarbon lines or tripping compressor motor contactors on high-vibration alarm.

Electric Power Generation & Transmission: In turbine protection panels and generator excitation control cabinets, the module’s high diagnostic coverage and low probability of dangerous failure on demand (PFDavg) make it suitable for over-speed trip outputs and transformer differential protection relay interfaces. Its wide operating temperature range supports both air-conditioned control rooms and outdoor switchgear kiosks.

Mining & Mineral Processing: Conveyor belt interlock systems, crusher overload protection, and hoisting machine safety circuits in underground and open-cut mines rely on deterministic output switching. The module’s vibration and shock resistance ratings ensure reliable operation despite the continuous mechanical stress of mining environments.

Water & Wastewater Treatment: Chemical dosing pump enable/disable outputs, UV disinfection system interlocks, and high-level overflow prevention circuits in water treatment plants benefit from the module’s corrosion-resistant design and long proof-test intervals, reducing the maintenance burden on remote, unmanned installations.

Metallurgy & Steel Production: In continuous casting lines and rolling mill control systems, where high-current motor drives generate intense electromagnetic interference, the module’s IEC 61000-4-5 Level 4 surge immunity and IEC 61000-4-4 Level 4 fast transient immunity prevent nuisance trips and protect the safety function integrity of hydraulic press interlock circuits.

Port & Material Handling: Ship-to-shore crane anti-collision systems, automated stacker-reclaimer interlocks, and bulk-material conveyor emergency stops in port terminals operate in salt-laden, high-humidity environments. The module’s IP20 rating combined with a sealed IP54 enclosure strategy, and its −25 °C cold-start capability, ensure year-round operational readiness in coastal climates.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. It includes free replacement or repair of the module. Damage caused by incorrect wiring, overvoltage beyond rated limits, or physical mishandling is excluded. Warranty claims are processed within 5 business days upon receipt of the returned unit.

Q2: What pre-shipment testing is performed on each unit?
Every P-HB-DOT-12010000 unit undergoes a full functional test on an AC500-S test rig before dispatch. This includes channel-by-channel output switching verification, insulation resistance measurement, and a 24-hour burn-in cycle to screen for infant-mortality failures. A test report is available upon request.

Q3: Is this module compatible with existing AC500 (non-safety) installations?
The P-HB-DOT-12010000 is designed exclusively for the AC500-S Safety PLC backplane and requires an AC500-S PM5xx Safety CPU to operate. It cannot be used as a standard I/O module on a non-safety AC500 CPU. However, AC500-S systems can be integrated alongside standard AC500 CPUs via the backplane bus, allowing mixed safety and standard I/O in the same control cabinet.

Q4: Can long-term supply and spare-part availability be guaranteed?
We maintain dedicated safety-module inventory to support both new project builds and ongoing spare-part requirements. Stock levels are reviewed quarterly, and we can provide scheduled delivery commitments for volume orders. For end-of-life or discontinued variants, we offer cross-reference support and compatible replacement recommendations to minimise retrofit engineering effort.
