ABB P-HC-BRC-40000000 Retrofit-Ready Bridge Controller for AC500 Control Systems

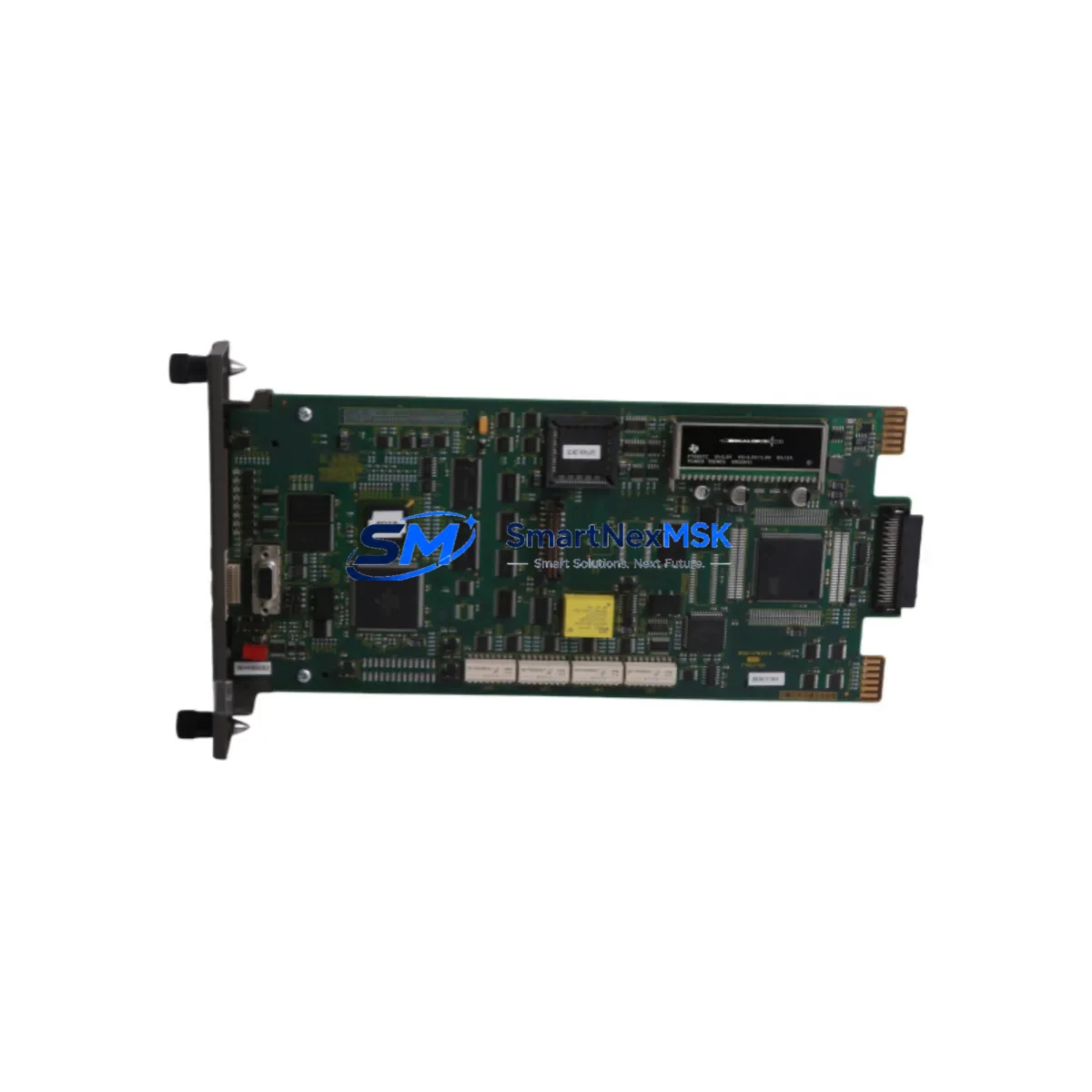

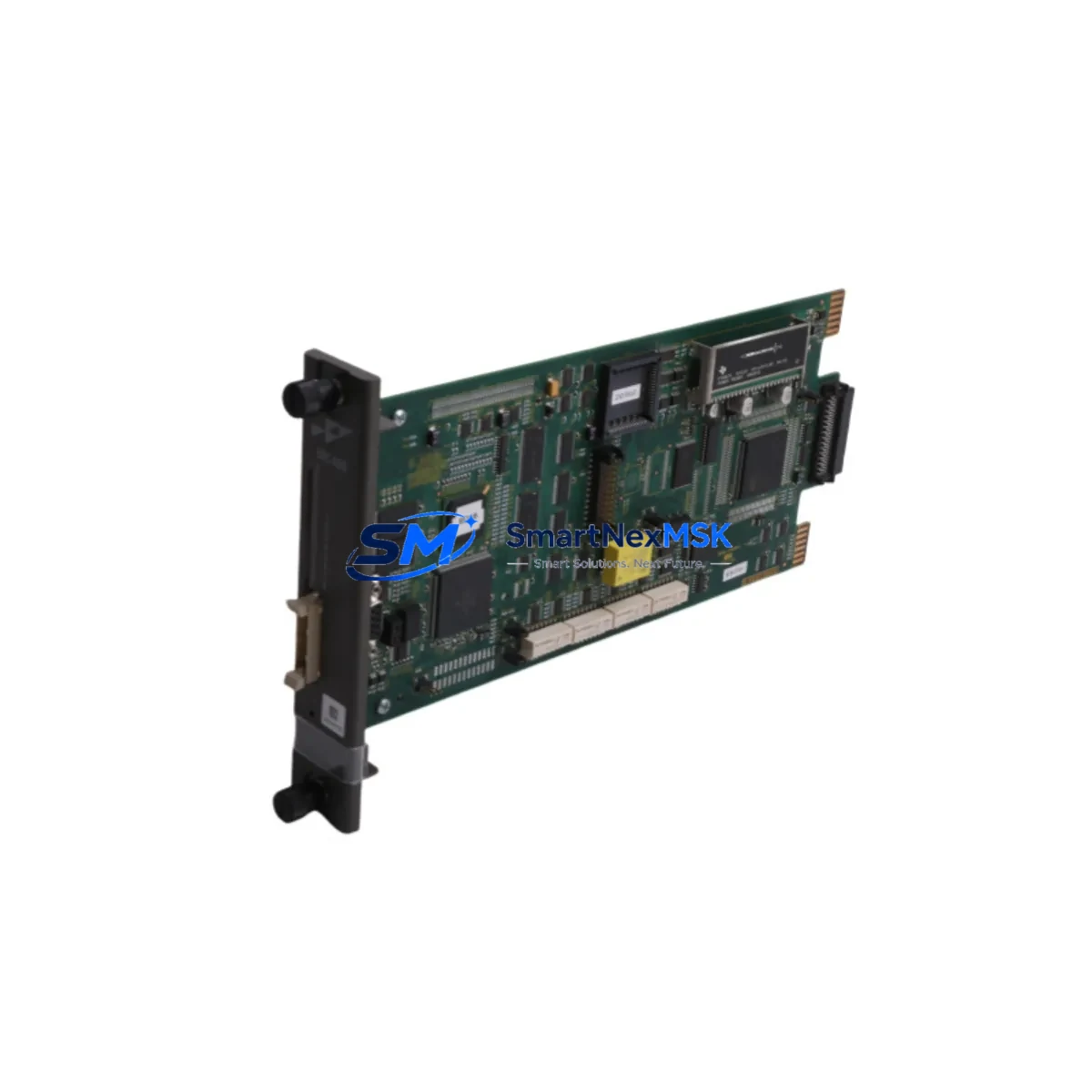

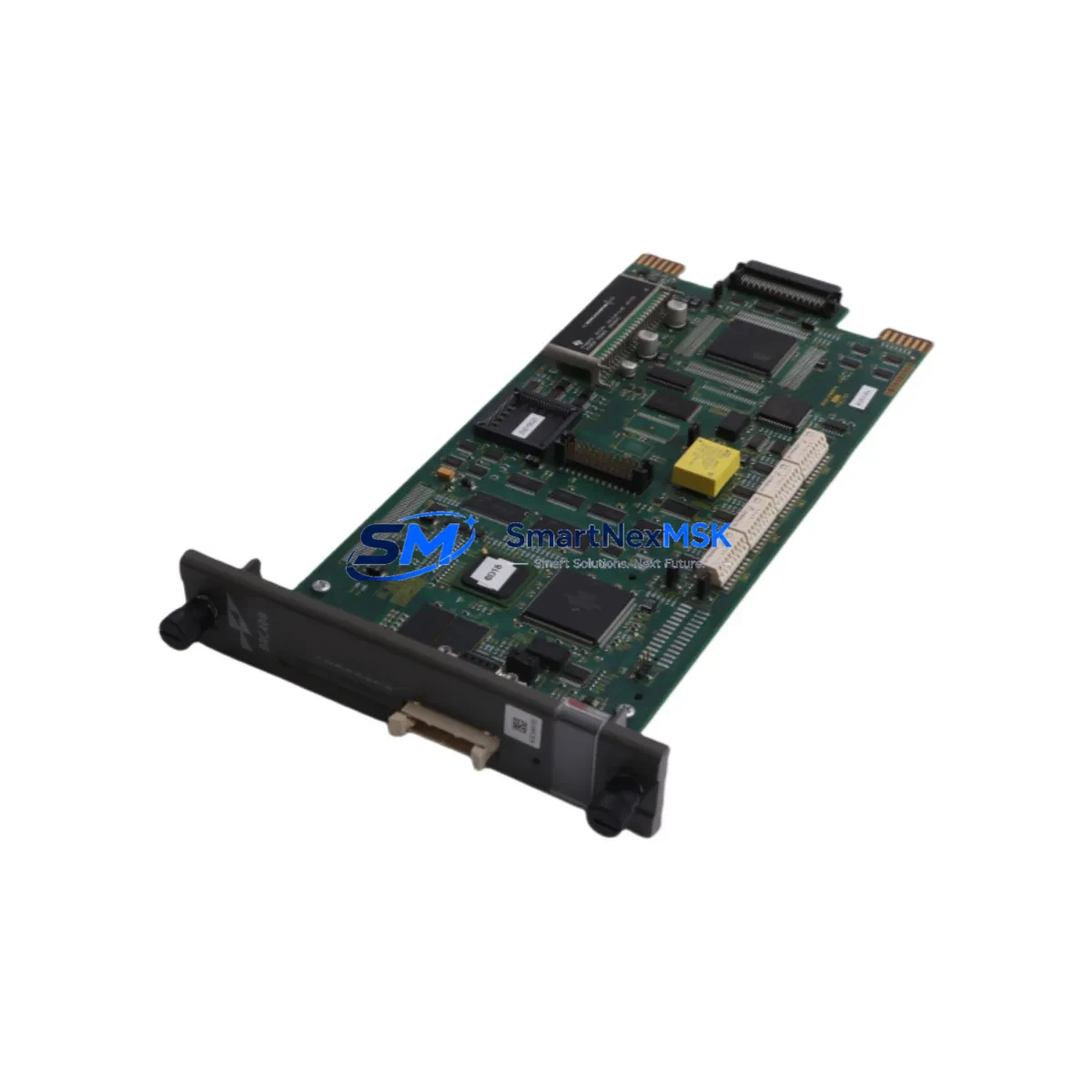

The ABB P-HC-BRC-40000000 is a high-performance bridge controller module designed for the AC500 PLC platform, purpose-built to support seamless retrofit, legacy system modernization, and control cabinet upgrades in demanding industrial environments. Whether you are replacing an end-of-life communication gateway, migrating from an older fieldbus topology, or expanding I/O capacity across a distributed control architecture, the P-HC-BRC-40000000 delivers the compatibility, reliability, and protocol flexibility that industrial engineers require.

This module serves as a critical interface layer within the AC500 ecosystem, bridging communication between the central processing unit and field-level devices. It is fully compatible with the AC500 backplane and standard TB5xx terminal base family, allowing direct installation without mechanical modification to existing control cabinets. Engineers replacing obsolete bridge or coupler modules from earlier AC500 generations will find the P-HC-BRC-40000000 a validated drop-in solution, subject to firmware version alignment and rack address verification during commissioning.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit using the P-HC-BRC-40000000 begins with a thorough audit of the existing control architecture. Engineers should document the current rack layout, including the positions of the PM5xx CPU module, any installed SM5xx signal modules, and the TB5xx terminal bases in use. Power supply capacity must be verified — the PS5xx power supply module feeding the rack must provide sufficient headroom for the bridge controller’s current draw, particularly in high-density I/O configurations where multiple SM560 or SM560-S modules are installed in the same rack.

Terminal wiring compatibility is a key checkpoint. In most AC500 retrofit scenarios, the existing field wiring connected to the TB5xx terminal base can be retained without modification, significantly reducing downtime. However, engineers should cross-reference the original wiring diagram against the new module’s terminal assignment to confirm signal polarity, shielding continuity, and ground reference integrity.

For systems migrating from PROFIBUS DP to Modbus TCP or Ethernet-based communication, the P-HC-BRC-40000000 supports protocol bridging that allows the existing PROFIBUS field devices — such as remote I/O stations, variable frequency drives, and intelligent motor controllers — to remain operational during a phased migration. This eliminates the need for a full cutover and allows the control program running on the PM5xx CPU to be updated incrementally.

HMI screen updates are often overlooked during retrofit planning. When the bridge controller is replaced or upgraded, tag addresses and communication driver configurations in the CP600 or CP620 HMI panels must be reviewed. Any tag linked to a module address that has changed due to rack reconfiguration will require remapping in the HMI project before the system is returned to service. Programming cable connectivity — typically via the TK501 USB programming cable or Ethernet — should be confirmed prior to on-site commissioning to allow real-time program monitoring and online modification.

I/O expansion during the retrofit is straightforward: additional SM5xx digital or analog signal modules can be inserted into available rack slots without disrupting the existing I/O configuration, provided the CPU firmware supports the expanded I/O count and the PS5xx power supply is sized accordingly.

Downtime Control During System Migration

Minimizing production downtime is the primary concern for any control system retrofit. The P-HC-BRC-40000000 supports a structured hot-swap preparation approach: before physical module replacement, the existing control program should be exported and archived from the PM5xx CPU using Automation Builder software. This preserves the full program logic, variable declarations, and communication configurations as a recovery baseline.

Where process conditions allow, a parallel commissioning strategy is recommended — the new bridge controller is configured and tested on a bench rack using the same TB5xx terminal base and a spare PS5xx power supply before the scheduled maintenance window. This allows engineers to validate communication link establishment, I/O scan cycle times, and protocol handshake behavior without impacting the live production line.

During the actual cutover, field control continuity can be maintained by placing the CPU in a controlled stop state, swapping the module, restoring the archived program, and performing a cold restart. Total replacement time for a prepared team is typically under 30 minutes. Post-restart, the communication link to downstream PROFIBUS or Modbus devices should be verified through the diagnostic buffer in Automation Builder, and all HMI alarm states should be acknowledged and cleared before returning the system to automatic mode.

All units supplied by SMARTNEXMSK are pre-tested under load conditions prior to shipment, with functional verification of communication ports, backplane interface, and power consumption. This pre-shipment testing protocol significantly reduces the risk of commissioning failures and supports the 12-month warranty coverage provided on every unit.

Retrofit Support FAQ

Q1: Is the P-HC-BRC-40000000 a direct replacement for older AC500 bridge modules?
In most AC500 retrofit scenarios, yes. The module uses the standard AC500 backplane interface and TB5xx terminal base, making it mechanically and electrically compatible with existing rack installations. Firmware version alignment on the PM5xx CPU should be confirmed — ABB recommends firmware V2.x or later for full feature compatibility. If the existing CPU firmware is below this threshold, a firmware update via Automation Builder is recommended before module replacement.

Q2: What wiring changes are required during installation?
In standard retrofit applications, no field wiring changes are required. The existing terminal connections on the TB5xx base are retained. Engineers should verify terminal assignment against the new module’s datasheet and confirm that shielding and ground references are intact. For systems migrating to a new communication protocol, additional network cabling (e.g., Ethernet patch cable for Modbus TCP) may be required at the control cabinet level.

Q3: How is communication compatibility verified before go-live?
Communication link verification is performed through the Automation Builder diagnostic interface. After module installation and program restore, engineers should confirm that all configured PROFIBUS DP slaves or Modbus TCP nodes appear online in the network scan. I/O force testing on representative digital and analog channels is recommended to validate end-to-end signal integrity before releasing the system to automatic control.

Q4: What does the 12-month warranty cover?
Every P-HC-BRC-40000000 unit supplied by SMARTNEXMSK is covered by a 12-month warranty from the date of shipment. The warranty covers manufacturing defects, communication port failures, and backplane interface faults identified under normal operating conditions. Units are pre-tested prior to shipment to minimize field failures. In the event of a warranty claim, SMARTNEXMSK provides advance replacement support to minimize production downtime.
