ABB PCD230 A101 3BHE022291R0101 Retrofit-Ready DCS Module for AC800M

ABB PCD230 A101 3BHE022291R0101 Retrofit-Ready DCS Module for AC800M: Compatible Modernization and Smooth System Upgrade

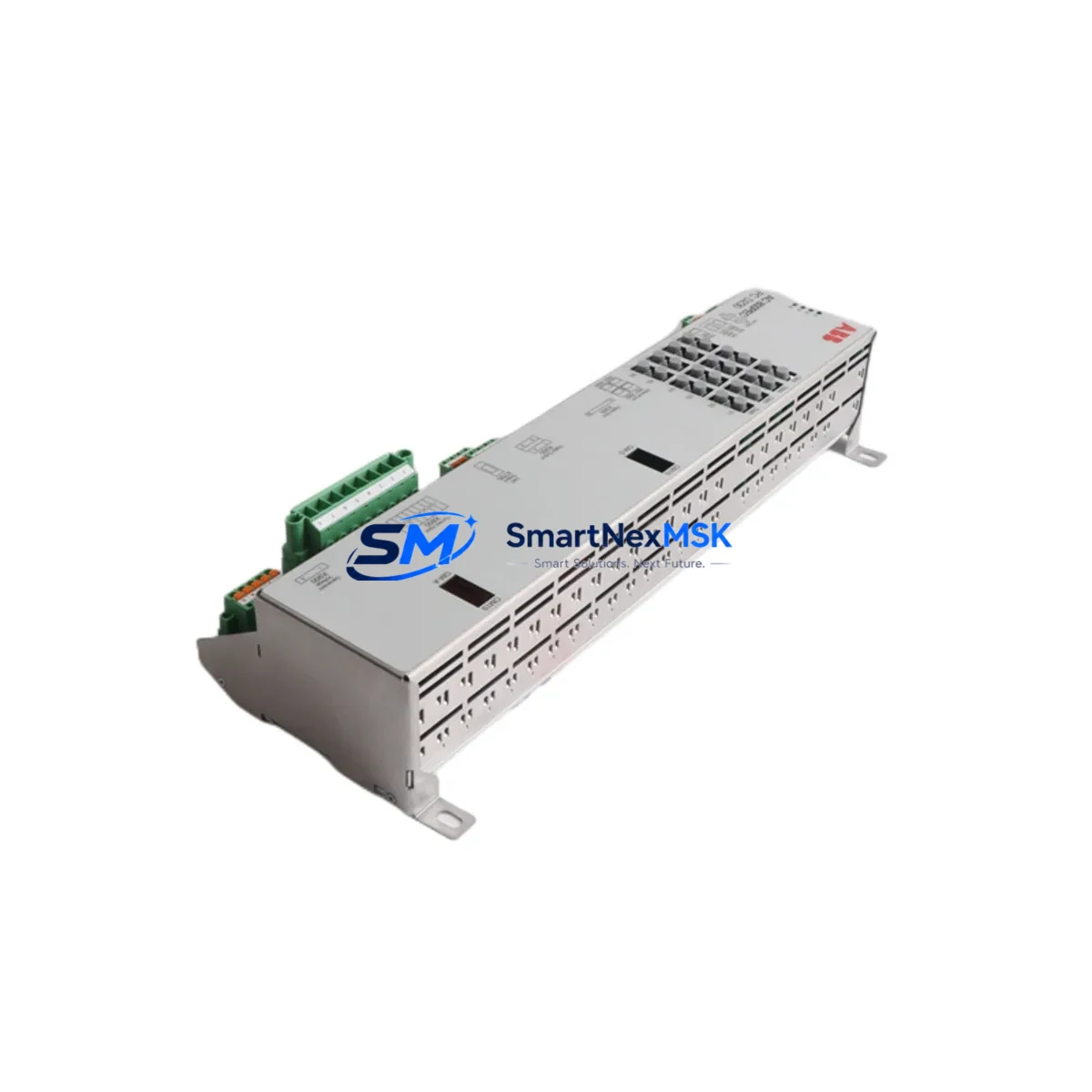

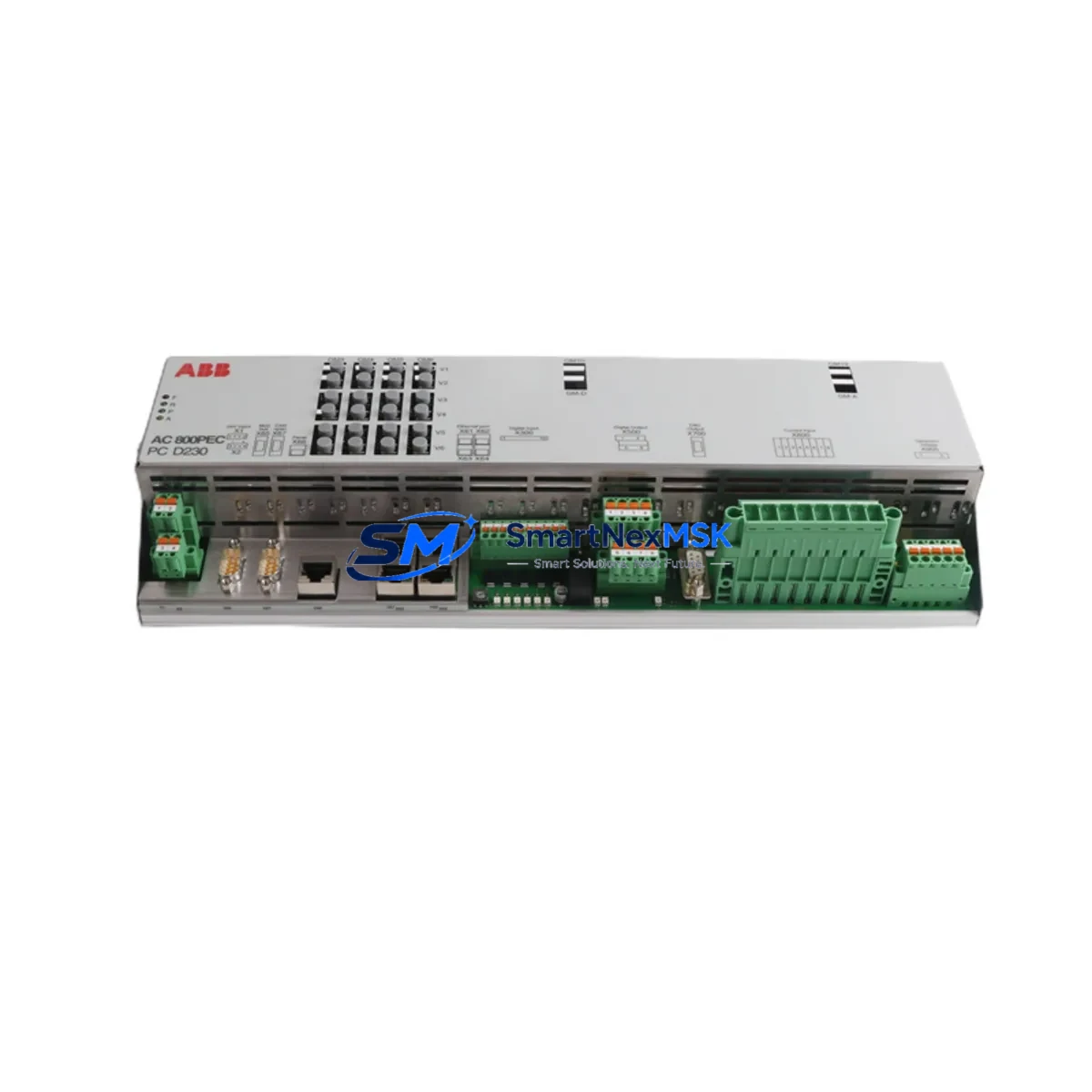

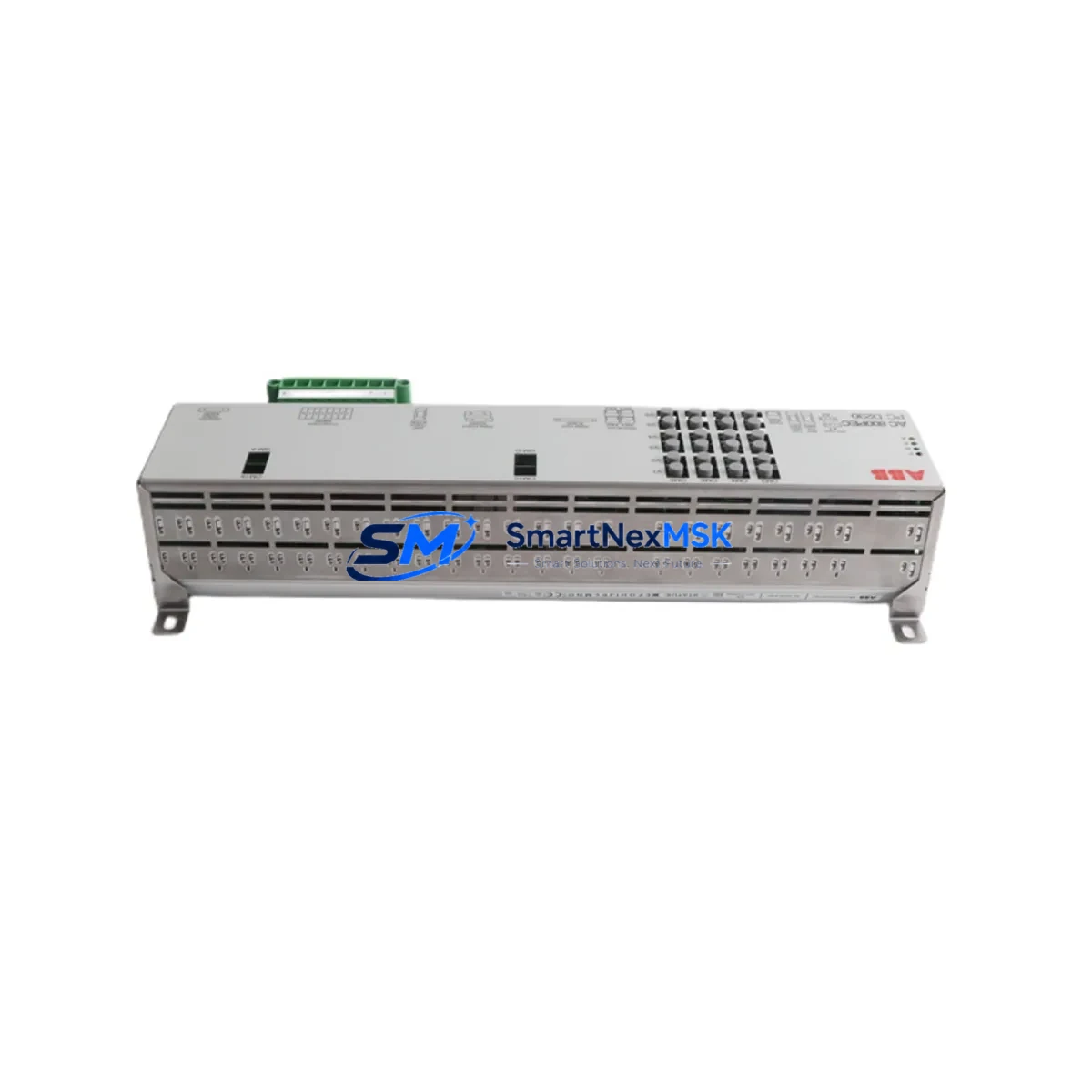

The ABB PCD230 A101 (part number 3BHE022291R0101) is a processor communication module designed for the ABB AC800M Distributed Control System platform — one of the most widely deployed DCS architectures in power generation, oil & gas, chemical processing, and heavy industrial automation. As legacy AC800M installations age and original ABB spare parts become increasingly difficult to source, the PCD230 A101 has become a critical retrofit component for engineers tasked with maintaining control system continuity without full platform migration.

This module serves as a direct replacement for end-of-life or failed PCD230 units within existing AC800M controller cabinets. It interfaces with the PM861, PM864, and PM866 processor modules via the standard AC800M backplane, maintaining full compatibility with the S800 I/O bus architecture. When planning a retrofit, engineers must verify the backplane slot assignment, confirm the module address configuration matches the original installation, and ensure the firmware revision on the replacement unit is compatible with the running Control Builder M project version.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful retrofit of the PCD230 A101 into an operating AC800M system requires a structured pre-migration checklist. Before removing the failed module, document the existing slot position, module address, and all terminal wiring connections. In most AC800M cabinet configurations, the PCD230 is mounted adjacent to the PM864 or PM866 processor module and shares the internal backplane with communication interface modules such as the CI854 PROFIBUS DP interface or the CI857 FOUNDATION Fieldbus HSE link module. These communication modules must remain powered and undisturbed during the PCD230 swap to avoid dropping the fieldbus segment.

Power supply integrity is a prerequisite for any module replacement. The AC800M cabinet typically draws regulated 24 VDC from an SD821 or SD822 power supply unit. Before the swap, verify that the power supply output voltage is within specification and that the total current draw — including all installed S800 I/O modules such as AI810 analog input, AO810V analog output, DI810 digital input, and DO810 digital output modules — does not exceed the supply’s rated capacity after the new PCD230 is installed.

For systems that include remote I/O racks connected via the S800 I/O bus, confirm that the TB820 ModuleBus Modem or TB840 ModuleBus Optical Port is correctly addressed and that the optical fiber or copper link to the remote rack remains intact. Any interruption to the ModuleBus during the retrofit window will cause the remote I/O modules to go into fault state, which may trigger process alarms or safety interlocks depending on the application.

HMI integration must also be validated post-replacement. If the plant uses an ABB 800xA System or a third-party SCADA connected via OPC DA/UA, verify that all tag references bound to the PCD230’s communication channels are correctly resolved after the module is re-initialized. In some installations, the HMI graphic screens reference specific module slot addresses; a slot change during retrofit will require corresponding updates in the HMI project database.

For older AC800M installations that include a TP830 Test Panel or a programming cable connection to the PM861 processor, ensure the Control Builder M engineering station can establish a live connection to the controller after the PCD230 is replaced. Run a full I/O force test on critical analog and digital channels before returning the system to automatic control.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern when replacing a PCD230 A101 in a live production environment. The recommended approach is to perform a controlled shutdown of the affected controller partition rather than a full cabinet power-off, where the AC800M architecture and process safety requirements permit. This preserves the program state in the PM864 or PM866 processor’s non-volatile memory and allows a faster restart after the module swap.

Before initiating the shutdown, back up the current Control Builder M project to the engineering workstation and export the current I/O diagnostic log. This provides a baseline for post-swap verification and protects against configuration loss if the processor module requires a cold restart. If the system is running a redundant controller configuration with a paired PM866 processor, the redundancy switchover function can be used to transfer control to the standby controller before the primary cabinet is taken offline, reducing process impact to near zero.

After installing the replacement PCD230 A101, power up the cabinet in sequence — power supply first, then processor module, then communication and I/O modules. Allow the AC800M to complete its self-diagnostic cycle before downloading the Control Builder M project. Verify all I/O module status LEDs indicate normal operation, confirm fieldbus communication links are re-established on the CI854 or CI857 interface, and perform a channel-by-channel verification against the pre-shutdown I/O log before releasing the system to process control.

All units supplied by SMARTNEXMSK undergo functional burn-in testing and communication link verification prior to shipment, reducing the risk of commissioning failures on site and supporting the goal of single-shift retrofit completion.

Retrofit Support FAQ

Q1: Is the PCD230 A101 (3BHE022291R0101) a direct drop-in replacement for the original module in my AC800M cabinet?
Yes. The PCD230 A101 is designed for direct slot-for-slot replacement within the AC800M backplane. No hardware modification to the cabinet or backplane is required. After installation, restore the module address configuration to match the original and reload the Control Builder M project to resume normal operation.

Q2: What commissioning steps are required after replacing the PCD230 A101?
After physical installation, power up the cabinet in the correct sequence and allow the AC800M self-diagnostic to complete. Download the backed-up Control Builder M project to the PM864 or PM866 processor, verify all S800 I/O module statuses, confirm fieldbus communication on the CI854 PROFIBUS or CI857 FF interface, and validate HMI tag binding before returning to automatic control. A channel-level I/O force test is recommended for critical process loops.

Q3: How do I verify wiring and terminal compatibility before the swap?
Document all terminal connections on the existing PCD230 before removal, referencing the original cabinet wiring diagram. The PCD230 A101 uses the standard AC800M backplane connector — no field wiring is directly terminated on this module. Field wiring connects to the S800 I/O modules (AI810, DI810, AO810, DO810) via their respective terminal units, which remain undisturbed during the PCD230 replacement.

Q4: What does the 12-month warranty cover, and is pre-shipment testing included?
Every PCD230 A101 unit supplied by SMARTNEXMSK is functionally tested and communication-verified before shipment. The 12-month warranty covers hardware defects and functional failures under normal operating conditions. Units are shipped with test documentation. For urgent retrofit projects, expedited shipping and pre-sales technical consultation are available — contact sales@smartnexmsk.com or call +86 18259474341.
