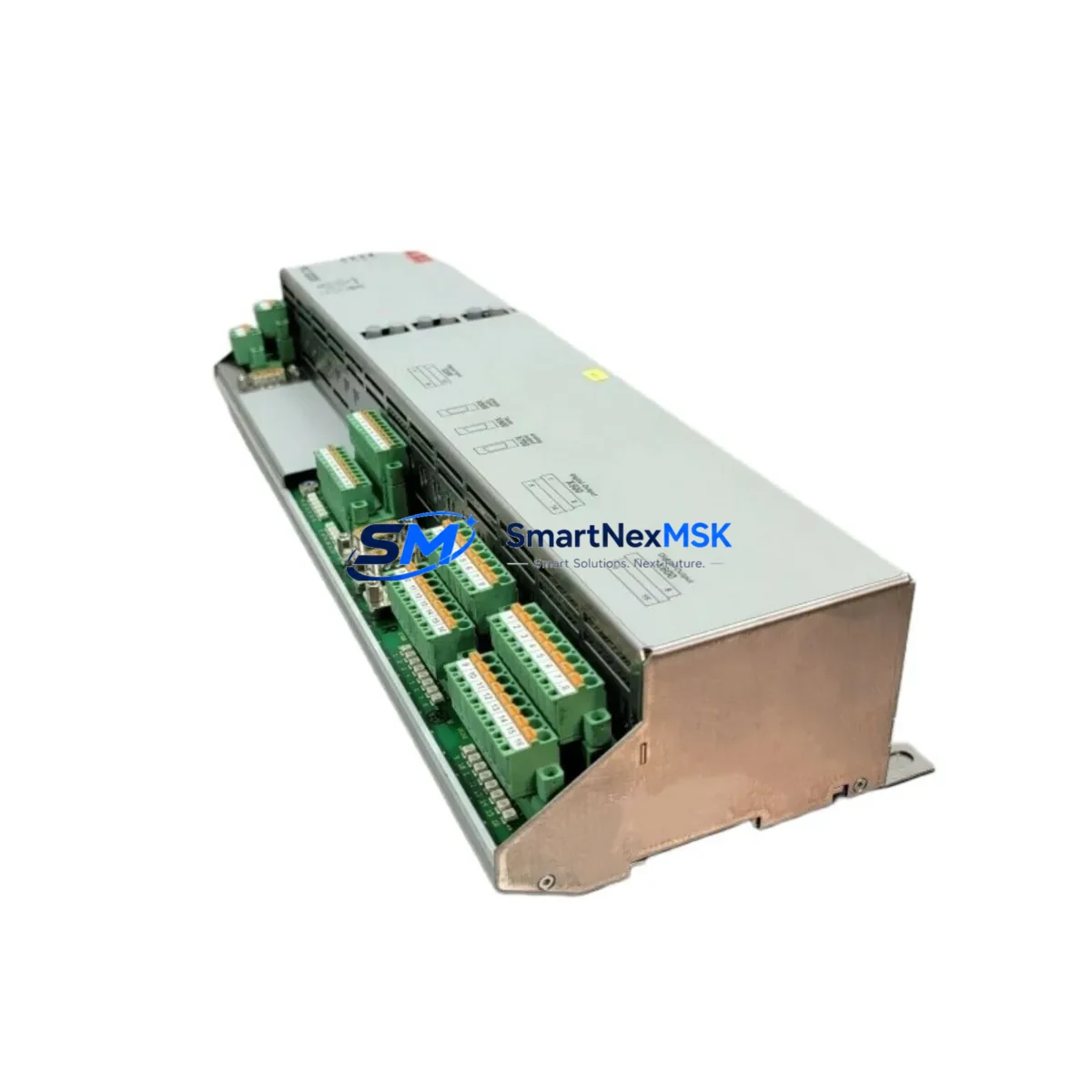

ABB PCD231 3BHE025541R0101 Safety-Enhanced DCS I/O Module for Harsh Industrial Sites
The ABB PCD231 3BHE025541R0101 is a high-reliability digital I/O module engineered for the ABB AC800M Distributed Control System platform. Designed to operate continuously in demanding industrial environments — including petrochemical plants, power generation facilities, metallurgical smelters, mining operations, and water treatment infrastructure — this module delivers the signal integrity, electrical isolation, and fault tolerance that safety-critical control loops demand. Whether installed in a main control cabinet, a remote I/O enclosure, or a safety interlock panel, the PCD231 3BHE025541R0101 maintains deterministic I/O response under conditions of high electromagnetic interference, wide temperature swings, and sustained vibration.
Industrial automation systems operating in continuous-process environments cannot tolerate unplanned downtime. A single I/O module failure can cascade into a full process shutdown, triggering safety system activation, production loss, and potential hazardous conditions. The ABB PCD231 3BHE025541R0101 addresses this risk through robust hardware design: reinforced PCB conformal coating for moisture and corrosive-gas resistance, wide-range DC power input tolerance to absorb voltage fluctuations from shared power rails, and galvanic channel isolation to prevent ground-loop faults from propagating across the control network. These characteristics make it a preferred replacement and spare-parts choice for AC800M-based DCS installations worldwide.
Safety Reliability Table
| Parameter | Specification / Rating |
|---|---|
| Part Number | PCD231 / 3BHE025541R0101 |
| Compatible Platform | ABB AC800M DCS |
| Module Type | Digital I/O Module |
| Country of Origin | Germany (DE) |
| Operating Temperature | 0°C to +55°C (storage: -40°C to +70°C) |
| Relative Humidity | 5% to 95% non-condensing |
| EMC / EMI Protection | IEC 61000-4 series compliant; high-immunity design |
| Channel Isolation | Galvanic isolation between field and logic circuits |
| Surge / Transient Protection | Built-in TVS protection on field-side terminals |
| Power Supply Tolerance | Wide-range DC input; tolerates ±15% rail variation |
| Vibration Resistance | IEC 60068-2-6 compliant |
| Conformal Coating | Yes — moisture and corrosive-gas resistant PCB coating |
| Backplane Interface | AC800M S800 I/O bus |
| Hot-Swap / Online Replacement | Supported (with AC800M redundancy configuration) |
| Warranty | 12 Months — covers manufacturing defects and functional failure |
| Pre-Shipment Testing | Full functional test performed before dispatch |
| Stock Status | In Stock — ready for immediate shipment |
Control Cabinet Protection Strategy
In a well-engineered AC800M control cabinet, the PCD231 3BHE025541R0101 does not operate in isolation — it functions as part of a coordinated protection architecture. Upstream, a dedicated ABB SD831 3BSC610065R1 or SD832A 3BSC610066R1 power supply module conditions the 24 VDC rail, ensuring that voltage sags, inrush events, and load transients from field devices do not reach the I/O backplane. The ABB TB820V2 3BSE013208R1 ModuleBus Modem provides the communication backbone between the AC800M controller and remote S800 I/O stations, and its signal integrity directly determines whether the PCD231’s channel data reaches the controller without latency or corruption.
For applications where the PCD231 3BHE025541R0101 feeds signals into a safety interlock or emergency shutdown (ESD) loop, it is commonly paired with an ABB PM866K01 3BSE050198R1 controller module configured in redundant CPU mode, ensuring that a single processor fault does not interrupt the safety function. In high-vibration environments such as compressor halls or mining headframes, the ABB CI854AK01 3BSE030220R1 PROFIBUS DP communication interface is often installed alongside the PCD231 to extend the control network to remote field junction boxes, reducing the number of individual cable runs that could be damaged by mechanical stress.
Surge protection at the field terminal level is equally critical. Industrial sites with long cable runs — common in petrochemical tank farms or open-pit mining operations — expose I/O modules to induced transients from lightning strikes and large motor switching events. Installing Phoenix Contact TRABTECH or equivalent DIN-rail surge protection devices on the field wiring terminals upstream of the PCD231 significantly extends module service life and prevents nuisance channel failures. On the communication side, the ABB CI840A 3BSE041882R1 PROFINET I/O adapter can be used to integrate the AC800M system with higher-level SCADA or MES platforms, while the PCD231 continues to handle deterministic field I/O at the process level.
For redundant I/O configurations in critical interlock applications, the ABB AI830A 3BSE040662R1 analog input module and ABB DI810 3BSE008508R1 digital input module are frequently deployed in the same cabinet as the PCD231, forming a complete mixed I/O assembly. Maintaining a documented spare-parts inventory that includes the PCD231 3BHE025541R0101 alongside these companion modules ensures that any single-module failure can be resolved within one shift, minimizing mean time to repair (MTTR) and protecting production continuity.
Critical Industrial Safety Applications
Petrochemical and Refinery Plants: In hydrocarbon processing facilities, the ABB PCD231 3BHE025541R0101 is deployed in burner management systems (BMS), compressor anti-surge control loops, and high-integrity pressure protection systems (HIPPS). Its galvanic isolation and surge-hardened field terminals prevent ground faults originating from intrinsically safe field instruments from corrupting the control logic, a failure mode that can trigger spurious shutdowns or — more critically — mask a genuine process hazard.
Power Generation and Grid Substations: Thermal and hydroelectric power stations rely on AC800M-based DCS platforms for turbine governor control, boiler drum level regulation, and generator excitation management. The PCD231’s wide operating temperature range and EMI immunity make it suitable for installation in generator control rooms where high-frequency switching noise from power electronics is endemic. Its deterministic I/O scan time supports the tight control loop timing required for frequency regulation and load-following applications.
Mining and Mineral Processing: Underground and surface mining operations subject control equipment to extreme dust ingress, mechanical vibration, and wide ambient temperature variation. The PCD231 3BHE025541R0101’s conformal-coated PCB and robust backplane connector withstand these conditions reliably, making it a standard spare for conveyor drive control panels, crusher automation systems, and flotation cell process controllers in copper, gold, and iron ore processing plants.
Water and Wastewater Treatment: Municipal and industrial water treatment facilities operate continuously, with no scheduled downtime windows. The PCD231 supports pump station automation, chemical dosing control, and filtration system sequencing in environments with high ambient humidity and chemical vapors. Its 12-month warranty and pre-tested stock availability mean that a replacement module can be sourced and installed rapidly, restoring normal operation without extended procurement delays.
Metallurgy and Steel Production: Electric arc furnace (EAF) and continuous casting operations generate severe electromagnetic disturbances from high-current bus bars and induction heating systems. The PCD231’s EMC-hardened design maintains signal accuracy in these environments, supporting ladle tracking, mold level control, and cooling water flow monitoring — all of which are safety-critical functions in steel production.
Safety and Quality FAQ
Q1: What does the 12-month warranty cover for the ABB PCD231 3BHE025541R0101?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions. If the module fails to perform its specified I/O functions within the warranty period, we will provide a replacement unit or full refund. The warranty period begins from the date of shipment and applies to the specific serial number supplied.
Q2: How is the PCD231 3BHE025541R0101 tested before shipment?
Every unit undergoes a full functional test prior to dispatch. This includes power-on verification, backplane communication check, channel continuity testing, and visual inspection for physical damage. Test records are retained and can be provided upon request for quality audit purposes.
Q3: Is the PCD231 3BHE025541R0101 compatible with all AC800M controller revisions?
The PCD231 3BHE025541R0101 is designed for the ABB AC800M S800 I/O platform and is compatible with standard AC800M controller revisions that support the S800 ModuleBus architecture. For specific firmware compatibility questions related to your installed controller version, please contact our technical team with your PM8xx controller part number and firmware revision.
Q4: Can you guarantee long-term supply availability for ongoing maintenance contracts?
Yes. We maintain dedicated stock of the PCD231 3BHE025541R0101 and related AC800M I/O modules to support long-term maintenance and spare-parts programs. For customers with multi-year maintenance contracts or large installed bases, we offer reserved stock arrangements and priority fulfillment to ensure that critical spare parts are available when needed, without dependence on spot-market availability.
