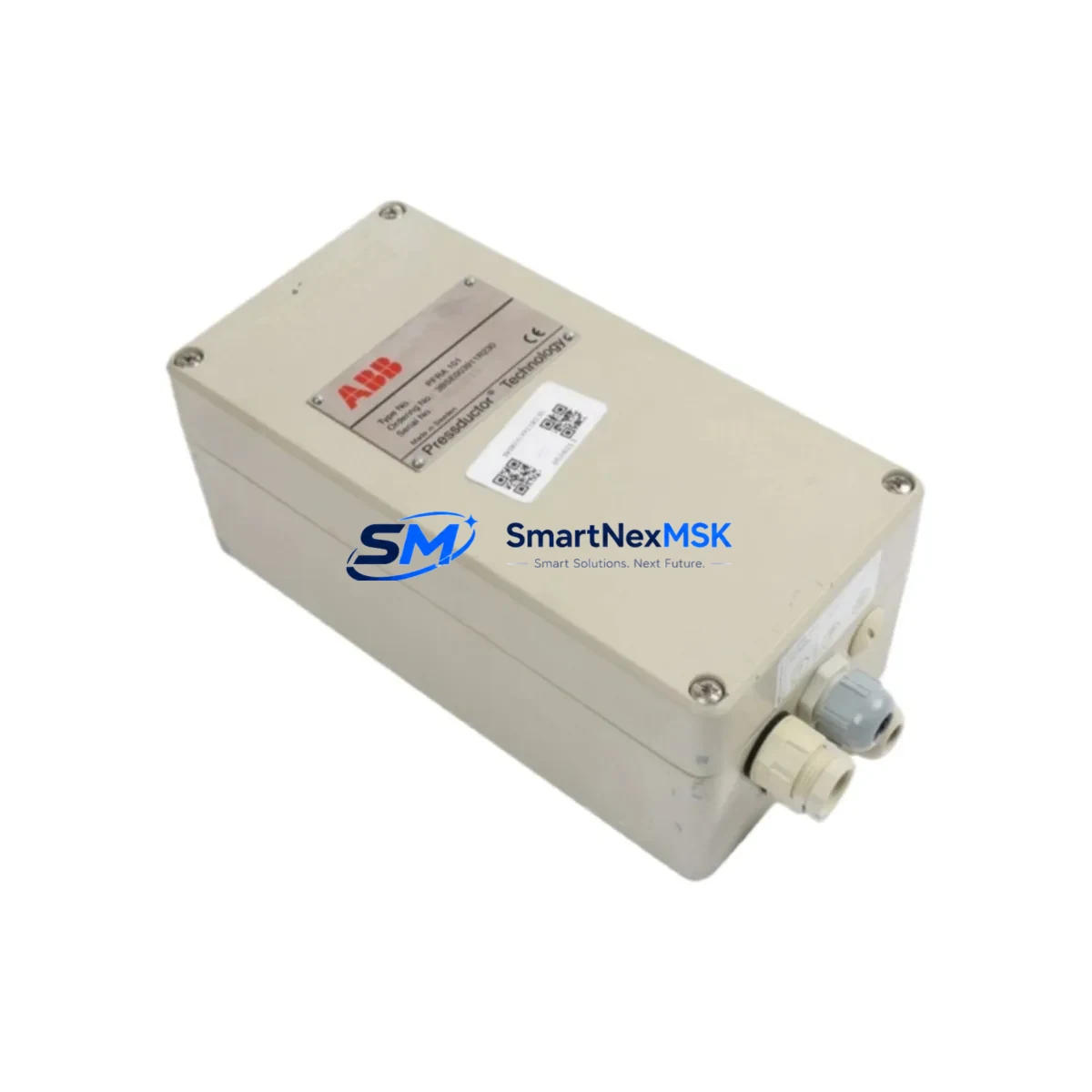

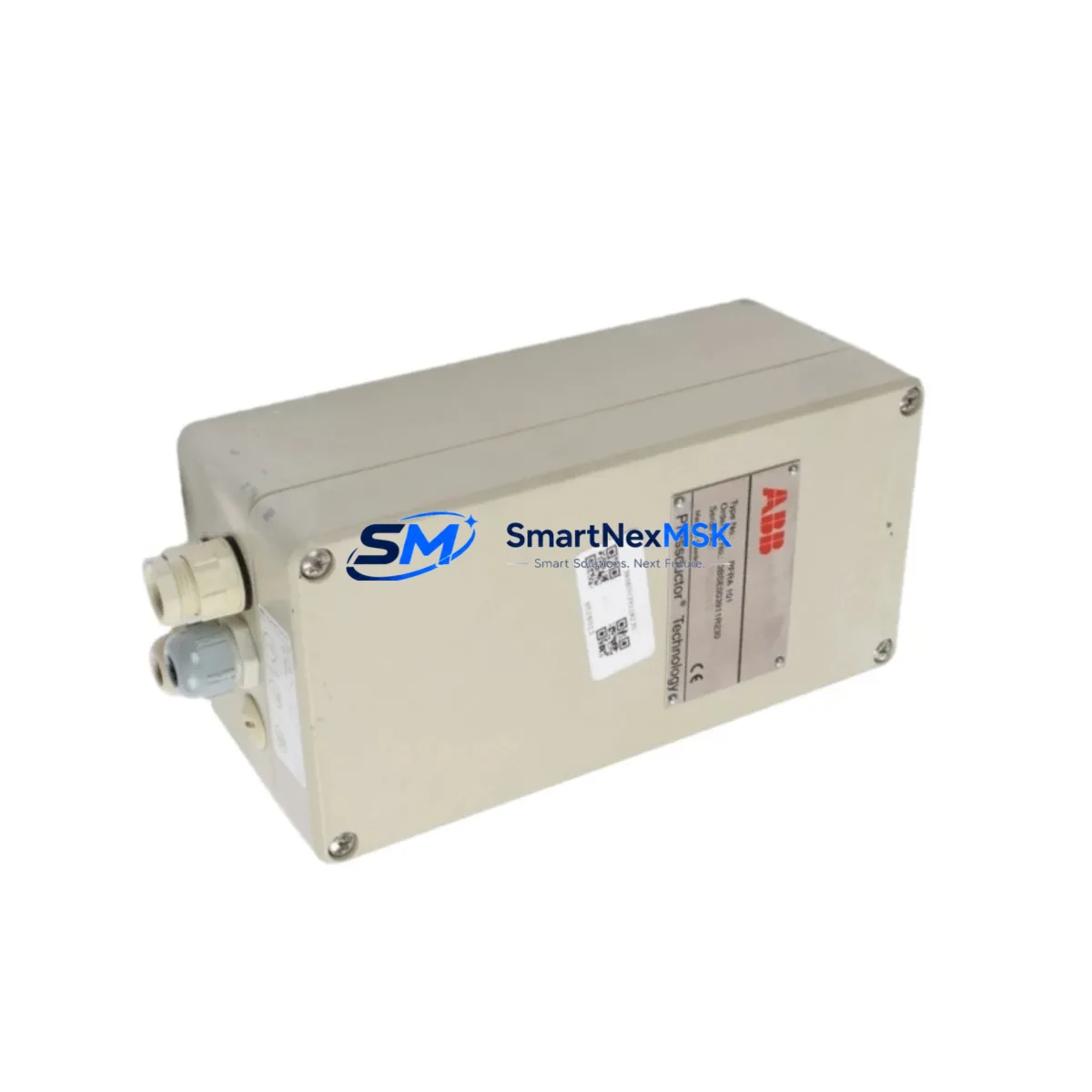

ABB PFRA101 3BSE003911R230 Safety-Enhanced DCS Controller

ABB PFRA101 3BSE003911R230 Safety-Enhanced DCS Controller for Harsh Industrial Sites

The ABB PFRA101 (3BSE003911R230) is a ruggedized, safety-enhanced DCS controller module engineered for the ABB AC800M platform — one of the most widely deployed distributed control architectures in critical process industries worldwide. Designed to operate reliably under extreme electromagnetic interference, wide temperature swings, high-vibration environments, and continuous 24/7 production loads, the PFRA101 is the backbone of control cabinet integrity in petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical complexes, port logistics systems, and continuous manufacturing lines.

In high-stakes industrial environments, a single controller failure can cascade into unplanned shutdowns, safety interlock trips, or catastrophic process deviations. The PFRA101 addresses this risk directly. Its ruggedized hardware design provides enhanced immunity to conducted and radiated EMI, making it suitable for deployment alongside high-power variable frequency drives, large motor starters, and arc-flash-prone switchgear — environments where lesser modules experience signal drift, spurious outputs, or complete communication loss. The module’s conformal-coated PCB and reinforced connector interfaces resist moisture ingress, corrosive atmospheres, and particulate contamination common in cement, mining, and offshore applications.

Within the AC800M control architecture, the PFRA101 works in close coordination with companion modules including the PM865 processor module, TB807 termination board, and CI857 PROFIBUS communication interface to form a complete, redundant control node. When paired with the SD821 power supply unit and SD822 redundant power supply, the system achieves the power stability required for safety-critical interlock loops — eliminating voltage sag events that can cause module resets or false output states. For I/O expansion in large control cabinets, the PFRA101 integrates seamlessly with AI810 analog input modules, AO810 analog output modules, and DI810 digital input modules, all communicating over the S100 I/O bus with deterministic scan times essential for process safety applications.

Communication reliability is equally critical. The PFRA101 supports integration with CI854 PROFIBUS DP master interfaces and CI801 AF100 fieldbus interfaces, enabling robust field device communication even in electrically noisy environments. Surge protection at the cabinet level — typically implemented with dedicated transient voltage suppression devices on incoming power rails — further shields the PFRA101 from lightning-induced surges and switching transients that propagate through plant cabling.

For safety instrumented system (SIS) adjacent applications, the PFRA101 is frequently deployed in the basic process control system (BPCS) layer, interfacing with dedicated safety PLCs and emergency shutdown (ESD) systems via hardwired or fieldbus connections. Its deterministic execution and high-availability design support the overall safety integrity of the control loop without requiring the module itself to be SIL-certified — a common and cost-effective architecture in petrochemical and power plant designs.

Every PFRA101 3BSE003911R230 unit supplied by SMARTNEXMSK undergoes a rigorous pre-shipment inspection protocol: visual inspection for physical damage, connector integrity verification, firmware version confirmation, and functional power-on testing. Units are shipped in anti-static packaging with full traceability documentation. A 12-month warranty covers all supplied modules against manufacturing defects and functional failures, with rapid replacement support to minimize your site’s mean time to repair (MTTR).

Long-term supply continuity is a core commitment. SMARTNEXMSK maintains dedicated inventory of ABB AC800M platform components to support both planned maintenance shutdowns and emergency spare-part requirements. Whether you are commissioning a new control system, replacing a failed module under production pressure, or building a strategic spare-parts inventory for a multi-year maintenance contract, our stock availability and technical support team are ready to respond.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust industrial control cabinet built around the PFRA101 3BSE003911R230 requires a layered protection strategy. At the power layer, the ABB SD821 24VDC power supply and its redundant companion SD822 provide clean, regulated power with automatic load sharing and failover — eliminating the single-point power failure risk that accounts for a significant proportion of unplanned DCS outages. Upstream, properly rated surge protective devices (SPDs) on incoming AC feeds prevent lightning and switching transients from reaching sensitive controller electronics.

At the I/O layer, ABB AI810 analog input modules and AO810 analog output modules provide galvanically isolated signal paths, preventing ground loops and common-mode noise from corrupting process variable readings — a critical safeguard in environments with large rotating machinery or welding operations nearby. Digital interlock signals are handled by DI810 digital input modules with configurable input filtering to reject contact bounce and induced noise pulses that could trigger false safety trips.

Communication integrity is maintained through the CI857 PROFIBUS DP interface with built-in bus termination management and error detection, while the CI801 AF100 interface supports legacy fieldbus device integration without compromising the deterministic scan performance of the PFRA101 controller. For plants with HART-enabled field instruments, the CI870 HART multiplexer interface enables non-intrusive device diagnostics without interrupting the primary 4–20 mA control loop.

Cabinet thermal management — through properly sized ventilation, filtered air intake, and temperature monitoring — completes the protection strategy, ensuring the PFRA101 operates well within its thermal envelope even during peak summer ambient conditions in tropical or desert plant locations.

Critical Industrial Safety Applications

The PFRA101 3BSE003911R230 is deployed across the most demanding process industries where control system reliability directly impacts personnel safety, environmental compliance, and production continuity.

In petrochemical and refinery applications, the module controls critical process units including distillation columns, reactor temperature loops, and compressor anti-surge systems — where a controller fault could trigger emergency shutdown sequences or, in worst cases, process upsets with safety consequences. Its EMI immunity is essential in environments saturated with high-frequency noise from variable speed drives on large pumps and compressors.

In power generation facilities — both thermal and hydroelectric — the PFRA101 manages turbine control, boiler drum level regulation, and generator excitation interfaces. The module’s hot-standby redundancy capability ensures seamless controller switchover without process bump, maintaining grid stability during maintenance activities.

In mining and mineral processing operations, the module withstands the high-vibration, dust-laden environments of crusher control rooms and concentrator plant control cabinets. Its conformal coating provides the moisture and particulate protection required in underground or open-pit mine surface facilities.

In water and wastewater treatment plants, the PFRA101 manages pump sequencing, chemical dosing control, and filtration process automation — applications where reliable, uninterrupted control directly affects public health compliance and regulatory reporting.

In metallurgical and steel plants, the module operates in the extreme thermal radiation and electromagnetic environments of electric arc furnace (EAF) control systems and rolling mill automation, where its ruggedized design provides the operational stability that standard DCS modules cannot sustain.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the PFRA101 3BSE003911R230?
The 12-month warranty covers all functional failures and manufacturing defects from the date of shipment. If a module fails under normal operating conditions within the warranty period, SMARTNEXMSK will provide a replacement unit with priority processing to minimize your site downtime. The warranty applies to the module’s core controller functions, communication interfaces, and power input circuitry.

Q2: What pre-shipment testing is performed before the module is shipped?
Every PFRA101 unit undergoes a multi-step inspection: physical condition assessment, connector pin integrity check, firmware version verification, and a power-on functional test confirming the module initializes correctly and communication interfaces respond as expected. Test results and traceability documentation are available upon request.

Q3: Is the PFRA101 3BSE003911R230 compatible with my existing AC800M system?
Yes. The PFRA101 is a standard AC800M platform module and is compatible with the full range of ABB AC800M I/O modules, communication interfaces, and power supply units. Compatibility with specific firmware versions or system configurations can be confirmed by our technical team prior to order — contact us with your system’s current firmware revision and hardware configuration for a detailed compatibility assessment.

Q4: Can SMARTNEXMSK support long-term and emergency spare-part requirements?
Yes. We maintain dedicated stock of ABB AC800M platform components including the PFRA101 and related modules to support both planned annual maintenance shutdowns and unplanned emergency replacement scenarios. For critical infrastructure operators, we recommend discussing a consignment or reserved-stock arrangement to guarantee availability when you need it most. Contact our sales team to discuss your site’s specific spare-part strategy.
