ABB PFSK 126 Safety-Enhanced Channel Control for Harsh Sites

ABB PFSK 126 Safety-Enhanced Channel Control for Harsh Industrial Sites

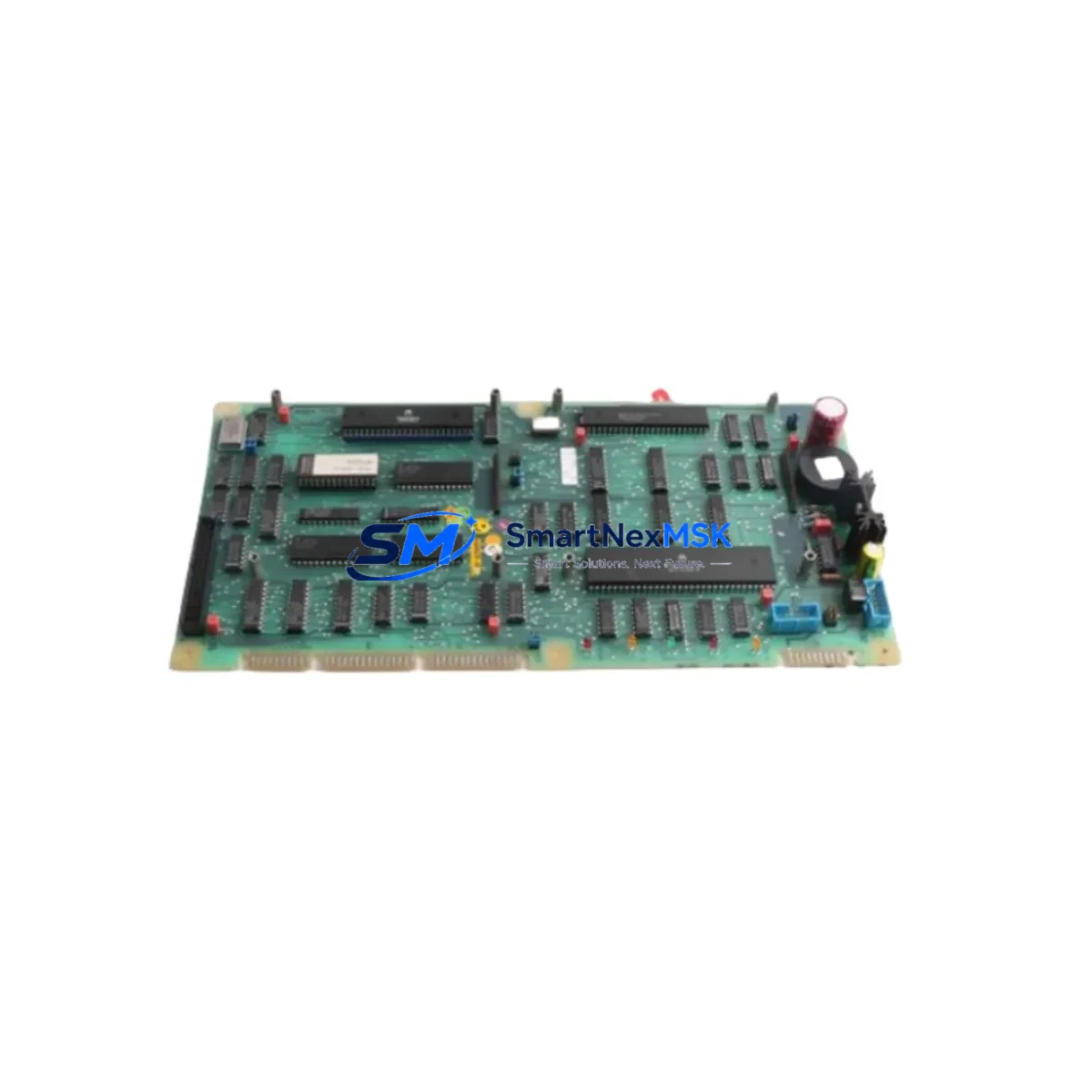

The ABB PFSK 126 is a ruggedized channel control module engineered for the Advant Controller 160 (AC160) distributed control system. Designed to operate reliably in high-load, high-interference, and continuous-production environments, the PFSK 126 serves as a critical interface between field instrumentation and the central control processor. Its robust signal conditioning architecture ensures stable I/O communication even under severe electromagnetic interference, power fluctuations, and thermal stress — conditions routinely encountered in petrochemical plants, power generation facilities, metallurgical operations, and heavy manufacturing lines.

In safety-critical control cabinets, the PFSK 126 is deployed alongside complementary AC160 modules such as the PFSK 130 communication interface unit and the PFSK 107 processor module to form a tightly integrated control loop. When paired with the PFSK 160 power supply module, the system achieves redundant power distribution that eliminates single-point failure risks — a fundamental requirement in interlock and emergency shutdown (ESD) circuits. The module’s channel isolation design prevents fault propagation between I/O channels, protecting upstream logic from field-side transients and ground loops.

Signal integrity is paramount in continuous process environments. The PFSK 126 incorporates hardware-level filtering that suppresses high-frequency noise from variable frequency drives (VFDs), motor starters, and high-voltage switching equipment commonly installed in the same control cabinet. This makes it particularly well-suited for applications where the PFSK 109 analog input module and PFSK 110 digital output module are simultaneously active, as cross-channel interference is effectively attenuated before reaching the backplane bus.

Surge and transient protection built into the PFSK 126 safeguards the AC160 backplane from voltage spikes introduced through field cabling — a common failure mode in outdoor installations, mining headframes, and port crane control systems. When integrated with the PFSK 122 bus interface module and PFSK 125 channel termination unit, the complete I/O assembly provides a layered defense against surge-induced module misoperation and communication anomalies on the RCOM or MasterBus 300 network.

For facilities operating under IEC 61511 functional safety requirements or equivalent national standards, the PFSK 126 supports deterministic scan-cycle behavior that is essential for safety instrumented system (SIS) validation. Its predictable response latency and stable channel mapping allow safety engineers to calculate proof-test intervals and diagnostic coverage with confidence. The module is compatible with the full range of Advant Controller 160 hardware, including the PFSK 101 subrack and associated termination panels, enabling seamless spare-part substitution without reconfiguration of the control database.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust AC160 control cabinet deployment centers on the PFSK 126 as the channel-level signal guardian. In a typical heavy-industry cabinet layout, the PFSK 126 works in concert with the PFSK 107 central processor module, which executes the control application and relies on accurate, noise-free channel data to maintain loop stability. The PFSK 130 communication interface module handles upstream SCADA and DCS network traffic, while the PFSK 160 power supply module delivers conditioned DC power to the entire subrack — eliminating the voltage sag events that can cause spurious module resets during motor start sequences.

On the field termination side, the PFSK 125 channel termination unit provides the physical connection point for field cables, acting as the first line of defense against cable-induced interference before signals reach the PFSK 126. The PFSK 122 bus interface module bridges the I/O subrack to the plant communication network, ensuring that channel status and diagnostic data are continuously available to the operator workstation. For analog measurement loops — particularly in flow, pressure, and temperature control — the PFSK 109 analog input module feeds conditioned 4–20 mA signals into the backplane, where the PFSK 126 manages channel arbitration and fault detection.

In digital output applications such as valve actuation, motor contactor control, and alarm relay driving, the PFSK 110 digital output module operates under the supervision of the PFSK 126 channel controller, which monitors output state consistency and flags discrepancies before they escalate into process upsets. This layered architecture — spanning power conditioning, signal termination, channel control, I/O processing, and network communication — forms a complete protection strategy that minimizes unplanned downtime and supports rapid fault isolation during maintenance windows.

Critical Industrial Safety Applications

The ABB PFSK 126 is deployed across a wide spectrum of safety-critical and continuous-process industries. In petrochemical and refinery operations, it forms part of the interlock logic that monitors reactor temperature and pressure channels, triggering emergency isolation valves when process variables exceed safe operating limits. The module’s deterministic scan behavior ensures that safety response times remain within the tolerances defined by the facility’s SIL-rated safety instrumented system.

In thermal and hydroelectric power generation, the PFSK 126 manages turbine governor feedback channels and excitation control I/O, where signal drift or channel misoperation could result in grid instability or equipment damage. Its EMI filtering capability is especially valuable in generator halls, where high-amplitude magnetic fields from large rotating machines are a persistent source of measurement error.

Underground and open-cut mining operations rely on the PFSK 126 for conveyor interlock control, ventilation fan monitoring, and hoisting system safety circuits. The module’s wide operating temperature range and surge tolerance make it suitable for surface-mounted control rooms exposed to extreme ambient conditions and frequent lightning-induced transients on field cabling.

In municipal and industrial water treatment facilities, the PFSK 126 controls dosing pump sequences, filtration backwash cycles, and effluent discharge interlocks — applications where continuous, uninterrupted operation is mandated by environmental compliance requirements. Metallurgical and steel-making plants use the module in rolling mill automation and furnace temperature control loops, where high-current switching equipment generates intense electromagnetic noise that demands robust channel isolation. Port and terminal automation systems deploy the PFSK 126 in crane PLC cabinets and ship-loader control panels, where vibration, humidity, and salt-air corrosion present additional reliability challenges that the module’s industrial-grade construction is designed to withstand.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the PFSK 126?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions. If the module fails to perform its specified channel control functions within the warranty period, we provide a replacement unit or full refund. Warranty claims are processed promptly to minimize your site downtime.

Q2: What pre-shipment testing is performed on each PFSK 126?
Every PFSK 126 unit undergoes a full functional test before dispatch. This includes power-on verification, channel communication checks against AC160 backplane specifications, and visual inspection for physical integrity. Test records are available upon request for quality documentation purposes.

Q3: Is the PFSK 126 compatible with all AC160 subrack configurations?
Yes. The PFSK 126 is designed for the standard ABB Advant Controller 160 subrack (PFSK 101) and is compatible with all AC160 hardware revisions. It can be used as a direct replacement for existing PFSK 126 units without requiring changes to the control database or I/O configuration, making it an ideal spare-part solution for installed-base maintenance.

Q4: Can you guarantee long-term supply for ongoing maintenance and spare-part programs?
We maintain dedicated inventory of the PFSK 126 and related AC160 components to support long-term spare-part programs. Our sourcing network covers both new and refurbished stock, ensuring continuity of supply even for discontinued or end-of-life ABB modules. Contact our team to discuss blanket orders or reserved stock arrangements for your facility’s maintenance schedule.
