ABB PFSK108-YM322001-EH Safety-Enhanced DCS CCU Harsh Sites

ABB PFSK108-YM322001-EH Safety-Enhanced DCS Channel Control Unit for Harsh Industrial Sites

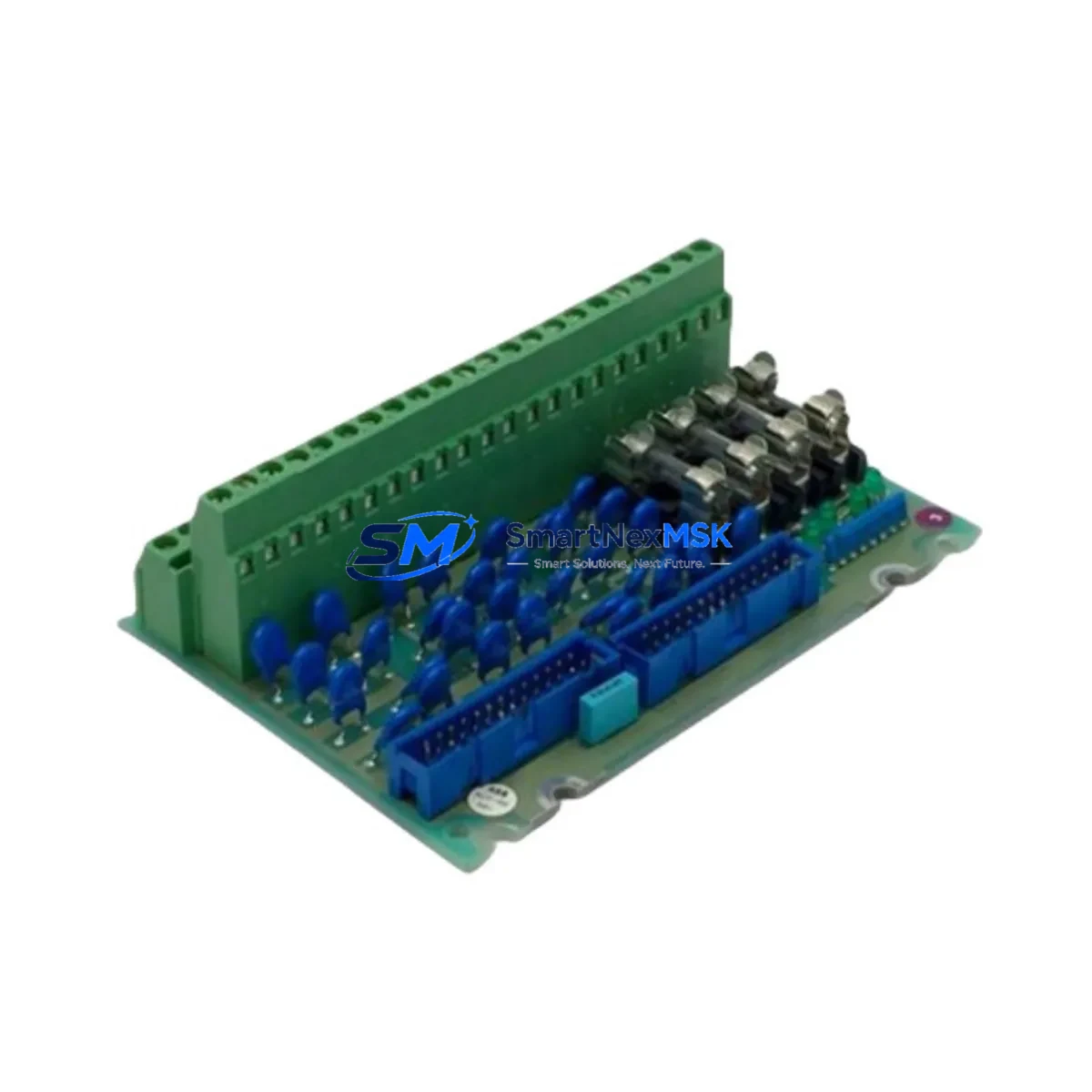

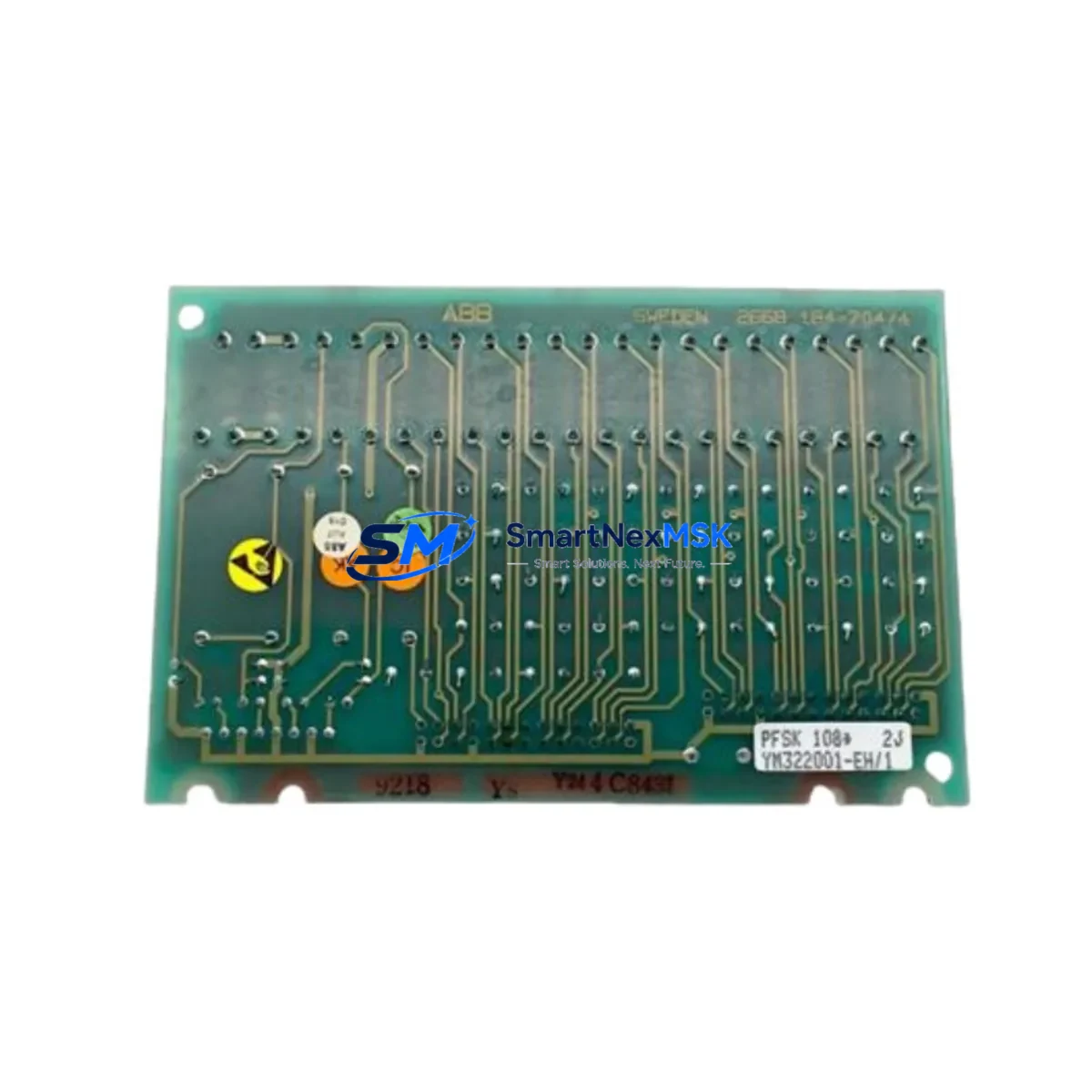

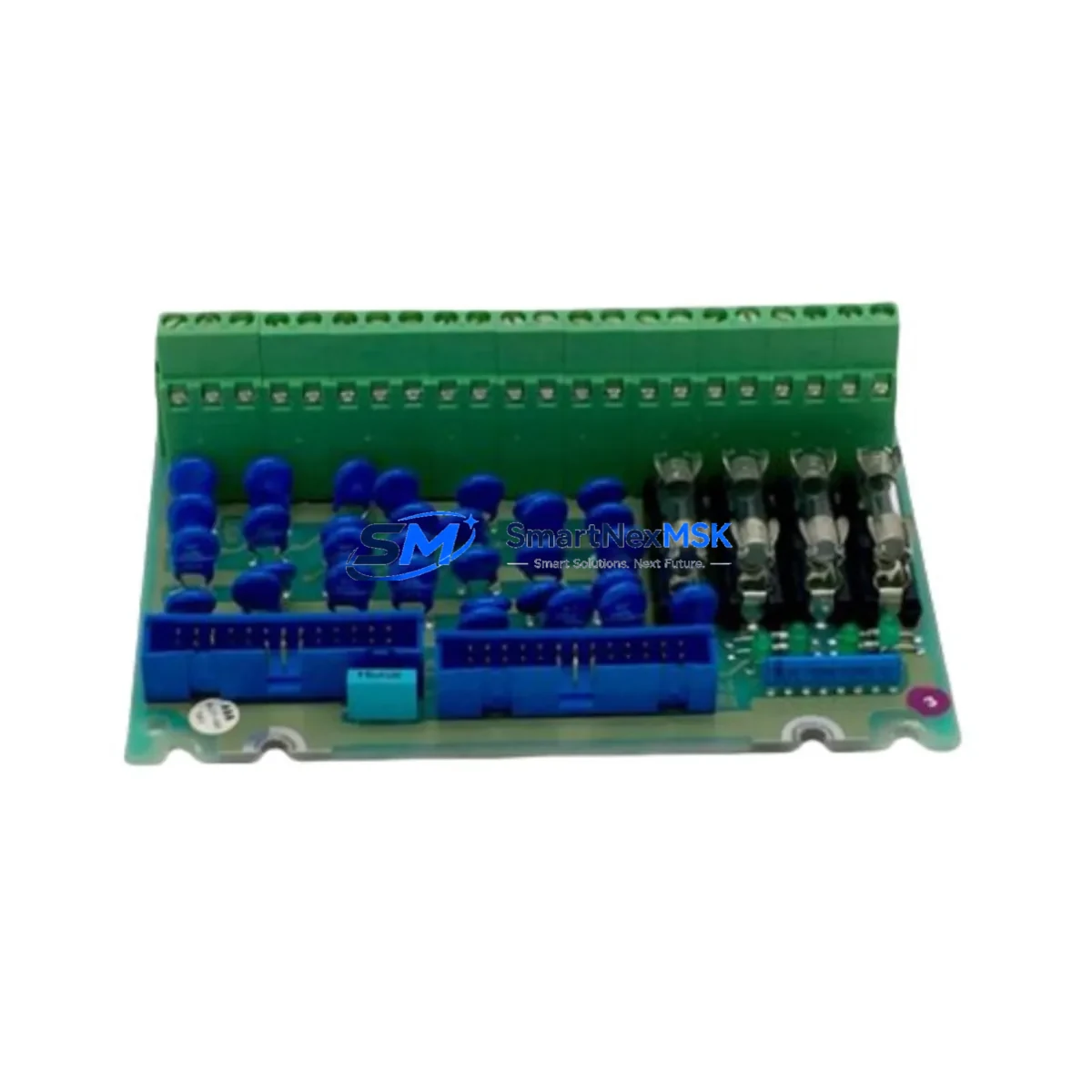

The ABB PFSK108-YM322001-EH is a ruggedized DCS Channel Control Unit (CCU) engineered for the ABB Advant Master AC450 and AC410 distributed control systems. Designed to operate reliably in high-load, high-interference, and continuous-production industrial environments, this module serves as a critical node in process control architectures where signal integrity, loop continuity, and system uptime are non-negotiable safety requirements.

In heavy industrial settings — including petrochemical plants, power generation facilities, metallurgical smelters, mining operations, and water treatment infrastructure — the channel control unit is the backbone of real-time I/O communication between field instruments and the central controller. Any degradation in this link can cascade into control loop interruptions, process deviations, or unplanned shutdowns. The PFSK108-YM322001-EH is built to prevent exactly these failure modes.

Its robust hardware design addresses the most common causes of field-level failures: signal drift under thermal stress, module misoperation due to electromagnetic interference, communication anomalies from ground loops or cable coupling, and surge damage from switching transients in high-voltage switchgear environments. Whether installed in a control cabinet adjacent to variable frequency drives, in a substation relay panel, or in a remote I/O enclosure near rotating machinery, this CCU maintains stable channel performance across the full operating temperature and humidity range specified for Advant Master systems.

In critical interlock and safety instrumented function (SIF) loops, the PFSK108-YM322001-EH works in coordination with companion modules such as the PFSK107 Subrack Bus Interface Unit and the PFSK102 Communication Interface Module to ensure that trip signals and permissive logic are transmitted without latency or corruption. When paired with the PFSK109 Channel Control Unit in redundant configurations, the system achieves the fault-tolerance levels demanded by continuous process industries operating under IEC 61511 or equivalent safety standards.

Power supply stability is equally critical in these deployments. The PFSK108-YM322001-EH is designed to operate within the regulated DC bus provided by ABB Advant Master power supply modules such as the PSSR02 Power Supply and Supervision Module. In installations where mains quality is poor or where large motor starts cause voltage sags, the power architecture of the Advant Master rack — including the DSQC604 or equivalent rectifier and buffer modules — provides the clean, regulated supply that prevents spurious resets or data corruption in the CCU.

For communication-intensive applications where the CCU interfaces with PROFIBUS DP, MODBUS RTU, or proprietary Advant fieldbus segments, the module’s channel isolation and signal conditioning capabilities reduce the risk of bus collisions, address conflicts, and communication timeouts that can trigger false alarms or inhibit safety responses. Companion communication modules such as the PFSK150 Fieldbus Communication Interface and the PFSK160 Serial Communication Module are commonly deployed alongside the PFSK108-YM322001-EH in complex multi-drop fieldbus topologies.

Surge and transient protection is a key reliability factor in outdoor substations, port crane control systems, and open-pit mining control rooms where lightning-induced surges and capacitive switching transients are routine. The PFSK108-YM322001-EH’s internal circuit protection, combined with external surge protection devices (SPDs) installed at the cabinet entry point, forms a layered defense that protects the entire I/O channel from damage. In these environments, the module is often installed alongside PFSK112 and PFSK113 I/O Interface Modules that handle analog and digital field signals respectively, ensuring that the full signal chain from sensor to controller is protected and verified.

Every PFSK108-YM322001-EH unit supplied by SMARTNEXMSK undergoes a comprehensive pre-shipment functional test protocol. This includes power-on verification, channel communication handshake testing, firmware version confirmation, and visual inspection for connector integrity and PCB condition. Units are shipped in anti-static packaging with humidity indicator cards, ensuring they arrive in field-ready condition. Our inventory is sourced from verified industrial surplus and decommissioned system upgrades, with full traceability documentation available upon request.

Safety Reliability Table

Control Cabinet Protection Strategy

A reliable Advant Master control cabinet is never built around a single module — it is an integrated system of interdependent components, each contributing to the overall safety and availability of the control loop. The PFSK108-YM322001-EH operates at the center of this architecture as the channel control unit, but its performance depends on the quality and condition of every module it interfaces with.

In a typical Advant Master AC450 cabinet, the CCU communicates upstream with the PFSK107 Subrack Bus Interface Unit, which manages the internal backplane bus and arbitrates data flow between the processor and I/O modules. A degraded PFSK107 can introduce bus errors that manifest as intermittent channel faults — symptoms that are often misdiagnosed as CCU failures. Ensuring both modules are in verified condition is essential for accurate fault isolation.

On the field side, the PFSK108-YM322001-EH interfaces with analog and digital I/O modules including the PFSK112 Analog Input Module and PFSK113 Digital I/O Interface Module. These modules handle the raw field signals from transmitters, limit switches, solenoid valve feedback contacts, and motor status inputs. Signal quality at this layer directly affects the CCU’s ability to make correct control decisions. In high-noise environments, shielded cable termination at the PFSK116 Terminal Board provides the grounding reference that prevents common-mode interference from corrupting analog readings.

For installations where the Advant Master system communicates with a supervisory SCADA or DCS gateway, the PFSK150 Fieldbus Communication Interface and PFSK160 Serial Communication Module provide the protocol translation layer. Ensuring these communication modules are firmware-compatible with the PFSK108-YM322001-EH CCU prevents handshake failures that can cause the controller to enter a safe-state hold, interrupting production unnecessarily.

Power supply integrity is maintained by the PSSR02 Power Supply and Supervision Module, which monitors DC bus voltage and triggers alarms before voltage sags reach the threshold that causes module brownout. In critical applications, a redundant power supply configuration — with automatic switchover — eliminates the power supply as a single point of failure in the control cabinet.

Critical Industrial Safety Applications

The ABB PFSK108-YM322001-EH is deployed across a wide range of heavy industrial sectors where control system reliability is directly linked to personnel safety, environmental protection, and production continuity.

In petrochemical and refinery operations, this CCU is used in emergency shutdown (ESD) system architectures where it manages the channel-level communication for pressure, temperature, and flow interlock loops. A failure in the channel control layer in these environments can prevent a safety trip from executing, with potentially catastrophic consequences. The PFSK108-YM322001-EH’s proven reliability in ABB Advant Master systems makes it a trusted replacement module for aging ESD panels undergoing life-extension programs.

In thermal and hydroelectric power generation, the module is used in turbine control and boiler management systems where continuous, uninterrupted I/O communication is required across multi-year operating cycles. The ability to hot-swap or rapidly replace a CCU during a planned maintenance window — with a pre-tested, warranted spare — is a key operational advantage that reduces mean time to repair (MTTR) and minimizes generation loss.

In mining and mineral processing environments, where vibration, dust ingress, and wide temperature swings are constant challenges, the PFSK108-YM322001-EH’s robust construction and ABB’s industrial-grade component selection provide the durability needed for conveyor control, crusher interlock, and slurry pump management systems. Having verified spare modules in inventory is a standard practice in remote mine sites where procurement lead times can extend to weeks.

In water and wastewater treatment facilities, the module supports the control of dosing pumps, aeration blowers, and UV disinfection systems — processes where a control interruption can affect treated water quality and regulatory compliance. The 12-month warranty and pre-shipment testing protocol provide the quality assurance that municipal operators require when procuring replacement control system components.

In port and terminal automation — including ship-to-shore crane control, automated stacking crane (ASC) systems, and conveyor belt management — the PFSK108-YM322001-EH provides the channel-level reliability needed for high-cycle, high-load operations where control system downtime directly translates to vessel delay costs and contractual penalties.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the PFSK108-YM322001-EH?
The 12-month warranty covers functional failure of the module under normal operating conditions consistent with ABB Advant Master system specifications. If the unit fails to perform its channel control function within the warranty period due to a manufacturing or component defect, SMARTNEXMSK will provide a replacement unit at no additional cost. The warranty does not cover damage resulting from incorrect installation, overvoltage events beyond the module’s rated tolerance, or physical damage during handling.

Q2: What pre-shipment tests are performed on each unit?
Every PFSK108-YM322001-EH undergoes a structured pre-shipment test protocol that includes: power-on functional verification, subrack bus communication handshake test, firmware version identification and logging, connector pin integrity check, and full visual inspection of the PCB for corrosion, damaged components, or prior repair evidence. Test results are documented and available upon request for quality-critical procurement processes.

Q3: Is this module compatible with both AC450 and AC410 Advant Master systems?
Yes. The PFSK108-YM322001-EH is designed for use in ABB Advant Master systems including the AC450 and AC410 controller families. Compatibility with specific firmware versions or subrack configurations should be verified against your system’s engineering documentation. SMARTNEXMSK’s technical team can assist with compatibility verification based on your system’s existing module inventory and software revision level.

Q4: Can SMARTNEXMSK guarantee long-term supply of this module for ongoing maintenance programs?
SMARTNEXMSK maintains a managed inventory of ABB Advant Master spare modules to support customers with long-term maintenance and life-extension programs. For customers requiring guaranteed availability over a multi-year horizon, we offer reserved stock arrangements with defined lead times and pricing. Contact our sales team to discuss a supply agreement tailored to your plant’s maintenance schedule and spare parts strategy.
