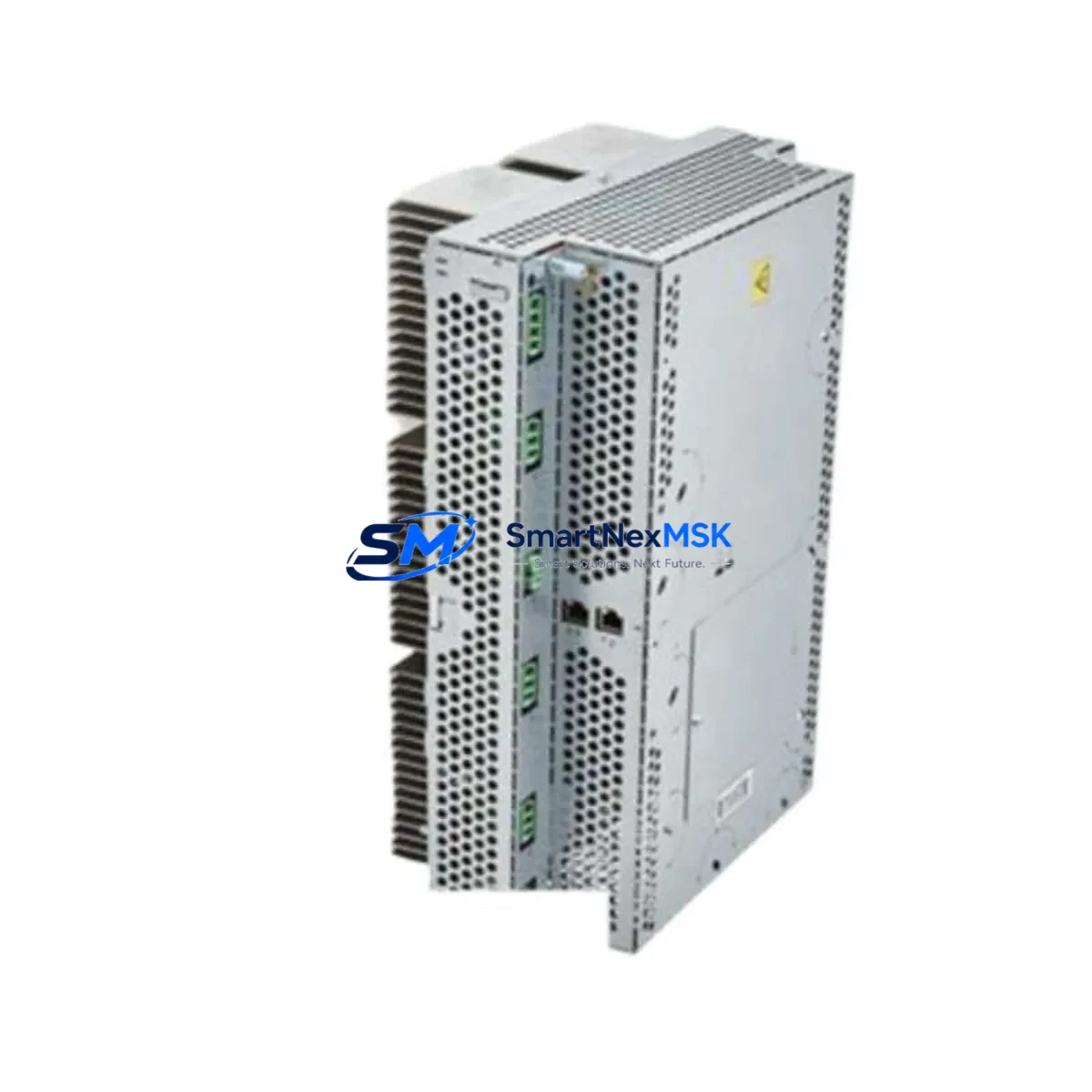

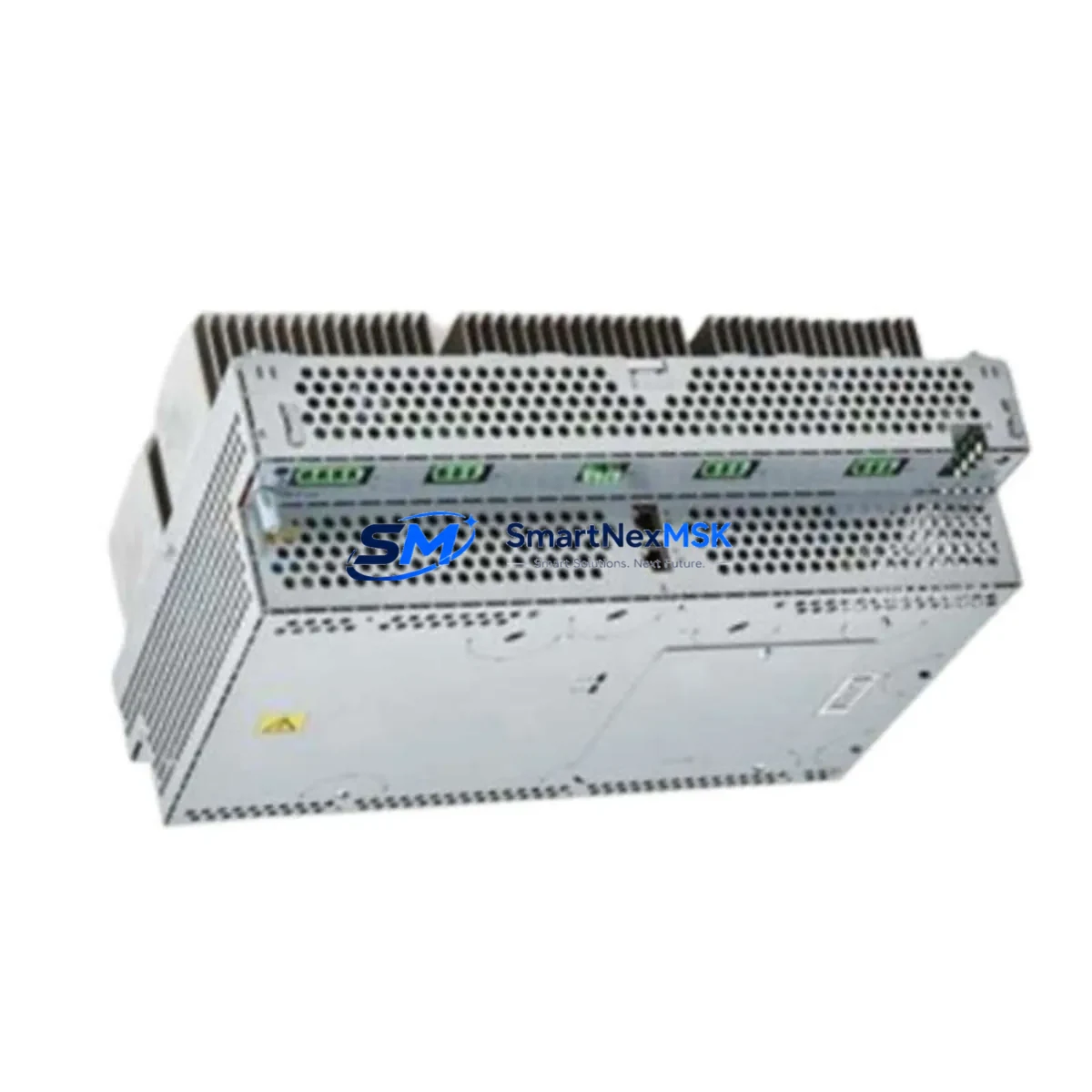

ABB PFSK110 YM322001-EP Retrofit-Ready DCS Connection Unit

ABB PFSK110 YM322001-EP Retrofit-Ready DCS Connection Unit for Advant OCS Control Systems

The ABB PFSK110 YM322001-EP is a DCS Connection Unit engineered for seamless integration into ABB Advant OCS (Open Control System) architectures. As legacy Advant OCS installations approach end-of-life and original spare parts become increasingly scarce, the PFSK110 YM322001-EP has emerged as a critical retrofit component for engineers tasked with sustaining, upgrading, or migrating aging distributed control systems in process industries including oil & gas, pulp & paper, power generation, and chemical manufacturing.

This module serves as a direct replacement for discontinued PFSK110 variants, providing equivalent signal conditioning, backplane communication, and I/O interfacing functions within the Advant OCS rack environment. Engineers undertaking a retrofit or system modernization project will find that the PFSK110 YM322001-EP supports the existing Advant fieldbus communication protocol, eliminating the need for protocol conversion gateways in most standard replacement scenarios.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful PFSK110 YM322001-EP retrofit begins well before the module arrives on site. The first step is a thorough audit of the existing Advant OCS rack assembly. Engineers should document the current rack layout, noting the position of the PFSK110 alongside adjacent modules such as the PFSK107 pulse counter unit, PFSK112 analog input module, and PFSK130 digital output module. Each of these modules shares the same S100 backplane bus, and their addresses must remain consistent after the connection unit is replaced.

Power budget verification is equally important. The Advant OCS rack power supply — typically a PSSR021 or PSSR022 redundant PSU pair — must have sufficient headroom to support the replacement PFSK110 YM322001-EP. Measure the existing rail voltage under load before shutdown and confirm that the new module’s current draw does not exceed available capacity.

Terminal wiring adaptation is a common challenge in retrofit projects. The PFSK110 YM322001-EP uses a standard screw-terminal interface, but field wiring from legacy installations may use older ferrule crimps or non-standard gauges. Prepare the correct terminal tools and verify continuity on all signal pairs before powering up. If the existing installation uses a PFSK150 termination unit or a PFSK160 cable assembly, confirm that the connector pinout remains compatible with the YM322001-EP hardware revision.

Communication link integrity must be validated after module installation. The Advant Fieldbus 100 segment connecting the PFSK110 to the AC 450 or AC 410 controller should be tested for correct termination resistance (typically 150 Ω at each end of the segment). If the retrofit is part of a broader migration toward an AC 800M or System 800xA platform, a PFCI communication interface module may be required to bridge the AF 100 fieldbus to the newer MMS or PROFIBUS DP protocol layer.

HMI screen updates are often overlooked during connection unit replacements. If the plant uses an Operator Station running Advant Station 500 Series software, verify that the I/O tag database reflects the correct module slot address after the PFSK110 swap. Mismatched addresses will cause the HMI to display stale or faulted values even when the physical module is functioning correctly.

For sites running ABB Master software on an engineering workstation, a partial download of the I/O configuration — rather than a full program download — is usually sufficient to re-establish communication with the replacement PFSK110 YM322001-EP. Always back up the existing controller program and I/O configuration to a secure location before initiating any download sequence.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern for any industrial retrofit. When replacing the PFSK110 YM322001-EP in a live production environment, a structured hot-swap or planned maintenance window approach is recommended depending on the process criticality.

For non-critical I/O loops, a cold-swap during a scheduled maintenance window is the safest approach. Power down the affected rack section, remove the failed or obsolete PFSK110, install the YM322001-EP replacement, restore power, and perform a targeted I/O configuration download from the engineering station. Total downtime for a single module swap typically ranges from 30 to 90 minutes when all preparatory steps have been completed in advance.

For critical process loops — such as those controlling reactor temperature, compressor surge protection, or boiler drum level — a parallel commissioning strategy is preferred. Install the replacement PFSK110 YM322001-EP in a spare rack slot, configure and verify its I/O mapping offline, then perform a controlled switchover during a brief process hold. This approach preserves the original program logic and HMI tag structure, reducing the risk of configuration errors during the transition.

Regardless of the migration strategy, maintain a detailed as-built record of all module addresses, terminal assignments, and fieldbus segment parameters before and after the retrofit. This documentation is essential for future maintenance and for any subsequent migration toward a System 800xA or AC 800M platform. All PFSK110 YM322001-EP units supplied by SMARTNEXMSK are pre-tested and shipped with a 12-month warranty, reducing the risk of infant-failure downtime after installation.

Retrofit Support FAQ

Q1: Is the PFSK110 YM322001-EP a direct drop-in replacement for all PFSK110 variants?
The YM322001-EP suffix identifies a specific hardware revision of the PFSK110. In most Advant OCS installations, it is a direct functional replacement for earlier PFSK110 revisions. However, engineers should verify the firmware version of the AC 450 or AC 410 controller to confirm compatibility with the YM322001-EP hardware revision before installation.

Q2: What wiring changes are required when installing the PFSK110 YM322001-EP?
In a like-for-like replacement, no field wiring changes are required. The PFSK110 YM322001-EP uses the same screw-terminal interface as the original module. If the existing installation uses a PFSK150 or PFSK160 cable assembly, verify connector pinout compatibility before proceeding. Always re-torque terminal screws to the manufacturer’s specification after reconnection.

Q3: How do I verify communication link integrity after installing the replacement module?
After installation, use the ABB Master engineering software to perform an I/O configuration download and monitor the module status in the hardware configuration tree. Confirm that the PFSK110 YM322001-EP appears online with no fault codes. Check the AF 100 fieldbus segment termination resistance and verify that all associated I/O tags are updating correctly on the Operator Station HMI.

Q4: What does the 12-month warranty cover?
All PFSK110 YM322001-EP units supplied by SMARTNEXMSK are covered by a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing. In the event of a warranty claim, SMARTNEXMSK will provide a replacement unit or full refund subject to inspection of the returned module.
