ABB PFSK130 3BSE002616R1 Maintenance-Ready Spare AC800M

ABB PFSK130 3BSE002616R1 Maintenance-Ready Spare AC800M: Spare Replacement & Industrial Downtime Risk Control

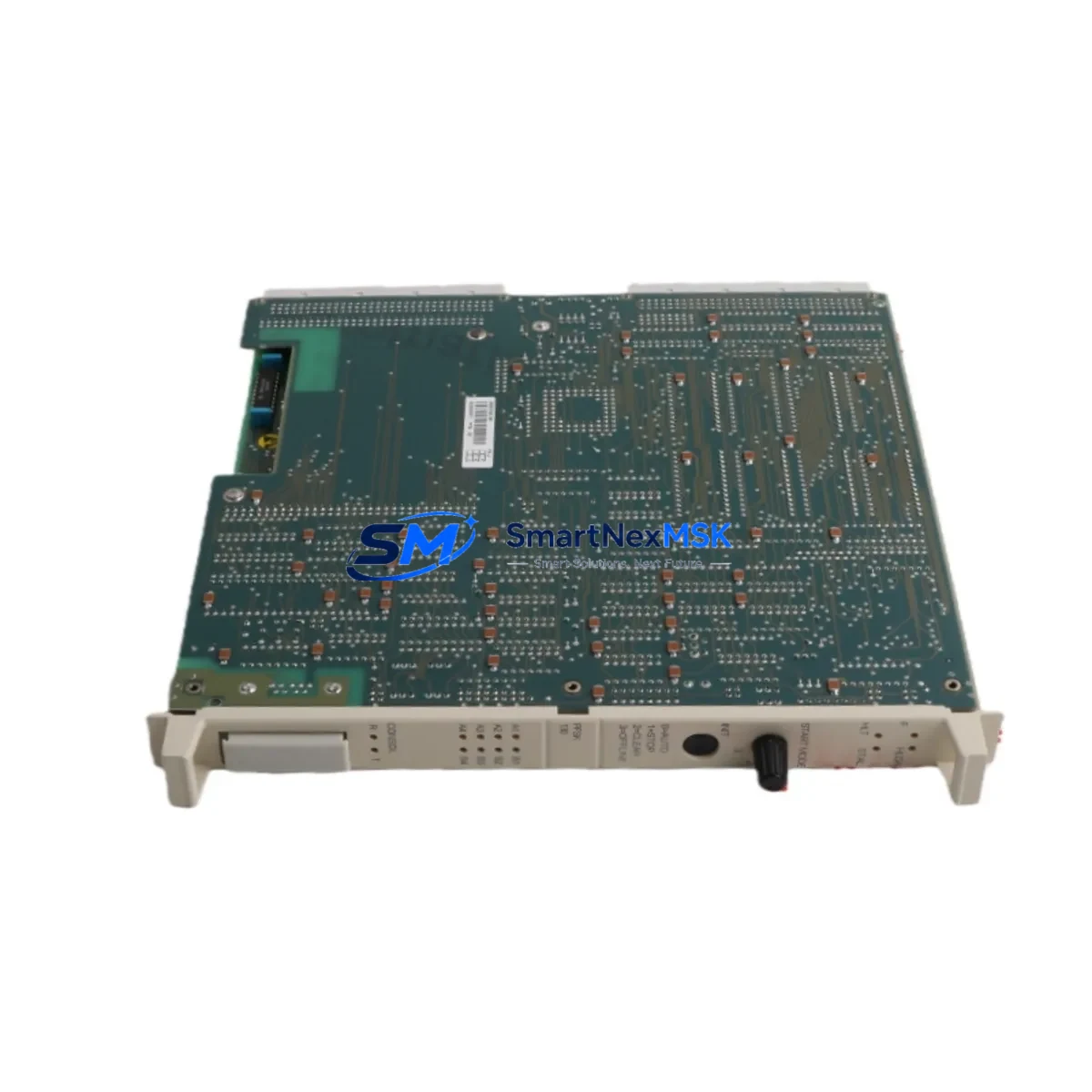

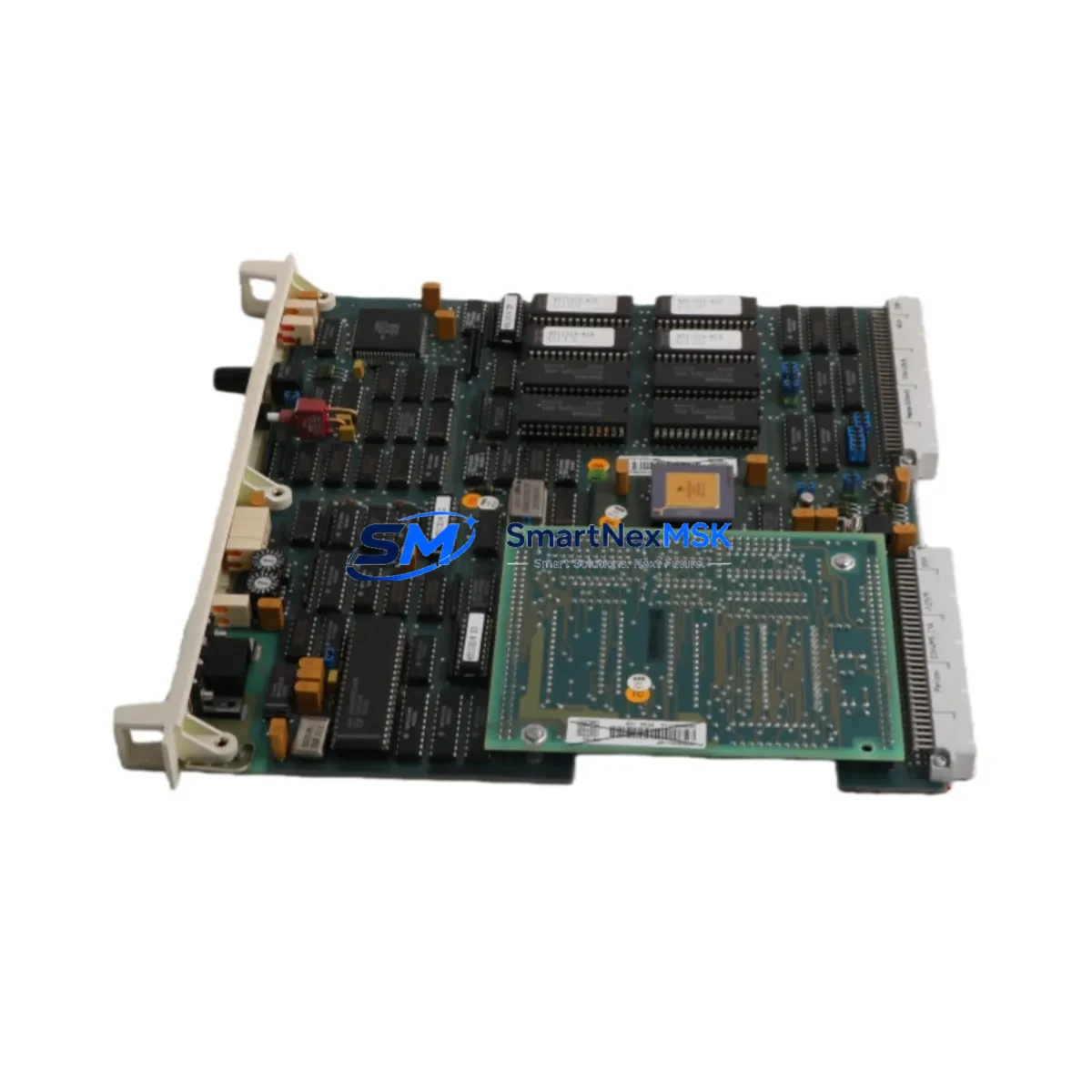

The ABB PFSK130 (part number 3BSE002616R1) is a critical communication interface module designed for the ABB AC800M Distributed Control System (DCS) platform — one of the most widely deployed process automation architectures in power generation, oil & gas, chemical processing, and heavy manufacturing. When this module fails or degrades, the consequences extend beyond a single I/O channel: the entire communication backbone between the controller and field devices can be disrupted, triggering unplanned shutdowns, process deviations, and costly emergency maintenance windows.

Sourced as an original ABB spare, the PFSK130 3BSE002616R1 offered here is individually tested prior to dispatch, ships with a 12-month warranty, and is maintained in long-term stock to support both planned maintenance cycles and emergency replacement scenarios. Whether you are a maintenance engineer executing a scheduled control cabinet inspection or a procurement engineer building a critical spare inventory, this module is available for immediate quotation and fast international shipping.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the PFSK130 3BSE002616R1 in an AC800M system is rarely an isolated task. Experienced maintenance engineers know that a communication module fault is often a symptom of broader electrical stress in the control cabinet. Before or during a PFSK130 replacement, a thorough site inspection should cover the following associated components and subsystems:

Power Supply Integrity: The AC800M rack relies on a stable 24 VDC bus. Modules such as the ABB PSMV24 power supply module or equivalent rack power units should be checked for output ripple and voltage drop under load. A degraded power supply is a leading cause of intermittent communication faults that are incorrectly attributed to the PFSK130 itself.

Backplane and Rack Condition: Inspect the AC800M S800 I/O backplane for oxidized bus connectors, mechanical stress fractures, or contamination. A faulty backplane can cause the PFSK130 to report communication errors even when the module itself is functional. Clean and reseat all module connectors during the maintenance window.

I/O Module Health: Downstream ABB AI810, AO810, DI810, and DO810 S800 I/O modules connected via the PFSK130’s fieldbus link should be scanned for diagnostic alarms. A single failing I/O module can generate bus traffic anomalies that stress the communication interface and accelerate PFSK130 wear.

Communication Cabling and Termination: PROFIBUS DP and RS-485 segments connected to the PFSK130 require correct 120-ohm bus termination at both ends. Inspect PROFIBUS DP connectors (such as Siemens 6ES7972 series or equivalent) for pin corrosion, loose termination resistors, and cable shielding continuity. Improper termination is a frequent root cause of intermittent communication faults.

Relay Output and Signal Isolation: If the PFSK130 is used in a loop involving relay output modules or signal isolators (such as the ABB RRIO or equivalent galvanic isolators), verify that isolation barriers are intact and that relay contacts show no signs of welding or excessive arc erosion. Signal isolators in aging systems often degrade silently before causing measurable communication degradation.

Fusing and Circuit Protection: Check all 24 VDC fuse holders and miniature circuit breakers in the control cabinet supply chain. A partially blown fuse can cause voltage sag under load, producing soft faults in communication modules that are difficult to reproduce during bench testing.

HMI and SCADA Connectivity: If the PFSK130 bridges the AC800M to an ABB Operate IT or System 800xA HMI workstation, verify OPC server connectivity and confirm that the HMI is not generating excessive polling traffic that could saturate the serial communication channel.

Controller Firmware Compatibility: Before installing a replacement PFSK130, confirm that the firmware version on the AC800M PM8xx controller is compatible with the module revision. ABB periodically releases firmware updates that affect communication module behavior; mismatched firmware can cause the new module to initialize incorrectly.

Maintaining a minimum stock of one PFSK130 3BSE002616R1 per AC800M system — alongside spare S800 I/O modules and a replacement AC800M controller module — is a recognized best practice in process industries where mean time to repair (MTTR) targets are measured in hours, not days.

Site Replacement Workflow

Step 1 — Pre-replacement Verification: Before removing the existing PFSK130, document all active communication channel configurations using ABB Control Builder M. Export the current hardware configuration file as a backup. Confirm the replacement module’s part number (3BSE002616R1) and hardware revision match the installed unit or are confirmed compatible by ABB release notes.

Step 2 — Safe Isolation: Place the AC800M controller in manual or safe-state mode via the System 800xA operator station. Notify process operators of the planned communication interruption. Isolate the 24 VDC supply to the affected rack section using the cabinet’s local isolator switch — do not rely solely on software inhibit.

Step 3 — Module Removal and Inspection: Remove the faulty PFSK130 by releasing the module locking lever and sliding it clear of the backplane. Inspect the backplane connector pins for damage or contamination before inserting the replacement. Clean with isopropyl alcohol if required.

Step 4 — Installation and Configuration Restore: Insert the new PFSK130 3BSE002616R1 firmly until the locking lever engages. Restore power and allow the AC800M controller to perform its automatic module recognition sequence. Re-download the communication configuration from Control Builder M if the module does not self-configure from the controller’s non-volatile memory.

Step 5 — Functional Verification: Confirm all fieldbus segments report healthy status in the System 800xA diagnostic view. Verify I/O values are updating correctly at the HMI. Run a 15-minute observation period before returning the loop to automatic control. Log the replacement in the site maintenance management system (CMMS) with the new module’s serial number and installation date.

This workflow minimizes downtime, preserves system compatibility, and ensures the replacement is traceable for future maintenance audits — a requirement in ISO 55000-aligned asset management programs.

Spare Parts Support FAQ

Q1: What is the expected service life of the PFSK130 3BSE002616R1, and when should I plan for replacement?
The PFSK130 is designed for continuous industrial operation with a typical service life of 10–15 years under normal operating conditions. However, in high-vibration, high-humidity, or thermally stressed environments, degradation can occur earlier. We recommend scheduling a proactive replacement at the first sign of recurring communication alarms, CRC error escalation, or after any event involving power surge or cabinet flooding. Maintaining one spare unit per system eliminates the risk of extended lead-time delays during an emergency.

Q2: How do I verify compatibility between a replacement PFSK130 and my existing AC800M controller revision?
Compatibility is determined by the AC800M controller firmware version and the PFSK130 hardware revision. ABB publishes compatibility matrices in the AC800M Hardware and Installation manual (document 3BSE041434). As a general rule, PFSK130 units with hardware revision C and above are compatible with all PM8xx controller variants running firmware 5.1 and later. Our technical team can assist with revision verification before shipment upon request.

Q3: What pre-shipment testing is performed on the PFSK130 3BSE002616R1?
Every PFSK130 unit dispatched from our inventory undergoes a functional power-on test, communication port continuity check, and visual inspection for physical damage. Units that fail any test criterion are quarantined and not offered for sale. A test report is available upon request for critical applications. All units ship with a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions.

Q4: Can you support long-term supply agreements for PFSK130 and related AC800M spare parts?
Yes. We support annual blanket purchase orders and long-term supply agreements for the PFSK130 3BSE002616R1 and associated AC800M components. This is particularly valuable for plant operators managing aging DCS systems where ABB has discontinued active production of certain modules. Contact our sales team to discuss volume pricing, reserved stock arrangements, and multi-year supply contracts tailored to your planned maintenance schedule.
