ABB PFVI131 3BSE007130R1 Maintenance-Ready Spare Advant OCS

ABB PFVI131 3BSE007130R1 Maintenance-Ready Spare Advant OCS

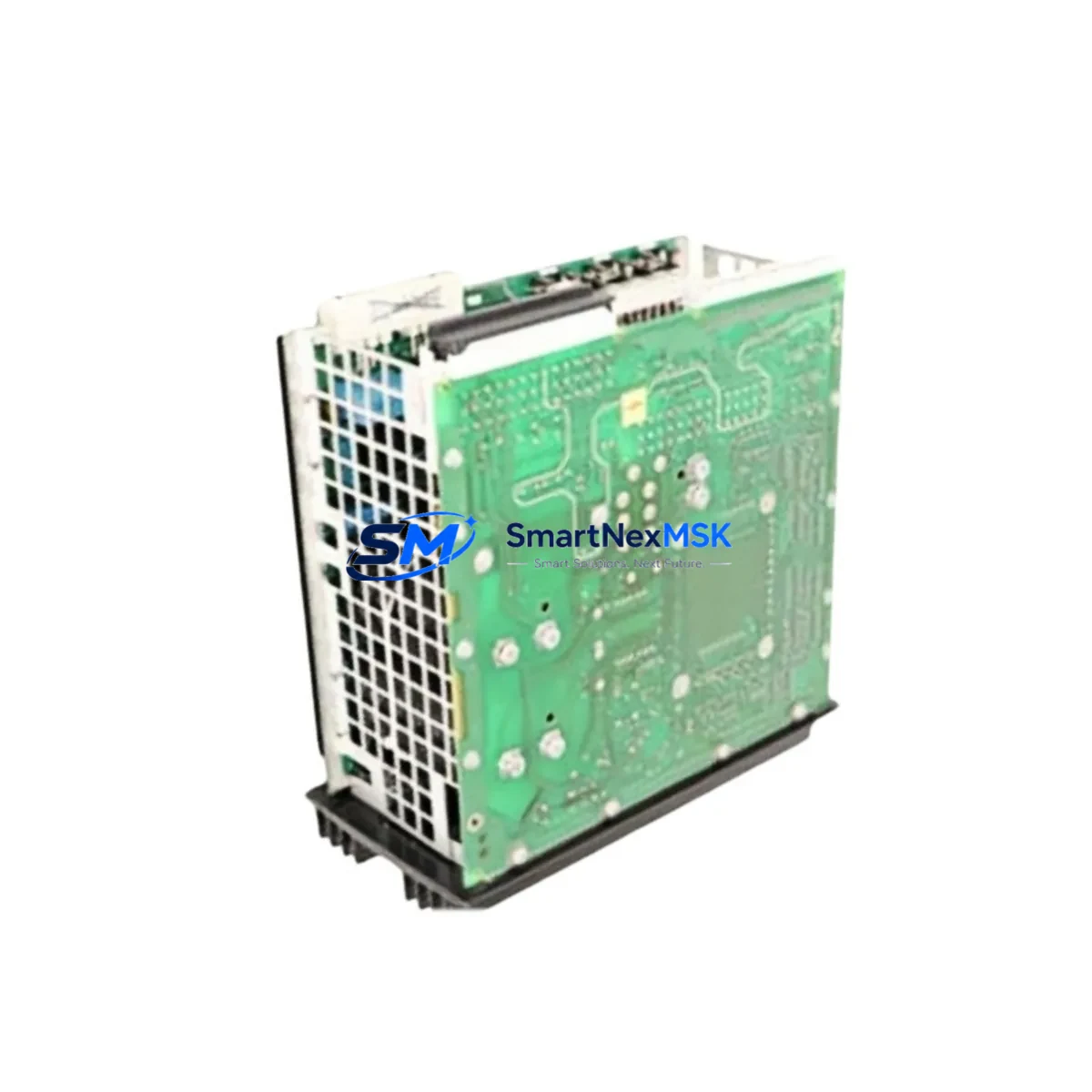

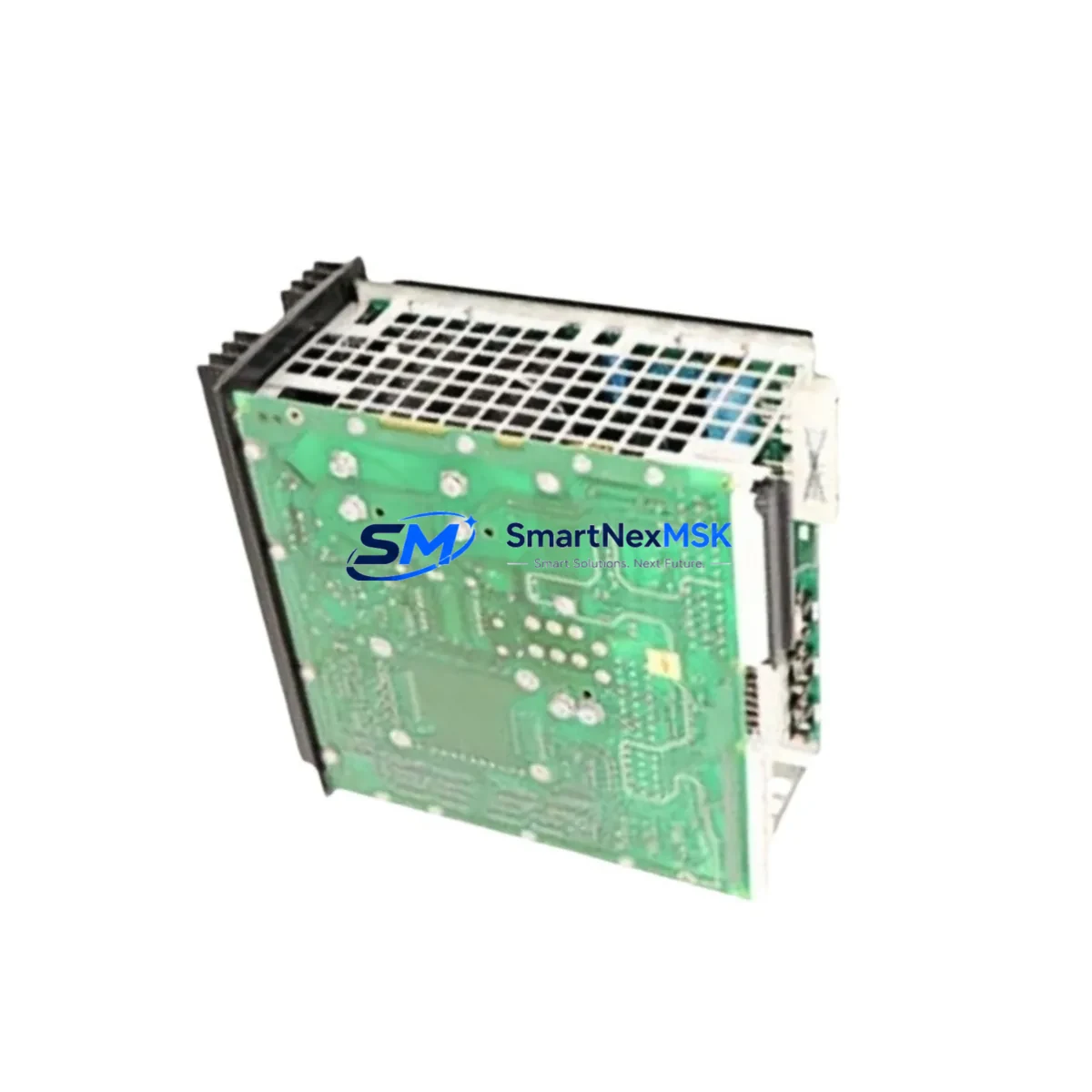

The ABB PFVI131 (3BSE007130R1) is an original power supply module designed for the Advant OCS distributed control system platform, including AC 450 and AC 460 controller cabinets. As a critical power rail component, the PFVI131 converts and conditions incoming supply voltage to stable DC rails that feed processor boards, I/O modules, and communication interfaces throughout the control cabinet. Unplanned failure of this module is a primary cause of full-cabinet shutdown in process automation environments — making it one of the highest-priority spare parts in any Advant OCS maintenance inventory.

For maintenance engineers managing aging Advant OCS installations, sourcing a verified original PFVI131 3BSE007130R1 is essential. Counterfeit or incompatible substitutes risk damaging downstream modules, corrupting process data, or triggering nuisance trips. Every unit supplied by SMARTNEXMSK is sourced from original ABB production, inspected for physical integrity, and bench-tested under load before shipment. A 12-month warranty is included on all units.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When scheduling a planned replacement of the PFVI131 3BSE007130R1, experienced maintenance engineers treat the power supply module as the anchor point of a broader cabinet health review. A failing or degraded power supply rarely fails in isolation — voltage ripple and transient spikes propagate to adjacent modules before the supply itself trips. During the same maintenance window, the following components should be inspected or replaced as part of a comprehensive Advant OCS cabinet service:

The PFSA107 processor module and PFSA108 memory board are directly powered by the PFVI131 output rails; any sustained undervoltage event may have caused latent data corruption or SRAM degradation. The PFSK130 / PFSK131 communication interface modules handle MASTERBUS 300 and MODULEBUS traffic — their internal DC-DC converters are sensitive to supply quality and should be checked for error logs after any power event. PFAI01 and PFAO01 analog I/O modules rely on clean reference voltages derived from the main supply; signal drift or offset errors in process measurements are a common downstream symptom of a weakening PFVI131.

Terminal blocks and NKTF or NKTU series I/O terminal units should be inspected for loose connections and oxidation, as poor contact resistance increases effective load on the supply. The PFBK105 backplane and its bus connectors should be cleaned and torque-checked — backplane resistance faults are frequently misdiagnosed as power supply failures. If the cabinet includes a PFSK102 or PFSK112 redundancy module, verify that automatic switchover is functioning correctly before returning the system to service. For cabinets with external 24 VDC feeds, inspect the incoming fuse block and surge protection devices (SPDs) — a blown fuse or degraded SPD is often the root cause of repeated PFVI131 failures. Finally, review the PFTL101 or PFTL201 load cell interface modules if present, as these are particularly sensitive to supply instability in weighing and batching applications.

Maintaining a minimum stock of one PFVI131 3BSE007130R1 per Advant OCS cabinet cluster is the industry-standard recommendation for facilities operating continuous processes where unplanned downtime costs exceed the spare part value within the first hour of outage.

Site Replacement Workflow

Step 1 — Preparation: Confirm the replacement PFVI131 3BSE007130R1 part number and revision match the installed unit. Check the cabinet nameplate and existing module label. Download the ABB Advant OCS hardware manual for your specific AC 450 or AC 460 variant to confirm subrack slot assignment.

Step 2 — Safe Isolation: Follow your site LOTO (Lockout/Tagout) procedure. For redundant systems, initiate controlled switchover to the standby controller before isolating the affected cabinet. Verify process is in a safe hold state.

Step 3 — Module Removal: Discharge any residual capacitor energy by waiting 60 seconds after de-energizing. Use ESD wrist strap. Release the module locking levers and extract the PFVI131 along the subrack guide rails. Inspect the backplane connector for bent pins or carbon tracking.

Step 4 — Installation: Insert the replacement PFVI131 3BSE007130R1 firmly until the front panel latch engages. Do not force — misalignment will damage the backplane connector. Re-energize the cabinet and observe the module status LEDs for normal power-good indication.

Step 5 — Verification: From the operator station or engineering workstation, confirm all I/O modules report healthy status. Check analog input readings against known reference values. Review the system event log for any residual fault codes. Run a 15-minute observation period before returning the loop to automatic control.

Step 6 — Documentation: Record the replacement in your CMMS (Computerized Maintenance Management System) with the new module serial number, installation date, and technician ID. Retain the removed module for failure analysis if required by your quality system.

Spare Parts Support FAQ

Q1: Is the PFVI131 3BSE007130R1 still available as a new original part, or only as refurbished?
Both new original and professionally refurbished units are available depending on current stock. All refurbished units are restored to OEM electrical specification, tested under load, and carry the same 12-month warranty as new units. Stock status is confirmed at time of inquiry — contact sales@smartnexmsk.com for real-time availability.

Q2: How do I verify compatibility with my specific Advant OCS cabinet revision?
The PFVI131 3BSE007130R1 is compatible with standard Advant OCS AC 450 and AC 460 subrack configurations. To confirm compatibility with your exact cabinet revision, provide your cabinet serial number or the existing module label (including any R-suffix revision code) when placing your inquiry. Our technical team will cross-reference against ABB hardware compatibility matrices before shipment.

Q3: What pre-shipment testing is performed on each unit?
Every PFVI131 3BSE007130R1 is bench-tested under representative DC load conditions prior to dispatch. Testing includes output voltage accuracy on all rails, ripple measurement, thermal stability check, and visual inspection of all connectors and PCB components. A test report is available upon request for quality-critical applications.

Q4: What is the recommended spare holding strategy for Advant OCS power supply modules?
For continuous-process facilities, we recommend holding a minimum of one PFVI131 per active cabinet cluster as an on-site cold spare, with a second unit held at regional warehouse level for multi-site operations. Given the age of the Advant OCS platform and declining OEM availability, early procurement and secure storage in ESD-safe conditions is strongly advised. SMARTNEXMSK offers long-term supply agreements and reserved stock programs for customers managing large Advant OCS fleets.
