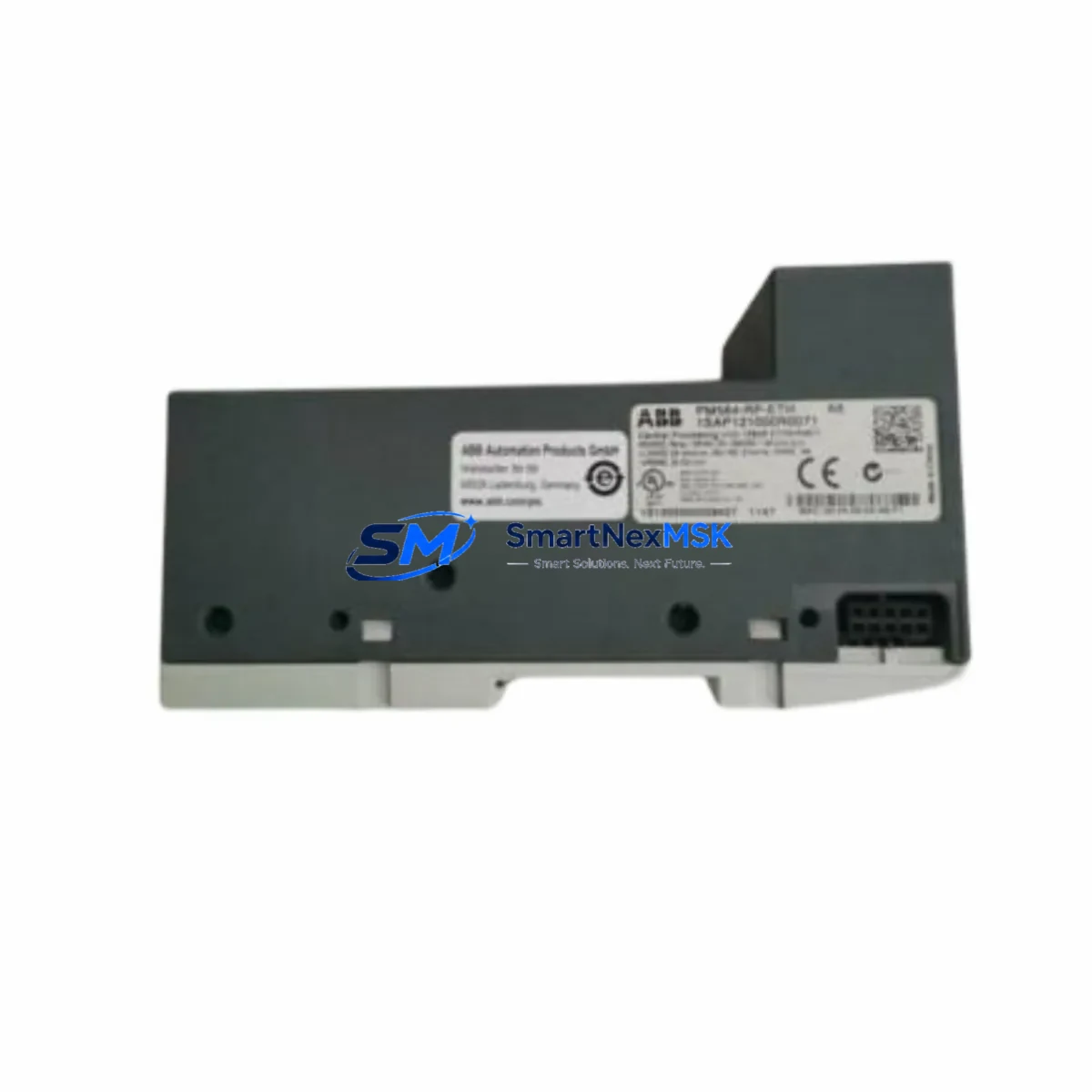

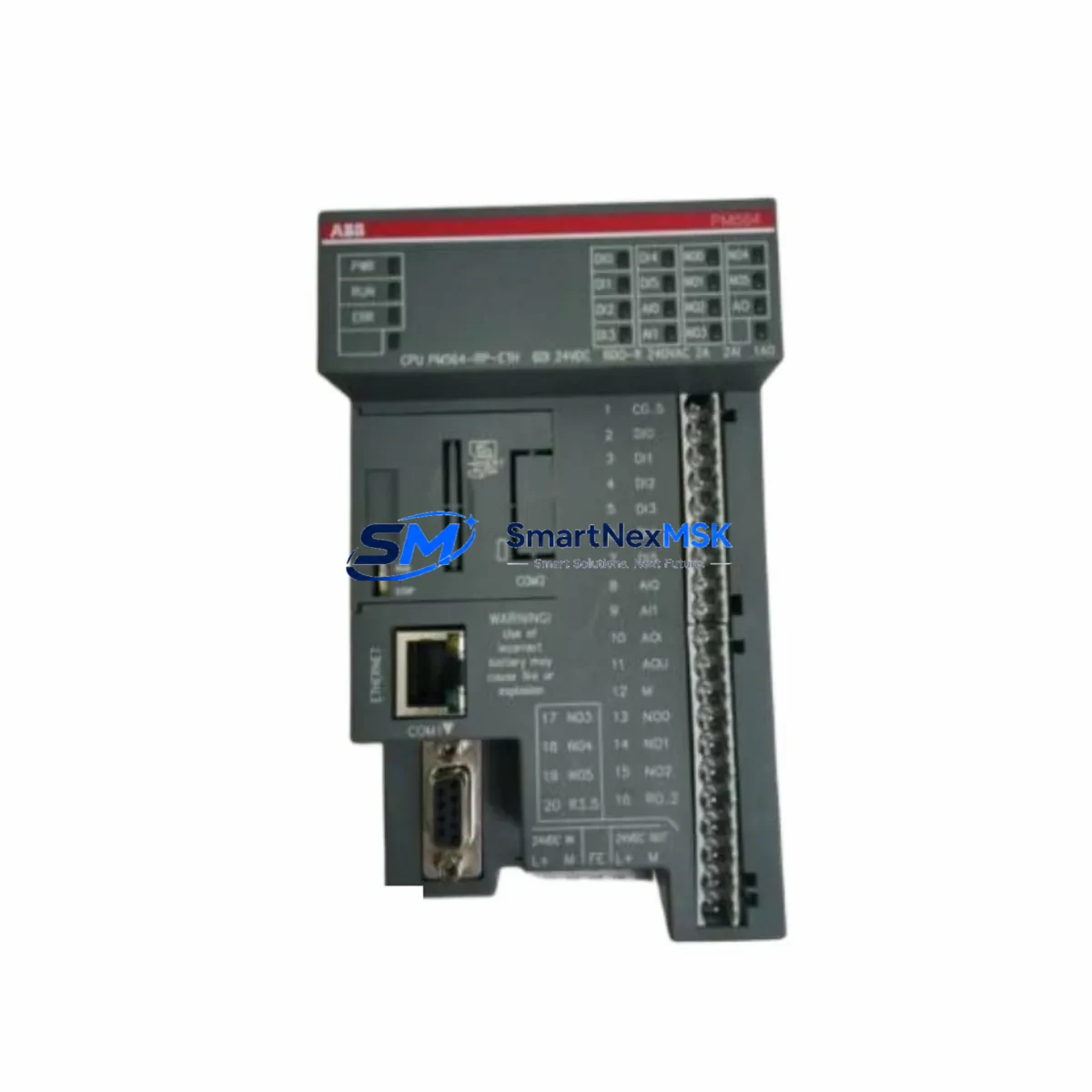

ABB PM564-RP-ETH 1SAP121000R0071 Retrofit-Ready CPU for AC500 Control Systems
The ABB PM564-RP-ETH (catalog number 1SAP121000R0071) is a high-performance CPU module engineered for the AC500 programmable logic controller platform. Designed with retrofit and legacy system modernization in mind, this module serves as a direct functional replacement for discontinued or end-of-life AC500 CPU variants, enabling engineers to restore, upgrade, and future-proof existing control architectures without full panel redesign.
Equipped with an integrated Ethernet port supporting MODBUS TCP and CS31 fieldbus communication, the PM564-RP-ETH is purpose-built for environments where protocol continuity is critical. Whether migrating from an older PM554 or PM583 CPU, or consolidating a multi-rack system onto a single high-capacity controller, this module delivers the processing headroom and I/O scalability required for demanding industrial applications including water treatment, building automation, power distribution, and discrete manufacturing.
SMARTNEXMSK maintains verified stock of the PM564-RP-ETH 1SAP121000R0071 with full pre-shipment functional testing, ensuring every unit leaves our facility ready for panel installation and commissioning.
Upgrade Compatibility Table
| Parameter | PM564-RP-ETH 1SAP121000R0071 | Retrofit Notes |
|---|---|---|
| Platform | ABB AC500 | Compatible with all AC500 V2/V3 backplanes |
| Communication | Ethernet (MODBUS TCP), CS31 | Replaces CS31-only CPUs; verify HMI IP addressing |
| Backplane Interface | AC500 standard bus connector | Direct fit on TB521, TB541, TB561 terminal bases |
| Program Memory | 1 MB user program | Sufficient for migrated PM554/PM583 logic |
| I/O Expansion | Up to 10 expansion modules | Retain existing DA501, DI524, AI523 I/O modules |
| Installation | DIN rail, snap-on terminal base | No panel drilling required for same-footprint swap |
| Power Requirement | 24 VDC via terminal base | Verify PS501 or PS560 power supply capacity ≥ 3A |
| Programming Tool | Automation Builder (CoDeSys 3.5) | Import existing .pro files; verify library versions |
| HMI Compatibility | CP600 series, third-party MODBUS HMI | Update IP address and tag mapping in HMI project |
| Warranty | 12 Months | Covered from date of shipment by SMARTNEXMSK |
Retrofit Planning for Existing Automation Systems
Successful integration of the PM564-RP-ETH into a legacy control system begins well before the module arrives on site. The first step is a thorough audit of the existing cabinet: confirm that the installed power supply — typically a PS501-ETH or PS560 — can deliver sufficient current for the new CPU plus all connected expansion modules. The PM564-RP-ETH draws marginally more current than older PM554 units, and any marginal power budget must be resolved before commissioning.
Terminal base compatibility is the next checkpoint. The PM564-RP-ETH mounts directly onto ABB TB521, TB541, or TB561 terminal bases. If the existing installation uses an older TB511 base, a base swap is required — a straightforward task that can be completed during the planned maintenance window without rewiring field cables, since terminal bases retain their wiring independently of the CPU module.
I/O module retention is one of the strongest arguments for choosing the PM564-RP-ETH as a retrofit solution. Existing DA501 digital output modules, DI524 digital input modules, AI523 analog input modules, and AO523 analog output modules all remain fully compatible and can be reused without modification. Module addressing is preserved through the terminal base slot assignment, eliminating the need to remap I/O addresses in the control program.
For sites running CS31 fieldbus networks connecting remote I/O stations or distributed DA/DI modules, the PM564-RP-ETH’s integrated CS31 interface ensures uninterrupted fieldbus communication. Engineers should document the existing CS31 node addresses and verify that the migrated program retains the same network variable assignments before going live.
Communication module continuity is equally important. If the existing rack includes a CM572-DP PROFIBUS master module or a CM589-PNIO PROFINET interface, these modules remain slot-compatible and fully supported under the PM564-RP-ETH’s expanded communication stack. Verify firmware versions in Automation Builder prior to download to avoid library mismatch errors.
HMI panel integration — particularly CP600 series operator panels connected via Ethernet — requires an IP address update in the HMI project to match the new CPU’s network configuration. Tag databases and screen logic require no structural changes provided the variable names in the PLC program are preserved during migration. For legacy panels using serial MODBUS RTU, a CM578-CN communication module can bridge the protocol gap without replacing the HMI hardware.
Programming cable access during commissioning is simplified by the PM564-RP-ETH’s onboard Ethernet port, which supports direct Automation Builder connection over the plant LAN — eliminating the need for a dedicated TK501 USB programming cable in most retrofit scenarios, though having one on hand as a backup is recommended practice.
Downtime Control During System Migration
Minimizing unplanned downtime is the central concern of any retrofit project. The PM564-RP-ETH supports a structured hot-swap preparation workflow: the replacement CPU can be pre-loaded with the migrated program offline using Automation Builder’s simulation mode, allowing full logic verification before the production system is touched.
The recommended migration sequence is: (1) export and archive the existing program from the old CPU using Automation Builder or the legacy programming tool; (2) compile and test the program on the PM564-RP-ETH in offline simulation; (3) schedule a controlled shutdown during a low-production window; (4) swap the CPU module on the terminal base — a tool-free operation taking under five minutes; (5) power up, download the verified program, and perform a structured I/O force-test before releasing control to automatic mode.
Retaining the original program archive on a secure engineering workstation ensures that a rollback to the previous CPU is possible within the same maintenance window if unexpected compatibility issues arise. SMARTNEXMSK recommends maintaining a spare PM564-RP-ETH unit on-site for critical production lines, reducing mean time to recovery to under 30 minutes in the event of an unplanned CPU fault.
For multi-rack systems where the PM564-RP-ETH serves as the master CPU coordinating slave racks via the AC500 expansion bus, the migration can be staged rack by rack, keeping peripheral I/O racks operational while the master CPU is upgraded — a strategy that is particularly effective in large control cabinets managing 200+ I/O points across multiple TB561 terminal bases.
Retrofit Support FAQ
Q: Is the PM564-RP-ETH 1SAP121000R0071 a direct drop-in replacement for the PM554-TP-ETH?
A: Functionally yes — both modules mount on the same AC500 terminal base family and share the same I/O expansion architecture. The PM564-RP-ETH offers greater program memory and processing speed. The existing program can be imported directly into Automation Builder; verify that all library versions are current before downloading to the new CPU.
Q: What wiring changes are required during the retrofit?
A: In most cases, none. Field wiring connects to the terminal base, not the CPU module itself. Replacing the CPU module is a tool-free snap-on operation. The only wiring review required is the 24 VDC power feed to the terminal base — confirm the supply can meet the PM564-RP-ETH’s current draw under full I/O load.
Q: How is compatibility with existing PROFIBUS or PROFINET networks verified?
A: Retain the existing CM572-DP or CM589-PNIO communication module in its original rack slot. The PM564-RP-ETH recognizes these modules automatically during startup. Verify the GSD/GSDML device files in the Automation Builder project match the installed field devices, and confirm network addresses are unchanged from the previous configuration.
Q: What does the 12-month warranty cover?
A: Every PM564-RP-ETH 1SAP121000R0071 shipped by SMARTNEXMSK carries a 12-month warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing including power-on verification, communication port check, and I/O bus integrity test. Warranty claims are processed directly through SMARTNEXMSK with advance replacement available for critical production applications.
