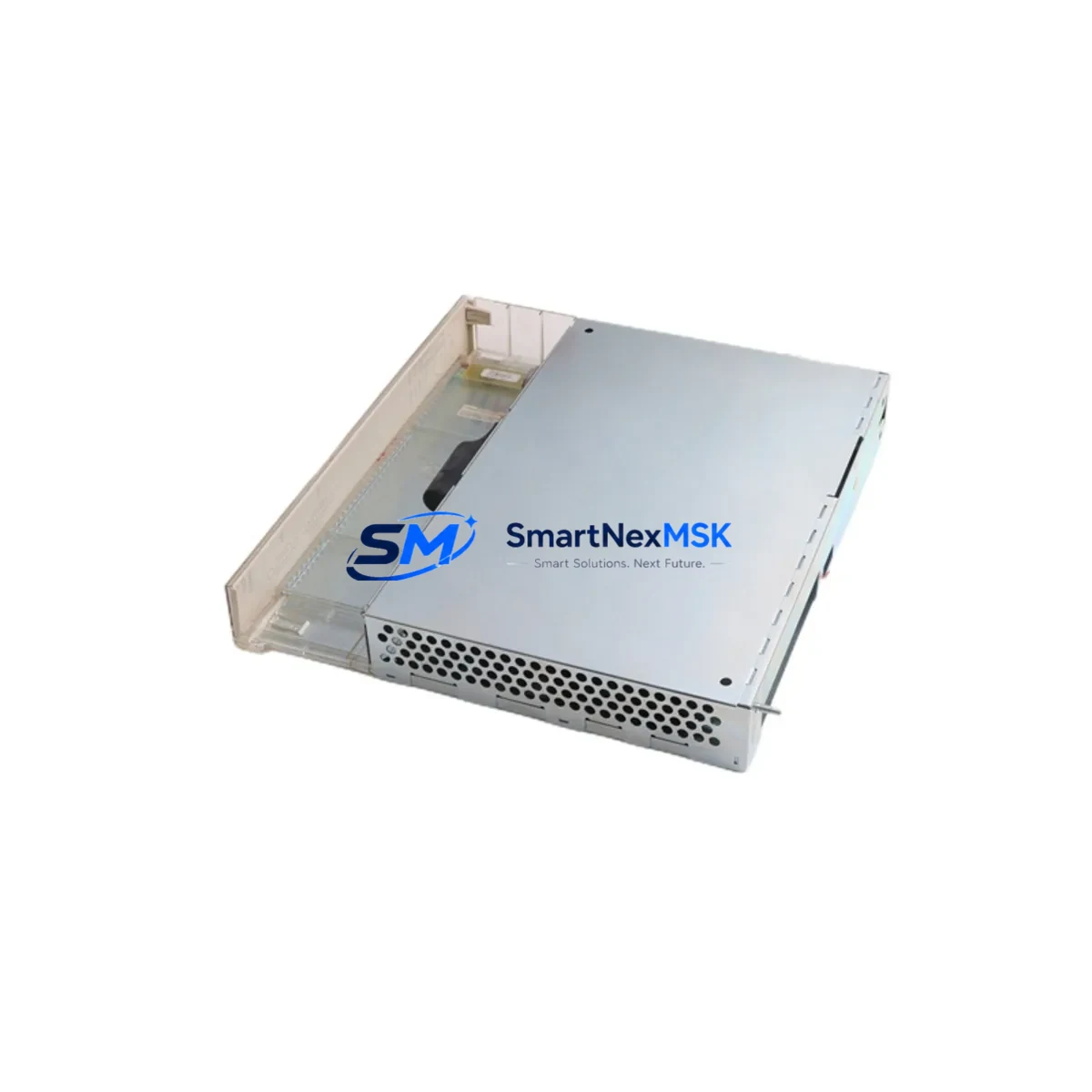

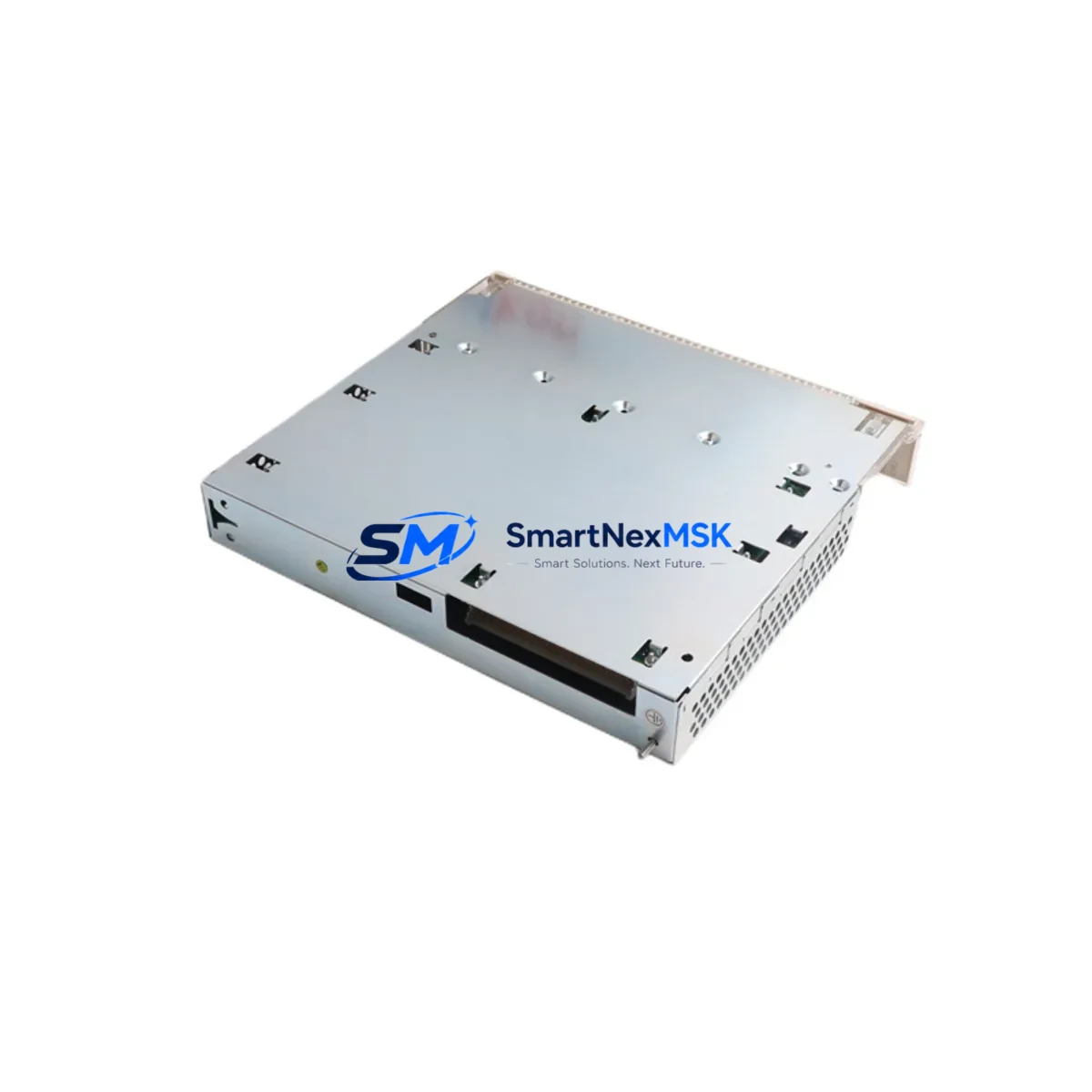

The ABB PM632 3BSE005831R1 is a high-performance CPU module from the ABB AC500 programmable logic controller series, engineered specifically for demanding industrial environments where control continuity, signal integrity, and operational safety are non-negotiable. With a 512 KB dual-port memory architecture and a robust metal housing rated for extended temperature ranges, the PM632 delivers deterministic scan-cycle execution even under severe electromagnetic interference, voltage fluctuations, and mechanical vibration — conditions routinely encountered in petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical complexes, and continuous-process manufacturing lines.

In safety-critical control cabinets, the PM632 serves as the central processing backbone of the AC500 rack system, coordinating I/O communication across digital and analog expansion modules such as the DC532 digital input module and DA501 analog output module, while maintaining synchronised data exchange with field devices through integrated communication interfaces. Its dual-port RAM design enables simultaneous program execution and real-time data logging without scan-cycle degradation — a key advantage in interlock and emergency shutdown (ESD) loop architectures where millisecond-level response is mandatory.

Safety Reliability Table

Control Cabinet Protection Strategy

A reliable control cabinet built around the ABB PM632 3BSE005831R1 demands a layered protection strategy that addresses power quality, signal conditioning, surge suppression, and communication redundancy. On the power supply side, the ABB CP-E 24/5.0 power supply module provides regulated 24 V DC with built-in overload protection, ensuring the PM632 and its associated I/O racks receive stable, clean power even during grid disturbances or load switching events common in heavy industrial facilities.

Surge and transient protection is equally critical. Pairing the PM632 rack with Phoenix Contact TRABTECH surge protection devices on both the 24 V DC bus and field signal lines prevents voltage spikes — generated by motor starts, arc welding equipment, or lightning strikes — from propagating into the CPU backplane. For digital I/O expansion, the ABB DC532 16-channel digital input module and ABB DO531 digital output module integrate directly into the AC500 rack, maintaining deterministic I/O response times while the PM632 manages the control program.

In applications requiring analog process variable monitoring — such as pressure, temperature, or flow control loops — the ABB DA501 analog input/output module provides 4–20 mA and 0–10 V signal conditioning with hardware filtering to suppress common-mode noise from variable frequency drives (VFDs) and high-current motor circuits operating in the same cabinet. Communication integrity between the PM632 and remote I/O stations or SCADA systems is reinforced through ABB CI590-CS31-HA CS31 bus coupler modules, which support hot-standby redundancy configurations for uninterrupted data exchange in continuous-process environments.

For installations in hazardous areas or where intrinsic safety barriers are required, the PM632 control system is typically complemented by Pepperl+Fuchs zener barriers or MTL galvanic isolators on field signal loops, preventing ignition-capable energy from reaching Zone 1 or Zone 2 classified areas. Battery-backed memory retention modules and ABB TA521 terminal adapter units further protect program integrity and wiring continuity during planned maintenance shutdowns or unexpected power interruptions.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: The PM632 is deployed in burner management systems (BMS) and emergency shutdown (ESD) panels where IEC 61511 functional safety requirements demand high-availability CPU performance. Its wide operating temperature range and EMC-hardened design allow reliable operation in environments with continuous hydrocarbon vapour exposure and frequent high-voltage switching transients.

Power Generation and Substation Control: In thermal and hydroelectric power plants, the PM632 manages turbine governor interlocks, generator protection relay coordination, and auxiliary system sequencing. Its deterministic scan cycle and dual-port memory ensure that protection trip signals are processed within defined response windows, even under heavy communication bus loads from SCADA polling.

Mining and Mineral Processing: Underground and surface mining operations subject control hardware to extreme dust ingress, vibration from blasting and heavy machinery, and wide ambient temperature swings. The PM632’s ruggedised construction and IEC 60068-compliant shock and vibration ratings make it a dependable choice for conveyor belt interlocks, crusher control panels, and ventilation safety systems.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities rely on the PM632 for pump sequencing, chemical dosing control, and alarm management in environments with high humidity and corrosive chemical atmospheres. Its sealed backplane connectors and conformal-coating-compatible design support long-term deployment in wet utility buildings.

Metallurgy and Steel Production: In electric arc furnace (EAF) and rolling mill control systems, the PM632 handles high-speed process interlocks where electromagnetic interference from furnace transformers and thyristor drives is intense. Its IEC 61000-4 EMC compliance ensures signal integrity is maintained without false trips or communication dropouts during peak production cycles.

Port and Material Handling Automation: Container crane PLC systems and automated stacker-reclaimer controls benefit from the PM632’s fast I/O scan rates and robust communication interfaces, enabling precise load positioning and anti-sway control in outdoor coastal environments subject to salt-laden air and wide temperature variation.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the ABB PM632 3BSE005831R1?
The 12-month warranty covers all manufacturing defects, component failures, and functional malfunctions arising under normal operating conditions as specified in the ABB AC500 technical documentation. If the module fails to perform its rated functions within the warranty period, we provide free replacement or repair. The warranty period begins from the date of confirmed shipment.

Q2: What pre-shipment testing is performed on the PM632 before dispatch?
Every PM632 3BSE005831R1 unit undergoes a multi-point functional verification prior to shipment, including power-on self-test (POST) confirmation, communication interface continuity checks, memory read/write integrity verification, and visual inspection of backplane connectors and housing. Units that do not pass all test criteria are quarantined and not dispatched.

Q3: Is the PM632 3BSE005831R1 compatible with existing ABB AC500 V2 and V3 rack systems?
The PM632 is designed for the ABB AC500 V2 platform. Compatibility with V3 racks and expansion modules should be verified against the ABB AC500 system compatibility matrix. We recommend confirming your existing rack generation and firmware version before ordering. Our technical team can assist with compatibility assessment at no charge prior to purchase.

Q4: Can long-term supply and replacement support be guaranteed for critical infrastructure projects?
Yes. We maintain dedicated safety-stock inventory of the PM632 3BSE005831R1 and other high-demand AC500 CPU and I/O modules to support long-term maintenance contracts, planned turnaround shutdowns, and emergency replacement requirements. For projects requiring guaranteed supply over a multi-year horizon, we offer reserved inventory agreements with defined lead times and pricing stability.
