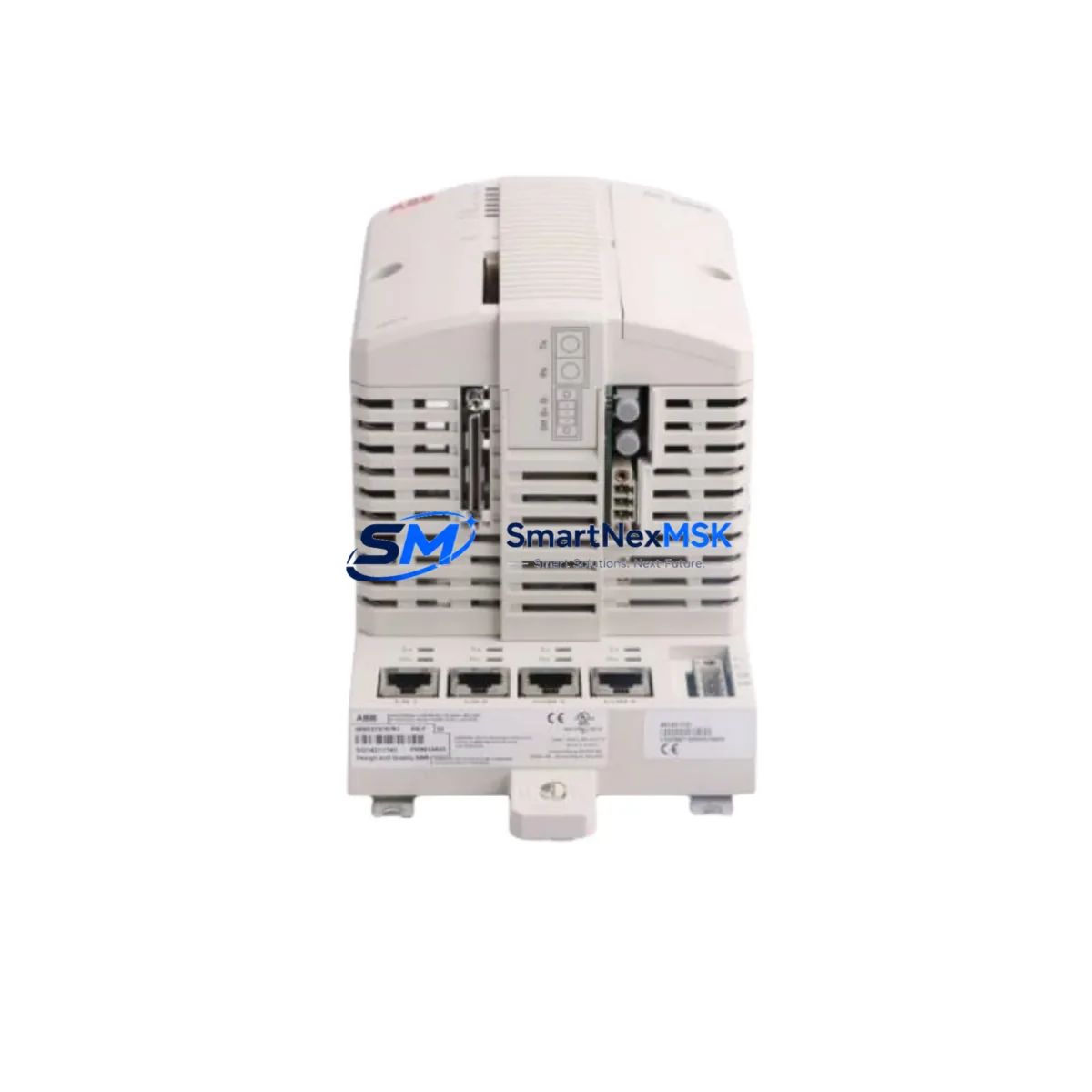

The ABB PM864AK01 (order number 3BSE018161R1) is a high-performance central processing unit designed for the AC 800M distributed control system platform. As legacy DCS installations age and original CPU modules approach end-of-life, the PM864AK01 serves as the definitive retrofit-ready replacement — enabling engineers to modernize aging control cabinets without redesigning the entire automation architecture. Whether you are replacing a failed PM864 unit, upgrading from an earlier PM861AK01 or PM862AK01 revision, or expanding processing capacity across a multi-controller network, this module delivers the computational headroom and communication flexibility required for continuous industrial operations.

The PM864AK01 operates within the standard AC 800M rack infrastructure, accepting the same TB807 and TB840A termination boards used in earlier generations. Its dual Ethernet ports support both MMS (Manufacturing Message Specification) and OPC DA/UA communication, making it fully compatible with existing ABB 800xA System infrastructure, historian servers, and SCADA layers without requiring protocol gateway hardware. The module’s onboard memory supports large IEC 61131-3 application programs, and its real-time clock retains program state across controlled power cycles — a critical feature when managing planned maintenance windows in continuous-process environments such as chemical plants, pulp and paper mills, and power generation facilities.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful PM864AK01 retrofit begins well before the module arrives on site. The first step is a thorough audit of the existing control cabinet: document the current rack configuration, identify all installed I/O modules such as DI810, DO810, AI810, and AO810 analog output cards, and record the addresses assigned to each module in the hardware configuration file. The PM864AK01 uses the same module addressing scheme as its predecessors, so existing hardware configurations exported from Control Builder M can typically be imported directly — but engineers should verify that the firmware version on the new CPU is compatible with the application project’s target platform settings before committing to a live cutover.

Power budget verification is a non-negotiable step. The SD821 and SD822 power supply modules that are common in AC 800M cabinets have defined current limits for the backplane bus. When adding the PM864AK01 alongside existing CI854AK01 Profibus communication interface modules, CI867K01 PROFINET interface modules, or additional AI895 HART analog input cards, the total draw must remain within the PSU’s rated output. A simple spreadsheet audit of each module’s backplane current consumption — available in ABB’s hardware data sheets — prevents nuisance trips during commissioning.

Field wiring connected to TB807 and TB840A termination boards does not need to be disturbed during a CPU swap. The termination boards remain in place; only the CPU module itself is extracted from the backplane slot. This architecture dramatically reduces the risk of wiring errors during the replacement procedure and is one of the primary reasons the AC 800M platform remains a preferred choice for brownfield modernization projects. After seating the PM864AK01, engineers should confirm that the module’s MAC addresses are registered in the 800xA System’s OPC server configuration and that the redundancy synchronization link — if applicable, using the SR811K01 cable — is correctly connected between the primary and standby CPUs.

For sites running Profibus DP field devices such as ABB SATT drives, Endress+Hauser flow transmitters, or third-party valve positioners, the CI854AK01 Profibus interface module handles all fieldbus communication independently of the CPU. This means the Profibus segment remains live during a CPU hot-swap in a redundant configuration, protecting field device communication continuity. After the swap, use Control Builder M’s online diagnostic view to confirm that all Profibus slaves have re-established communication and that no GSD file mismatches are flagged.

Downtime Control During System Migration

Minimizing unplanned downtime is the central concern for any control system migration. The PM864AK01 supports ABB’s CPU redundancy architecture, which allows a standby CPU to take over control within milliseconds of a primary CPU fault — without interrupting the process or requiring operator intervention. For sites that cannot implement hardware redundancy, a structured cold-swap procedure can still limit downtime to under 30 minutes when the replacement module is pre-configured and the application project is pre-loaded using Control Builder M’s offline simulation environment.

Before initiating any cutover, back up the current application project, hardware configuration, and all function block library references to a secure engineering workstation. Export the 800xA System’s OPC address space configuration so that HMI tag bindings can be verified after the new CPU comes online. If the site uses ABB’s Asset Monitor or System 800xA Batch Management, confirm that the batch recipe server’s connection to the controller is re-established before releasing the process back to automatic mode.

During the cutover window, keep the CI854AK01 Profibus modules and all I/O modules powered and in their rack slots. Only the CPU module is exchanged. Once the PM864AK01 is seated and powered, Control Builder M will detect the new hardware and prompt for application download. Use the “warm start” download option where possible to preserve output states and avoid process upsets caused by outputs defaulting to zero. After download, verify all analog input readings against field instruments, confirm digital output states match the process requirements, and check that the real-time clock is synchronized to the site’s NTP server before handing control back to the operations team.

Retrofit Support FAQ

Q: Is the PM864AK01 3BSE018161R1 a direct replacement for the PM861AK01 and PM862AK01?
A: Yes. The PM864AK01 is backward compatible with earlier AC 800M CPU revisions and fits the same backplane slot. The hardware configuration in Control Builder M may require a target platform update to recognize the PM864 hardware type, but existing IEC 61131-3 application code, function block libraries, and I/O module configurations are fully reusable without rewriting program logic.

Q: What pre-shipment testing is performed on the PM864AK01?
A: Every unit undergoes a functional power-on test prior to dispatch. The test confirms that the CPU boots correctly, both Ethernet ports are active, and the module’s self-diagnostic LEDs report no fault conditions. A test report is available upon request. All units are covered by a 12-month warranty against manufacturing defects from the date of shipment.

Q: Can the PM864AK01 operate in a redundant CPU configuration?
A: Yes. Two PM864AK01 modules can be configured as a redundant pair using the SR811K01 synchronization cable. The redundancy configuration is managed entirely within Control Builder M’s hardware editor — no additional software licenses are required beyond the standard redundancy option. Switchover time is typically under 50 milliseconds, which is transparent to most process control loops.

Q: What should I verify regarding wiring and termination before installing the PM864AK01?
A: Field wiring connected to TB807 or TB840A termination boards does not need to be modified. Verify that the backplane rack (TP830 or TP854) is free of corrosion or damaged connector pins before seating the new module. Confirm that the SD821 or SD822 power supply has sufficient current headroom for the installed module set. After installation, use Control Builder M’s online hardware scan to confirm that all I/O modules — including any AI810 analog input, DI810 digital input, or DO810 digital output cards — are recognized at their expected addresses before downloading the application.
