ABB PM865K01 3BSE031151R1 Retrofit-Ready CPU for AC 800M

ABB PM865K01 3BSE031151R1 Retrofit-Ready CPU for AC 800M Control Systems

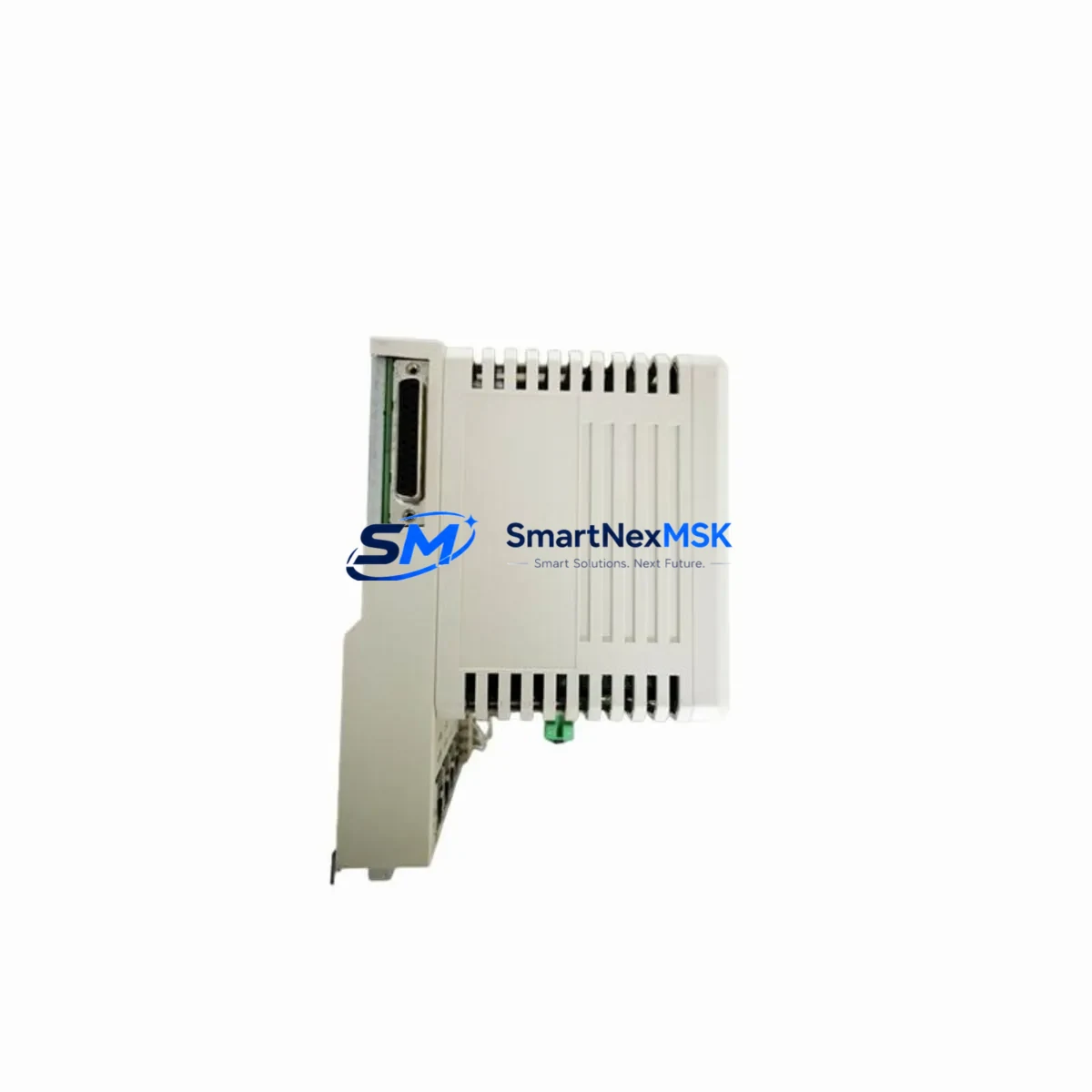

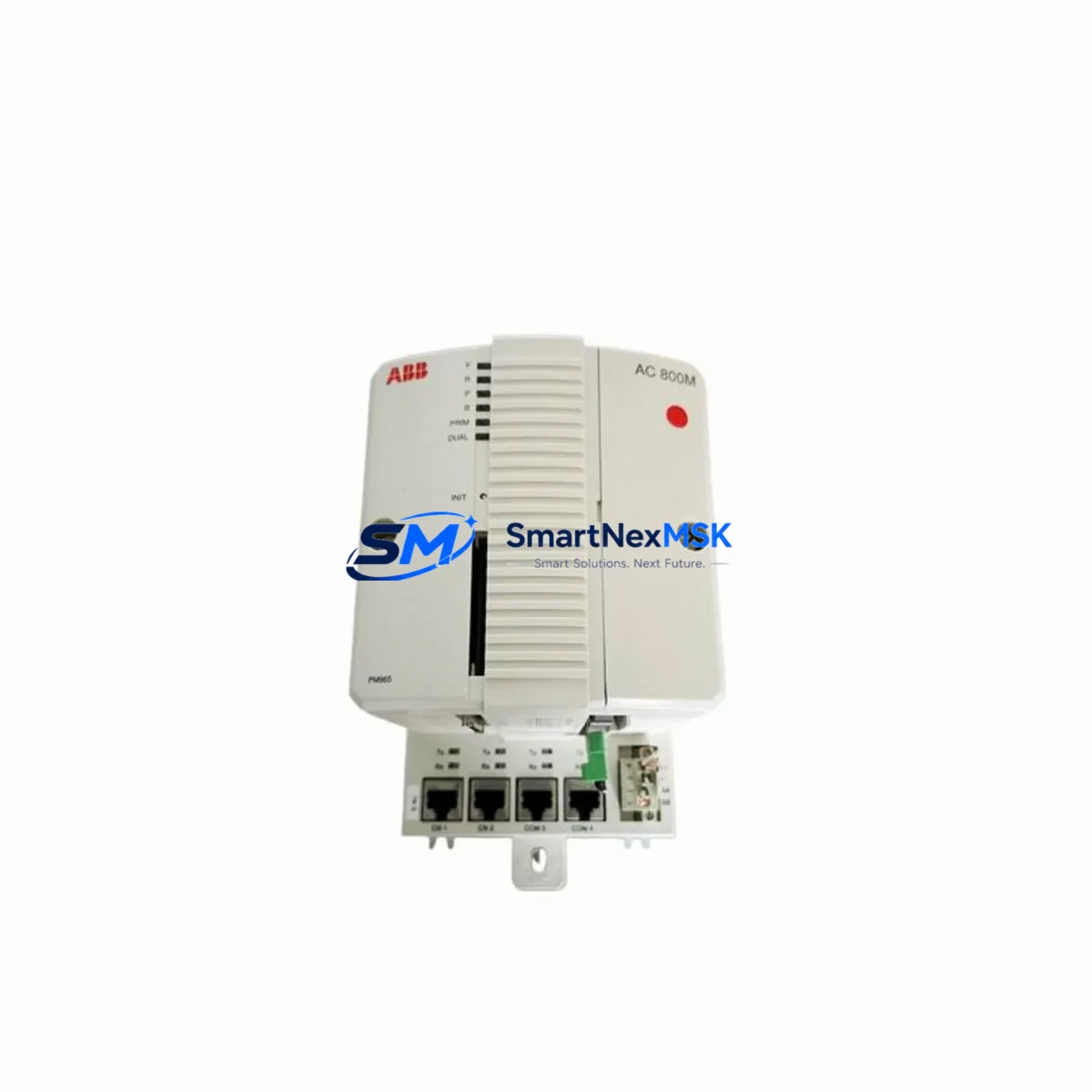

The ABB PM865K01 (catalog number 3BSE031151R1) is a high-performance central processing unit designed for the AC 800M distributed control system platform. As legacy DCS installations age and original spare parts become increasingly difficult to source, the PM865K01 has become one of the most sought-after retrofit and replacement modules for plants running AC 800M-based control architectures. Whether you are replacing a failed PM864A, upgrading from an earlier PM861A, or consolidating a multi-controller cabinet into a leaner configuration, the PM865K01 delivers the processing headroom and communication flexibility required for modern industrial environments.

This module supports the standard AC 800M backplane interface and is compatible with the TB840A and TB842A termination boards, allowing direct installation into existing S800 I/O racks without rewiring. The PM865K01 operates at a higher clock speed than its predecessors and supports expanded memory for larger application programs, making it suitable for plants that have grown their control logic over years of incremental expansion. It communicates natively over MMS/PROFIBUS and supports redundant Ethernet via the CEX-Bus, enabling seamless integration with existing CI854B and CI857 communication interface modules already installed in the field.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful PM865K01 retrofit begins well before the module arrives on site. The first step is a full audit of the existing controller cabinet, documenting the installed PM864A or PM861A firmware revision, the application program version in Control Builder M, and the current I/O module addresses assigned across all S800 racks. Plants that have been running the same DCS configuration for ten or more years often discover undocumented address conflicts or deprecated function blocks during this audit phase — issues that are far easier to resolve in the engineering office than during a live cutover.

Power budget verification is equally critical. The TP830 or TP854 power supply feeding the controller unit must have sufficient headroom to support the PM865K01 alongside any CI854B PROFIBUS communication modules, CI857 Ethernet modules, and SD821 or SD822 power distribution units already installed. If the cabinet is running close to its rated load, adding the PM865K01 without derating other modules can cause intermittent resets that are difficult to diagnose in the field.

Terminal wiring on the TB840A and TB842A termination boards does not need to change during a CPU swap, but each AI810, AO810, DI810, and DO810 I/O module should be visually inspected for corrosion or loose connections before the new processor is commissioned. This is also the right moment to replace any aging CI854B PROFIBUS cables and verify that the DP network termination resistors are correctly installed at both ends of the segment. Plants migrating from a PROFIBUS-only architecture to a mixed PROFIBUS/Ethernet topology should plan for the addition of a CI858 module and the corresponding network switch configuration before the cutover window opens.

HMI integration with the ABB 800xA system typically requires only an OPC server re-scan after the PM865K01 is online and the application has been re-downloaded. However, plants running older Operate IT stations should verify that the graphic displays referencing controller tags are still resolving correctly, particularly for any custom faceplates built against deprecated tag structures. A pre-cutover simulation using a spare controller rack with the PM865K01 installed is strongly recommended for plants where continuous process availability is a priority.

Downtime Control During System Migration

Minimizing unplanned downtime during a CPU replacement requires a structured migration sequence. Begin by exporting the full application from the existing PM864A using Control Builder M and storing a timestamped backup on an isolated engineering workstation. Confirm that the backup compiles cleanly against the PM865K01 hardware configuration before scheduling the physical swap. If the plant operates a redundant controller pair, the migration can be performed in a rolling sequence — switching control to the standby unit, replacing the primary CPU, verifying online status, then repeating for the secondary — without interrupting field control at any point.

For single-controller installations, the cutover window should be planned during a scheduled maintenance shutdown. The physical swap of the PM865K01 into the vacated slot takes less than fifteen minutes; the majority of the cutover time is consumed by application download, I/O module initialization, and communication link verification across all CI854B and CI857 segments. Having a pre-configured SD821 power supply and a spare TB840A termination board on hand as contingency spares can prevent a minor component issue from extending the outage window significantly.

Once the PM865K01 is online and all I/O modules are reporting healthy status in Control Builder M, a structured loop check across representative AI810 analog inputs and DO810 digital outputs confirms that field signals are being read and written correctly before the process is returned to automatic control. Document the final firmware version, application checksum, and module serial number in the plant maintenance record to support future audits and warranty claims.

Retrofit Support FAQ

Q: Is the PM865K01 3BSE031151R1 a direct drop-in replacement for the PM864A?
A: Yes. The PM865K01 occupies the same slot position in the AC 800M controller unit and uses the same CEX-Bus backplane interface. The application program compiled for a PM864A can be re-downloaded to the PM865K01 after the swap with no structural changes required, though a full compile and download is recommended to ensure all function block libraries are correctly linked to the new hardware profile.

Q: What commissioning steps are required after installing the PM865K01?
A: After physical installation, connect to the module via Control Builder M, download the application, and verify that all S800 I/O modules — including AI810, AO810, DI810, and DO810 units — are reporting online. Check communication status on all CI854B PROFIBUS and CI857 Ethernet segments. Perform a loop check on critical control loops before returning the process to automatic mode. The full commissioning sequence typically takes two to four hours depending on system size.

Q: Does the PM865K01 support hot-standby redundancy?
A: Yes. The PM865K01 supports hot-standby CPU redundancy when paired with a second PM865K01 in the same controller unit. The redundancy link uses the dedicated CEX-Bus connection and requires no additional hardware beyond the second module. Switchover time is typically less than one scan cycle, preserving process continuity during planned and unplanned controller events.

Q: What warranty coverage is included with this module?
A: Every PM865K01 3BSE031151R1 supplied by SMARTNEXMSK includes a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes a pre-shipment functional test to verify processor initialization, backplane communication, and memory integrity before dispatch. Warranty claims are supported directly through our technical team at [email protected].
