ABB PP836 3BSE042237R1 Safety-Enhanced HMI for Harsh Sites

ABB PP836 3BSE042237R1 Safety-Enhanced HMI Panel for Harsh Industrial Sites

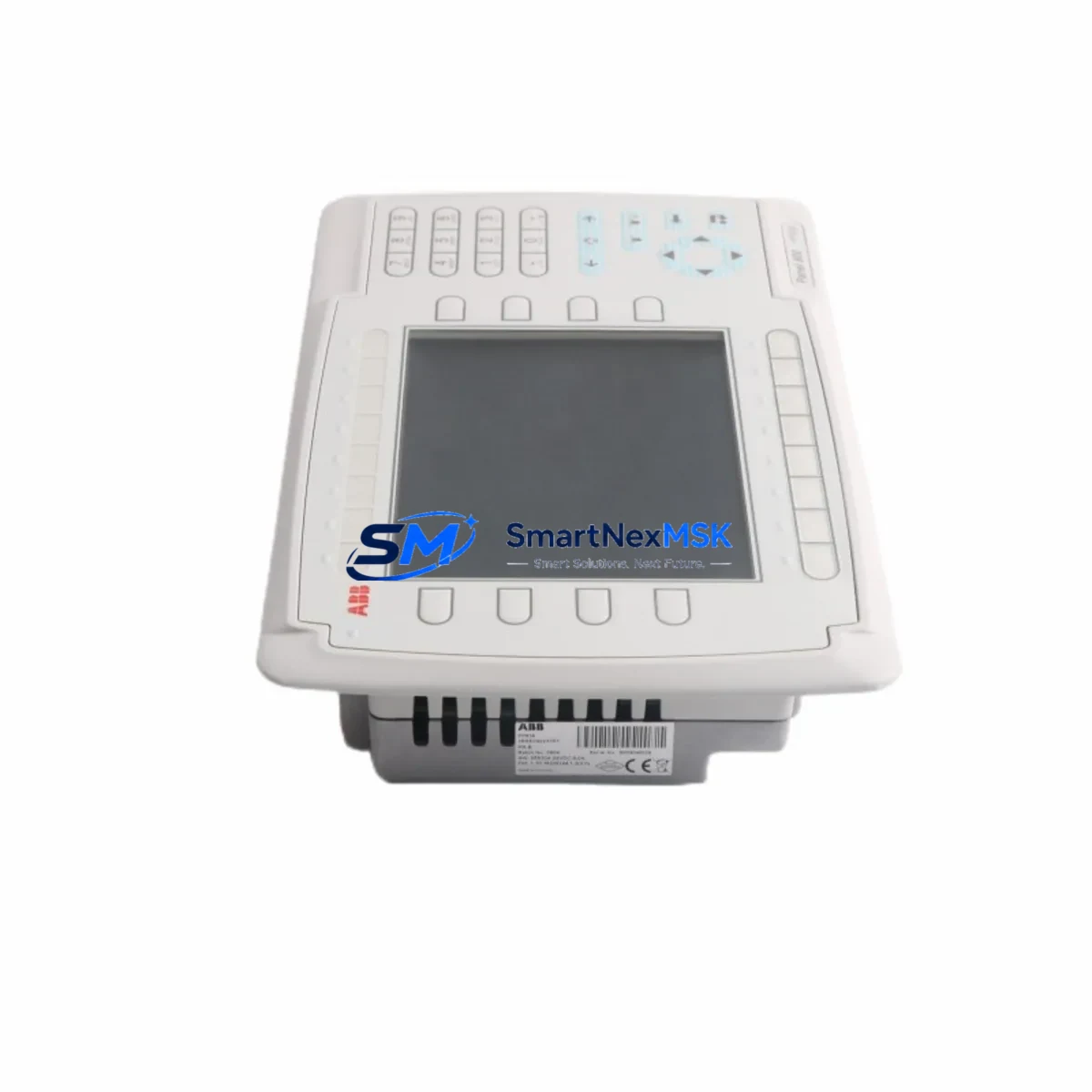

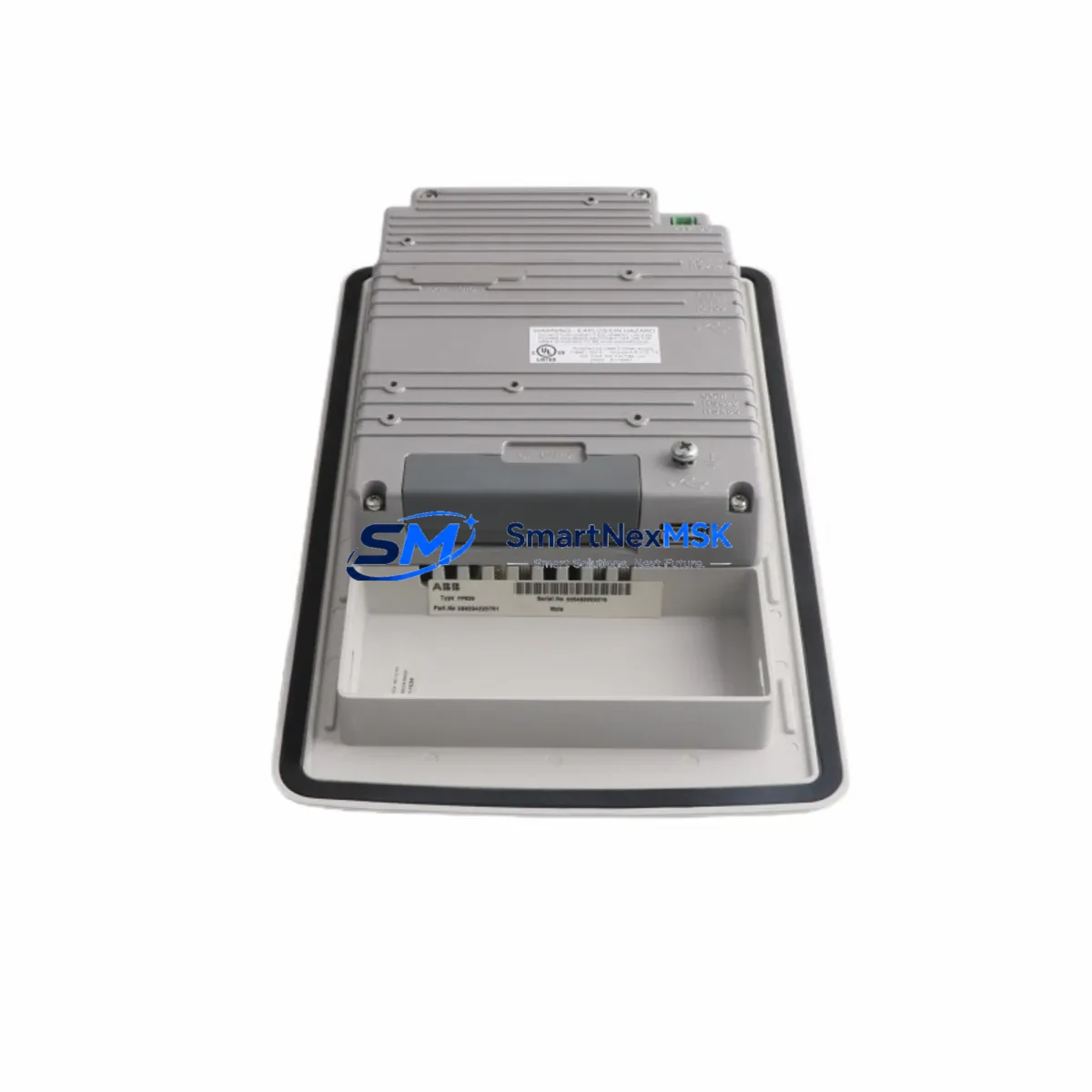

The ABB PP836 (3BSE042237R1) is a ruggedized operator interface panel engineered for mission-critical control environments where uptime, signal integrity, and operator safety are non-negotiable. Designed as a core component of the ABB AC800M Distributed Control System and the broader Panel 800 HMI family, this unit delivers consistent, high-visibility process visualization in petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical complexes, port logistics hubs, and continuous manufacturing lines where control interruption carries severe operational and safety consequences.

In high-load industrial environments, HMI panels are frequently exposed to electromagnetic interference, voltage transients, vibration, airborne particulates, and wide thermal cycling. The PP836 3BSE042237R1 addresses each of these threats through its hardened enclosure, wide operating temperature tolerance, and EMI-shielded electronics — ensuring that operator commands and process feedback remain accurate even when the surrounding environment is hostile. Its integration with the AC800M controller backbone means that signal drift, communication timeouts, and module misbehavior are minimized through deterministic fieldbus communication, reducing the risk of spurious trips or missed alarms in safety-critical interlocks.

When deployed alongside the ABB PM866 processor module and TB840A termination boards, the PP836 forms a tightly coupled control node capable of sustaining continuous scan cycles without latency spikes. Power supply stability is equally critical: pairing this HMI with a ABB SD831 24VDC power supply module or equivalent redundant power unit ensures that voltage fluctuations on the plant bus do not propagate into the display or communication stack. For installations requiring additional surge protection at the cabinet level, inline transient voltage suppressors and DIN-rail mounted surge protection devices are recommended upstream of the panel’s power input.

Communication reliability is maintained through the panel’s support for the MMS (Manufacturing Message Specification) and PROFIBUS DP protocols, enabling seamless data exchange with field instruments, remote I/O racks, and safety PLCs. In architectures where the PP836 operates alongside ABB CI854B PROFIBUS DP communication interface modules or CI801 fieldbus communication interface units, the system benefits from redundant communication paths that prevent single-point communication failures from cascading into process shutdowns. The panel’s alarm management capabilities further support safety by providing operators with prioritized, unambiguous fault notifications — a critical feature in facilities operating under IEC 61511 functional safety requirements.

For control cabinet protection strategies in hazardous or high-vibration zones, the PP836 is frequently installed with ABB S800 I/O modules such as the AI810 analog input module and DO810 digital output module, which handle field signal conditioning and actuator commands respectively. These modules, when mounted on the same DIN rail assembly as the AC800M controller, benefit from the same cabinet-level thermal management and EMC shielding that protects the PP836 itself. In safety instrumented systems (SIS), the panel may interface with dedicated ABB AC800M HI (High Integrity) controller variants, ensuring that the HMI layer does not introduce latency or data corruption into the safety function execution path.

Replacement and spare parts availability is a key consideration for long-term plant reliability. The PP836 3BSE042237R1 is stocked as a verified OEM-equivalent spare, pre-tested prior to shipment against functional and communication benchmarks. Each unit undergoes outgoing quality inspection covering display integrity, backlight uniformity, touchscreen calibration (where applicable), and communication port functionality. This ensures that field replacement can be completed within a planned maintenance window without the risk of commissioning failures caused by latent defects.

All units are supplied with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Long-term supply continuity is maintained through established sourcing channels, supporting both emergency breakdown replacements and planned lifecycle refresh programs for aging DCS installations.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust control cabinet architecture built around the PP836 3BSE042237R1 requires careful selection of complementary protection, power, and communication components. At the controller level, the ABB PM866K01 processor module provides the computational backbone, while TB840A and TB842 termination boards ensure clean, vibration-resistant field wiring terminations that reduce the risk of intermittent signal faults. For analog signal integrity, ABB AI810 and AI820 analog input modules provide 4–20 mA loop monitoring with hardware filtering that suppresses common-mode noise from variable frequency drives and high-current switching equipment operating in the same cabinet or adjacent panels.

Power quality is managed through ABB SD831 and SD832 24VDC power supply modules, which deliver regulated, short-circuit-protected DC power to the controller rack and HMI bus. In critical applications, redundant power supply configurations using dual SD831 units with diode ORing modules eliminate single-point power failures as a cause of control system downtime. Communication path protection is achieved through the ABB CI854B PROFIBUS DP interface module, which supports redundant fieldbus topologies and provides automatic switchover in the event of a primary communication path fault — a capability that is essential in continuous process plants where a communication dropout can trigger emergency shutdowns. For digital output protection, ABB DO810 and DO820 digital output modules incorporate output diagnostics that detect short circuits and open-load conditions before they escalate into actuator failures or process upsets.

Critical Industrial Safety Applications

The ABB PP836 3BSE042237R1 is deployed across a wide range of safety-critical industrial sectors. In petrochemical and refinery operations, it serves as the primary operator interface for distillation column control, compressor surge protection, and emergency shutdown (ESD) system status monitoring — environments where a display failure or communication fault can delay operator response to a developing hazard. In power generation facilities, including coal, gas, and hydroelectric plants, the panel provides real-time visualization of turbine control loops, generator excitation systems, and grid synchronization parameters, where millisecond-level response accuracy is required.

In underground and open-cut mining operations, the PP836 is valued for its IP65-rated front panel protection against coal dust, silica particulates, and water ingress — conditions that rapidly degrade standard commercial HMI panels. Water and wastewater treatment plants rely on the panel for SCADA-integrated process visualization of pump stations, chemical dosing systems, and filtration control loops operating continuously across multi-year maintenance cycles. In metallurgical and steel production environments, the panel withstands radiant heat, electromagnetic interference from arc furnaces, and mechanical vibration from rolling mill equipment. Port and terminal automation systems use the PP836 in crane control cabinets and conveyor management systems where outdoor temperature extremes and salt-air corrosion are additional environmental stressors.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the PP836 3BSE042237R1?
The warranty covers all manufacturing defects and functional failures under normal operating conditions for 12 months from the date of shipment. This includes display failures, communication port malfunctions, and power input circuit faults. Units that fail within the warranty period are repaired or replaced at no additional cost.

Q2: What pre-shipment testing is performed on each unit?
Every PP836 3BSE042237R1 unit undergoes a multi-point outgoing inspection covering display panel integrity, backlight uniformity, touchscreen calibration accuracy, Ethernet and serial communication port functionality, and power input verification at rated voltage. This ensures that field installation proceeds without commissioning delays caused by latent defects.

Q3: Is the PP836 3BSE042237R1 compatible with existing AC800M DCS installations?
Yes. The PP836 3BSE042237R1 is a direct OEM-equivalent replacement for existing Panel 800 series HMI installations within the AC800M DCS architecture. It is compatible with PM866, PM864A, and related processor modules, and supports the MMS and PROFIBUS DP communication protocols used in standard AC800M system configurations. No firmware modifications are required for like-for-like replacement.

Q4: Can long-term supply continuity be guaranteed for ongoing maintenance programs?
Yes. The PP836 3BSE042237R1 is maintained as a stocked line item to support both emergency breakdown replacements and planned lifecycle refresh programs. Customers operating large AC800M DCS fleets can arrange framework supply agreements to ensure priority allocation during high-demand periods. Contact our sales team to discuss volume pricing and reserved stock arrangements.
