ABB PST142-690-70 Maintenance-Ready Spare PST Series

ABB PST142-690-70 Maintenance-Ready Spare for PST Series Automation

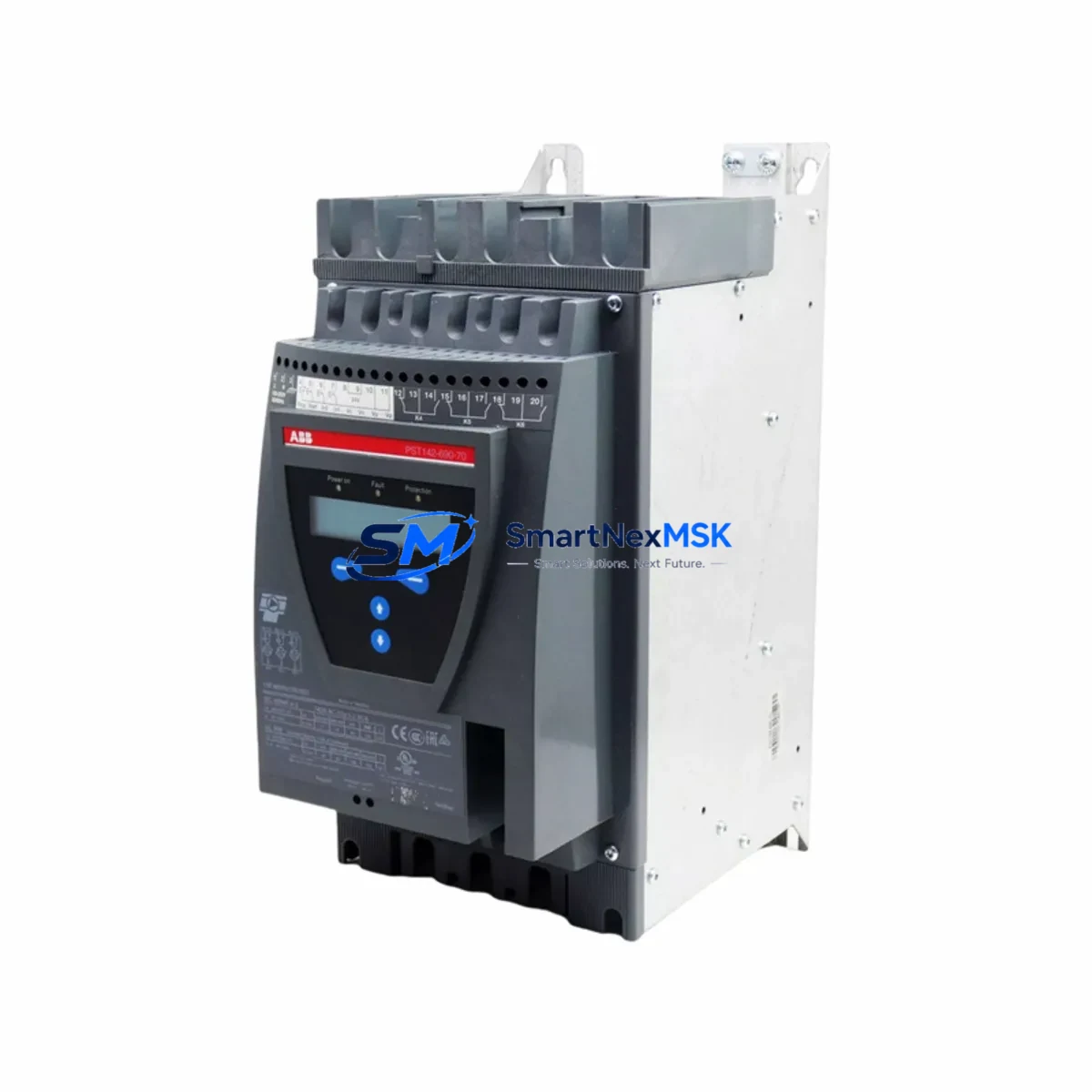

The ABB PST142-690-70 is a 142 A, 690 V, 70 kW three-phase soft starter designed for heavy-duty motor control applications across manufacturing, water treatment, HVAC, mining, and process automation industries. As a maintenance-ready original spare, this unit is sourced, inspected, and tested to ensure drop-in compatibility with existing PST Series control panels, eliminating the engineering risk associated with cross-brand substitutions. For maintenance engineers managing aging automation infrastructure, having a verified PST142-690-70 on the shelf is the single most effective measure against unplanned motor-drive downtime.

Whether you are executing a planned shutdown, responding to a thermal trip fault, or conducting a quarterly control cabinet inspection, the PST142-690-70 delivers the electrical performance and form-factor consistency that PST Series installations demand. Each unit ships with full functional test documentation and is backed by a 12-month warranty covering manufacturing defects and operational failure under rated conditions.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the PST142-690-70 in a live production environment is rarely an isolated task. Experienced maintenance engineers know that a soft starter fault is often a symptom of broader electrical stress in the motor control circuit. When scheduling a replacement, the following components in the same control cabinet or electrical loop should be inspected concurrently to prevent repeat failures and maximize the value of each planned outage.

Begin with the main power supply module feeding the soft starter bus — voltage sags or harmonic distortion upstream are a leading cause of premature thyristor degradation. Check the input line fuses or semiconductor fuse sets (such as ABB OS-series or equivalent IEC 660 V gG/aR types) for signs of thermal discoloration or partial blow. Inspect the main contactor (e.g., ABB A95 or A110 series) that isolates the soft starter during bypass; worn contact tips increase arc energy and can damage the PST142-690-70’s internal bypass relay.

On the output side, verify the motor thermistor or PTC relay (such as the ABB CM-MSS or equivalent) is correctly wired to the soft starter’s thermistor input — a failed thermistor circuit will mask real motor overtemperature events. Check output terminal blocks and cable lugs for correct torque (typically 10–14 Nm for 70 kW class conductors) and inspect for insulation tracking or carbonization. If the installation uses a bypass contactor external to the PST unit, verify its coil voltage matches the control circuit and that its auxiliary contacts are feeding the correct interlock logic in the PLC.

For installations integrated with a PLC or DCS system (such as ABB AC500, Siemens S7-300, or Allen-Bradley ControlLogix), confirm that the digital output card driving the soft starter’s run command is functioning correctly — a marginal DO channel can cause intermittent start failures that are misdiagnosed as soft starter faults. If the panel uses a fieldbus communication module (PROFIBUS, Modbus RTU, or DeviceNet adapter on the PST), test the communication link before and after replacement to confirm address and baud rate settings are retained. Where signal isolators are used between the PLC analog output and the soft starter’s ramp reference input, verify isolation integrity and zero/span calibration. Finally, inspect the HMI or operator panel for any latched fault codes that may indicate historical overcurrent or phase-loss events that preceded the current failure — clearing these logs after replacement ensures clean baseline monitoring going forward.

Site Replacement Workflow

The PST142-690-70 is a direct form-fit-function replacement for any PST Series soft starter of the same current rating. The following workflow is recommended to minimize downtime and ensure system compatibility is maintained throughout the swap.

Step 1 — Isolation and Lockout/Tagout: De-energize the motor circuit at the upstream isolator and apply LOTO. Confirm absence of voltage at the soft starter’s L1/L2/L3 input terminals using a calibrated voltage tester.

Step 2 — Parameter Documentation: Before disconnecting the faulty unit, photograph or record all DIP switch settings, parameter group values (if accessible via the keypad or PSTB fieldbus adapter), and control wiring terminal assignments. The PST142-690-70 ships with factory defaults; site-specific ramp times, current limits, and kick-start settings must be re-entered after installation.

Step 3 — Mechanical Removal and Installation: Disconnect power cables (L1–L3, T1–T3), control wiring (terminals A1, A2, 13/14, thermistor), and any fieldbus adapter. Remove the unit from its mounting position. Install the replacement PST142-690-70, torque all power terminals to specification, and reconnect control wiring in the same sequence.

Step 4 — Parameter Restore and Pre-start Check: Re-enter all documented parameters. Verify control voltage is present at A1/A2 before enabling the run command. Perform a no-load test start if the process allows, monitoring current ramp profile via the HMI or a clamp meter.

Step 5 — Return to Service: Restore the motor load progressively where possible. Monitor the first 3–5 start cycles for abnormal current peaks or fault codes. Update the maintenance log with the replacement date, new unit serial number, and any parameter changes made.

This workflow applies equally to emergency replacements and planned maintenance windows. Having a pre-configured spare PST142-690-70 with documented parameters on the shelf reduces emergency replacement time to under 60 minutes in most installations.

Spare Parts Support FAQ

Q1: Is this PST142-690-70 an original ABB unit or a compatible aftermarket replacement?
This is an original ABB PST142-690-70 unit sourced from authorized supply channels. It is not a copy, clone, or aftermarket equivalent. Each unit carries the ABB part number and is subject to our pre-shipment functional test protocol before dispatch.

Q2: What is the warranty coverage and how is a warranty claim handled?
All units are covered by a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and operational failure under rated electrical conditions. To initiate a claim, contact our sales team with the order number, unit serial number, and a description of the fault. We will arrange return logistics and provide a replacement or repair within an agreed lead time.

Q3: Can this unit replace older PST Series models such as the PST105-690-70 or PST170-690-70 in the same cabinet?
The PST142-690-70 is rated for 142 A and is not a direct current-rating substitute for the PST105 (105 A) or PST170 (170 A). However, it is mechanically and electrically compatible with the same PST Series cabinet footprint and control wiring scheme. Substituting a different current rating requires verification that the motor’s full-load current and overload settings are within the new unit’s operating range. Our technical team can assist with compatibility confirmation before purchase.

Q4: What is your typical lead time and do you maintain stock for long-term supply?
We maintain buffer stock of high-demand PST Series components to support both emergency and planned procurement. Standard lead time for in-stock units is 3–7 business days for international shipment. For customers requiring long-term supply agreements or consignment stock arrangements, please contact our sales team to discuss volume pricing and dedicated inventory allocation.
