ABB PXAH401 3BSE017235R1 Retrofit-Ready HMI for Advant OCS

ABB PXAH401 3BSE017235R1 Retrofit-Ready HMI for Advant OCS Control Systems

When an aging Advant OCS installation reaches the point where the original operator interface can no longer be sourced through standard channels, the ABB PXAH401 3BSE017235R1 provides a proven, retrofit-ready solution that restores full HMI functionality without requiring a complete platform overhaul. Designed as a direct replacement for the legacy PXAH401 operator unit, this module preserves the communication architecture, display logic, and operator interaction layer that plant engineers have relied on for years — making it the preferred choice for facilities that need to extend the service life of their Advant OCS control systems while minimizing engineering rework and unplanned downtime.

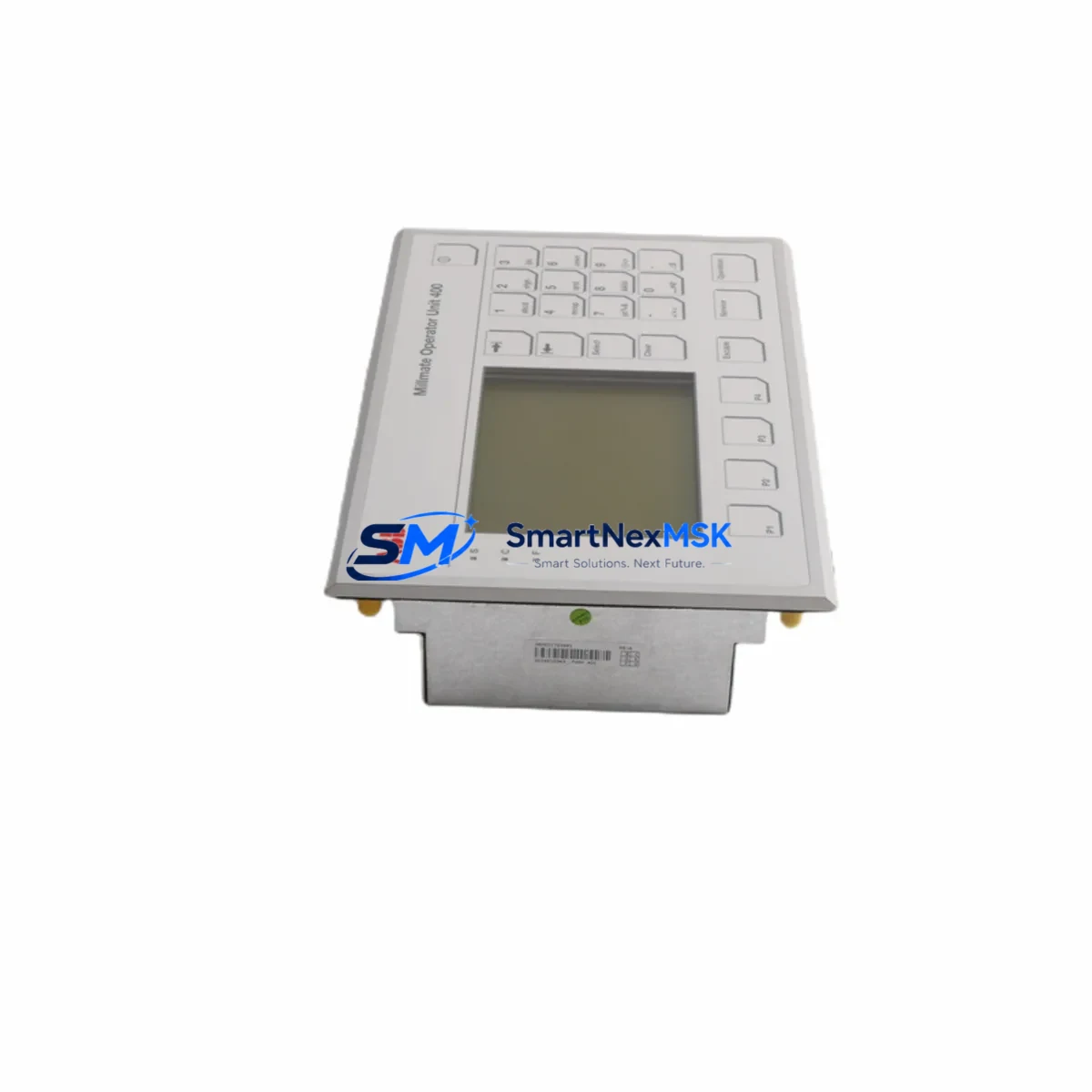

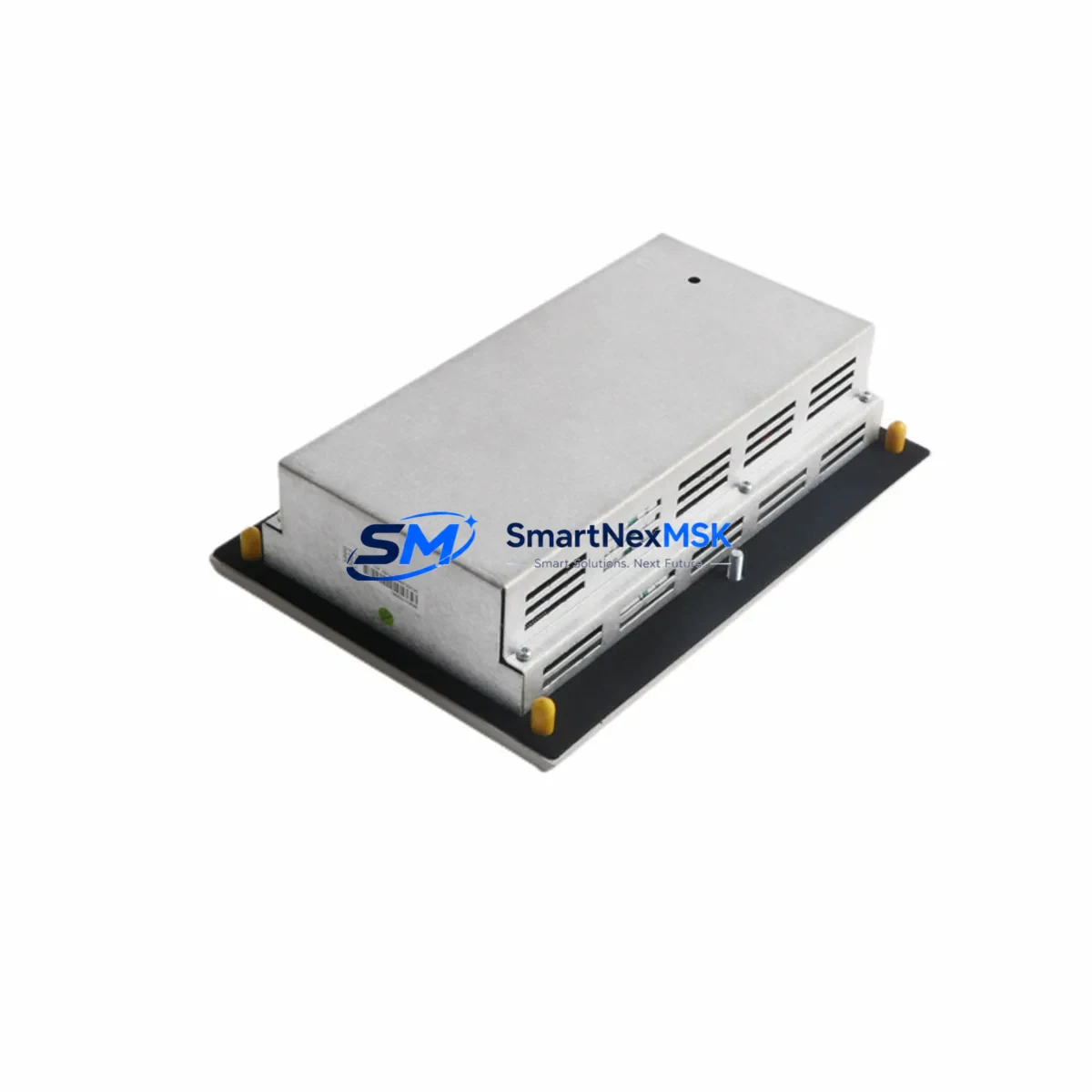

The PXAH401 3BSE017235R1 is an HMI operator unit built for the ABB Advant OCS distributed control platform. It interfaces directly with the Advant Controller AC450 and AC460 series, communicating over the MasterBus 300 fieldbus backbone that forms the core of most Advant OCS architectures. Before proceeding with a retrofit installation, engineers should verify the existing backplane slot assignment, confirm that the MasterBus 300 segment address does not conflict with other nodes, and review the operator station configuration stored in the AC450 or AC460 controller memory. In many retrofit scenarios, the original program logic and HMI screen definitions can be retained without modification, provided the replacement unit is configured with the same station address and communication parameters as the outgoing module.

Terminal wiring compatibility is a critical checkpoint during any PXAH401 replacement. The 3BSE017235R1 revision maintains the same connector pinout as earlier PXAH401 variants, which means existing cable harnesses and I/O termination assemblies can typically be reused. However, engineers should inspect the power supply rail feeding the operator unit — the Advant OCS power supply modules, such as the SD821 and SD822 units, must deliver stable 24 VDC within the specified tolerance band to ensure reliable HMI startup and display backlight operation. If the existing power distribution board shows signs of aging or voltage sag under load, replacing the power supply module in parallel with the PXAH401 is strongly recommended to prevent intermittent faults after commissioning.

In control cabinets where the PXAH401 operates alongside other Advant OCS I/O modules — including the DI810 digital input module, DO810 digital output module, AI810 analog input module, and AO810 analog output module — the retrofit process should include a full I/O scan and channel verification after the new HMI unit is powered on. This confirms that the operator display correctly reflects real-time process values and that alarm annunciation is functioning as expected. Any discrepancies in displayed values should be traced back to the AI810 or AO810 signal conditioning chain before assuming a fault in the PXAH401 itself.

For installations that rely on the Advant OCS communication infrastructure, the PXAH401 3BSE017235R1 supports the standard MasterBus 300 protocol stack without requiring firmware updates in most cases. Where the existing system includes a CI522A or CI532V communication interface module connecting the Advant OCS to a supervisory SCADA layer, engineers should verify that the HMI station address assigned to the PXAH401 is correctly reflected in the SCADA tag database to avoid display mapping errors after the swap. Programming cable connections using the TK212A or equivalent Advant programming tool should be used to confirm station parameters before the unit is placed in service.

Facilities operating in petrochemical, power generation, mining, water treatment, or continuous manufacturing environments often cannot afford extended commissioning windows. The PXAH401 3BSE017235R1 is pre-tested at our facility prior to shipment, covering power-on verification, display function, communication link establishment, and basic I/O response. Each unit ships with a test report and is backed by a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Our inventory is maintained to support both single-unit emergency replacements and multi-unit planned retrofit projects, with fast international shipping to minimize the gap between order placement and on-site installation.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful PXAH401 3BSE017235R1 retrofit begins well before the replacement unit arrives on site. The first step is a thorough audit of the existing Advant OCS cabinet, documenting the current station address of the outgoing PXAH401, the MasterBus 300 segment topology, and the software version running on the AC450 or AC460 controller. If the site uses an Advant Engineer workstation for programming and configuration, the existing HMI project files should be backed up using the TK212A programming cable before any hardware is disturbed.

Inside the control cabinet, the PXAH401 typically shares the backplane with a range of I/O and communication modules. Common co-installed components include the CI522A communication interface for SCADA connectivity, the DI810 and DO810 for digital field signals, and the AI810 for analog process measurements. The AO810 analog output module may also be present if the operator station is involved in setpoint transmission to field devices. Each of these modules should be inspected for firmware currency and physical condition during the retrofit window, as a planned HMI replacement is an efficient opportunity to address any marginal components before they cause unplanned outages.

Power distribution within the cabinet deserves particular attention. The SD821 and SD822 power supply modules that feed the Advant OCS backplane should be load-tested before the new PXAH401 is installed. A power supply operating near its rated capacity may exhibit voltage droop when the HMI unit initializes its display and communication stack simultaneously, which can cause startup failures that are easily misdiagnosed as a faulty replacement module. Replacing or paralleling the power supply as part of the retrofit plan eliminates this risk and extends the overall service interval of the upgraded cabinet.

Once the PXAH401 3BSE017235R1 is physically installed and powered, the commissioning sequence should follow the standard Advant OCS startup procedure: confirm MasterBus 300 link status, verify that the operator station appears correctly in the system topology, and perform a full HMI screen walkthrough to confirm that all process values, alarm states, and control outputs are displayed accurately. Any HMI screen that references a tag address should be cross-checked against the controller tag database to catch any mapping discrepancies introduced during the replacement process.

Downtime Control During System Migration

Minimizing downtime during an Advant OCS HMI replacement requires a structured approach that separates preparation, execution, and verification into distinct phases. During the preparation phase — which should be completed while the plant is still running — engineers should document all active alarm setpoints, operator screen configurations, and MasterBus 300 node assignments. A shadow copy of the AC450 or AC460 controller program should be archived to a secure location, ensuring that the original control logic can be restored immediately if an unexpected issue arises during the swap.

The execution phase should be timed to coincide with a planned maintenance window or a scheduled process hold. With the cabinet de-energized and the existing PXAH401 removed, the 3BSE017235R1 replacement unit can be installed in the same backplane slot without any mechanical modification. Reconnecting the existing cable harness — which is compatible with the 3BSE017235R1 connector layout — takes only a few minutes, after which the cabinet can be re-energized and the MasterBus 300 link verified. Because the replacement unit does not require a firmware download in most standard Advant OCS configurations, the time from power-on to operational HMI is typically measured in minutes rather than hours.

The verification phase confirms that the control system has returned to its pre-maintenance state. Operators should walk through each HMI screen, confirm that all analog and digital values are updating correctly, and acknowledge any alarms that were generated during the power cycle. If the site uses a CI532V or equivalent gateway to connect the Advant OCS to a higher-level DCS or SCADA system, the communication link status should be confirmed at the gateway level before the plant is returned to normal operation. With pre-tested hardware, a well-prepared team, and a clear commissioning checklist, total downtime for a PXAH401 replacement can typically be held to under four hours even in complex multi-loop control environments.

Retrofit Support FAQ

Q1: Is the PXAH401 3BSE017235R1 a direct drop-in replacement for the original PXAH401?
Yes. The 3BSE017235R1 is a revision of the original PXAH401 operator unit and maintains the same backplane interface, connector pinout, and MasterBus 300 communication protocol. In the vast majority of Advant OCS installations, the replacement can be completed without modifying existing wiring, backplane slots, or controller software. Station address and node ID configuration should be verified during commissioning to match the outgoing unit’s settings.

Q2: What pre-shipment testing is performed, and what documentation is included?
Every PXAH401 3BSE017235R1 unit undergoes power-on verification, display function testing, MasterBus 300 communication link establishment, and basic I/O response checks before shipment. A test report documenting the results of these checks is included with each unit. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of receipt.

Q3: What should I verify regarding power supply compatibility before installation?
The PXAH401 3BSE017235R1 requires a stable 24 VDC supply within the specified tolerance. Before installation, verify that the existing SD821 or SD822 power supply module is delivering clean, stable voltage under the full cabinet load. If the power supply is aging or operating near its rated capacity, replacing it concurrently with the HMI unit is strongly recommended to prevent startup instability and to maximize the service life of the retrofit.

Q4: Can you support multi-unit retrofit projects and long-term spare parts supply?
Yes. SMARTNEXMSK maintains stock of the PXAH401 3BSE017235R1 and related Advant OCS components to support both emergency single-unit replacements and planned multi-unit retrofit programs. Long-term supply agreements are available for facilities managing extended Advant OCS lifecycle programs. Contact our team to discuss quantity requirements, lead times, and project-specific support arrangements.
