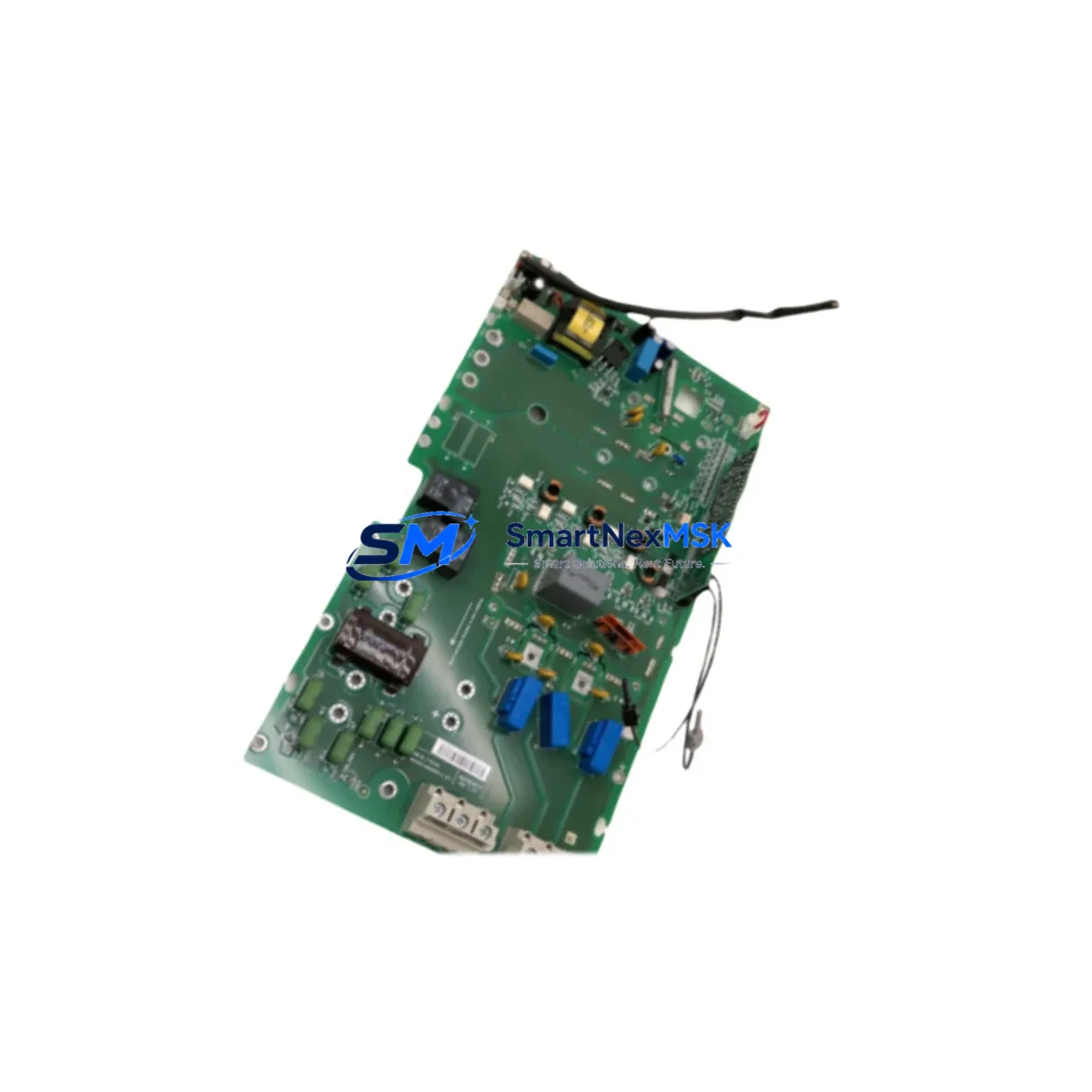

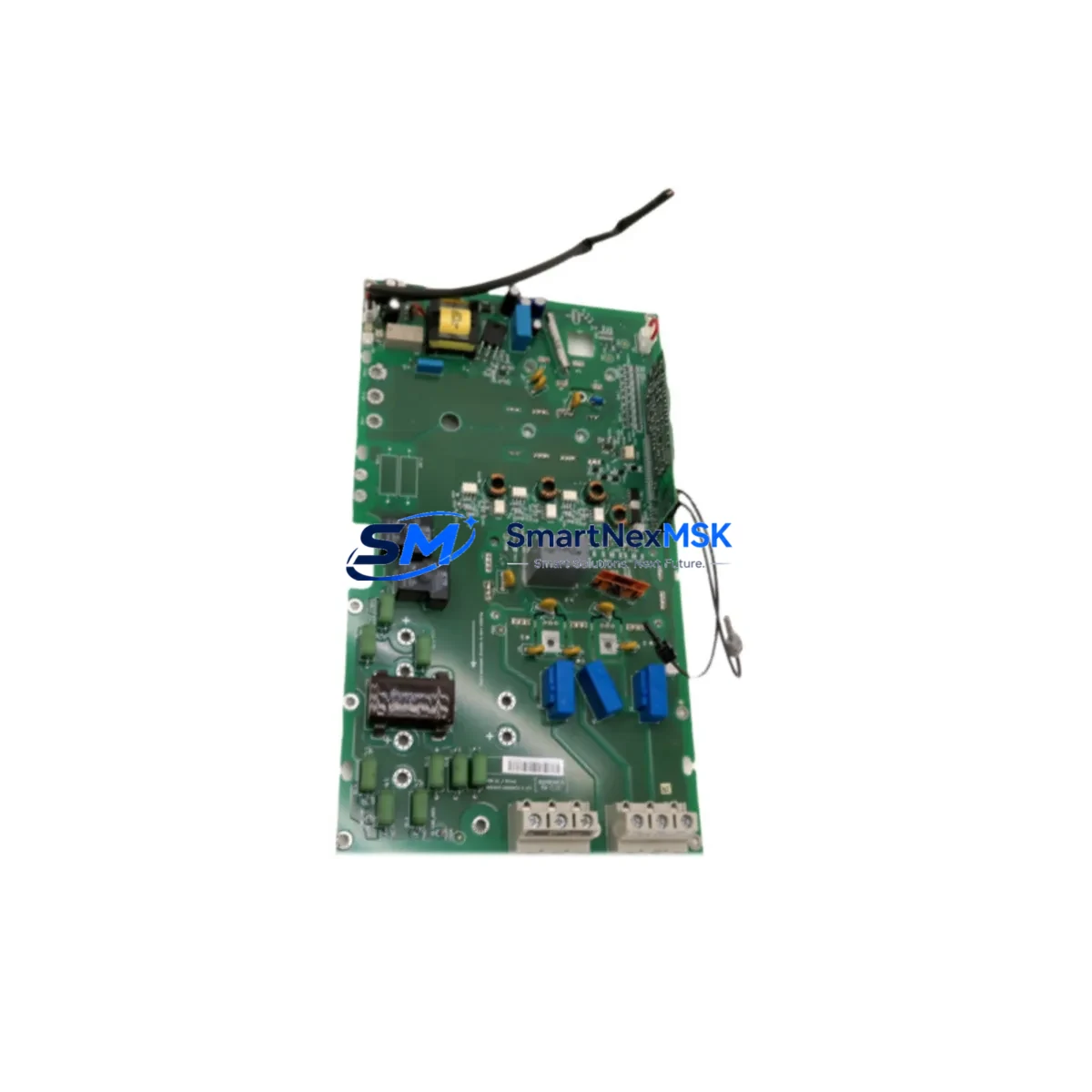

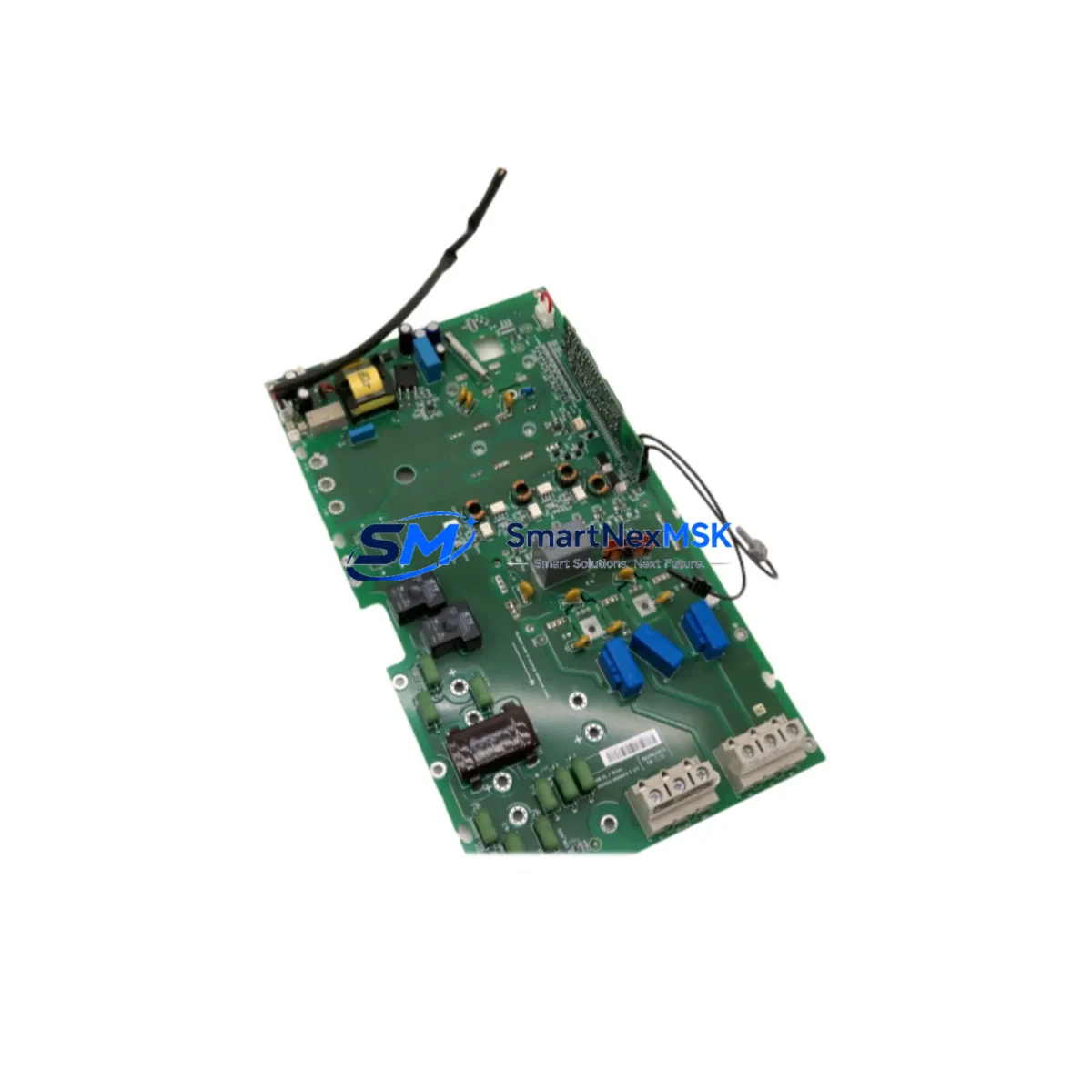

ABB RINT-6421C Maintenance-Ready Spare for ACS800 Automation
The ABB RINT-6421C is a critical drive interface board designed for the ACS800 series variable frequency drive platform — one of ABB’s most widely deployed industrial drive families in process automation, material handling, and heavy-duty motor control applications. When this board fails, the entire drive unit becomes inoperable, resulting in unplanned downtime that can cascade across production lines, conveyor systems, or pump stations. Sourcing a verified original RINT-6421C spare in advance is the most effective strategy for minimizing mean time to repair (MTTR) and protecting operational continuity.
At SMARTNEXMSK, every RINT-6421C unit is sourced from authorized supply channels, inspected for physical integrity, and function-tested prior to shipment. Each unit ships with a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. Our stock is maintained to support both emergency replacement orders and planned maintenance procurement cycles.
Spare Maintenance Table
| Parameter | Specification |
|---|---|
| Part Number | RINT-6421C |
| Brand | ABB |
| Compatible Series | ACS800 Variable Frequency Drive |
| Board Function | Drive Interface / Control Signal Board |
| Product Type | Drive Interface Board |
| Origin | Finland (ABB OEM) |
| Operating Voltage | Per ACS800 drive unit specification |
| Communication Interface | Internal ACS800 backplane bus |
| Application Environment | Industrial automation, process control, motor drive systems |
| Installation | Direct board-level replacement within ACS800 drive cabinet |
| Maintenance Recommendation | Inspect during scheduled drive cabinet maintenance; replace on first sign of signal fault or communication error |
| Warranty | 12 Months — covers manufacturing defects and functional failure |
| Pre-Shipment Testing | Yes — function-verified before dispatch |
| Condition | Original / New |
Maintenance Planning for Continuous Operation
Maintenance engineers working on ACS800 drive systems understand that the RINT-6421C does not operate in isolation. A fault on this interface board is frequently accompanied by — or can trigger — secondary faults in adjacent components. When replacing the RINT-6421C, a thorough site inspection should include the following associated components to prevent repeat failures and ensure full system restoration:
The AINT-02C auxiliary interface board and RDCU-02C drive control unit share the same internal communication bus as the RINT-6421C. If the interface board has failed due to a voltage spike or communication fault, these units should be tested for residual damage before the drive is returned to service. Similarly, the APBU-44C pulse encoder interface unit should be verified if the drive is used in closed-loop speed control applications.
On the power supply side, inspect the RINT-5521C power supply board and confirm that the 24VDC auxiliary power rail feeding the control electronics is within tolerance. A degraded power supply is a common root cause of interface board failures and will cause repeat faults if not addressed. The NINT-41C PROFIBUS adapter module or NCAN-01 CANopen adapter should also be checked if the drive communicates with a PLC or DCS over fieldbus — communication module faults can be misdiagnosed as interface board failures.
For drives installed in older control cabinets, inspect the terminal blocks and I/O wiring harnesses connected to the RINT-6421C. Loose or corroded terminals are a frequent cause of intermittent signal faults that appear as board-level failures. Check the fuse protection on the control circuit and verify that the EMC filter at the drive input is intact, as high-frequency interference can degrade interface board performance over time.
If the ACS800 drive is part of a larger control system, coordinate with the control room team to verify that the PLC I/O module receiving speed reference and status signals from the drive is reading correctly after the RINT-6421C replacement. A mismatch in signal levels or wiring polarity after board swap is a common commissioning error that delays restart.
Site Replacement Workflow
Step 1 — Isolate and de-energize: Follow your site LOTO (Lockout/Tagout) procedure. Confirm that the ACS800 drive is fully de-energized and that the DC bus has discharged before opening the drive cabinet.
Step 2 — Document existing configuration: Before removing the RINT-6421C, photograph the board orientation, connector positions, and any parameter labels on adjacent boards. If the drive has a control panel (such as the ACS800 CDP312R or ACS-CP-C), upload the current parameter set to the panel memory or a PC tool before proceeding.
Step 3 — Remove the faulty board: Disconnect all ribbon cables and connectors from the RINT-6421C in sequence. Note the connector designations (X1, X2, etc.) for reassembly. Remove the board from its mounting guides carefully to avoid damaging adjacent boards or the backplane connector.
Step 4 — Install the replacement RINT-6421C: Seat the new board firmly into the backplane guides. Reconnect all cables in the documented sequence. Verify that all connectors are fully engaged and that no cables are pinched or strained.
Step 5 — Power-up and verify: Restore power and observe the drive’s startup sequence. Check for any fault codes on the control panel. Verify that the drive responds correctly to start/stop commands and that speed reference signals are being received and processed normally. Confirm fieldbus communication is re-established if applicable.
Step 6 — Return to service and log: Record the replacement in your maintenance management system (CMMS) with the date, replaced part number, and any observations. Update your spare parts inventory to trigger reorder of a replacement RINT-6421C for your buffer stock.
Spare Parts Support FAQ
Q: Is the RINT-6421C compatible with all ACS800 drive variants?
A: The RINT-6421C is designed for the ACS800 series. Compatibility depends on the specific ACS800 variant and firmware revision. We recommend confirming your drive’s type designation (e.g., ACS800-01, ACS800-04, ACS800-07) and cross-referencing with the ABB spare parts list for your unit before ordering. Our technical team can assist with compatibility verification.
Q: How is the RINT-6421C tested before shipment?
A: Each unit undergoes a pre-shipment functional inspection covering board-level continuity, connector integrity, and visual inspection for component damage. Units that do not pass inspection are not dispatched. The 12-month warranty covers any functional failure that occurs under normal operating conditions after installation.
Q: What is your lead time and can you support emergency orders?
A: Standard orders are processed and dispatched within 1–3 business days. For emergency downtime situations, contact us directly at sales@smartnexmsk.com or +86 18259474341 to discuss expedited dispatch options. We maintain buffer stock of high-demand ACS800 spare parts to support urgent requirements.
Q: How should I manage RINT-6421C inventory for a multi-drive facility?
A: For facilities operating three or more ACS800 drives, we recommend maintaining at least one RINT-6421C in your on-site spare parts buffer. For critical process drives where downtime cost is high, a two-unit buffer is advisable. We can support scheduled replenishment orders and provide volume pricing for maintenance procurement programs.
