ABB RINT-6512C Maintenance-Ready Spare ACS800 Automation

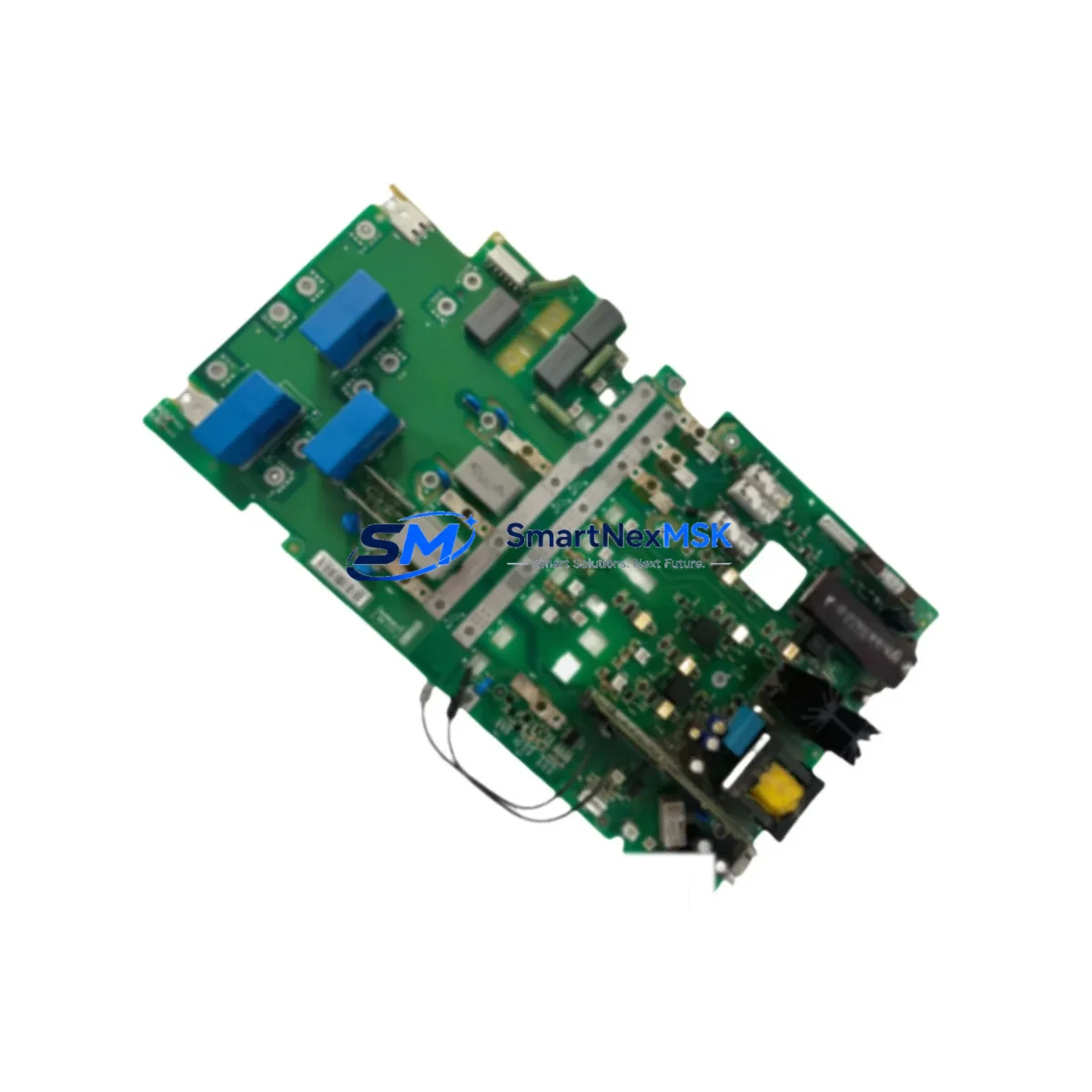

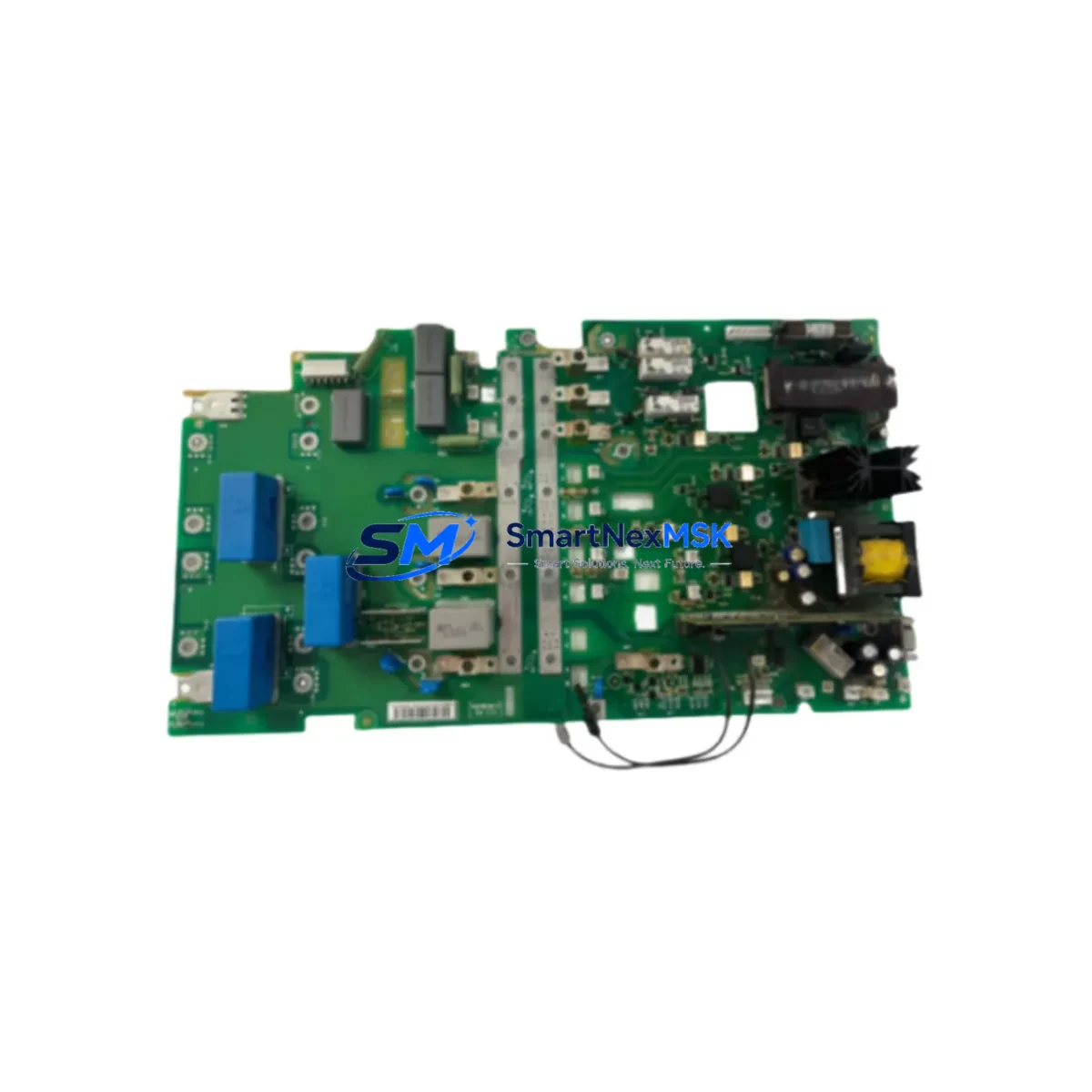

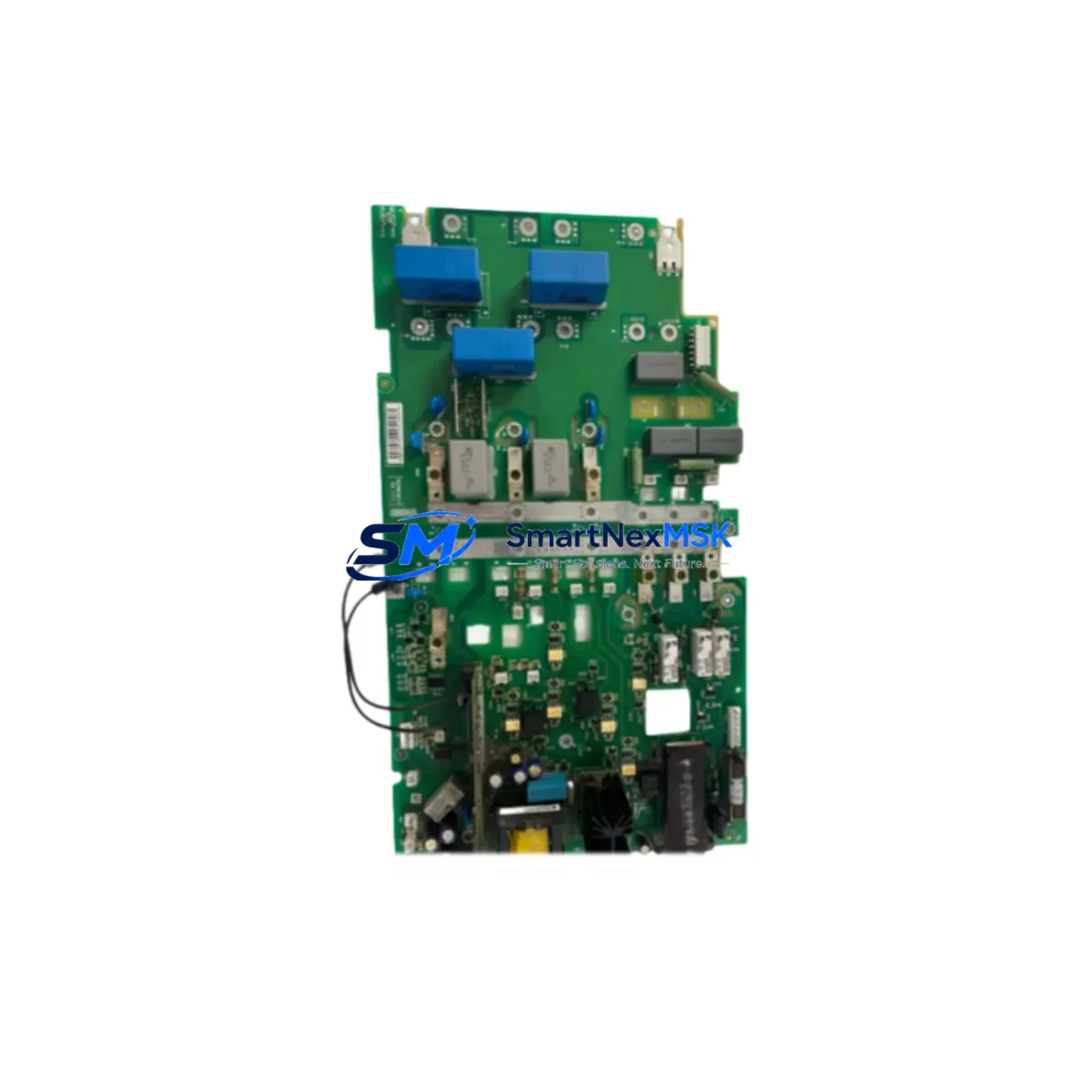

The ABB RINT-6512C is an original drive circuit interface board engineered for the ACS800 series variable frequency drive platform. For maintenance engineers managing aging drive cabinets or executing planned overhauls, this board represents a critical spare that directly governs gate signal transmission between the control section and the IGBT power module stack. Unplanned failure of the RINT-6512C typically results in immediate drive trip, loss of motor control, and unscheduled production downtime — making proactive stock of this component a cornerstone of any serious spare parts strategy.
Whether you are responding to a fault code indicating gate driver failure, conducting a scheduled cabinet inspection, or building a minimum viable spare parts inventory for a multi-drive installation, the RINT-6512C delivers the original ABB specification, verified compatibility with ACS800 drive frames, and the confidence of a 12-month warranty backed by pre-shipment functional testing.
Spare Maintenance Table
| Parameter | Specification |
|---|---|
| Part Number | RINT-6512C |
| Manufacturer | ABB |
| Series Compatibility | ACS800 (RINT Series Drive Interface) |
| Function | Drive Circuit Interface / Gate Signal Board |
| Product Type | Drive Circuit Interface Board |
| Origin | Germany (DE) |
| Weight | 740 g |
| Application Environment | Industrial VFD cabinets, motor control centers, process automation panels |
| Installation | Direct board replacement; compatible with original ACS800 mounting points |
| Maintenance Recommendation | Inspect gate signal integrity annually; replace at first sign of intermittent drive faults or IGBT overcurrent trips |
| Pre-Shipment Testing | Yes — functional test performed before dispatch |
| Warranty | 12 Months |
| Condition | Original / New |
Maintenance Planning for Continuous Operation
When replacing the RINT-6512C in an ACS800 drive, a disciplined maintenance engineer will not stop at the interface board alone. The gate driver board operates within a tightly coupled electrical environment, and adjacent components should be inspected or replaced as part of the same maintenance window to prevent repeat failures and maximize mean time between interventions.
Begin by verifying the condition of the AINT-02C auxiliary power interface board, which supplies regulated voltage rails to the RINT board. A degraded AINT-02C can cause erratic gate signals that mimic RINT-6512C failure. Next, inspect the APOW-01C power supply module for capacitor bulge, output voltage drift, or thermal discoloration — power supply degradation is a leading cause of interface board stress in long-running ACS800 installations.
Check the RDCO-03C DDCS communication option board if the drive is integrated into a DCS or fieldbus network; communication faults can mask or compound gate driver alarms. For drives using analog or digital I/O expansion, inspect the RAIO-01 analog I/O extension module and RDIO-01 digital I/O extension module for signal integrity and terminal corrosion. Loose or oxidized I/O terminals are a common source of nuisance trips in humid or high-vibration environments.
The RMIO-11C motor control board should be evaluated for firmware currency and physical condition, particularly if the drive has been in service for more than five years. Pair this inspection with a review of the RBCO-01 CANopen adapter module or RPBA-01 PROFIBUS adapter if fieldbus communication is in use. Terminal blocks and wiring harnesses connecting the RINT-6512C to the IGBT stack should be re-torqued and inspected for insulation cracking. Finally, verify that panel-mounted fuse holders and branch circuit fuses protecting the drive input are within rated capacity and show no signs of thermal fatigue — a blown or weakened fuse can cause asymmetric phase loading that accelerates interface board wear.
Site Replacement Workflow
Replacing the RINT-6512C on-site is a straightforward procedure when the correct spare is on hand, but preparation is essential to minimize drive downtime. Before beginning, confirm the exact ACS800 frame size and firmware version to ensure full compatibility with the RINT-6512C revision in stock. Document the existing parameter set using the ACS800 control panel or DriveWindow software — parameter backup takes less than five minutes and eliminates the risk of losing application-specific tuning during the board swap.
De-energize the drive fully, observe the DC bus discharge time specified in the ACS800 hardware manual (typically 5 minutes minimum), and verify zero voltage with a calibrated meter before opening the drive cabinet. Remove the faulty RINT board by releasing the board retaining clips and disconnecting the ribbon and power connectors. Install the RINT-6512C replacement, reconnect all harnesses, and perform a visual inspection before re-energizing. On first power-up, monitor the drive’s diagnostic display for gate driver status codes and confirm that the IGBT pre-charge sequence completes normally before issuing a run command.
This workflow is equally applicable when upgrading from an obsolete RINT-6511C or earlier revision to the RINT-6512C, which offers improved gate signal stability and enhanced thermal tolerance. Stocking one RINT-6512C per ACS800 drive frame in your spare parts cabinet reduces mean time to repair from days to under two hours — a measurable improvement in plant availability for any continuous process operation.
Spare Parts Support FAQ
Q1: Is the RINT-6512C compatible with all ACS800 frame sizes?
The RINT-6512C is designed for specific ACS800 frame configurations within the RINT interface board series. Please confirm your ACS800 frame size and drive rating before ordering. Our technical team can cross-reference your drive nameplate data to confirm compatibility prior to shipment.
Q2: What testing is performed before the RINT-6512C is shipped?
Every RINT-6512C unit undergoes functional pre-shipment testing to verify gate signal output, power rail integrity, and board-level communication. A test report is available upon request. This process ensures that the board is operational on arrival and reduces commissioning time at your site.
Q3: How should I manage RINT-6512C inventory for a multi-drive installation?
For facilities operating three or more ACS800 drives, we recommend maintaining a minimum of one RINT-6512C in on-site stock at all times. For critical continuous-process applications, a two-unit buffer is advisable. Long-term supply agreements are available to lock pricing and ensure priority allocation for repeat orders.
Q4: What is covered under the 12-month warranty?
The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. Warranty claims are processed with priority, and replacement units are dispatched within 3 business days of claim approval.
