ABB RMIO-12C Retrofit-Ready I/O Board for ACS800 Drives

ABB RMIO-12C Retrofit-Ready I/O Board for ACS800 Drives: Compatible Modernization and Smooth System Upgrade

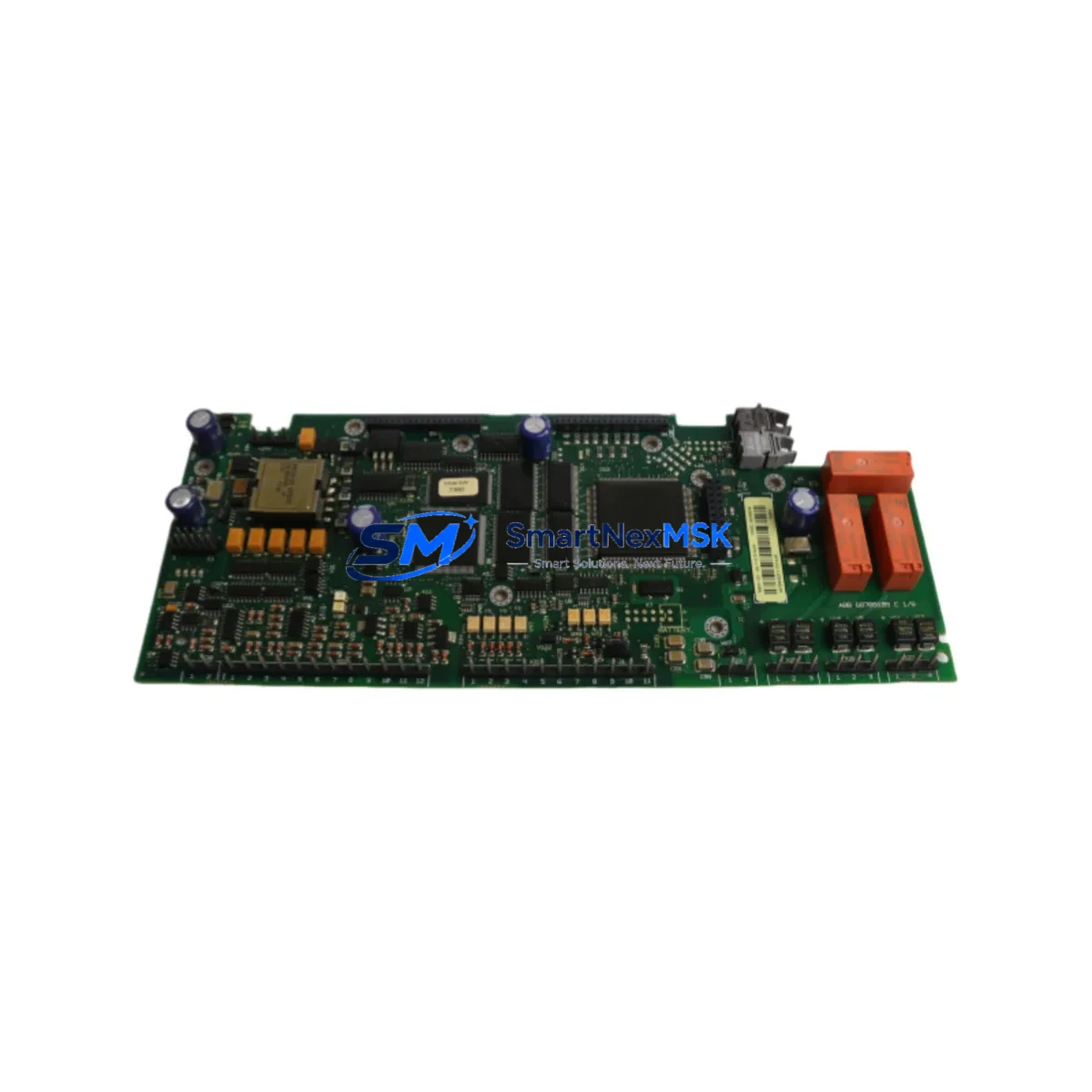

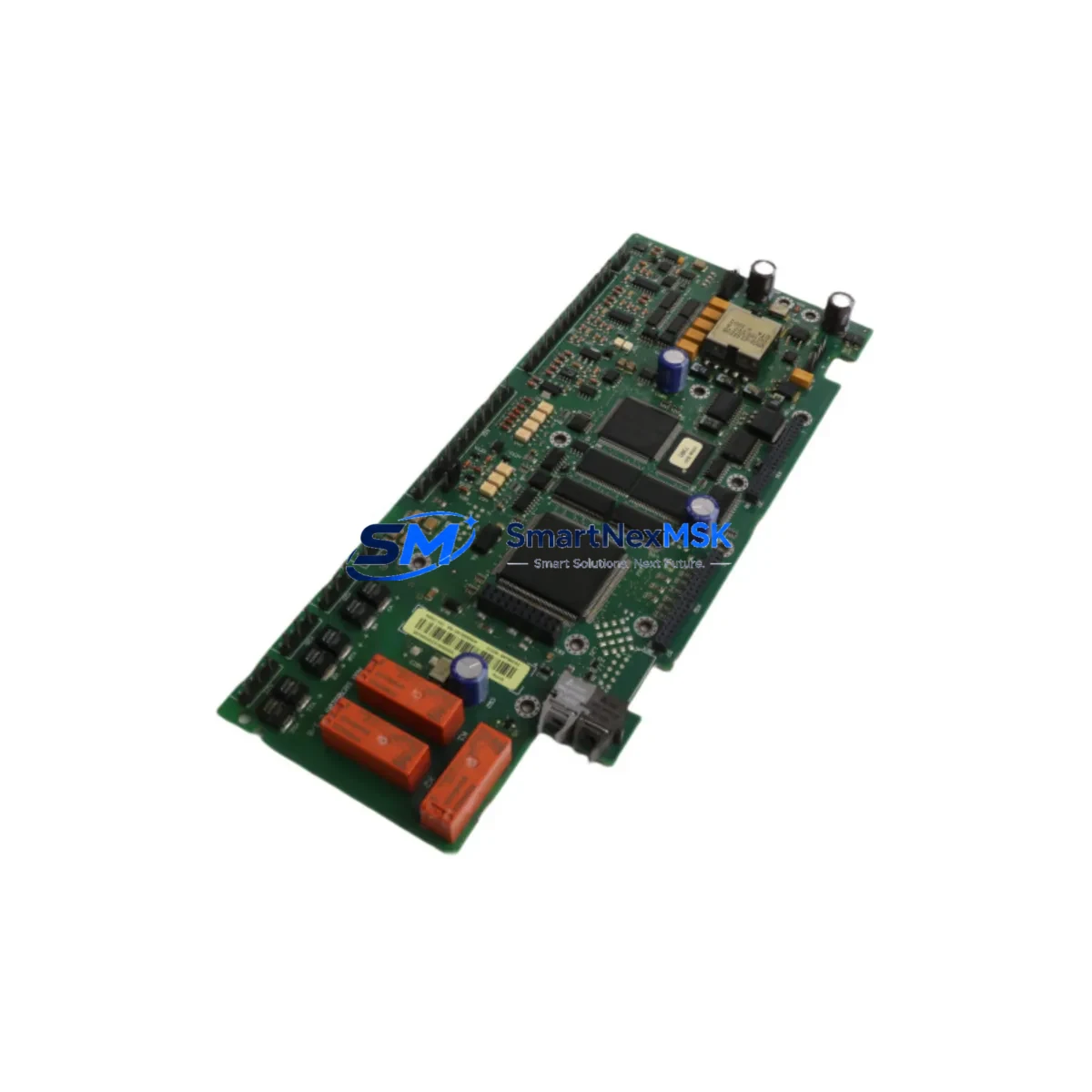

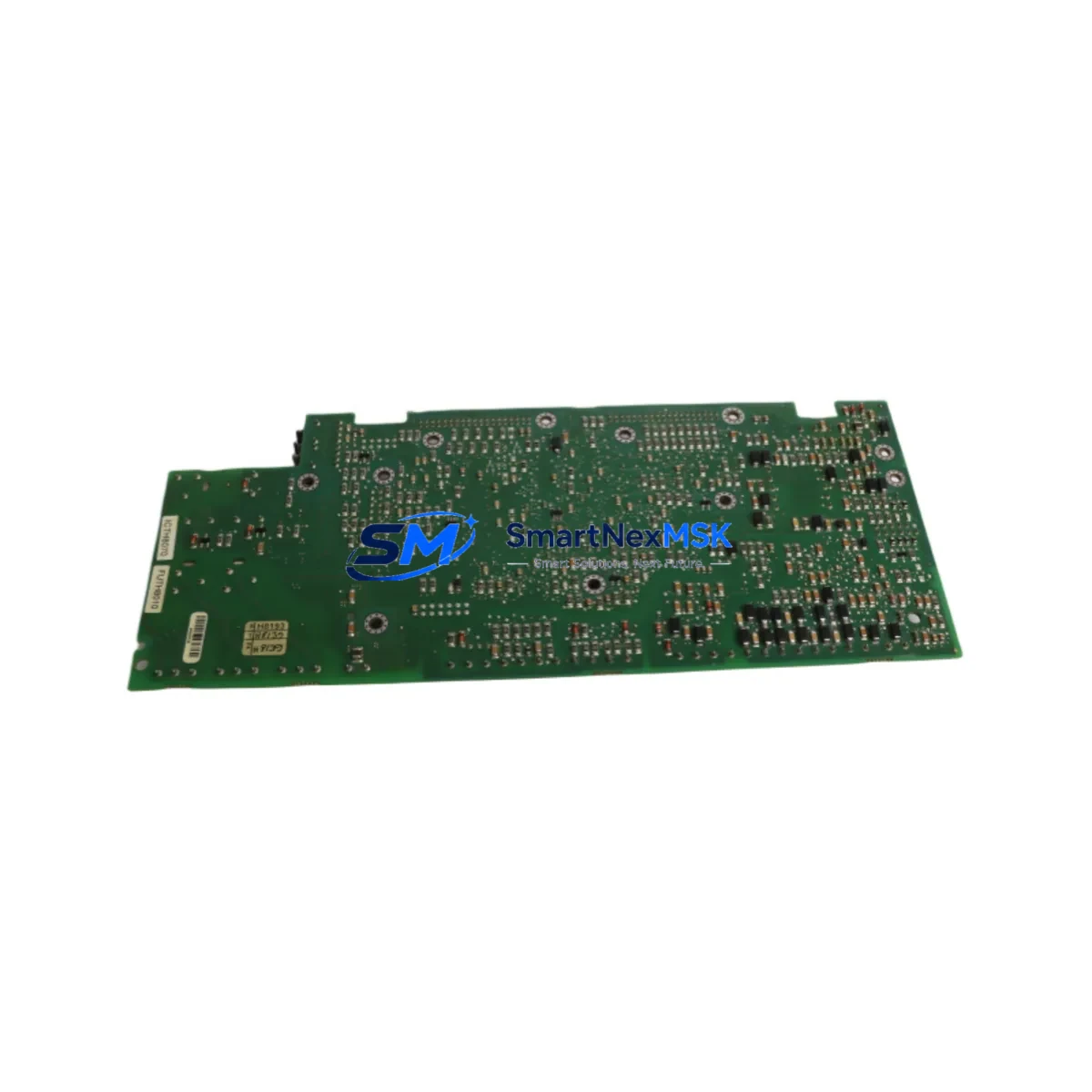

The ABB RMIO-12C is the core I/O control board of the ACS800 series variable frequency drive platform, responsible for managing analog and digital I/O signals, fieldbus communication interfacing, and real-time control logic execution between the drive’s main control unit and external automation systems. As ACS800 installations age and original RMIO-12C boards reach end-of-life or become unavailable through standard distribution channels, sourcing a verified replacement with confirmed firmware compatibility and terminal pinout equivalence becomes the critical bottleneck in any retrofit or emergency repair project.

SMARTNEXMSK maintains ready stock of the RMIO-12C to support industrial facilities managing legacy ACS800 drive systems across pump stations, compressor lines, conveyor systems, HVAC plants, and process automation environments. Every unit is pre-shipment tested, covered by a 12-month warranty, and dispatched with full documentation to support your site commissioning team.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful RMIO-12C retrofit begins well before the board arrives on site. Engineers managing ACS800-based control systems should first audit the existing drive configuration, documenting all parameter sets using DriveWindow Light or the ACS800 control panel backup function. This parameter file becomes the restoration baseline after the new board is installed.

Terminal wiring on the RMIO-12C covers analog inputs (AI1, AI2), analog outputs (AO1, AO2), digital inputs (DI1–DI6), digital outputs (DO1–DO3), relay outputs (RO1–RO3), and the 24 VDC auxiliary power supply terminals. Because the replacement board maintains identical terminal assignments, field cables connected to the original board can be transferred directly without re-labeling or re-routing — a significant advantage in time-critical shutdowns.

For drives equipped with fieldbus communication, the RDCO-01 (PROFIBUS-DP), RDCO-02 (DeviceNet), RDCO-03 (Modbus RTU), or RDCO-04 (CANopen) adapter modules mount onto the RMIO-12C option slot. These adapters remain in place during the board swap, preserving the existing network node address and baud rate configuration. If the site PLC — such as an ABB AC500, Siemens S7-300, or Allen-Bradley ControlLogix — communicates with the drive over PROFIBUS or Modbus, the fieldbus link should be verified at the network level after power-up before releasing the drive to automatic control.

In multi-drive cabinet installations using the ACS800-104 or ACS800-304 platform, the RMIO-12C interfaces with the APBU-44C or APBU-12C branching unit and the AINT-02C or AINT-14C inverter control boards. Replacing the RMIO-12C in these configurations requires isolating the affected drive module while maintaining power to adjacent modules — a procedure that demands careful coordination with the site electrical safety team and the drive’s DC bus isolation switches.

Where the ACS800 system includes an ACS800 application control board (RAIO-01 or RDIO-01 I/O extension modules) for expanded analog or digital I/O capacity, these extension modules connect to the RMIO-12C via the option module slots and are unaffected by the board replacement. Their wiring and configuration remain intact throughout the retrofit process.

HMI panels connected to the ACS800 via the CDP312R control panel or a panel bus link should be disconnected before the board swap and reconnected after parameter restoration to avoid communication faults during the transition. If the site uses a SCADA or DCS system — such as ABB System 800xA or Honeywell Experion — the drive’s process values (speed reference, actual speed, current, fault codes) should be verified in the control system historian after commissioning to confirm data integrity.

Downtime Control During System Migration

Minimizing unplanned downtime during an RMIO-12C replacement requires a structured pre-outage preparation protocol. Before scheduling the maintenance window, confirm that the replacement board has been received, inspected, and bench-tested. Verify that the parameter backup file is current — ideally taken within the last scheduled maintenance cycle — and that the DriveWindow or panel upload procedure is documented for the specific ACS800 firmware version in use.

During the outage window, follow the ACS800 hardware manual procedure for control section removal: isolate the drive from the supply, discharge the DC bus capacitors (minimum 5 minutes after power-off), and remove the RMIO-12C by releasing the board retaining clips and disconnecting the flat-cable connectors to the AINT board and the option module slots. Install the replacement RMIO-12C, reconnect all flat cables and option modules, and restore field wiring to the terminal block.

After power-up, restore the parameter backup using DriveWindow or the control panel upload function. Verify that the motor control parameters (motor nominal voltage, current, frequency, speed, power), application macro selection, and I/O configuration match the pre-outage baseline. Confirm fieldbus communication by checking the drive’s fieldbus status word in the PLC or DCS. Run the drive in local control mode at low speed before releasing to remote automatic control, and document the commissioning results for the site maintenance record.

For facilities with zero-tolerance downtime requirements, SMARTNEXMSK can support pre-shipment configuration and burn-in testing against customer-supplied parameter files, reducing on-site commissioning time to a board swap and parameter verification sequence.

Retrofit Support FAQ

Q1: Is the RMIO-12C from SMARTNEXMSK a direct replacement for the original ABB board?
Yes. The RMIO-12C supplied by SMARTNEXMSK is functionally and mechanically equivalent to the original ABB part. Terminal pinout, backplane connector, and option module slot positions are identical, allowing direct installation without hardware modification. All units are pre-shipment tested against ABB ACS800 functional specifications.

Q2: Will my existing ACS800 parameter set and application program work after the board replacement?
In the vast majority of cases, yes. The RMIO-12C does not store the drive’s application program — parameters are held in the drive’s non-volatile memory and restored via the control panel or DriveWindow after the board swap. Confirm that the firmware version on the replacement board is compatible with your drive’s existing application macro before installation. SMARTNEXMSK technical support can assist with firmware version verification.

Q3: What fieldbus protocols are supported, and will my PLC communication be affected?
The RMIO-12C supports all standard ACS800 fieldbus adapter modules, including RDCO-01 (PROFIBUS-DP), RDCO-02 (DeviceNet), RDCO-03 (Modbus RTU), and RDCO-04 (CANopen). The fieldbus adapter module remains installed during the board swap, preserving the network node address and baud rate. PLC communication should resume automatically after power-up and parameter restoration, subject to fieldbus status verification.

Q4: What does the 12-month warranty cover, and what is the shipment testing process?
Every RMIO-12C shipped by SMARTNEXMSK is covered by a 12-month warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. Pre-shipment testing includes power-on functional verification, I/O signal integrity checks, and communication interface validation. In the event of a warranty claim, SMARTNEXMSK provides advance replacement support to minimize site downtime.
