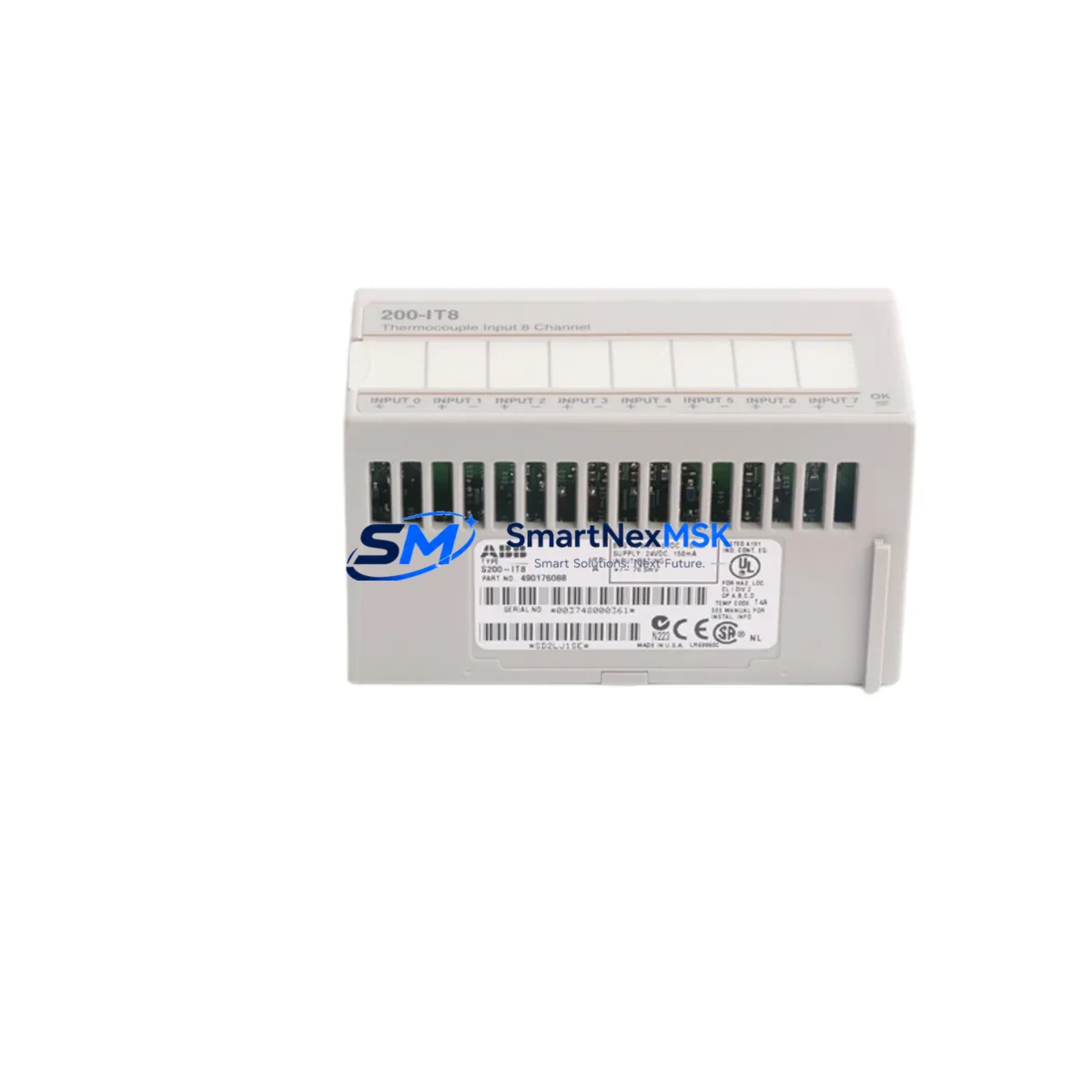

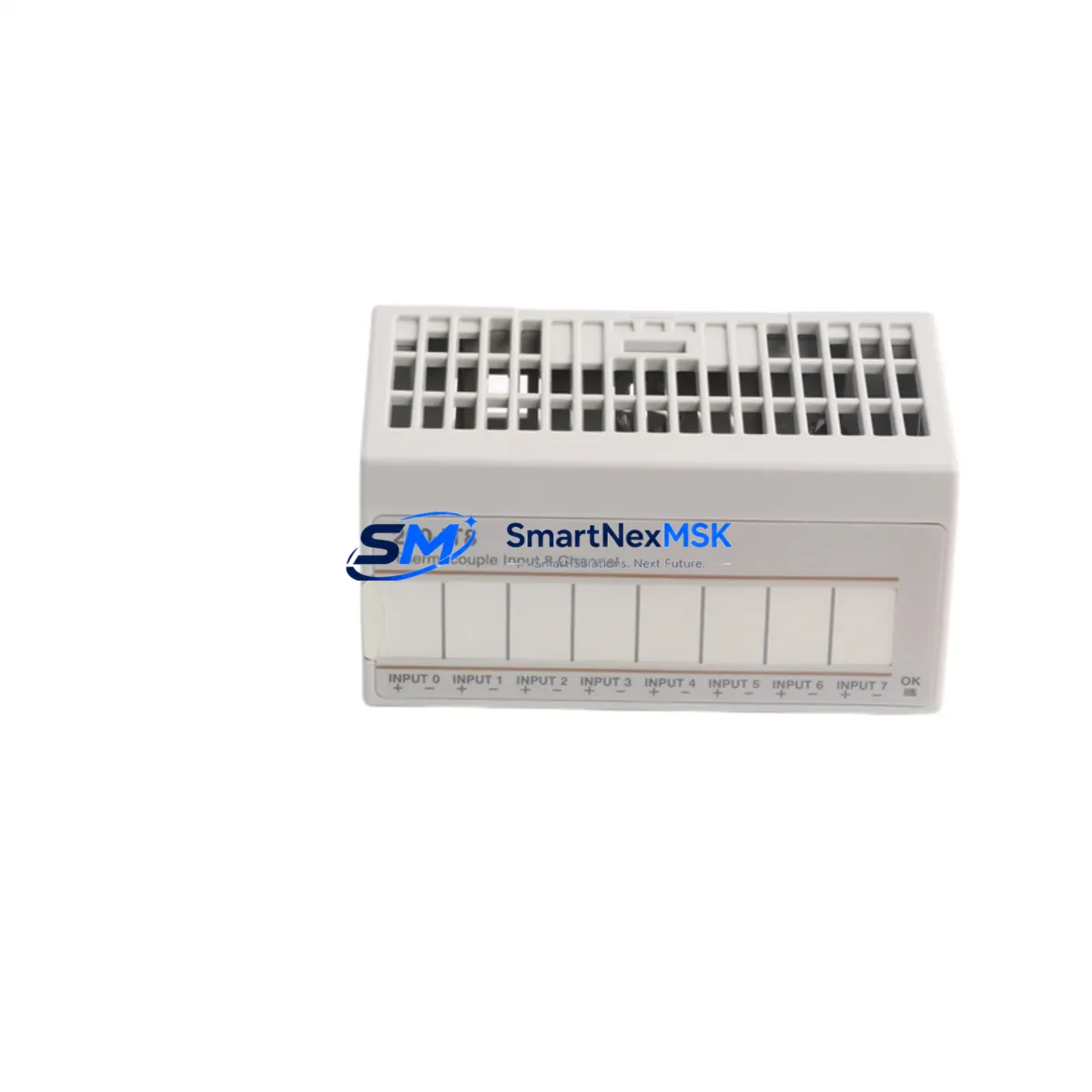

ABB S200-IT8 Safety-Enhanced Thermocouple Input Module

ABB S200-IT8 Safety-Enhanced Thermocouple Input Module: Reliable Control in Harsh Industrial Sites

In high-stakes industrial environments — where continuous production, extreme temperatures, electromagnetic interference, and hazardous area classifications converge — the integrity of every signal path is a safety-critical concern. The ABB S200-IT8 8-channel thermocouple input module is engineered to meet exactly these demands. Designed as a core I/O component within the ABB AC500 PLC platform, the S200-IT8 delivers precision thermocouple signal acquisition with the robustness required for petrochemical plants, power generation facilities, metallurgical furnaces, mining operations, and water treatment infrastructure.

Signal integrity is the foundation of process safety. The S200-IT8 supports multiple thermocouple types (J, K, T, E, R, S, B, N) and provides high-resolution temperature measurement with cold-junction compensation, ensuring that even in environments subject to thermal gradients and ground potential differences, the measured values remain accurate and stable. This directly reduces the risk of control loop deviation, process excursion, and safety interlock failure — outcomes that can have severe operational and personnel safety consequences.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust industrial control cabinet is only as reliable as its weakest component. When integrating the ABB S200-IT8 into a control system, it operates in close coordination with a range of protective and communicative components that collectively ensure uninterrupted process control.

At the power supply level, the ABB CP-E 24VDC/10A SMPS provides stable, filtered 24 VDC bus power to the S200 backplane, suppressing voltage ripple that could otherwise introduce noise into thermocouple signal chains. Upstream, an ABB F204 residual current circuit breaker provides ground fault protection for the entire panel, while ABB OVR surge arresters clamp transient overvoltages at the cabinet entry point — protecting the S200-IT8 and co-located modules such as the ABB S200-AO4 analog output module and ABB S200-DI16 digital input module from surge-induced latch-up or data corruption.

For communication integrity, the AC500 CPU — typically an ABB PM564-ETH or PM573-ETH — exchanges process data with the S200-IT8 via the high-speed internal backplane bus, eliminating the latency and noise susceptibility of external field wiring for inter-module communication. Where PROFIBUS DP or Modbus TCP integration is required, the ABB CI502-PNIO PROFINET adapter or CI504-PNIO coupler can be added to the rack, enabling seamless integration into plant-wide DCS or SCADA architectures without compromising the S200-IT8’s signal acquisition cycle time.

In safety interlock applications, the S200-IT8 temperature readings are often fed directly into safety relay logic executed by an ABB Pluto safety PLC or a dedicated ABB JOKAB TINA safety module, enabling SIL-rated temperature-based shutdown sequences for furnace overtemperature protection, reactor thermal runaway prevention, and motor winding protection in high-power drive systems. The combination of the S200-IT8’s per-channel open-wire diagnostics and the safety relay’s redundant input monitoring creates a defense-in-depth architecture that minimizes the probability of dangerous undetected failures.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In continuous catalytic cracking units and distillation columns, the S200-IT8 monitors thermocouple arrays across reactor beds and heat exchangers. Its galvanic channel isolation prevents ground loop currents — common in large steel-structure plants — from corrupting temperature readings, which could mask dangerous exothermic runaway conditions. The module’s IEC 61000-4-5 surge immunity ensures it survives the high-energy transients generated by large motor starts and transformer switching events endemic to refinery electrical systems.

Power Generation & Utilities: Steam turbine bearing temperature monitoring, generator stator winding protection, and boiler combustion control all rely on accurate, continuous thermocouple data. The S200-IT8’s -25°C to +60°C operating range and high EMC immunity make it suitable for both outdoor switchgear rooms and hot, vibration-prone turbine halls. Redundant CPU configurations using dual ABB PM564 processors with the S200-IT8 shared I/O backplane provide hot-standby capability for critical generation assets.

Metallurgy & Steel Production: Electric arc furnace electrode temperature control, ladle preheating management, and continuous casting mold temperature monitoring demand thermocouple modules that can withstand intense radiated heat, heavy electromagnetic interference from high-current bus bars, and the mechanical shock of a production floor environment. The S200-IT8’s robust backplane connection and DIN rail mounting with positive locking ensure it remains securely seated even under vibration loads.

Mining & Mineral Processing: Conveyor drive motor thermal protection, crusher bearing monitoring, and flotation cell process temperature control in remote, dusty, and humid mine environments benefit from the S200-IT8’s wide humidity tolerance and sealed terminal connections. Its open-wire detection per channel immediately flags broken thermocouple leads — a common failure mode in high-vibration mining machinery — before a false normal reading can mask an overtemperature condition.

Water & Wastewater Treatment: Pump motor winding temperature monitoring, UV disinfection reactor thermal management, and sludge digester process control in water treatment plants require modules that operate reliably in high-humidity, chemically aggressive atmospheres. The S200-IT8’s IP20 panel-mount design, combined with a properly sealed control cabinet, provides the necessary environmental protection while maintaining full diagnostic transparency to the plant SCADA system.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the ABB S200-IT8?
The 12-month warranty covers all manufacturing defects, component failures, and functional anomalies identified under normal operating conditions from the date of shipment. If the module fails to meet its specified thermocouple input accuracy, channel isolation, or diagnostic performance within the warranty period, we provide free replacement or repair. Warranty claims are processed within 5 business days of receipt of the returned unit.

Q2: What pre-shipment testing is performed on each S200-IT8 unit?
Every S200-IT8 unit undergoes a full functional verification prior to dispatch: all 8 thermocouple input channels are tested for signal accuracy across the supported TC type range, open-wire detection is verified per channel, backplane communication integrity is confirmed, and power consumption is measured against specification. Units that do not pass all test criteria are quarantined and not shipped. A test record is available upon request.

Q3: Is the S200-IT8 compatible with all ABB AC500 CPU generations?
The S200-IT8 is designed for the ABB AC500 S200 I/O system and is compatible with AC500 PM5xx series CPUs, including the PM554, PM564, PM573, PM583, and PM592 variants, both standard and ETH versions. It is not directly compatible with the older AC500 S500 I/O backplane without an appropriate coupler. If you are unsure about compatibility with your specific CPU revision, contact our technical team with your CPU firmware version for confirmation.

Q4: Can you guarantee long-term supply and replacement support for the S200-IT8?
Yes. We maintain dedicated stock of the ABB S200-IT8 and key AC500 S200 series I/O modules to support both new project builds and ongoing maintenance requirements. For critical infrastructure operators who require guaranteed spare parts availability, we offer reserved stock arrangements. Our supply chain covers both current-production ABB units and verified refurbished stock for legacy system support, ensuring you are never left without a replacement path for this safety-critical module.
