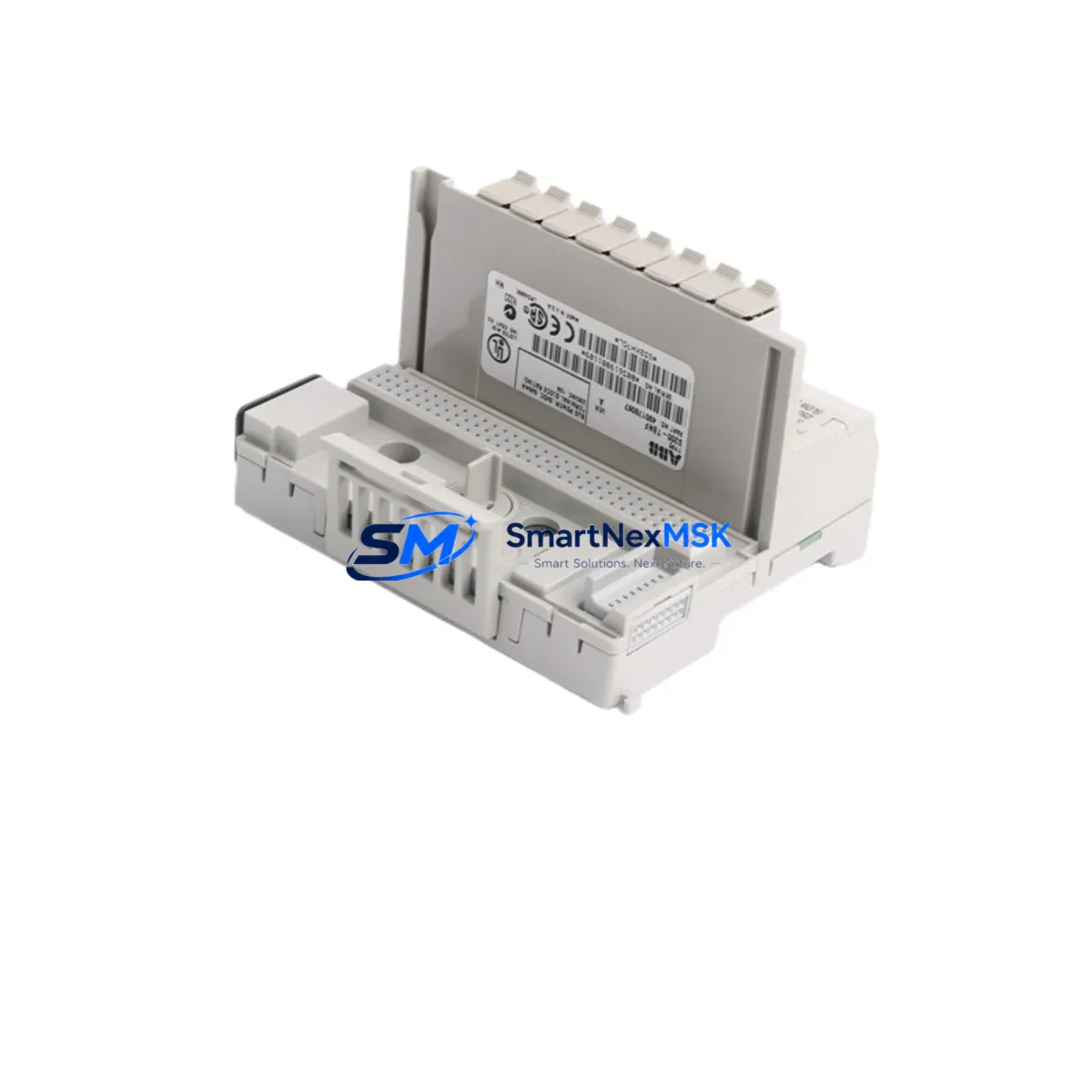

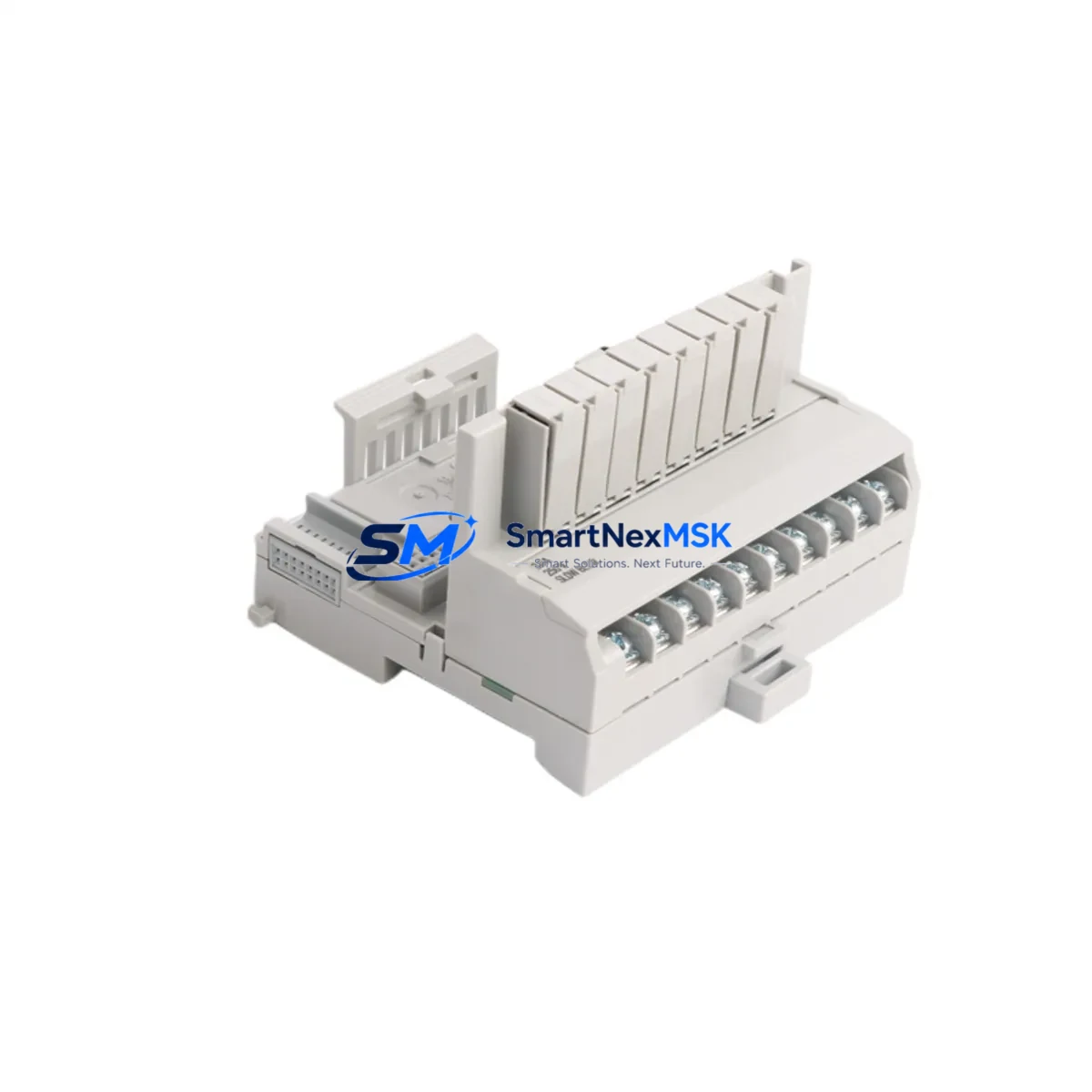

ABB S200-TBNF Safety-Enhanced Fused Terminal Base for Harsh Industrial Sites

ABB S200-TBNF Safety-Enhanced Fused Terminal Base for Harsh Industrial Sites

The ABB S200-TBNF is a ruggedized fused terminal base engineered for the ABB S200 miniature circuit breaker (MCB) series, purpose-built to deliver uncompromising safety and control-loop integrity in the most demanding industrial environments. Whether deployed in petrochemical control cabinets, power distribution panels, mining automation enclosures, or continuous-process manufacturing switchgear, the S200-TBNF provides a critical layer of overcurrent protection and circuit isolation that keeps production running and personnel safe.

In high-load, high-interference industrial sites — where voltage transients, electromagnetic interference, and mechanical vibration are constant threats — a fused terminal base is not a convenience component; it is a safety-critical element of the control architecture. The S200-TBNF integrates directly with ABB S200 series MCBs, including the ABB S201, S202, and S203 single-, double-, and triple-pole breakers, forming a compact, code-compliant protection assembly that eliminates loose wiring, reduces termination errors, and dramatically lowers the risk of arc flash events caused by improper conductor connections.

Control cabinet designers working on critical interlock loops — such as emergency stop (E-stop) circuits, safety relay input feeds, or motor protection branches — rely on the S200-TBNF to maintain clean, fused distribution without adding panel footprint. Its snap-on DIN rail mounting is compatible with standard 35 mm rails used across IEC-compliant switchgear assemblies, and its integrated fuse holder accepts standard 5×20 mm or 6.3×32 mm cylindrical fuses, allowing field engineers to select the precise protection rating for each branch circuit without replacing the base unit.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust industrial control cabinet is only as reliable as its weakest protection element. When integrating the ABB S200-TBNF into a switchgear assembly, engineers typically pair it with upstream ABB S200 MCBs — such as the S201-C6 or S202-B16 — to create a coordinated protection cascade that isolates faults at the branch level before they can propagate to the main bus. This coordination is essential in facilities where a single tripped breaker can cascade into a full-line shutdown.

For power quality and surge suppression upstream of the S200-TBNF, many panel builders incorporate ABB OVR surge protective devices (SPDs) at the cabinet entry point. These SPDs clamp voltage transients caused by lightning strikes, capacitor bank switching, or variable-frequency drive (VFD) switching noise — protecting not only the S200-TBNF fuse element but also downstream ABB CR-M relay modules and ABB CM-series monitoring relays that supervise voltage, current, and phase symmetry in critical motor circuits.

In safety interlock architectures, the S200-TBNF is frequently used to feed ABB Jokab Safety relay units or third-party safety PLCs, where a blown fuse provides a deterministic, fail-safe open-circuit condition rather than an ambiguous signal state. This is particularly important in SIL 2 and SIL 3 rated loops where undefined states are unacceptable. Alongside the fused terminal base, ABB S2C-H6R auxiliary contact blocks are often mounted to the companion MCB to provide remote trip indication back to the SCADA or DCS system — enabling operators to detect and respond to branch faults without dispatching field personnel.

For 24 V DC control circuits — common in PLC I/O power rails, solenoid valve feeds, and sensor supply branches — the S200-TBNF provides clean fused distribution that prevents a shorted field device from collapsing the entire 24 V bus. This is a common failure mode in dense I/O cabinets where ABB TRIO power supplies or equivalent DIN rail PSUs feed dozens of field instruments simultaneously. A single unfused short can take down an entire process section; the S200-TBNF eliminates that risk at the branch level.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In hazardous-area control rooms and safe-area marshalling cabinets serving Zone 1 and Zone 2 classified areas, the S200-TBNF provides reliable fused isolation for instrument power feeds, solenoid valve control circuits, and flame detector supply branches. Its pollution-degree-3 rating ensures stable performance despite airborne chemical contaminants and humidity fluctuations common in coastal refinery environments.

Electric Power Generation & Substation Automation: In 6 kV and 10 kV switchgear relay panels, the S200-TBNF protects secondary control wiring from fault currents that can arise during CT saturation events or bus fault conditions. Its compatibility with the full ABB S200 MCB range makes it a preferred choice for protection engineers standardizing on a single breaker platform across multiple voltage levels.

Mining & Mineral Processing: Underground and surface mining operations subject control equipment to extreme vibration, dust ingress, and wide temperature swings. The S200-TBNF’s robust snap-fit construction and IEC 60068-2 vibration rating ensure that fuse contacts remain secure under continuous mechanical stress — a critical requirement in dragline, conveyor, and crusher control panels where intermittent contact resistance can cause spurious trips and unplanned downtime.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities rely on continuous pump and valve operation. The S200-TBNF protects individual pump motor starter control circuits, ensuring that a fault on one pump branch does not interrupt the control power to adjacent units — maintaining redundancy in critical water supply and effluent treatment loops.

Metallurgy & Steel Production: In electric arc furnace (EAF) and continuous casting control systems, the S200-TBNF withstands the intense electromagnetic interference generated by high-current furnace operations, providing stable fused distribution to PLC I/O modules, temperature transmitters, and hydraulic valve controllers that must operate reliably in close proximity to high-power electrical equipment.

Safety and Quality FAQ

Q1: What warranty does the ABB S200-TBNF carry?
The S200-TBNF is covered by a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed promptly with replacement or full refund options. Contact [email protected] for warranty support.

Q2: How is the S200-TBNF tested before shipment?
Every unit undergoes a 100% pre-shipment functional inspection, including continuity testing of the fuse holder contacts, mechanical fit verification for DIN rail mounting, and visual inspection for housing integrity. Only units passing all checks are dispatched. Test records are available upon request for quality-critical procurement.

Q3: Is the S200-TBNF compatible with all ABB S200 series MCBs?
Yes. The S200-TBNF is designed specifically for the ABB S200 MCB platform and is mechanically and electrically compatible with S201, S202, S203, and S204 pole configurations across the full current range (0.5 A to 63 A). It is not compatible with the S280 or S700 series. If you are unsure about compatibility with a specific variant, contact our technical team before ordering.

Q4: Can long-term supply and replacement stock be guaranteed?
Yes. SMARTNEXMSK maintains dedicated inventory of ABB S200 series accessories, including the S200-TBNF, to support ongoing MRO (maintenance, repair, and operations) procurement for industrial facilities. We support single-unit replacement orders as well as bulk procurement contracts. Lead times and stock levels are confirmed at the time of inquiry to ensure your maintenance schedules are not disrupted.
