ABB SAFT163IOC Maintenance-Ready Spare for SAFT163 Automation

ABB SAFT163IOC Maintenance-Ready Spare for SAFT163 Automation

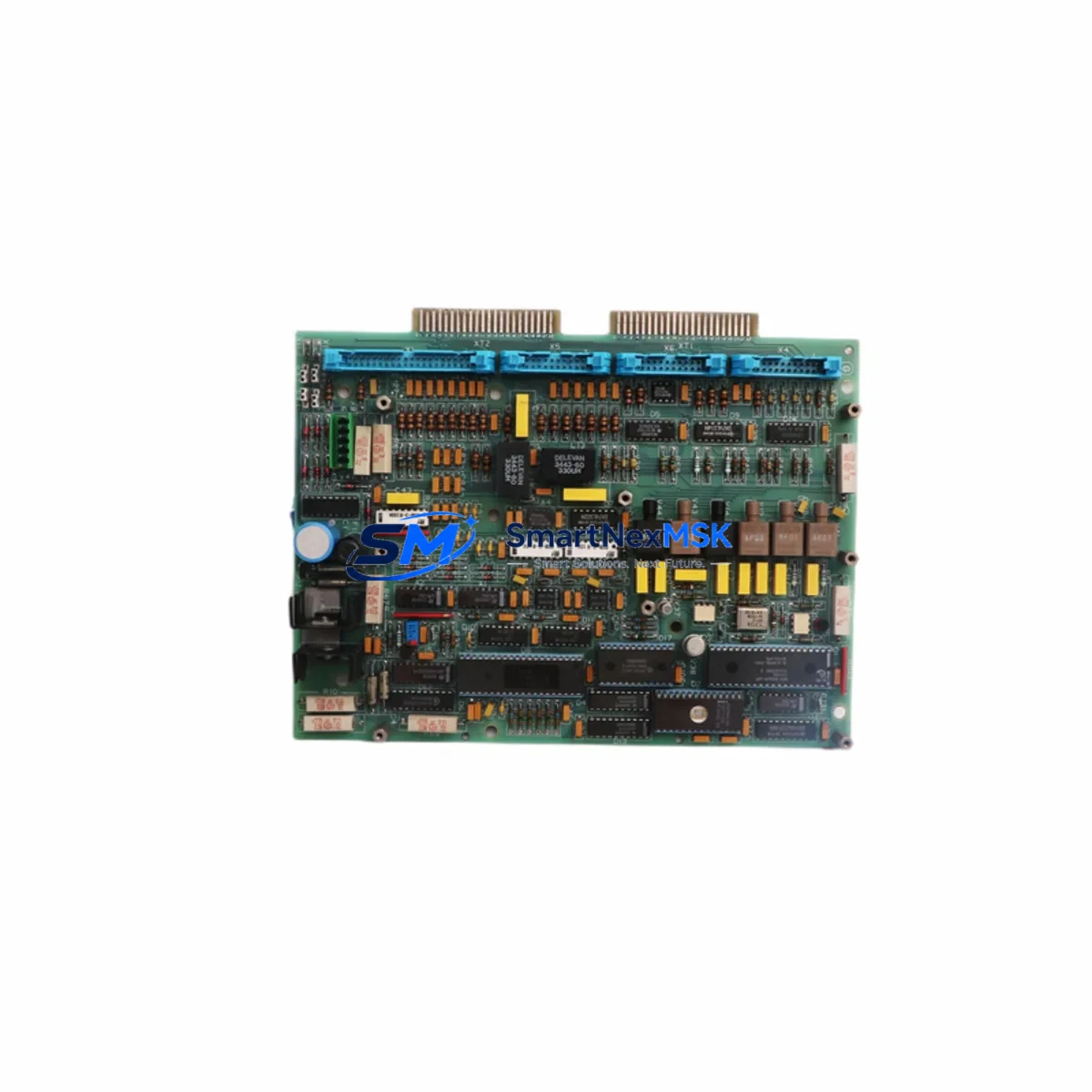

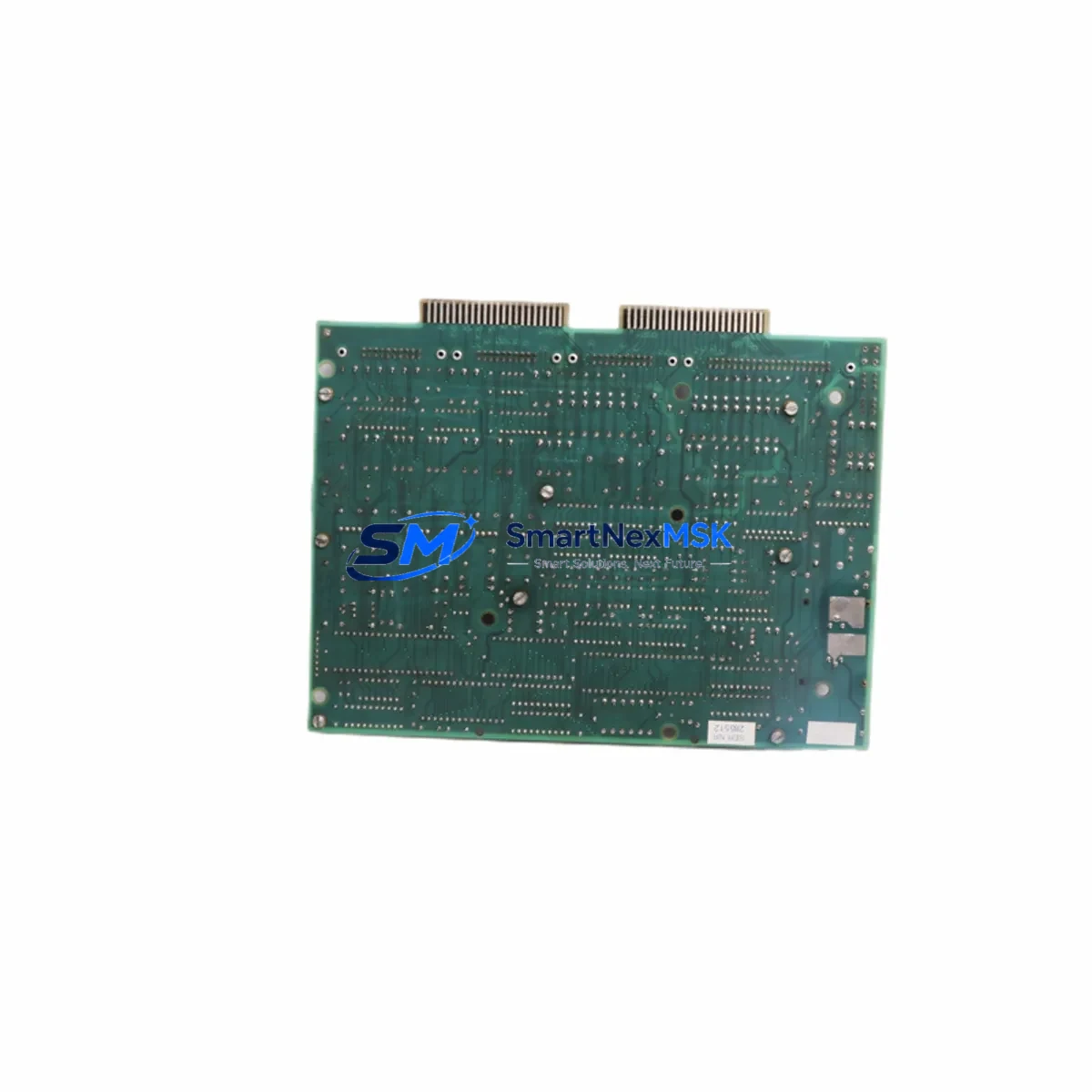

The ABB SAFT163IOC is an original PC I/O connection board designed for the SAFT163 series AC drive control systems. In industrial environments where unplanned downtime translates directly into production loss, having a verified, maintenance-ready spare of the SAFT163IOC on hand is a fundamental element of any responsible spare parts strategy. This board serves as the critical interface between the drive’s control logic and its I/O signal network, making it one of the highest-priority components to stock in any facility running ABB SAFT163-based automation systems.

Whether you are managing a continuous process line, a conveyor system, a pump station, or a compressor drive, the SAFT163IOC governs how the drive receives and transmits digital and analog signals. A fault on this board can render the entire drive inoperable, triggering a full system shutdown. Sourcing a tested, original replacement unit in advance — rather than scrambling during a live fault — is the difference between a two-hour recovery and a two-day outage.

This unit is sourced as an original ABB spare, inspected prior to shipment, and backed by a 12-month warranty covering manufacturing defects and functional performance. It is suitable for direct drop-in replacement in SAFT163 series drive cabinets without firmware modification or hardware adaptation.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or procurement engineer identifies the SAFT163IOC as a fault source or a scheduled replacement item, the scope of inspection should extend beyond the board itself. A thorough site assessment during the same maintenance window significantly reduces the risk of secondary failures and repeat shutdowns.

Begin by verifying the integrity of the drive’s power supply module. Voltage irregularities or ripple on the internal DC bus are a common root cause of I/O board degradation in SAFT163 drives. If the power supply unit shows signs of aging — capacitor bulge, output voltage drift, or thermal discoloration — it should be replaced concurrently with the SAFT163IOC to prevent the new board from being exposed to the same stress conditions.

Next, inspect the control wiring harness and terminal blocks connected to the I/O board. Loose or corroded terminals on the signal input/output connectors are a frequent source of intermittent faults that are often misdiagnosed as board failures. Replacing the SAFT163IOC without addressing terminal integrity will not resolve the underlying issue. Check all 24 VDC control signal lines, analog reference inputs, and digital output relay circuits for continuity and insulation resistance.

The SAFT163 series drive typically operates alongside a SAFT163PLC or equivalent programmable logic controller board within the same control cabinet. During the same maintenance event, verify that the PLC board’s communication link to the I/O board is intact and that no fault codes related to communication loss or I/O timeout are stored in the drive’s fault history. If the drive uses a SAFT163COM communication adapter for fieldbus connectivity — such as PROFIBUS, Modbus, or DeviceNet — inspect the adapter’s connector and termination resistor status as well.

For drives installed in older facilities, the SAFT163 control board (SAFT163CON) and the gate driver board should also be included in the inspection checklist. These components share the same backplane and power rail as the SAFT163IOC, and a failure in one often accelerates wear in the others. Signal isolators installed between the drive’s analog outputs and the PLC’s analog input cards should be tested for drift, as degraded isolation can introduce noise that triggers false I/O faults.

Finally, review the status of any protective fuses on the 24 VDC control circuit, the motor thermistor input, and the emergency stop relay circuit. These low-cost components are frequently overlooked during drive board replacements but are critical to protecting the new SAFT163IOC from overcurrent events during commissioning. Stocking a set of control circuit fuses, a spare 24 VDC SMPS module, and a replacement I/O terminal block alongside the SAFT163IOC is a best-practice recommendation for any facility running SAFT163-based drive systems.

Site Replacement Workflow

Step 1 — Isolation and Lockout: De-energize the drive cabinet and apply LOTO (Lockout/Tagout) procedure. Allow a minimum of 5 minutes for DC bus capacitors to discharge before opening the cabinet door. Verify zero voltage on the DC bus terminals with a calibrated multimeter before touching any internal components.

Step 2 — Fault Documentation: Before removing the SAFT163IOC, record all active and stored fault codes from the drive’s operator panel or HMI. Photograph the existing wiring and connector positions on the I/O board for reference during reinstallation. This step is critical for older SAFT163 installations where wiring documentation may be incomplete or outdated.

Step 3 — Board Removal: Disconnect all signal connectors from the SAFT163IOC in sequence, labeling each connector if not already marked. Remove the board mounting screws and carefully extract the board from the backplane. Handle the board by its edges only; avoid contact with PCB traces or components.

Step 4 — Replacement Installation: Install the new SAFT163IOC by reversing the removal sequence. Ensure all connectors are fully seated and locked. Verify that the board’s DIP switch or jumper settings match the original configuration — refer to the SAFT163 hardware manual for I/O configuration parameters if the original settings were not documented.

Step 5 — Power-Up and Verification: Re-energize the drive in a controlled sequence. Monitor the operator panel for fault codes during the first power-up cycle. Verify that all I/O signals are responding correctly by performing a functional test of each digital input, digital output, and analog channel before returning the drive to production service.

Step 6 — Documentation Update: Record the replacement in the site maintenance log, including the date, replaced part number, new part serial number, and technician name. Update the spare parts inventory to trigger a reorder of the consumed SAFT163IOC unit, maintaining the minimum stock level defined in your maintenance plan.

Spare Parts Support FAQ

Q: Is this SAFT163IOC an original ABB part or an aftermarket replacement?
A: This is an original ABB SAFT163IOC spare part, not an aftermarket or third-party reproduction. Each unit is sourced through verified industrial supply channels and inspected for physical and functional integrity before shipment. Original parts ensure full compatibility with the SAFT163 drive’s firmware and hardware specifications without the risk of parameter mismatch or reduced service life associated with non-original components.

Q: How is the SAFT163IOC tested before shipment?
A: Each SAFT163IOC unit undergoes a pre-shipment inspection covering visual integrity, connector condition, PCB trace continuity, and component-level checks. Units that do not pass inspection are not shipped. The 12-month warranty covers any functional defect that manifests under normal operating conditions within the warranty period, with replacement or refund as the resolution.

Q: Can the SAFT163IOC be used as a direct replacement for older SAFT163 series boards?
A: Yes. The SAFT163IOC is designed for direct replacement within the SAFT163 drive series. No firmware update or hardware modification is required for standard installations. If your existing drive has been modified or is running a non-standard I/O configuration, review the SAFT163 hardware manual to confirm jumper and DIP switch settings before installation. Contact our technical team if you require compatibility confirmation for a specific drive revision.

Q: What is the recommended spare parts stocking strategy for SAFT163 drives?
A: For facilities operating three or more SAFT163 drives, the recommended minimum stock is one SAFT163IOC board per five drives, with a maximum replenishment lead time of 30 days. For critical process applications where drive downtime directly impacts production output, a one-to-one spare ratio is advisable. Pair the SAFT163IOC with a spare power supply module and a set of control circuit fuses to cover the most common failure modes in a single maintenance kit.
