ABB SD821 3BSC610037R1 Retrofit-Ready Power Supply for Advant

ABB SD821 3BSC610037R1 Retrofit-Ready Power Supply for Advant Master Control Systems

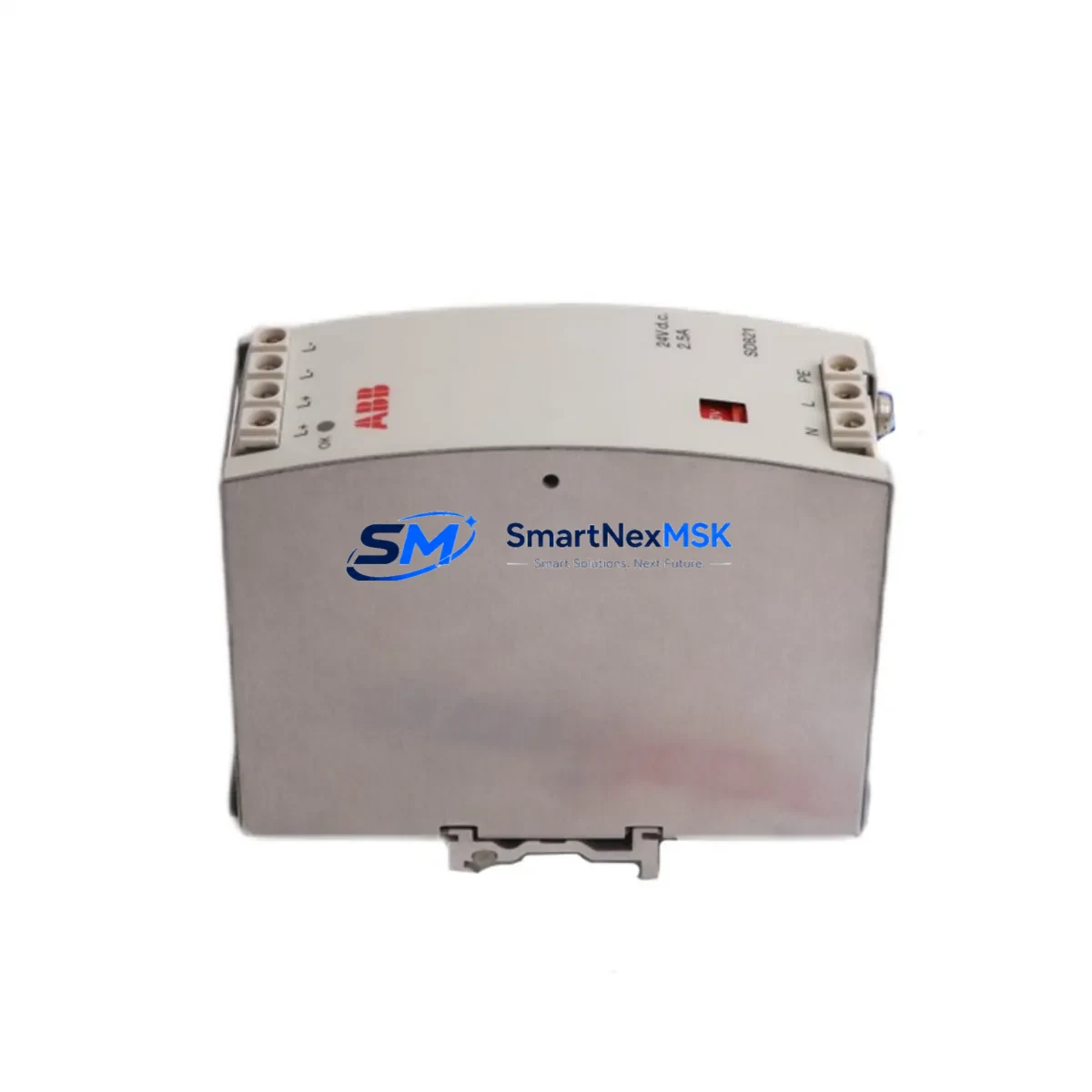

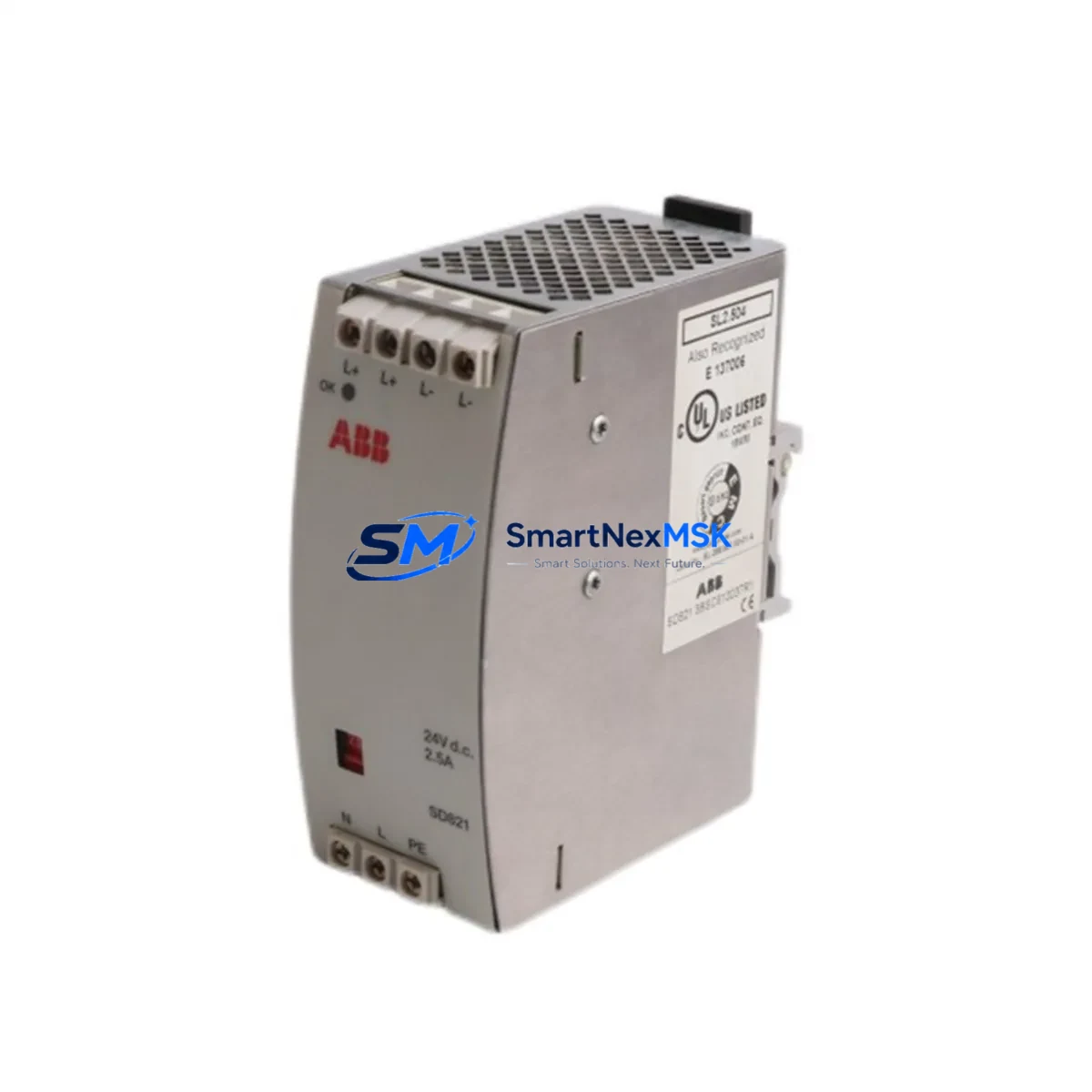

The ABB SD821 (part number 3BSC610037R1) is a 24 VDC regulated power supply module engineered for the ABB Advant Master distributed control system platform. As legacy Advant Master installations approach end-of-life and original ABB SD821 units become increasingly difficult to source through standard channels, this module serves as the definitive retrofit-ready replacement — fully compatible with existing rack assemblies, terminal wiring, and system addressing schemes without requiring software re-engineering or hardware redesign.

For plant engineers and maintenance teams managing aging DCS infrastructure, the SD821 3BSC610037R1 addresses one of the most critical pain points in brownfield modernization: sourcing a verified, tested power supply that slots directly into the existing Advant Master cabinet without triggering a cascade of downstream changes. Whether you are replacing a failed unit under emergency conditions or executing a planned upgrade during a scheduled maintenance window, this module is pre-tested, serialized, and shipped with full documentation to support your commissioning team.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the SD821 3BSC610037R1 into an existing Advant Master installation requires a structured pre-replacement assessment. Begin by auditing the target subrack to confirm available slot positions and verifying that the ABB S100 I/O subrack or S400 subrack backplane connectors are undamaged. In multi-rack configurations, the SD821 typically powers a dedicated subrack alongside I/O modules such as the AI810 analog input module, AO810 analog output module, DI810 digital input module, and DO810 digital output module — all of which must remain energized and addressed correctly throughout the swap procedure.

Before removing the failed unit, document the existing terminal block wiring on the AC input side. The SD821 accepts a standard 115/230 VAC input; confirm the local supply voltage and verify that the input selector switch on the replacement module is set to match site conditions. Failure to verify this before energization is one of the most common commissioning errors in field replacements.

In systems where the Advant Master communicates over MasterBus 300 or interfaces with a CI522A communication interface module or CI532V PROFIBUS interface, the power supply replacement does not affect protocol configuration — but it is good practice to confirm that the CI module remains online and that the MasterBus segment does not experience an unexpected reset during the power interruption. Similarly, if the control system includes an SC510 subrack controller or PM511 processor module, verify that the processor retains its program in battery-backed RAM before cutting power to the subrack.

For cabinets that also house an TP830 operator panel or an external HMI connected via serial link, coordinate the replacement window with the HMI team to suppress nuisance alarms and prevent operators from acting on stale process data during the outage. If the system uses an MB300 MasterBus repeater to extend the control network across multiple cabinets, confirm that the repeater remains powered from an independent supply so that the wider network stays intact while the target subrack is de-energized.

All replacement units are shipped with a pre-dispatch functional test report. Stock is maintained in our warehouse to support both emergency same-day dispatch and planned project procurement. Each unit carries a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern for any maintenance team executing a power supply replacement on a live DCS. The SD821 3BSC610037R1 is designed for rapid field swap: the module uses a standard front-panel connector and DIN-rail-compatible subrack mounting, allowing a trained technician to complete the physical replacement in under 30 minutes in most configurations.

To protect original program logic, ensure that the PM511 processor module or equivalent Advant Master controller has its battery-backed SRAM intact before de-energizing the subrack. If the system uses an external programming cable connected to a PC running ABB Master programming software, verify that no active download or upload session is in progress before cutting power. After the replacement module is seated and the subrack is re-energized, perform a controlled power-on sequence: energize the SD821 first, confirm 24 VDC output stability, then restore the I/O subrack and verify that all AI810, DI810, AO810, and DO810 modules return to their pre-outage states with correct channel addressing.

For systems with redundant power supply configurations, the replacement can often be performed with zero process interruption by switching load to the redundant SD821 unit before removing the failed module — confirm your specific subrack configuration supports hot-swap before proceeding. Maintain field control continuity by coordinating with the DCS operator to place affected control loops in manual mode prior to the outage window, and restore to automatic only after all I/O modules have been verified online and the MasterBus communication link has been confirmed stable.

Retrofit Support FAQ

Q1: Is the SD821 3BSC610037R1 a direct replacement for all SD821 variants in the Advant Master platform?
A: The 3BSC610037R1 is the primary catalog part number for the SD821 power supply module and is compatible with the full range of Advant Master S100 and S400 subracks. If your existing unit carries a different suffix or revision marking, contact our technical team with the original nameplate data for confirmation before ordering.

Q2: What wiring changes are required during installation?
A: In a direct swap scenario, no field wiring changes are required. The AC input terminals and 24 VDC output connectors are pin-compatible with the original SD821. Verify input voltage selector switch position and confirm terminal torque values match the original installation records.

Q3: How is compatibility verified before shipment?
A: Each SD821 3BSC610037R1 unit undergoes a pre-dispatch functional test covering output voltage regulation, load response, and overcurrent protection. A test report is included with every shipment. Units are serialized and traceable to their test records for warranty and audit purposes.

Q4: What does the 12-month warranty cover?
A: The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, or environmental conditions outside the module’s rated specifications. Warranty claims are processed within 5 business days of receipt of the returned unit.
