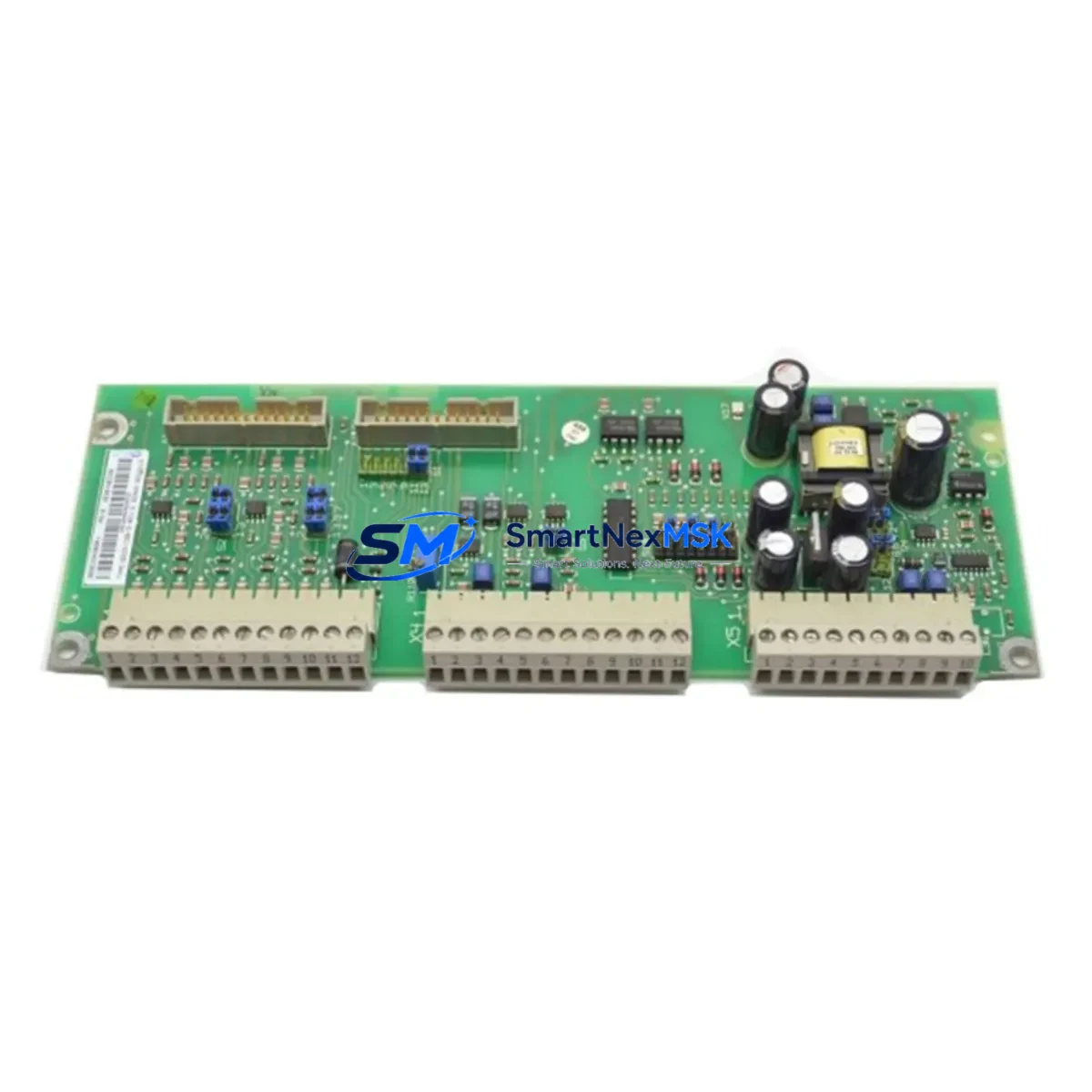

ABB SDCS-IOB-3 3BSE004086R1 Safety I/O for Harsh Industrial Sites
The ABB SDCS-IOB-3 (part number 3BSE004086R1) is a ruggedized I/O expansion module engineered for the DCS550 series DC drive platform, purpose-built to sustain reliable control loop integrity in the most demanding industrial environments. Whether deployed in continuous steel mill drives, petrochemical motor control centers, mining hoist systems, or port crane automation cabinets, this module delivers the signal stability and fault tolerance that safety-critical operations demand. Its robust design addresses the core risks that maintenance and procurement engineers face daily: control interruption from EMI, signal drift under thermal stress, I/O misfiring from power transients, and unplanned downtime caused by aging expansion hardware.
In high-load DC drive applications, the SDCS-IOB-3 serves as the critical interface between the DCS550 drive controller and field-level sensors, actuators, and interlocking circuits. Its hardened I/O architecture ensures that analog feedback signals — speed references, torque limits, and process variables — remain accurate even in environments with heavy switching noise from adjacent frequency converters, transformer inrush, or arc furnace harmonics. For maintenance engineers conducting routine control cabinet inspections, verifying the integrity of this module is a non-negotiable step in any planned shutdown checklist.
Safety Reliability Table
| Parameter | Specification |
|---|---|
| Part Number | 3BSE004086R1 |
| Model | SDCS-IOB-3 |
| Compatible Platform | ABB DCS550 DC Drive Series |
| Module Type | I/O Expansion Board |
| Analog Inputs | Multiple differential AI channels, configurable scaling |
| Digital I/O | Optically isolated DI/DO for noise immunity |
| EMI Protection | Shielded PCB, filtered signal paths |
| Operating Temperature | 0°C to +55°C (storage: -40°C to +70°C) |
| Humidity | 5–95% RH, non-condensing |
| Vibration Resistance | IEC 60068-2-6 compliant |
| Mounting | Direct backplane slot, DCS550 drive chassis |
| Origin | Finland |
| Warranty | 12 Months — tested and verified before shipment |
Control Cabinet Protection Strategy
When replacing or commissioning the SDCS-IOB-3 in a DCS550 drive cabinet, a thorough protection strategy requires inspecting the entire signal and power chain. Maintenance engineers should simultaneously verify the condition of the SDCS-CON-4 control board, which coordinates the drive’s closed-loop speed and current regulation — any degradation in the CON-4 will manifest as erratic behavior even with a healthy IOB-3 installed. The SDCS-POW-4 power supply board should be checked for output voltage stability, as undervoltage conditions are a leading cause of I/O module misfiring and false fault trips.
On the field wiring side, inspect all terminal blocks and cable shields connected to the IOB-3’s analog input channels. Unshielded or improperly grounded signal cables are a primary source of noise injection that can cause speed reference drift in continuous production lines. The SDCS-FEX-2 field excitation board, if present in the same cabinet, should be confirmed to be operating within its rated excitation current range, as field supply instability directly impacts motor torque response and can trigger protective shutdowns that are incorrectly attributed to I/O faults.
For cabinets operating in high-vibration environments such as mining or port applications, inspect the backplane connector seating of the SDCS-IOB-3 and adjacent modules including the SDCS-COM-8 communication option board. Loose backplane connections are a silent failure mode that causes intermittent I/O dropouts under vibration. Surge protection devices on the 24 VDC auxiliary supply rail feeding the drive control section should also be tested — MOV-based suppressors degrade over time and may no longer provide adequate protection against lightning-induced transients or capacitor bank switching surges. Additionally, verify that any SNAT 601 TAI or SNAT 609 analog I/O extension modules in the same control system are correctly configured and free of ground loops that could corrupt the IOB-3’s differential input readings.
Critical Industrial Safety Applications
The SDCS-IOB-3 3BSE004086R1 is deployed across a wide range of safety-critical industrial sectors where DC drive reliability is non-negotiable. In petrochemical refineries, it supports motor control for pump and compressor drives where a control interruption can trigger emergency shutdown sequences and costly production losses. In electric power generation facilities, it is used in excitation control and auxiliary motor drive systems where signal accuracy directly affects grid stability compliance.
In underground mining operations, the SDCS-IOB-3 is integral to hoist and conveyor drive systems where any I/O fault can activate safety brakes and halt ore extraction. Water treatment plants rely on it for variable-speed pump drives controlling flow rates in filtration and dosing systems — environments where chemical exposure and humidity demand the module’s sealed, corrosion-resistant construction. In metallurgical plants and rolling mills, it manages the I/O interface for main drive systems operating under continuous high-current loads, where thermal cycling and electromagnetic interference are constant stressors. Port and shipyard crane automation systems also depend on this module for precise load-handling speed control, where safety interlocks must respond without delay to prevent crane overload or collision events.
Safety and Quality FAQ
Q: What does the 12-month warranty cover for the SDCS-IOB-3 3BSE004086R1?
A: The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions. Every unit is tested for I/O channel integrity, signal isolation, and backplane communication before shipment. If a fault is confirmed within the warranty period, we provide a replacement or full refund with no additional cost to the buyer.
Q: How is compatibility with my DCS550 drive confirmed before shipment?
A: Compatibility is verified against the ABB DCS550 hardware configuration guide. The SDCS-IOB-3 with part number 3BSE004086R1 is confirmed for use across the DCS550 drive family. If you provide your drive firmware version or existing hardware list, our technical team can cross-reference the configuration before dispatch.
Q: Can this module replace an older or damaged SDCS-IOB-3 without drive reconfiguration?
A: Yes. The SDCS-IOB-3 3BSE004086R1 is a direct drop-in replacement for existing units of the same model. No drive parameter changes are required for a like-for-like swap. However, we recommend verifying I/O channel assignments in the drive’s parameter set after installation to confirm all field signals are correctly mapped.
Q: What is your long-term supply commitment for this part?
A: We maintain dedicated stock of the SDCS-IOB-3 3BSE004086R1 to support long-term maintenance programs. For customers managing aging DCS550 installations, we offer priority reservation and bulk procurement options to ensure continuity of supply for the life of the installed base.
—
