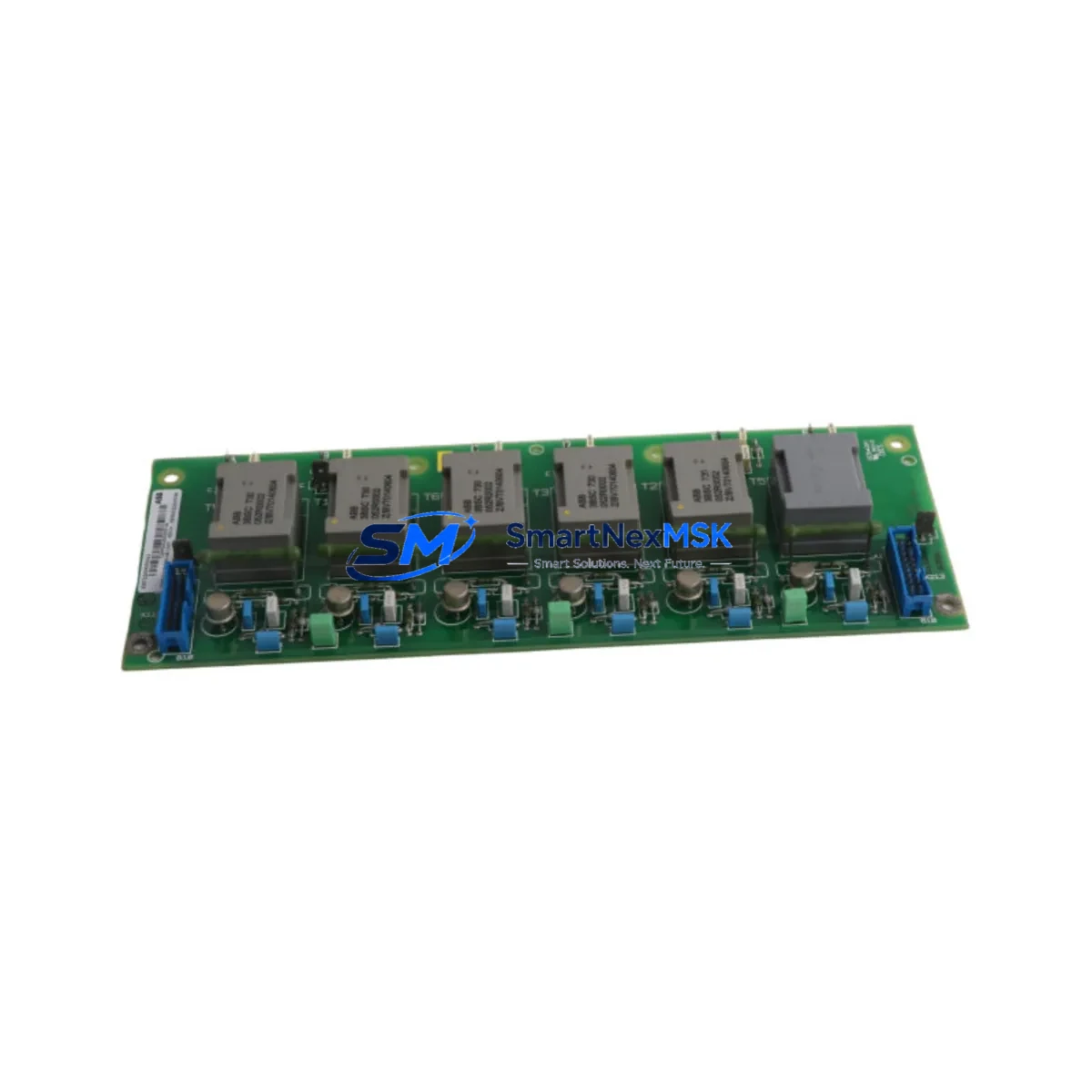

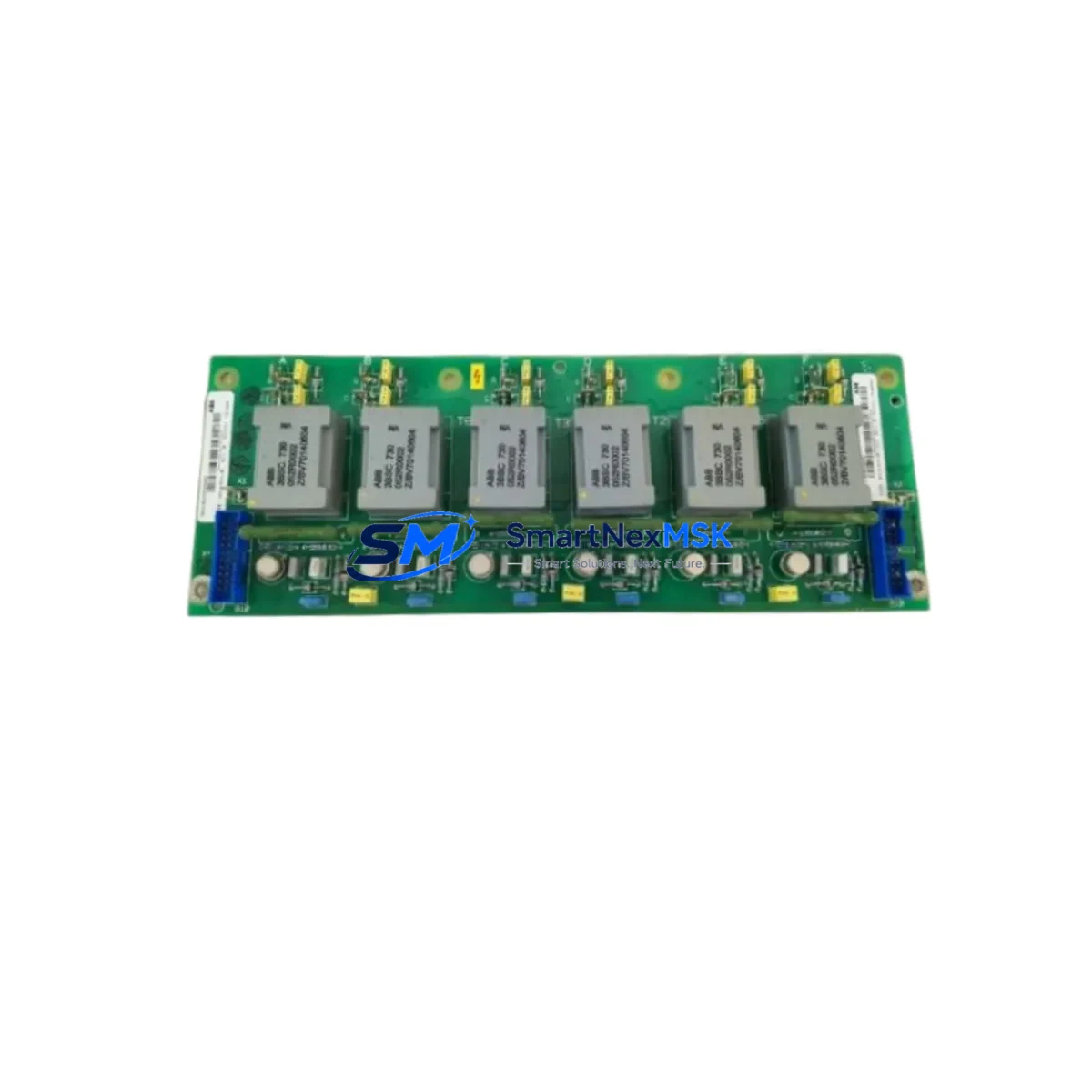

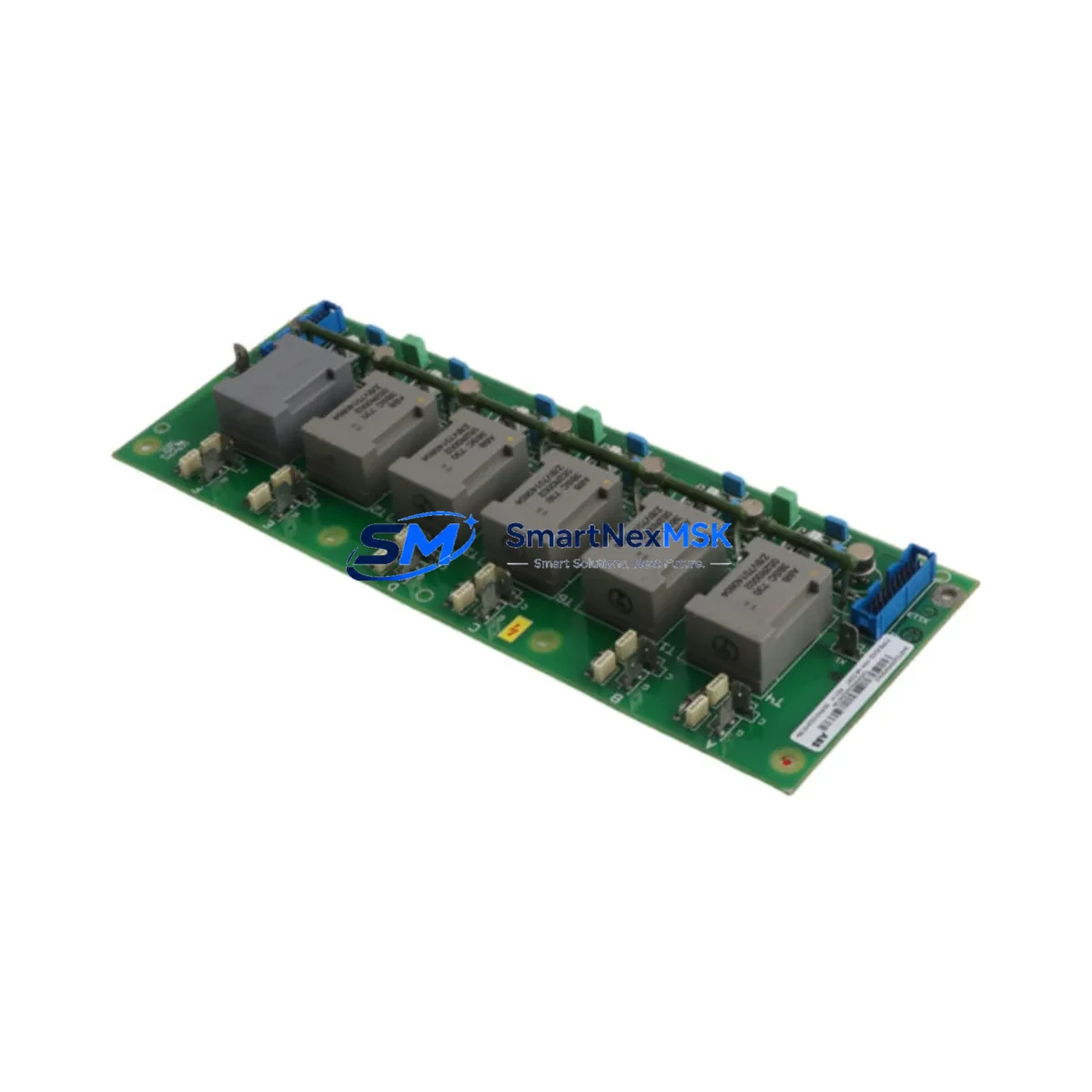

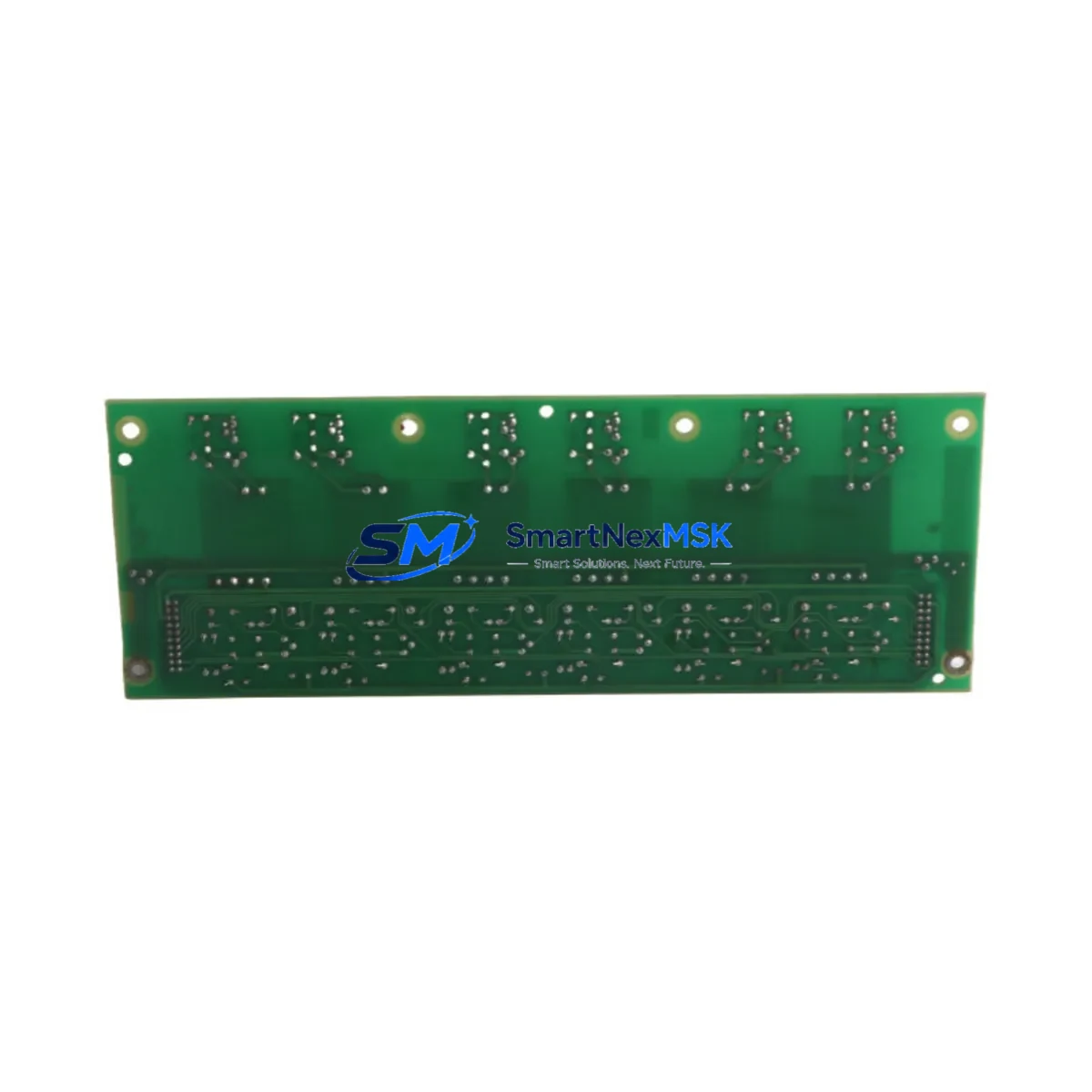

ABB SDCS-PIN-48 COAT 3ADT220090R0043 Retrofit-Ready DC Drive Interface for DCS400/DCS500 Control Systems
The ABB SDCS-PIN-48 COAT (part number 3ADT220090R0043) is a power interface board engineered for the ABB DCS400 and DCS500 series DC drive platforms. As legacy DC drive installations age and OEM support windows close, this board serves as the definitive retrofit solution for facilities seeking to extend operational life, restore drive performance, and avoid costly full-system replacements. Whether you are recovering from a board failure, upgrading a deteriorated control cabinet, or migrating from an earlier DCS300 platform, the SDCS-PIN-48 COAT provides the electrical interface integrity required for reliable, continuous DC motor control.
The COAT designation indicates a conformal coating applied to the PCB surface, providing enhanced protection against humidity, condensation, and airborne contaminants — a critical requirement in paper mills, chemical processing plants, steel rolling lines, and marine propulsion environments where ambient conditions are demanding. This makes the SDCS-PIN-48 COAT particularly well-suited for retrofit projects in harsh industrial settings where standard boards have historically suffered premature failure.
When planning a retrofit using the SDCS-PIN-48 COAT, engineers must verify several key parameters before installation. Power supply compatibility with the SDCS-DSL2 or SDCS-DSL3 power supply boards must be confirmed, as voltage rail tolerances directly affect board initialization. Terminal wiring from the armature feedback circuit and field excitation lines should be mapped against the existing SDCS-PIN-41 or SDCS-PIN-48 (non-coat) layout to identify any connector pitch differences. Backplane interface alignment with the DCS500B or DCS400 control board rack must be validated, particularly if the existing rack has been modified for earlier SDCS-CON-2 or SDCS-CON-3 control boards.
Module addressing and parameter migration are equally important. The drive’s parameter set — including speed reference scaling, current limit thresholds, and field weakening curves — must be backed up from the existing SDCS-CON-4 or SDCS-CON-2 control board using the DriveWindow or DriveWindow Light software tool before any hardware swap. This ensures that after the SDCS-PIN-48 COAT is seated and powered, the restored parameter set can be reloaded without manual re-commissioning of every drive function. HMI panel compatibility, particularly for installations using the CDP312R or ACS-CP-C control panels, should also be verified to confirm that the operator interface continues to communicate correctly over the RS-485 or DDCS fiber optic link after the board replacement.
Communication link integrity is a frequent concern during DC drive retrofit projects. If the existing system uses a SDCS-COM-8 PROFIBUS adapter or an SDCS-COM-5 DeviceNet module mounted on the drive’s option slot, these adapters remain compatible with the SDCS-PIN-48 COAT installation and do not require reconfiguration provided the node address and baud rate settings are preserved. For systems migrating from older MODBUS RTU configurations, the communication parameters stored in the SDCS-CON-4 board’s parameter group 51 must be documented and re-entered after the board swap.
I/O expansion requirements should be assessed during the retrofit planning phase. If the existing control cabinet includes SDCS-IOB-3 or SDCS-IOB-21 I/O extension boards for additional digital or analog signals, their wiring harnesses and terminal assignments must be preserved during the SDCS-PIN-48 COAT installation. Any changes to the I/O board mounting position within the drive rack can affect signal routing and should be documented in the as-built drawings before commissioning.
Field commissioning after installation of the SDCS-PIN-48 COAT should follow ABB’s standard DC drive startup sequence: power-on self-test verification, armature current feedback calibration, speed encoder signal validation (if a SDCS-FEX-2 field excitation board is present), and a no-load motor run at reduced speed reference before full-load operation is restored. Downtime during a well-prepared SDCS-PIN-48 COAT swap typically ranges from two to four hours for experienced drive engineers, provided all parameters have been pre-backed-up and replacement wiring has been pre-labeled.
All units supplied by SMARTNEXMSK are sourced from verified industrial surplus and authorized distribution channels, subject to incoming inspection, functional verification, and outgoing test before shipment. Each SDCS-PIN-48 COAT 3ADT220090R0043 is covered by a 12-month warranty against manufacturing defects and functional failure under normal operating conditions. In-stock inventory is maintained to support urgent breakdown recovery and planned maintenance schedules alike.
Upgrade Compatibility Table
| Parameter | Details |
|---|---|
| Compatible Drive Series | ABB DCS400, DCS500, DCS500B |
| Replaces / Upgrades | SDCS-PIN-41, SDCS-PIN-48 (non-coat), earlier DCS300 interface boards |
| Backplane Interface | Standard DCS500/DCS400 rack connector — no mechanical modification required |
| Communication Compatibility | PROFIBUS (SDCS-COM-8), DeviceNet (SDCS-COM-5), MODBUS RTU, DDCS fiber optic |
| Control Board Compatibility | SDCS-CON-2, SDCS-CON-3, SDCS-CON-4 |
| Power Supply Compatibility | SDCS-DSL2, SDCS-DSL3 |
| Installation Requirement | Parameter backup required before swap; no rack modification needed |
| Commissioning Tool | DriveWindow / DriveWindow Light (ABB) |
| PCB Protection | Conformal coating (COAT) — suitable for humid/contaminated environments |
| Warranty | 12 months from shipment date |
Retrofit Planning for Existing Automation Systems
A successful SDCS-PIN-48 COAT retrofit begins with a thorough audit of the existing control cabinet. Identify all boards currently installed in the DCS500 or DCS400 rack: the SDCS-CON-4 control board, the SDCS-DSL3 power supply board, any SDCS-IOB-3 or SDCS-IOB-21 I/O extension boards, and any fieldbus adapter such as the SDCS-COM-8 PROFIBUS module. Photograph all terminal wiring and label each conductor before disconnection. If a SDCS-FEX-2 field excitation board is present, note its parameter settings independently, as field current reference values are not always stored in the main drive parameter set.
For systems where the original SDCS-PIN-41 board is being replaced, verify that the armature feedback scaling resistors on the new SDCS-PIN-48 COAT match the motor’s rated armature voltage. In some DCS500B installations, the armature voltage range selection is made via jumper settings on the power interface board itself — confirm these jumper positions against the drive’s nameplate data before powering up. The CDP312R operator panel or ACS-CP-C panel should remain connected during first power-on to monitor fault codes in real time.
If the retrofit is part of a broader control system upgrade — for example, migrating from a standalone DCS500 drive to an integrated ABB ACS880 or ACS580 AC drive platform — the SDCS-PIN-48 COAT can serve as an interim solution to restore DC drive operation while the full migration is planned and budgeted. This approach minimizes production disruption by keeping the existing DC motor and mechanical drivetrain in service while the control architecture is modernized in stages.
Downtime Control During System Migration
Minimizing unplanned downtime is the primary concern for any DC drive retrofit. The SDCS-PIN-48 COAT is designed as a direct replacement board, meaning no rack modification, no re-wiring of the main power terminals, and no changes to the motor field circuit are required in standard DCS500/DCS400 installations. The critical path for downtime reduction is pre-work: complete parameter backup using DriveWindow before the maintenance window begins, pre-label all terminal wiring, and have the replacement board on-site and inspected before the planned shutdown.
During the swap, the SDCS-CON-4 control board and all fieldbus adapters can remain in the rack — only the SDCS-PIN-48 COAT power interface board needs to be removed and replaced. After seating the new board, restore the parameter set from backup, verify armature current feedback calibration at no load, and perform a controlled ramp-up test before returning the drive to full production load. For critical continuous-process applications such as paper machine drives or extruder lines, a hot-standby spare SDCS-PIN-48 COAT board held in the maintenance store eliminates recovery time entirely in the event of future board failures.
SMARTNEXMSK maintains in-stock inventory of the SDCS-PIN-48 COAT 3ADT220090R0043 to support both emergency breakdown recovery and planned maintenance schedules. Express shipping is available for urgent requirements. All boards are functionally tested before dispatch to ensure zero-defect delivery and immediate installation readiness.
Retrofit Support FAQ
Q: Is the SDCS-PIN-48 COAT a direct drop-in replacement for the SDCS-PIN-41?
A: In most DCS500 and DCS400 installations, yes. The backplane connector and rack mounting are identical. However, you should verify armature voltage range jumper settings on the new board match your motor’s rated armature voltage before powering up, as these may differ between board revisions.
Q: Do I need to re-enter all drive parameters after replacing the SDCS-PIN-48 COAT?
A: No — drive parameters are stored on the SDCS-CON-4 control board, not the power interface board. As long as the control board remains in the rack during the swap, your parameter set is preserved. We recommend backing up parameters via DriveWindow as a precaution before any hardware change.
Q: Will my PROFIBUS or DeviceNet fieldbus communication work after the board swap?
A: Yes. Fieldbus adapters such as the SDCS-COM-8 (PROFIBUS) or SDCS-COM-5 (DeviceNet) are mounted independently of the power interface board and are not affected by the SDCS-PIN-48 COAT replacement. Node address and baud rate settings are retained on the adapter itself.
Q: What warranty and testing does SMARTNEXMSK provide with the SDCS-PIN-48 COAT 3ADT220090R0043?
A: Every unit is subject to incoming inspection and functional verification before shipment. A 12-month warranty is provided against manufacturing defects and functional failure under normal operating conditions. If a unit fails within the warranty period, we provide a replacement or full refund. Contact sales@smartnexmsk.com for warranty claims.
