ABB SINT4430C Retrofit-Ready Drive Control for ACS800

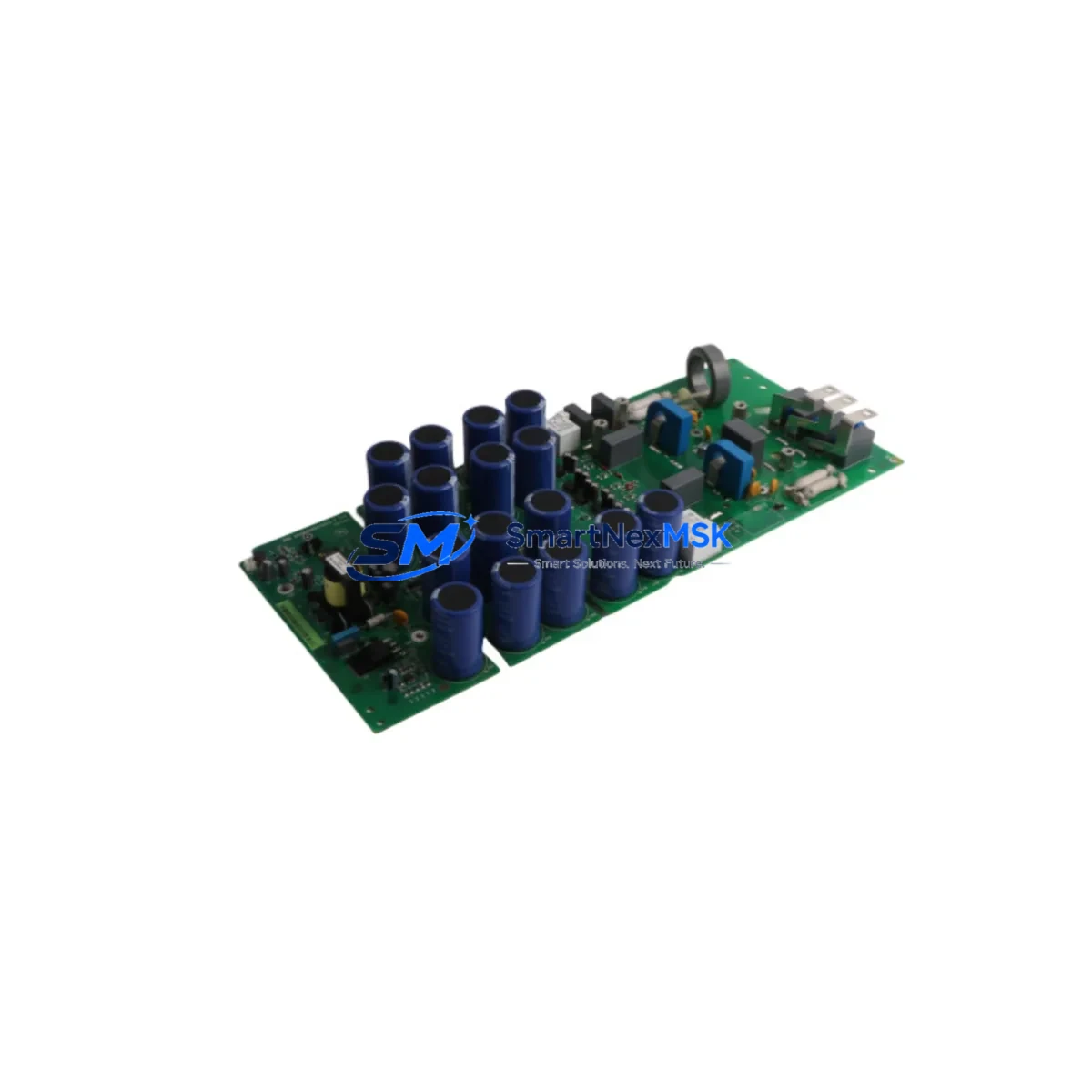

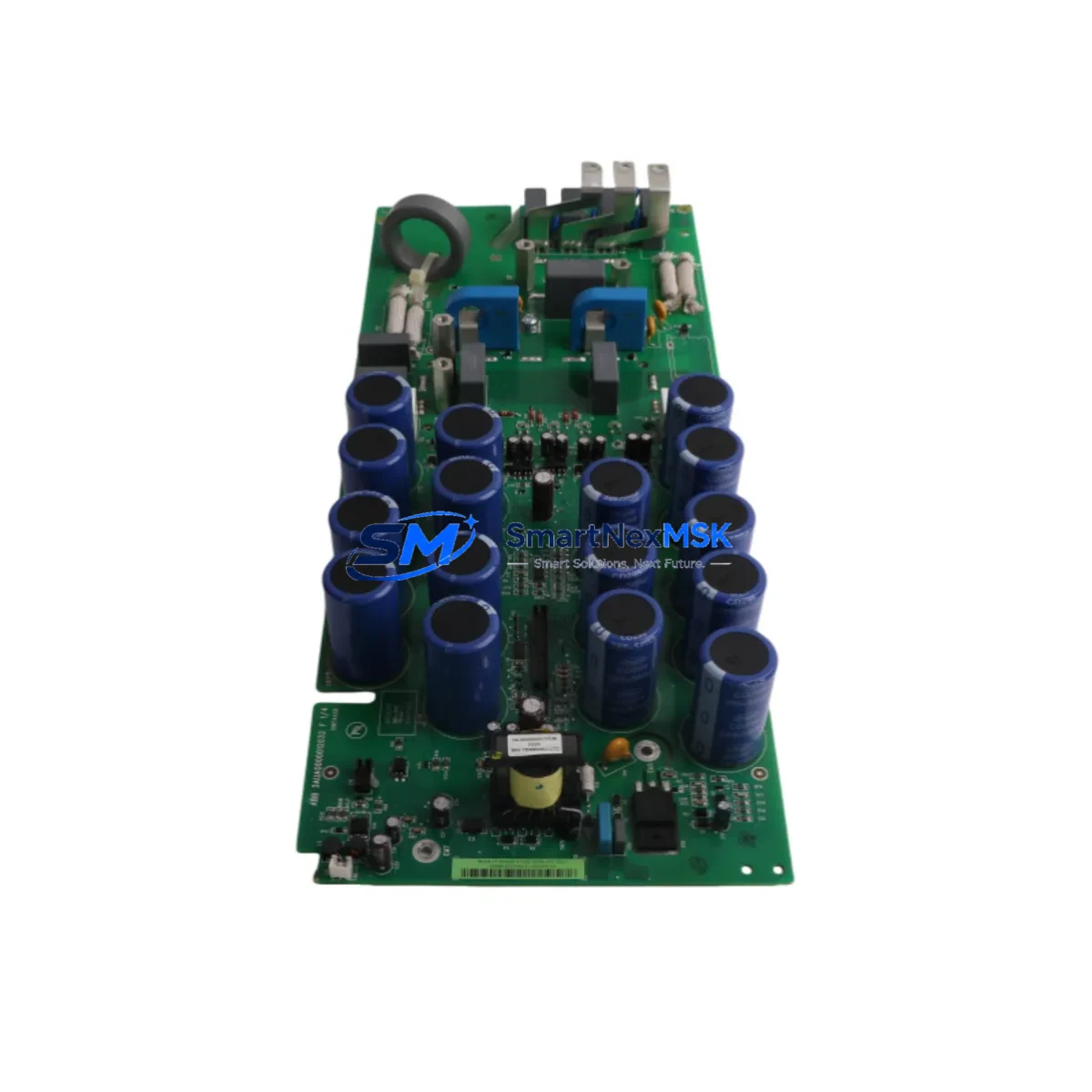

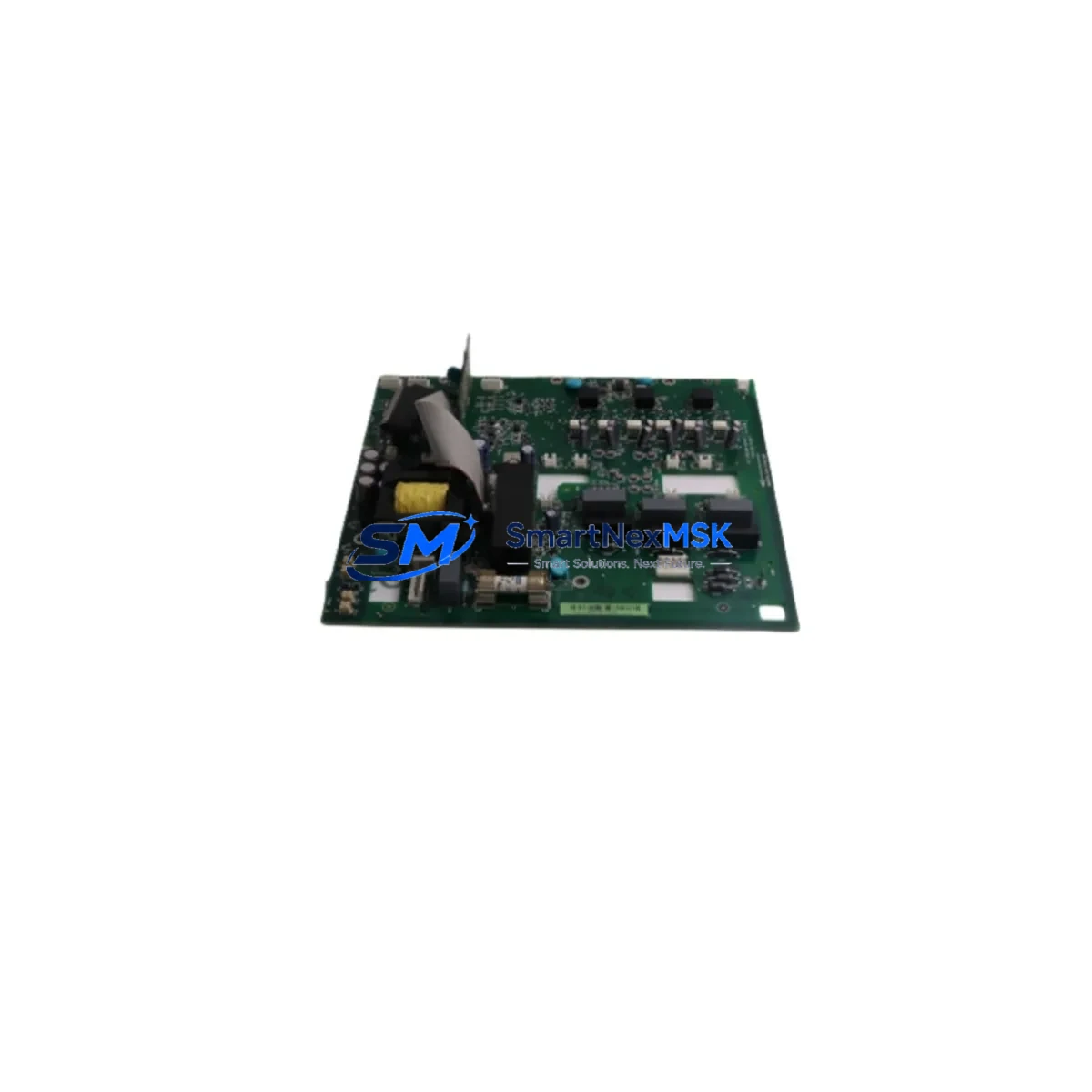

ABB SINT4430C Retrofit-Ready Drive Control Board for ACS800 Control Systems

The ABB SINT4430C is a retrofit-ready drive control board engineered as a direct replacement and upgrade solution for legacy ACS800 series variable frequency drives. Designed for industrial environments where system continuity, minimal downtime, and backward compatibility are non-negotiable, the SINT4430C enables engineers and maintenance teams to modernize aging drive control infrastructure without requiring full drive replacement or extensive reprogramming. Whether you are managing a planned upgrade cycle or responding to an unplanned failure of a discontinued control board, the SINT4430C delivers the reliability and compatibility that industrial automation demands.

The SINT4430C integrates seamlessly into the ACS800 drive platform, maintaining compatibility with the existing DDCS (Distributed Drive Control System) fiber-optic communication architecture. This means that existing communication links between the drive and upstream controllers — including ABB AC800M DCS controllers or third-party PROFIBUS DP master stations — remain fully operational after board replacement, eliminating the need for communication reconfiguration or protocol migration in most retrofit scenarios.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful retrofit of the SINT4430C into an operational production line requires systematic pre-replacement planning. Before initiating any physical swap, maintenance engineers should perform a full parameter backup using DriveWindow 2.x software connected via the NDPA-02 or NPBA-12 programming cable. This backup preserves all motor control parameters, speed references, torque limits, and application-specific macro settings that have been tuned to the existing process.

In multi-drive systems where the ACS800 operates as part of a coordinated drive line — for example, in paper machine sections, crane hoisting systems, or extruder lines — the SINT4430C replacement must be coordinated with the master controller. If the system uses an ABB AC800M controller communicating over DDCS, the fiber-optic link topology should be documented prior to board removal. The DDCS ring or star configuration, including the position of the RDCO-03 DDCS communication option board, must be preserved exactly to avoid communication faults after restart.

For drives integrated into a PROFIBUS DP network, verify that the RPBA-01 PROFIBUS adapter module is seated correctly after the control board swap. The GSD file and node address settings stored in the RPBA-01 are independent of the SINT4430C and will not be lost during the board replacement, but the drive’s PROFIBUS communication parameters (parameter group 51) should be verified against the network master configuration after commissioning.

Power supply integrity is a critical pre-check. The SINT4430C operates from the ACS800’s internal 24 VDC auxiliary power supply. Before installation, verify that the APBU-44C or APBU-12C power supply board is delivering stable voltage within specification. A degraded power supply board is a common root cause of repeated control board failures and should be tested or replaced concurrently with the SINT4430C to prevent recurrence.

I/O wiring should be documented with photographs or terminal diagrams before disconnecting any signal cables. The SINT4430C uses the same terminal block layout as predecessor boards, but verifying the mapping of digital inputs (DI1–DI6), digital outputs (DO1–DO3), analog inputs (AI1–AI2), and analog outputs (AO1–AO2) against the original wiring diagram prevents commissioning errors. If the drive interfaces with an ACS800 I/O extension module such as the AIMA-01 or AITC-02, confirm that the extension module firmware version is compatible with the SINT4430C revision.

For systems using an ABB Panel Bus or where the ACS800 is monitored via an ABB ACS-CP-C or ACS-CP-D control panel, the panel communication link is re-established automatically upon power-up. However, if a custom HMI screen has been configured on a third-party SCADA or DCS operator station to display drive-specific parameters, verify that the parameter addresses referenced in the HMI configuration remain valid after the firmware version associated with the SINT4430C is loaded.

Downtime Control During System Migration

Minimizing production downtime during a SINT4430C retrofit requires a structured hot-swap preparation protocol. The recommended approach is to pre-configure a spare SINT4430C board with the backed-up parameter set before the scheduled maintenance window. Using DriveWindow, parameters can be downloaded to the replacement board while it is bench-tested on a drive simulator or a spare ACS800 unit, confirming correct motor control response before the board is installed in the production drive.

Where process continuity is critical — such as in continuous chemical dosing, HVAC systems, or conveyor lines — coordinate the drive replacement with the PLC or DCS control logic to place the affected drive in a safe hold state. For ABB AC800M-based systems, this typically involves activating a maintenance mode function block that holds the last valid output and suppresses drive fault alarms at the operator station during the replacement window.

After physical installation of the SINT4430C, the recommended commissioning sequence is: (1) verify DC bus discharge, (2) seat the board and reconnect all fiber-optic and signal cables, (3) restore power and confirm 24 VDC auxiliary supply, (4) download the parameter backup via DriveWindow or the CDP panel, (5) perform a no-load motor identification run if motor parameters were not previously stored, and (6) execute a controlled test run at reduced speed before returning the drive to full production load. This sequence typically allows a complete replacement and recommissioning within a two-to-four hour maintenance window for experienced engineers.

Original program logic in the upstream PLC or DCS — whether running on an ABB AC800M, Siemens S7-300, or Allen-Bradley ControlLogix — is entirely unaffected by the drive control board replacement, as the SINT4430C presents the same communication interface and parameter structure as the original board.

Retrofit Support FAQ

Q1: Is the SINT4430C a direct drop-in replacement for earlier SINT43xxC revisions?
Yes. The SINT4430C is backward compatible with the SINT4130C, SINT4230C, and SINT4330C control boards used in ACS800 standard drives. The backplane connector, terminal layout, and firmware interface are identical. No mechanical modification to the drive cabinet is required.

Q2: Do I need to re-enter all drive parameters after replacing the control board?
Parameters are stored on the control board, so a full parameter backup must be performed before removal using DriveWindow 2.x or the ACS800 CDP control panel. After installing the SINT4430C, the backup is restored via the same tools. If no backup was made prior to board failure, parameters must be re-entered manually from the original commissioning documentation.

Q3: Will my existing PROFIBUS or DDCS communication links work without reconfiguration?
In most cases, yes. DDCS fiber-optic links are re-established automatically. For PROFIBUS DP via the RPBA-01 adapter, the node address and GSD configuration are stored in the adapter module and are not affected by the control board swap. Communication parameter group 51 should be verified after commissioning as a standard precaution.

Q4: What warranty and pre-shipment testing does the SINT4430C include?
Every SINT4430C unit supplied by SMARTNEXMSK is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each board undergoes functional verification including power-on self-test, communication interface check, and I/O signal validation. Units are shipped in anti-static packaging with full traceability documentation.
