ABB SINT4610C Maintenance-Ready Spare for ACS800 Automation

ABB SINT4610C Maintenance-Ready Spare for ACS800 Automation

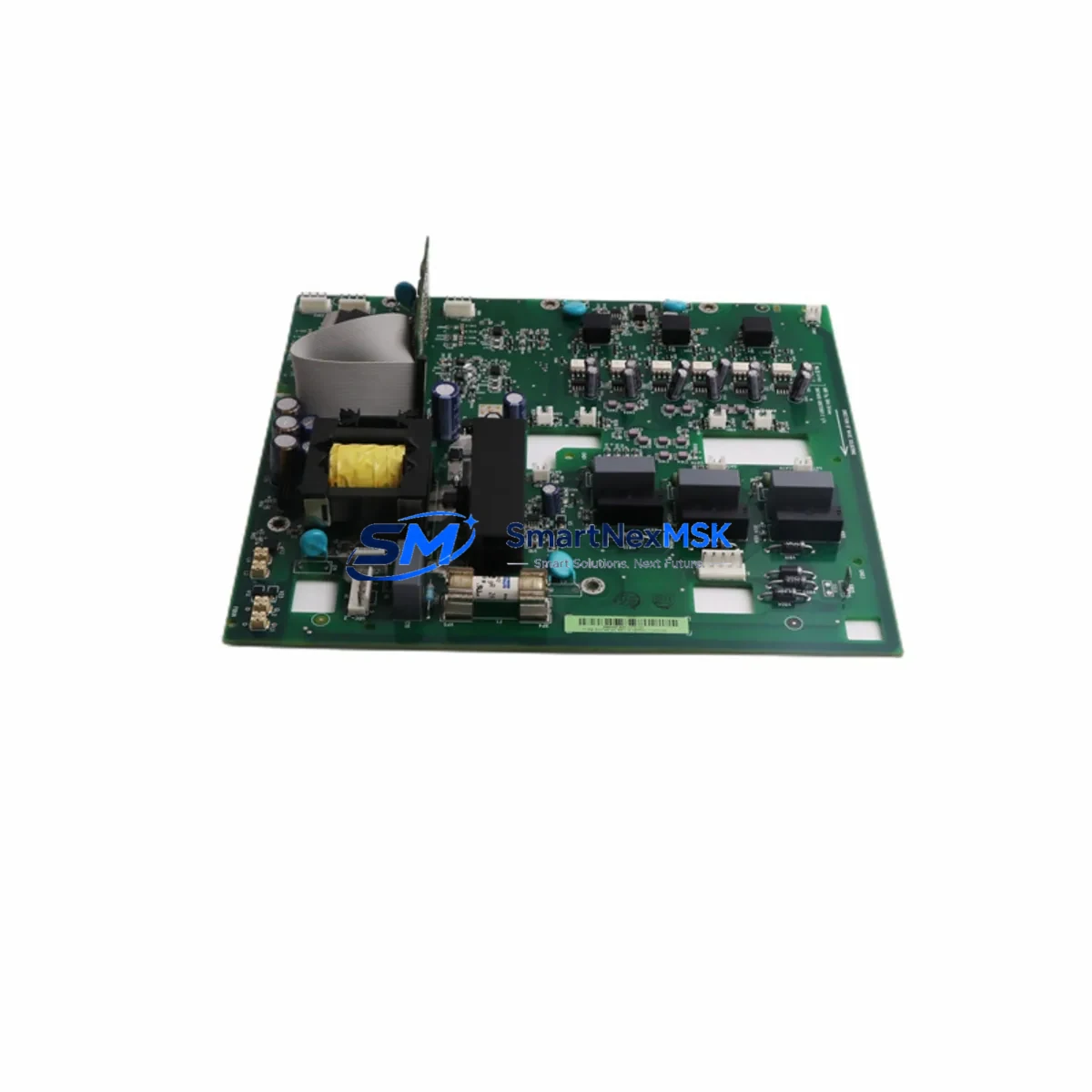

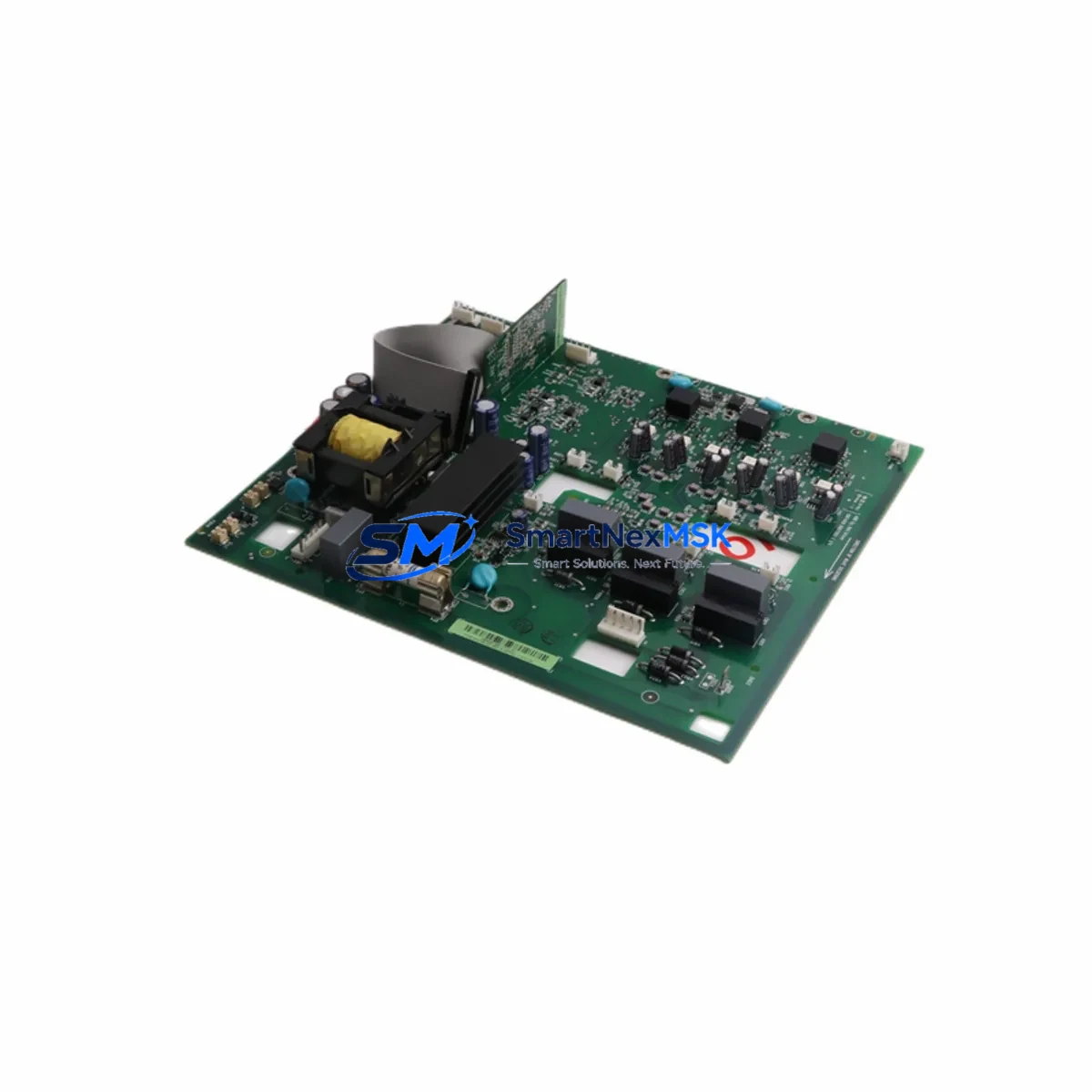

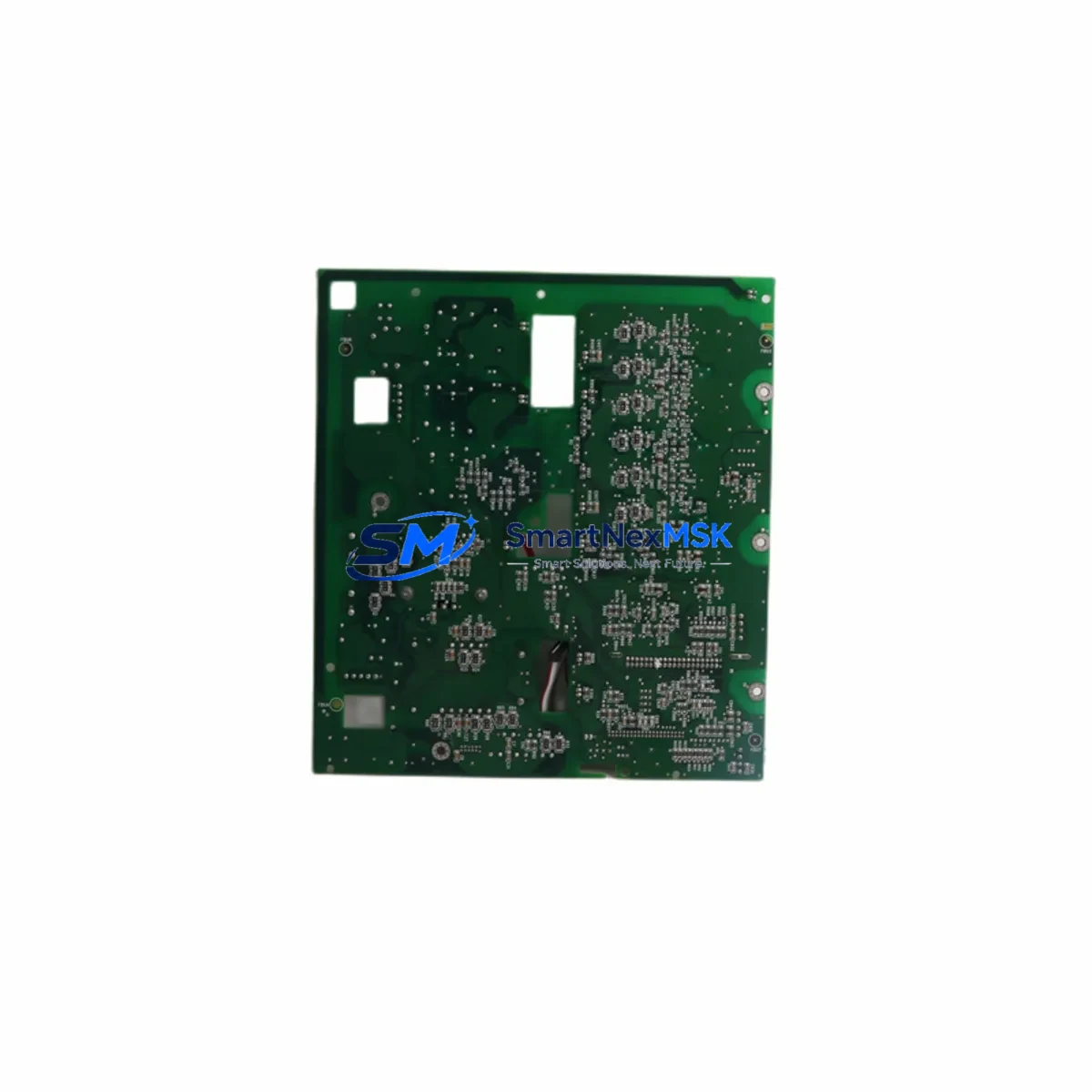

The ABB SINT4610C is a critical inverter drive plate designed for the ACS800 series variable frequency drive platform — one of ABB’s most widely deployed industrial drive families across manufacturing, process automation, and heavy-duty motor control applications. When an ACS800 drive trips offline due to a failed SINT4610C gate driver or IGBT interface board, every minute of unplanned downtime translates directly into production loss. Sourcing a verified, tested replacement from a reliable spare parts supplier is the fastest path to restoring full drive operation without compromising system integrity.

At SMARTNEXMSK, we supply original ABB SINT4610C units that have been inspected and functionally tested prior to shipment. Each unit is backed by a 12-month warranty and ships with full traceability documentation. Whether you are managing a planned overhaul, responding to an emergency fault, or building out your critical spare inventory, the SINT4610C is a high-priority line item for any facility running ACS800 drives.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

The SINT4610C does not operate in isolation. In a typical ACS800 drive cabinet, the gate driver board interfaces directly with the IGBT power module stack, the drive control board (such as the RMIO or RDCO series), and the DC bus capacitor bank. A fault on the SINT4610C often manifests as an overcurrent trip, IGBT fault code, or drive failure to modulate — symptoms that can also be caused by adjacent components. A disciplined maintenance engineer will not simply swap the drive plate without inspecting the surrounding circuit.

During a planned replacement of the SINT4610C, the following components should be inspected or tested concurrently:

• IGBT Power Module — Check for gate-emitter leakage or collector-emitter breakdown. A failed IGBT can destroy a new drive plate within seconds of re-energization.
• RMIO Control Board — The ACS800’s main control board governs drive logic, I/O mapping, and fieldbus communication. Verify firmware version compatibility with the replacement SINT4610C.
• RDCO Fieldbus Adapter — If the drive communicates via PROFIBUS, DeviceNet, or Modbus, confirm the RDCO module is seated correctly and its configuration is intact after the board swap.
• DC Bus Capacitors — Measure capacitance and ESR. Aged capacitors in an ACS800 can cause DC bus ripple that stresses the new gate driver board prematurely.
• Input Fuses and AC Choke — Inspect the upstream fuse block and AC line choke for signs of thermal damage or loose connections that may have contributed to the original fault.
• Brake Chopper Module (NBRA or BAMU series) — If the drive application involves regenerative braking or dynamic braking, verify the chopper module and braking resistor are within specification.
• Fan and Cooling Assembly — ACS800 drives rely on forced-air cooling. A blocked or failed cooling fan can cause thermal runaway that damages the replacement board. Clean or replace the fan unit as part of the maintenance cycle.
• Terminal Block and Control Wiring — Inspect the I/O terminal strip for loose wires, corroded contacts, or incorrect signal levels that could cause nuisance faults after the repair.
• Surge Protection and EMC Filter — Verify the input EMC filter and any surge suppression devices are intact. Transient overvoltages are a leading cause of gate driver failures in industrial environments.

Procurement engineers building a critical spare inventory for ACS800-based systems should consider stocking the SINT4610C alongside the RMIO control board and at least one set of IGBT modules matched to the drive frame size. This three-component kit covers the majority of field-repairable ACS800 faults and can reduce mean time to repair (MTTR) from days to hours.

Site Replacement Workflow

Replacing the SINT4610C on-site follows a structured sequence to minimize risk and ensure the drive returns to service correctly:

1. Isolate and Lock Out — De-energize the ACS800 drive, open the main disconnect, and apply LOTO. Allow a minimum of 5 minutes for the DC bus to discharge below 50V before opening the drive cabinet.
2. Document the Fault — Record the fault code history from the drive panel or RMIO memory. This data helps confirm whether the SINT4610C is the root cause or a secondary failure.
3. Remove the Faulty Board — Disconnect all gate signal connectors and fiber-optic links (if applicable) before unbolting the drive plate. Handle the replacement SINT4610C with ESD precautions.
4. Install and Verify Seating — Mount the new SINT4610C, reconnect all connectors in the correct sequence, and verify torque on any bus bar connections.
5. Power-Up and Self-Test — Re-energize the drive with the motor disconnected. Confirm no fault codes appear and that the drive completes its self-test routine successfully.
6. Load Test — Reconnect the motor and run the drive at reduced load to verify stable operation before returning to full production speed.
7. Update Maintenance Records — Log the replacement date, part serial number, and post-repair test results in the equipment maintenance history.

This workflow applies equally to legacy ACS800 installations that have been in service for 10–15 years. Extending the life of an existing ACS800 system with verified original spare parts is often more cost-effective than a full drive replacement, particularly where the motor and mechanical system are in good condition and the control architecture is deeply integrated into the plant’s automation network.

Spare Parts Support FAQ

Q1: Is the SINT4610C compatible with all ACS800 frame sizes?
The SINT4610C is designed for specific ACS800 power module configurations. Compatibility depends on the drive’s frame size (R2–R8 and above) and the IGBT module type installed. Please provide your full ACS800 drive type code (e.g., ACS800-01-0016-3) when ordering so we can confirm the correct drive plate variant for your application.

Q2: What testing is performed before shipment?
Every SINT4610C unit supplied by SMARTNEXMSK undergoes a pre-shipment functional inspection covering visual examination, connector integrity check, and where test equipment permits, gate signal output verification. Units that do not pass inspection are not dispatched. A 12-month warranty is provided from the date of shipment.

Q3: Can the SINT4610C be used to replace an older or discontinued ABB drive plate variant?
In many cases, yes. ABB has issued supersession notices for several earlier SINT-series boards, and the SINT4610C may serve as a direct or compatible replacement for predecessor part numbers. Cross-reference confirmation is recommended. Contact our technical team with your existing part number and drive type code for a compatibility assessment before ordering.

Q4: What is your long-term supply commitment for ACS800 spare parts?
SMARTNEXMSK maintains stock of critical ACS800 components including SINT-series drive plates, RMIO control boards, and associated power electronics to support facilities running legacy ABB drive systems. We understand that ACS800 installations often have 15–20 year operational lifespans, and we are committed to providing reliable spare parts supply throughout that lifecycle. Bulk orders and consignment stock arrangements are available for high-volume maintenance programs.
