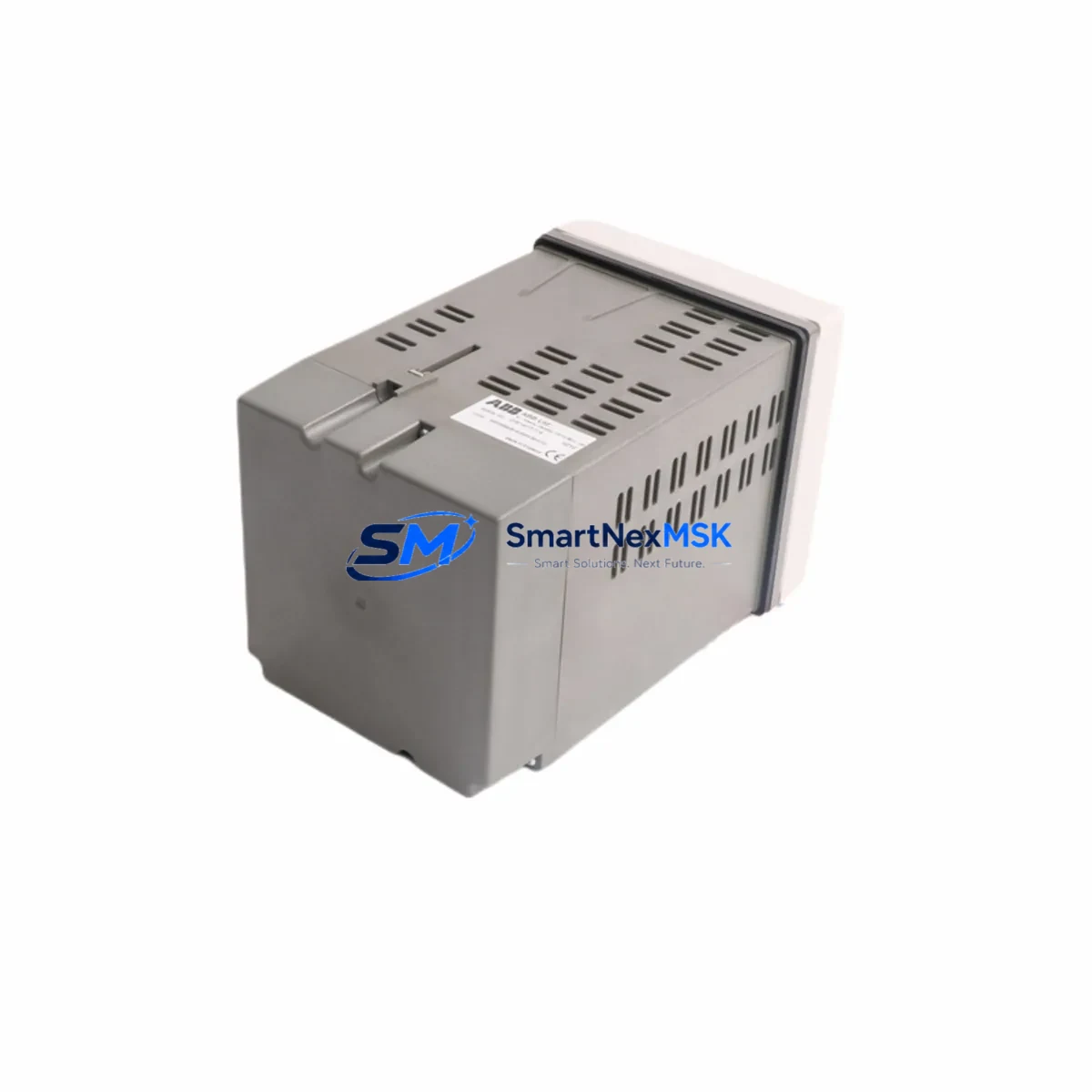

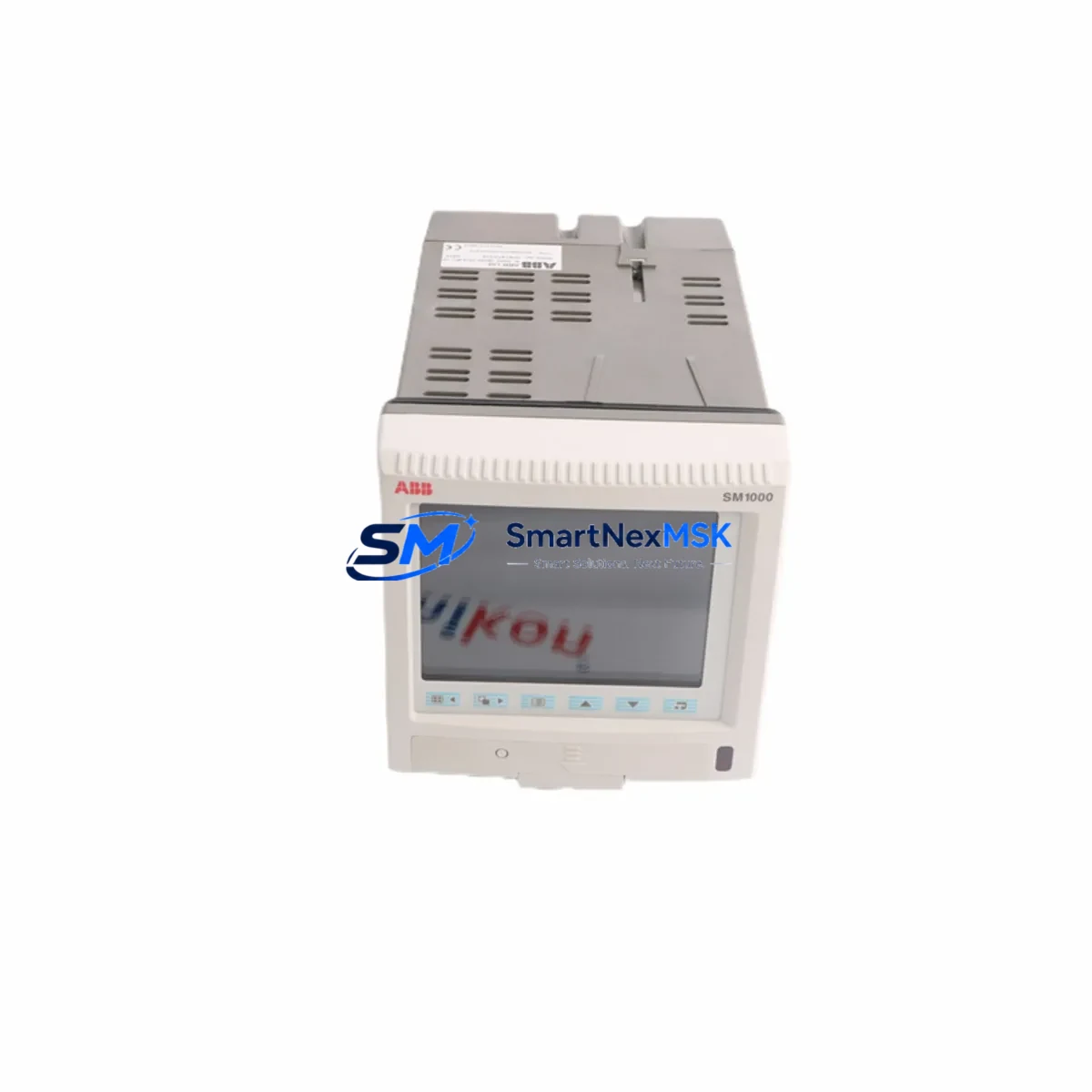

The ABB SM1006S/B12/0000/32/STD is a 6-channel videographic recorder from ABB’s SM1000 Chartmaster series, engineered for continuous process monitoring in industrial automation environments. As a maintenance-ready original spare, this unit is sourced, inspected, and dispatched to support rapid replacement in process plants, utilities, chemical facilities, and manufacturing lines where unplanned downtime carries significant operational cost. Whether you are executing a planned shutdown, responding to an instrument failure, or building a strategic spare parts inventory, the SM1006S/B12/0000/32/STD delivers a direct, configuration-compatible replacement that restores loop integrity without requiring system reconfiguration.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a videographic recorder such as the SM1006S/B12/0000/32/STD is identified for replacement during a scheduled inspection or emergency callout, experienced maintenance engineers know that the recorder itself is rarely the only component requiring attention. A thorough site assessment should accompany every recorder swap to prevent repeat failures and ensure the integrity of the entire measurement loop.

Begin by verifying the 24 V DC auxiliary power supply feeding the recorder’s transmitter loop — a degraded PSU is a common root cause of erratic channel readings that are often misdiagnosed as recorder faults. Inspect the signal isolators on each analog input channel; ABB’s VariTrans or equivalent DIN-rail signal conditioners should be checked for drift and isolation resistance. Review the terminal blocks and wiring ferrules at the rear of the panel — loose connections on thermocouple or RTD inputs introduce cold-junction errors that corrupt trend data.

For sites running Modbus RTU communication, inspect the RS-485 communication module and associated termination resistors. If the SM1006S/B12/0000/32/STD is integrated into a SCADA or DCS network, confirm that the Ethernet switch port and patch cable are functioning correctly before commissioning the replacement unit. Where the recorder feeds alarm outputs to a relay module or annunciator panel, test each relay contact for continuity and correct trip setpoint after installation.

Maintenance planners should also consider stocking the ABB SM1000 series compact flash memory card and the rear terminal connector block as consumable spares — these components are subject to wear in high-vibration or high-humidity environments. If the control cabinet houses additional ABB instruments such as AX460 or AX410 paperless recorders, a cross-compatibility audit is recommended to consolidate spare holdings and reduce procurement lead times. For older installations, the ABB Commander 350 or Commander 1900 series controllers may share the same panel cutout and wiring infrastructure, making a combined inspection efficient.

Finally, where the SM1006S/B12/0000/32/STD monitors critical process variables such as furnace temperature or reactor pressure, consider installing a surge protection device (SPD) on the signal inputs to protect the replacement unit from transient overvoltages — a low-cost measure that significantly extends instrument service life in electrically noisy industrial environments.

Site Replacement Workflow

Step 1 — Isolation and Documentation: Before removing the existing unit, photograph the rear wiring layout and record all channel configurations, alarm setpoints, and communication parameters from the existing recorder’s menu. This eliminates reconfiguration errors and reduces commissioning time on the replacement unit.

Step 2 — Physical Swap: Disconnect power and signal wiring systematically, labeling each terminal. Remove the recorder from the panel cutout. The SM1006S/B12/0000/32/STD fits the standard 96 × 96 mm 1/4 DIN cutout, ensuring a direct mechanical fit without panel modification.

Step 3 — Configuration Restore: Power up the replacement unit and restore channel configurations using the saved parameters. Where a configuration backup file was stored on the compact flash card, this process takes under 10 minutes. Verify input readings against a calibrated reference instrument before returning the loop to service.

Step 4 — Loop Test and Sign-Off: Perform a full loop test on all 6 channels, confirm alarm relay outputs, and verify communication with the SCADA or DCS host. Document the replacement in the site maintenance log and update the spare parts inventory accordingly.

This workflow is designed to minimize mean time to repair (MTTR) and restore process visibility as quickly as possible, reducing the financial and safety impact of unplanned downtime.

Spare Parts Support FAQ

Q1: Is the SM1006S/B12/0000/32/STD a direct replacement for other SM1000 series variants?
The SM1006S/B12/0000/32/STD is a 6-channel standard configuration within the ABB SM1000 Chartmaster family. It is mechanically and electrically compatible with other SM1000 series units sharing the same panel cutout and wiring standard. Configuration differences (number of channels, communication options, display type) should be verified against the original instrument datasheet before installation.

Q2: What pre-shipment testing is performed on this spare?
Each unit undergoes functional power-on testing and input channel verification prior to dispatch. Units are inspected for physical condition, connector integrity, and display functionality. A test report is available upon request for critical applications.

Q3: What is the warranty coverage and how are claims handled?
All units are covered by a 12-month warranty from the date of shipment. Warranty claims are handled directly — contact [email protected] with your order reference and a description of the fault. Replacement or repair is arranged promptly to minimize your downtime exposure.

Q4: Can you support long-term or blanket spare parts orders for this model?
Yes. For maintenance teams managing aging ABB SM1000 installations, we support scheduled spare parts programs, consignment stock arrangements, and multi-unit orders. Contact our team to discuss inventory planning tailored to your site’s maintenance cycle and equipment population.
