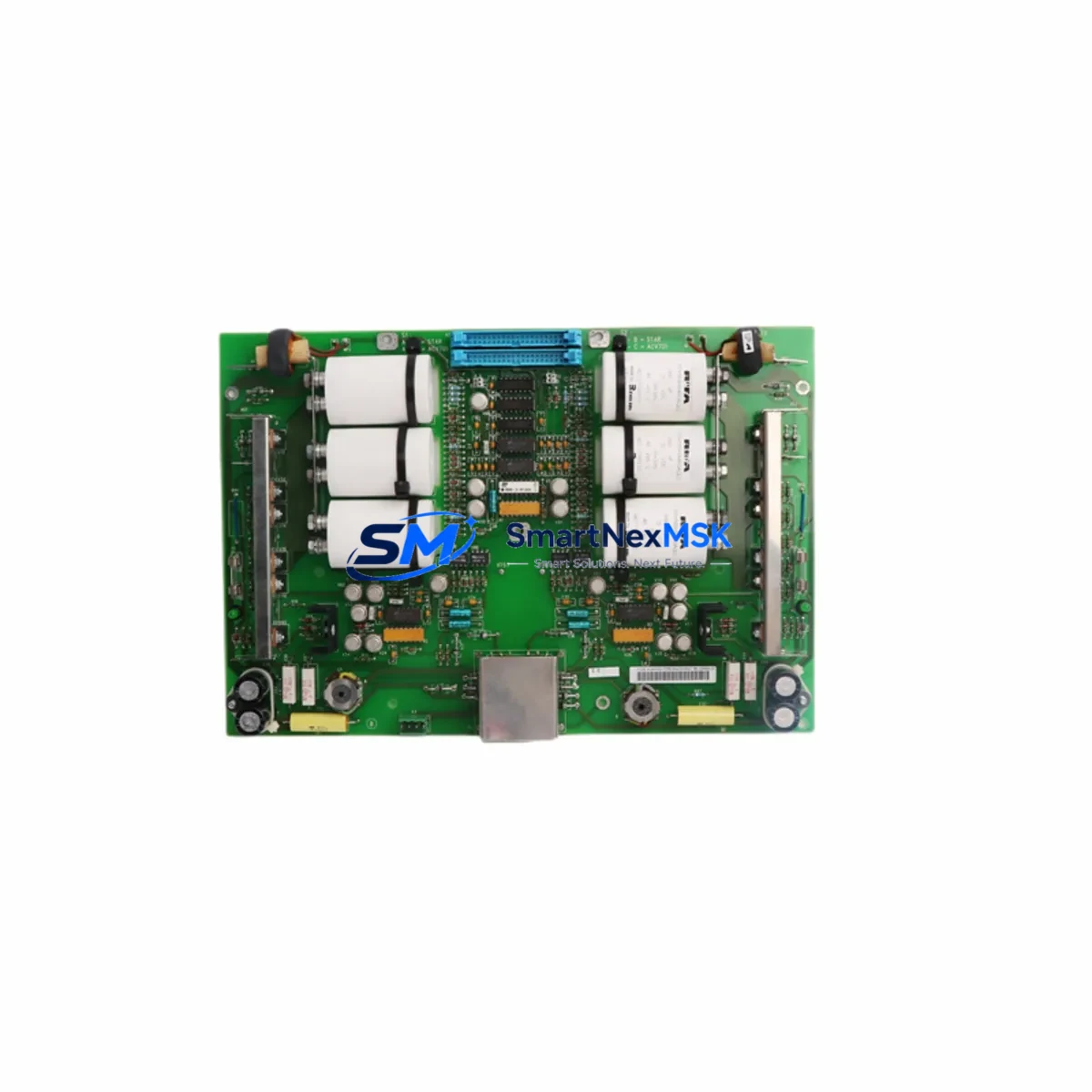

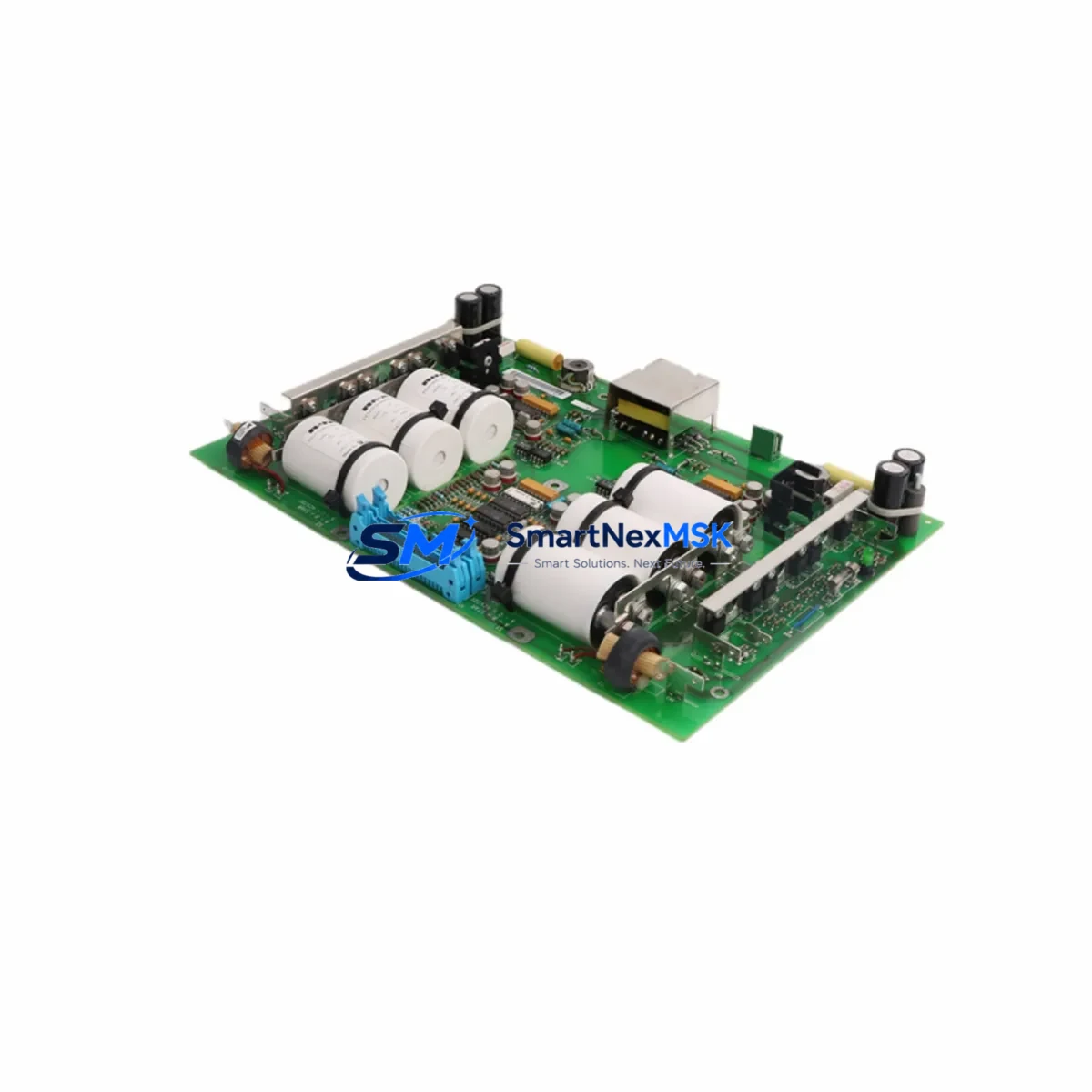

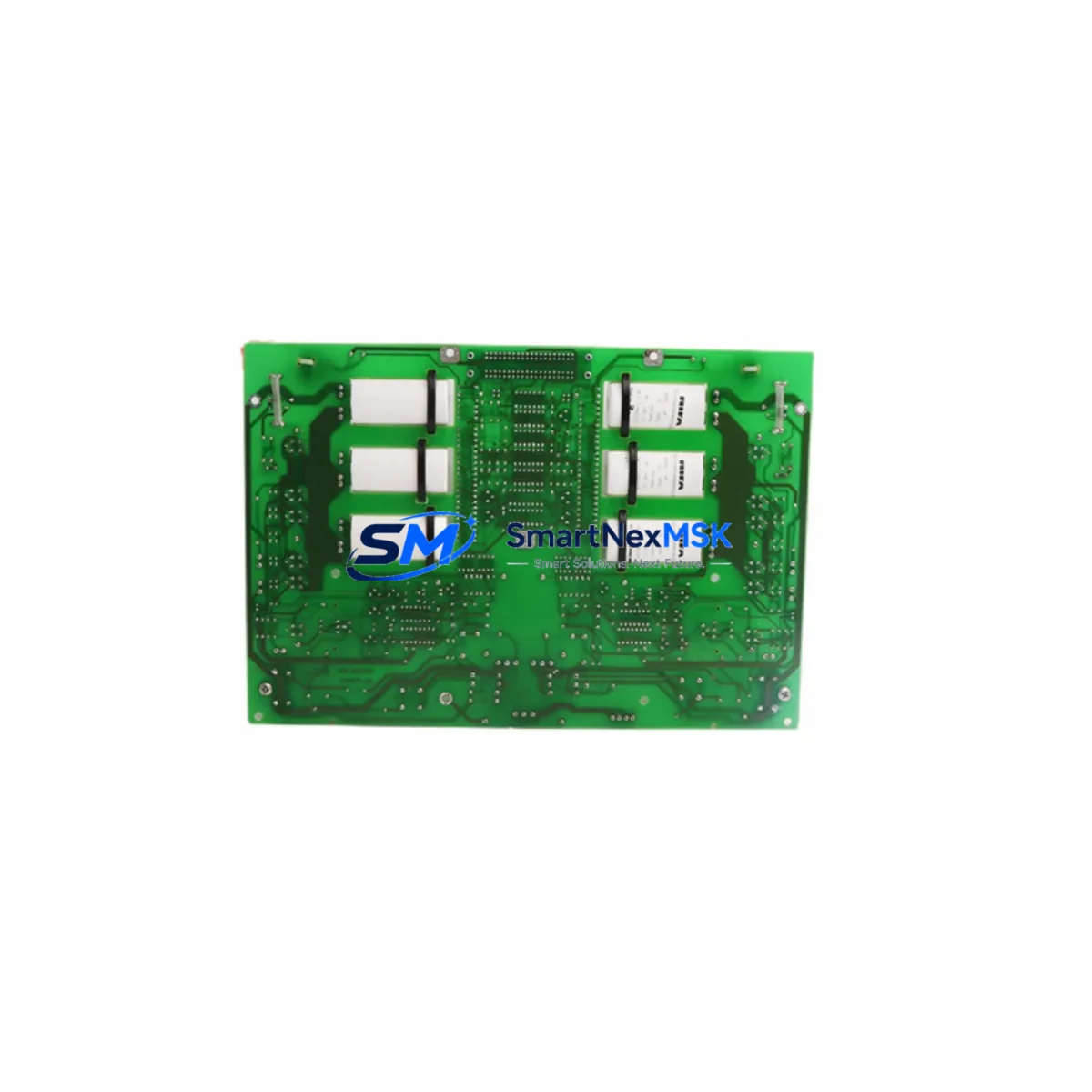

ABB SNAT634PAC Retrofit-Ready Pulse Amplifier for SNAT Series Control Systems
The ABB SNAT634PAC is a pulse amplifier board engineered for seamless compatibility with Stromberg SNAT series DC drive systems. As legacy Stromberg drive platforms approach end-of-life and OEM spare parts become increasingly scarce, the SNAT634PAC provides a verified retrofit path that preserves existing control architecture while restoring full drive performance. Whether you are replacing a failed board in a running production line or proactively upgrading aging control cabinets, the SNAT634PAC delivers the electrical compatibility and mechanical fit required for a low-risk, minimum-downtime changeover.
This module interfaces directly with the SNAT 634 PAC drive control stack, handling pulse signal amplification between the firing circuit and the thyristor bridge — a function critical to maintaining precise speed regulation and torque control in DC motor applications. Engineers undertaking a retrofit must verify the existing SDCS-CON-4 or SDCS-CON-2 control board firmware revision, as pulse timing parameters may require adjustment after board replacement. The SNAT634PAC is fully compatible with the standard SNAT backplane connector layout, eliminating the need for custom wiring harnesses or adapter brackets in most installations.
Upgrade Compatibility Table
| Parameter | Details |
|---|---|
| Replaced / Superseded Model | Stromberg SNAT 634 PAC (original OEM board) |
| Compatible Drive Series | ABB / Stromberg SNAT series DC drives |
| Backplane Interface | Standard SNAT multi-pin edge connector — direct fit, no adapter required |
| Control Board Compatibility | SDCS-CON-2, SDCS-CON-4 (firmware verification recommended) |
| Communication Protocol | Parallel pulse signal; compatible with DDCS fieldbus topology where applicable |
| Power Supply Requirement | Verify existing SNAT power supply board (SNAT 601x series) output capacity before installation |
| Installation Type | Board-level replacement; no mechanical modification required in standard SNAT cabinets |
| Commissioning Requirement | Parameter re-entry via DriveWindow or CDP panel; pulse gain and offset verification required |
| Pre-Shipment Testing | Full functional test performed on each unit prior to dispatch |
| Warranty | 12 Months from date of shipment — covers manufacturing defects and functional failure |
Retrofit Planning for Existing Automation Systems
A successful SNAT634PAC retrofit begins well before the board arrives on site. Start by documenting the full drive cabinet bill of materials: record the existing SNAT 601x power supply board model, the control board variant (SDCS-CON-2 or SDCS-CON-4), and all I/O expansion modules connected to the rack. If the installation includes an SDCS-IOB-3 or SDCS-IOB-21 I/O board, confirm that terminal wiring assignments are photographed and logged before any board is removed — terminal numbering conventions can differ between firmware generations and cabinet revisions.
For sites running a PROFIBUS or DDCS communication link between the drive and a higher-level PLC or DCS, the communication module configuration — such as an RDCO-02 or RDCO-03 DDCS adapter — must be backed up before the retrofit begins. After the SNAT634PAC is installed, the communication link should be re-established and verified against the original node address and baud rate settings. If the control system includes an ABB Panel Bus connection to an ACS or DCS 800 series controller, confirm that panel bus termination resistors remain correctly positioned after the board swap.
HMI screens connected via a CDP312R or similar operator panel should be checked for alarm history and parameter set consistency after commissioning. In multi-drive installations where several SNAT units share a common DC bus, plan the retrofit sequence drive-by-drive to avoid simultaneous loss of multiple axes. The SNAT634PAC’s pulse output characteristics are matched to the original Stromberg specification, so existing motor tuning parameters — including speed controller Kp and Ti values stored in the SDCS-CON board — can typically be retained without re-tuning, significantly reducing commissioning time.
Where the original installation used a SNAT 634 TAC tachometer interface board alongside the PAC pulse amplifier, inspect the tachometer wiring and signal conditioning settings as part of the same retrofit window. Combining the SNAT634PAC replacement with a proactive inspection of the SNAT 634 TAC, SNAT 601 power supply, and any aging SDCS-PIN-51 or SDCS-PIN-48 interface boards reduces the risk of a secondary failure shortly after the primary repair is completed. Inventory supply for these companion components is confirmed available for immediate dispatch alongside the SNAT634PAC.
Downtime Control During System Migration
Minimizing production downtime during a SNAT634PAC replacement requires a structured pre-outage preparation protocol. Before the planned maintenance window, upload the full parameter set from the SDCS-CON control board using DriveWindow Light or the full DriveWindow 2 suite and save the backup file to at least two separate storage locations. If the drive is part of a coordinated multi-axis system, notify the PLC or DCS operator so that the master program can be placed in a safe hold state rather than triggering an uncontrolled fault stop across the line.
During the board swap, use ESD-safe handling procedures and verify that the drive’s main contactor and auxiliary power are fully de-energized before touching any board. After the SNAT634PAC is seated and secured, restore auxiliary power first and confirm that the control board powers up without fault codes before re-energizing the main DC bus. Run a no-load motor test at reduced speed reference to verify pulse signal integrity before returning the drive to full production load.
For sites where a cold standby spare is not available, consider requesting an advance-exchange unit so that the replacement SNAT634PAC is on-site before the failed board is removed. This approach, combined with a pre-staged parameter backup, typically reduces total drive-down time to under four hours for an experienced commissioning engineer. All units are pre-tested before shipment and covered by a 12-month warranty, ensuring that your retrofit investment is protected from day one.
Retrofit Support FAQ
Q1: Is the SNAT634PAC a direct drop-in replacement for the original Stromberg SNAT 634 PAC board?
Yes. The SNAT634PAC is designed as a form-fit-function replacement for the original Stromberg SNAT 634 PAC pulse amplifier. The backplane connector, board dimensions, and pulse output specifications are matched to the original, allowing installation without mechanical modification in standard SNAT drive cabinets. A firmware version check on the SDCS-CON control board is recommended to confirm parameter compatibility before commissioning.
Q2: What commissioning steps are required after installing the SNAT634PAC?
After physical installation, restore the parameter backup to the SDCS-CON board via DriveWindow or the CDP operator panel. Verify pulse gain and offset settings, re-establish any DDCS or PROFIBUS communication links, and perform a no-load run test at reduced speed before returning to full production. If the original parameter backup is unavailable, a full recommissioning procedure per the SNAT drive commissioning manual will be required.
Q3: Can the SNAT634PAC be used in drives connected to a PROFIBUS or DDCS network?
Yes. The SNAT634PAC operates at the pulse amplifier level and does not directly affect the fieldbus communication layer. Existing DDCS adapters (RDCO-02, RDCO-03) or PROFIBUS modules remain in place and continue to function normally after the board replacement, provided their configuration is backed up and restored correctly during the retrofit.
Q4: What does the 12-month warranty cover, and how is it claimed?
Each SNAT634PAC unit is functionally tested before shipment and carries a 12-month warranty from the date of dispatch, covering manufacturing defects and functional failure under normal operating conditions. To initiate a warranty claim, contact sales@smartnexmsk.com with the order reference, installation date, and a description of the fault. Replacement or repair will be arranged promptly to minimize any additional production disruption.
