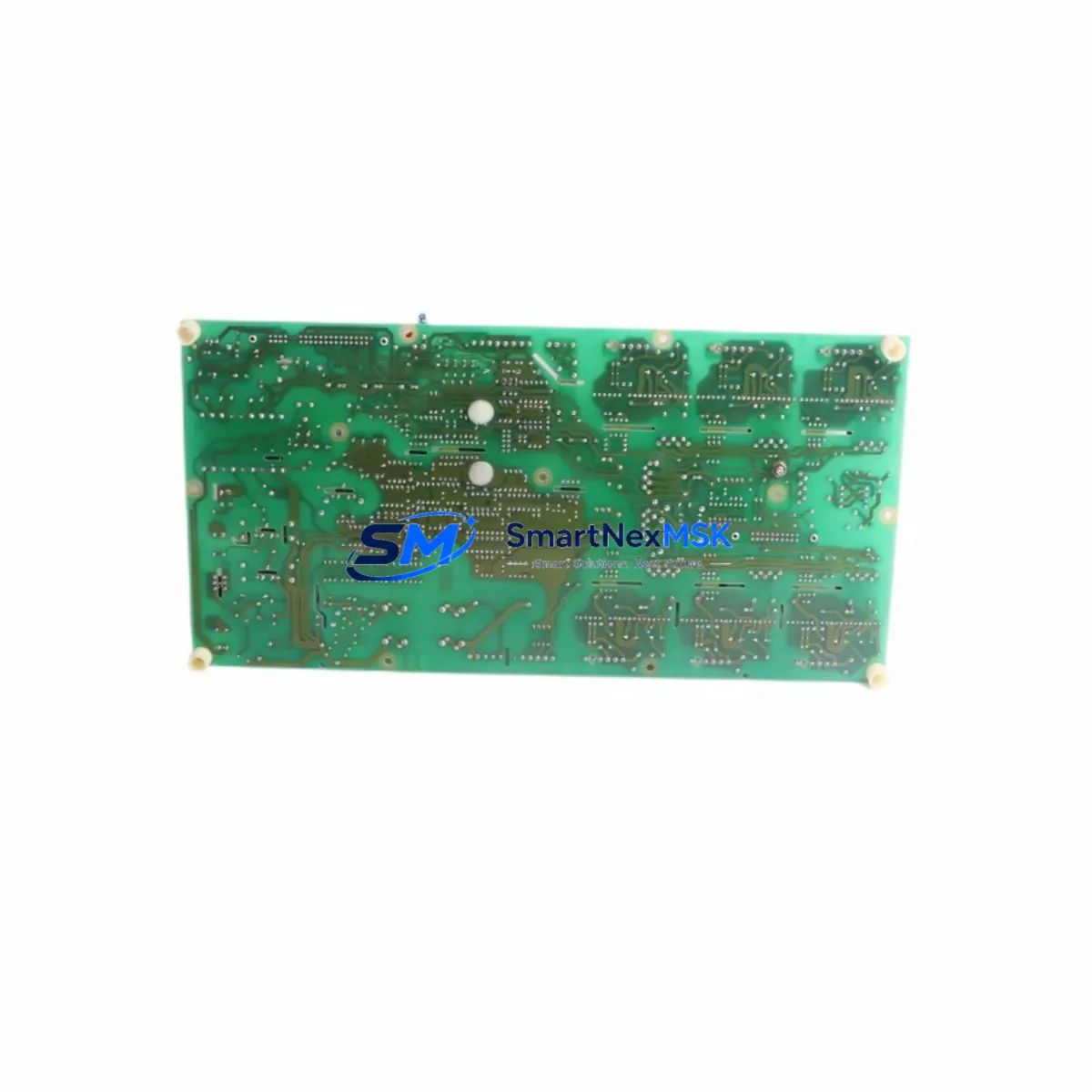

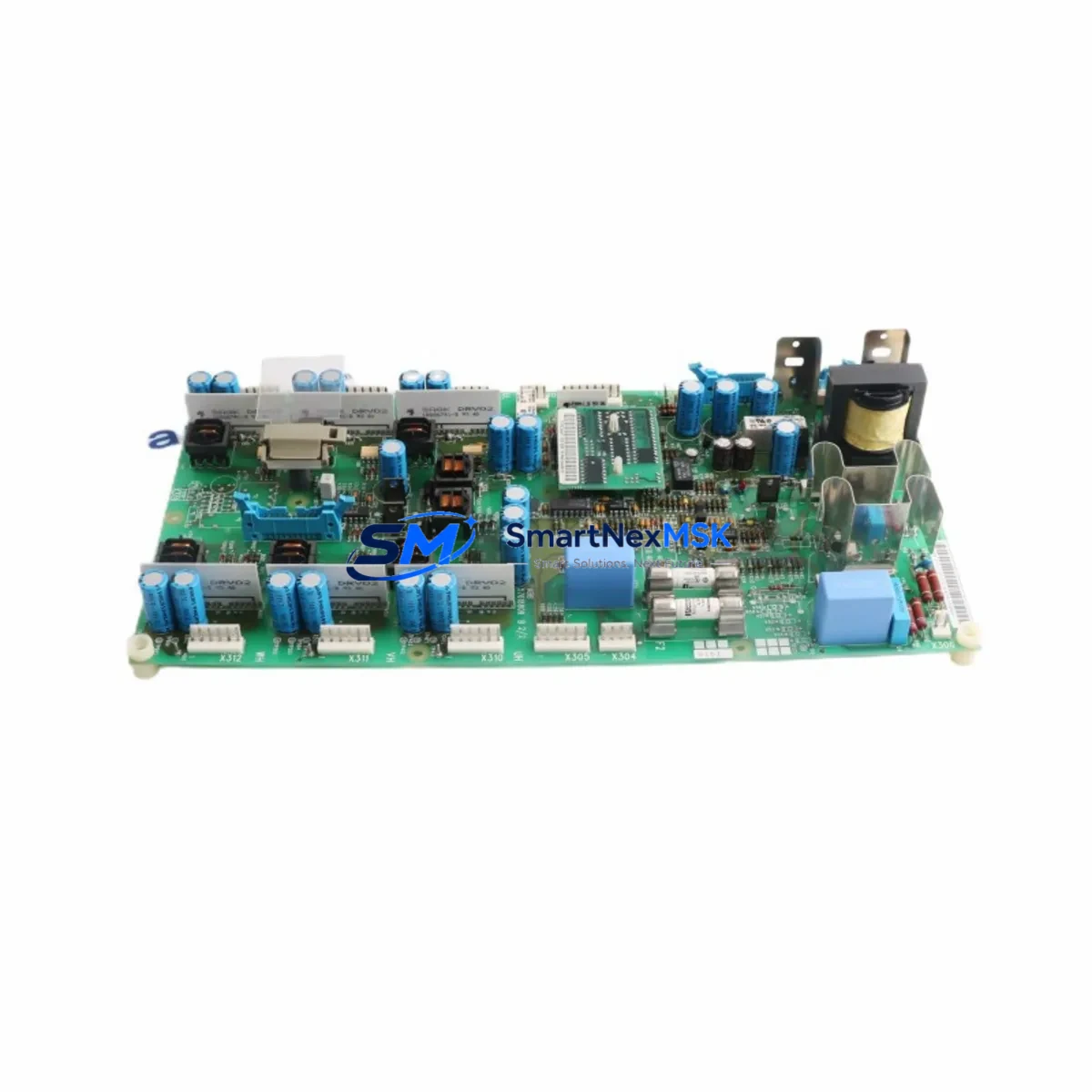

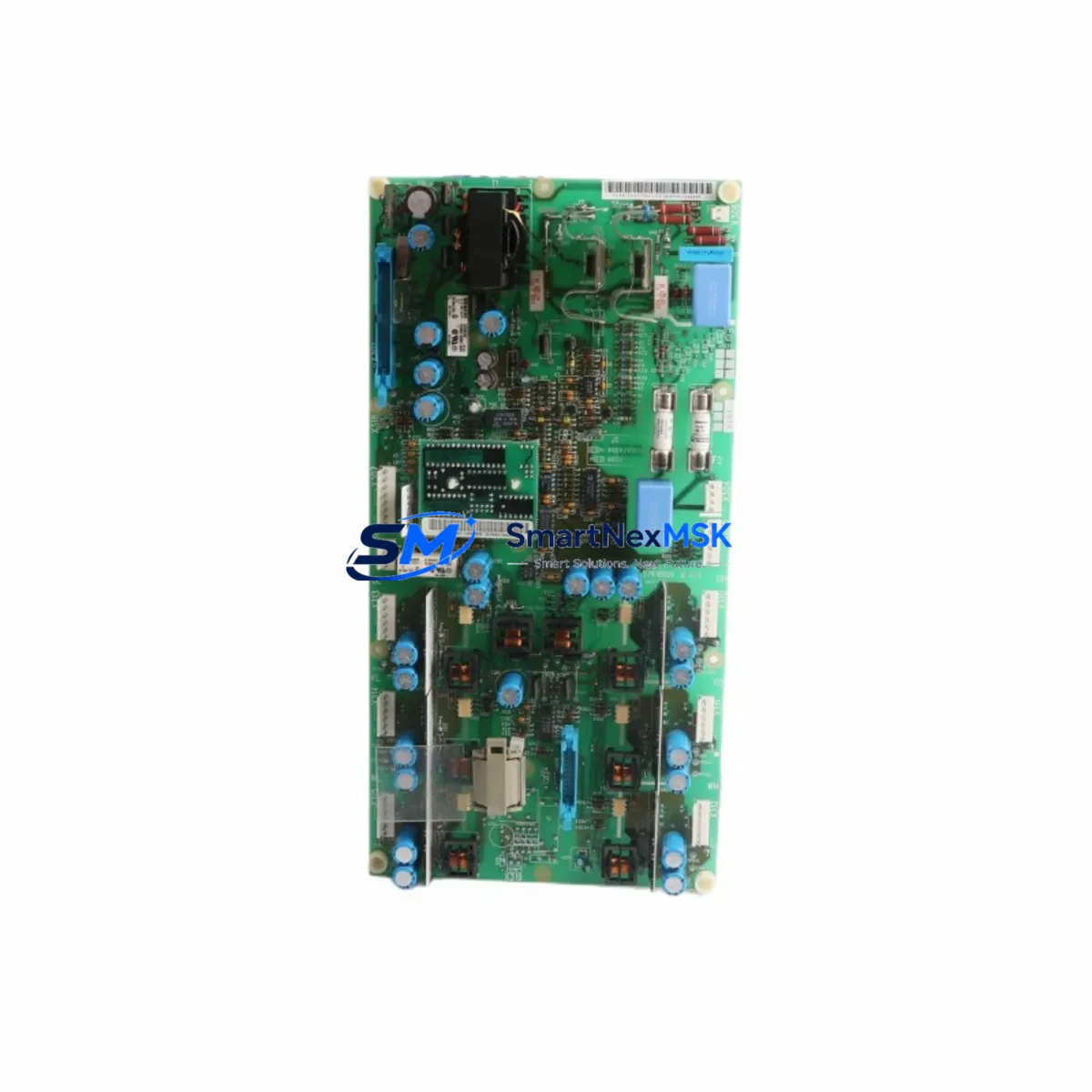

ABB SNAT7261INT Safety-Enhanced Drive Interface for ACS800: Reliable Control in Harsh Industrial Sites
The ABB SNAT7261INT is a ruggedized drive interface board engineered for the ACS800 series variable frequency drive platform. Designed to operate reliably in the most demanding industrial environments — including petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical smelters, port logistics systems, and continuous process manufacturing lines — this module serves as a critical communication and control bridge between the drive’s main control unit and its power electronics. Its robust design directly addresses the most common causes of unplanned downtime: control interruptions, signal drift, power fluctuations, module misfires, surge impacts, communication anomalies, and field shutdowns.
In high-load, high-interference industrial environments, the integrity of the drive interface layer is non-negotiable. The SNAT7261INT is built to maintain stable signal transmission even under severe electromagnetic interference (EMI), voltage transients, and thermal stress. Its conformal-coated PCB and reinforced connector design resist moisture, dust, and corrosive atmospheres — conditions routinely encountered in offshore platforms, chemical processing units, and underground mining galleries. By maintaining a clean, noise-free interface between the ACS800 control board and the AINT or AINT-02 inverter bridge, this module prevents the kind of spurious trip signals and false fault codes that can cascade into full production halts.
Safety Reliability Table
| Parameter | Specification / Detail |
|---|---|
| Part Number / SKU | SNAT7261INT |
| Compatible Platform | ABB ACS800 Series Variable Frequency Drives |
| Module Function | Drive Interface Board — Control-to-Power Bridge Communication |
| Brand / Manufacturer | ABB (Country of Origin: Germany) |
| Series | ACS800 |
| Operating Voltage | 24 VDC (internal logic supply via drive backplane) |
| Operating Temperature | -10°C to +55°C (storage: -40°C to +70°C) |
| Protection Class | IP20 (module-level); drive enclosure provides additional protection |
| EMC / Interference Resistance | Designed for Class C2 industrial EMC environments; conformal-coated PCB |
| Signal Integrity | Low-latency fiber-optic and digital signal interface; drift-resistant design |
| Surge / Transient Protection | Integrated transient suppression on signal lines; compatible with external SPD modules |
| Connector Type | Reinforced board-to-board and ribbon connectors; vibration-resistant |
| Compatibility | ABB ACS800-01, ACS800-02, ACS800-04, ACS800-07, ACS800-11, ACS800-17 and multi-drive variants |
| Interlock / Safety Circuit Support | Compatible with STO (Safe Torque Off) and emergency stop interlock architectures |
| Warranty | 12 Months — covers manufacturing defects and functional failure under normal operating conditions |
| Pre-Shipment Testing | Full functional test performed on each unit prior to dispatch |
| Stock Status | In Stock — available for immediate shipment |
| Weight | 880 g |
Control Cabinet Protection Strategy
A robust ACS800 control cabinet is only as reliable as its weakest interface. The SNAT7261INT sits at the heart of the drive’s internal communication architecture, and its performance directly influences the stability of the entire drive system. In critical interlock loops — such as those protecting compressor trains, cooling tower fans, conveyor drives, and pump stations — any degradation in the interface board’s signal fidelity can trigger nuisance trips or, worse, mask genuine fault conditions.
For comprehensive cabinet-level protection, the SNAT7261INT is typically deployed alongside the ABB AINT-02 inverter interface module, which handles the fiber-optic gate signal distribution to the IGBT power modules. The ABB APOW-01 power supply board provides the regulated 24 VDC logic supply that feeds both the SNAT7261INT and the ABB RMIO-02 main control board, making power supply stability a prerequisite for reliable interface operation. Surge protection devices (SPDs) installed on the incoming AC supply — such as those from the ABB OVR series — prevent voltage transients from propagating into the drive’s sensitive control circuitry.
On the communication side, the ABB RDCO-03 DDCS communication module enables high-speed fiber-optic data exchange between the ACS800 and upstream PLC or DCS systems, such as ABB AC500 PLCs or third-party Siemens S7-300/S7-400 controllers. Ensuring the SNAT7261INT operates without signal degradation is essential for maintaining the integrity of this communication chain. In multi-drive systems, the ABB RDCU-02C drive control unit coordinates drive-to-drive communication, and any interface board fault can disrupt the entire coordinated drive group.
For safety-critical applications requiring SIL-rated protection, the SNAT7261INT is compatible with external safety relay modules — such as the ABB Pluto safety PLC or equivalent Pilz PNOZ safety relays — that monitor the drive’s STO (Safe Torque Off) input. The ABB AGPS-21C gate driver power supply and associated gate driver boards also depend on clean interface signals from the SNAT7261INT to execute precise IGBT switching sequences. Replacing a degraded SNAT7261INT as part of a planned maintenance cycle — rather than waiting for a field failure — is a proven strategy for eliminating unplanned downtime in continuous production environments.
Critical Industrial Safety Applications
Petrochemical & Refinery Plants: In hazardous area drive systems controlling pumps, compressors, and agitators in Zone 1 and Zone 2 classified areas, the SNAT7261INT ensures that the ACS800 drive responds correctly to emergency stop and process interlock signals. Signal drift or interface board failure in these environments can result in uncontrolled motor rundown, creating serious process safety risks. The module’s robust design supports continuous operation in high-ambient-temperature motor control centers (MCCs) adjacent to process equipment.
Power Generation & Utilities: In coal-fired, gas turbine, and hydroelectric power plants, ACS800 drives control induced draft fans, forced draft fans, boiler feed pumps, and cooling water pumps. These are Category A critical loads where drive availability directly impacts plant output. The SNAT7261INT’s reliable interface performance ensures that speed reference signals from the DCS are faithfully executed, and that drive fault signals are accurately reported back to the control room without false alarms.
Mining & Mineral Processing: Underground and surface mining operations subject drive systems to extreme vibration, dust ingress, and wide temperature swings. Conveyor drives, hoist systems, and crusher drives running on ACS800 platforms depend on the SNAT7261INT to maintain stable control under these conditions. A failed interface board in a hoist drive can trigger an emergency mechanical brake application, causing production delays and potential equipment damage.
Water & Wastewater Treatment: Municipal and industrial water treatment facilities operate ACS800 drives on aeration blowers, sludge pumps, and filtration systems around the clock. The SNAT7261INT supports uninterrupted operation in high-humidity pump houses and outdoor installations, where condensation and temperature cycling are constant challenges. Its compatibility with SCADA-connected drive systems ensures that flow control loops remain stable and responsive.
Metallurgy & Steel Production: Rolling mills, electric arc furnace auxiliaries, and ladle transfer car drives in steel plants demand the highest levels of drive reliability. The SNAT7261INT withstands the intense electromagnetic interference generated by arc furnaces and high-current bus systems, maintaining clean control signals in environments where lesser components would fail within weeks.
Safety and Quality FAQ
Q1: What does the 12-month warranty cover for the SNAT7261INT?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. If the unit fails due to a verified manufacturing defect within the warranty period, we will repair or replace it at no charge. Each unit undergoes a full functional test before dispatch, and a test report is available upon request.
Q2: How is each SNAT7261INT tested before shipment?
Every SNAT7261INT is subjected to a comprehensive pre-shipment functional test that verifies signal interface integrity, connector continuity, and board-level power supply response. Units that do not pass all test parameters are quarantined and not shipped. This process ensures that the module you receive is ready for immediate installation and commissioning.
Q3: Is the SNAT7261INT compatible with all ACS800 drive variants?
The SNAT7261INT is compatible with the full range of ABB ACS800 single-drive and multi-drive variants, including the ACS800-01, -02, -04, -07, -11, and -17 frame sizes. If you are unsure about compatibility with a specific drive configuration or firmware version, please contact our technical team with your drive nameplate data and we will confirm compatibility before shipment.
Q4: Can you guarantee long-term supply and replacement support for the SNAT7261INT?
Yes. We maintain dedicated stock of the SNAT7261INT and other ACS800 series spare boards to support both emergency replacement and planned maintenance programs. For customers with large installed bases of ACS800 drives, we can arrange consignment stock agreements or priority supply contracts to ensure that critical spare parts are always available when needed. Our team provides ongoing technical support for installation, commissioning, and troubleshooting.
