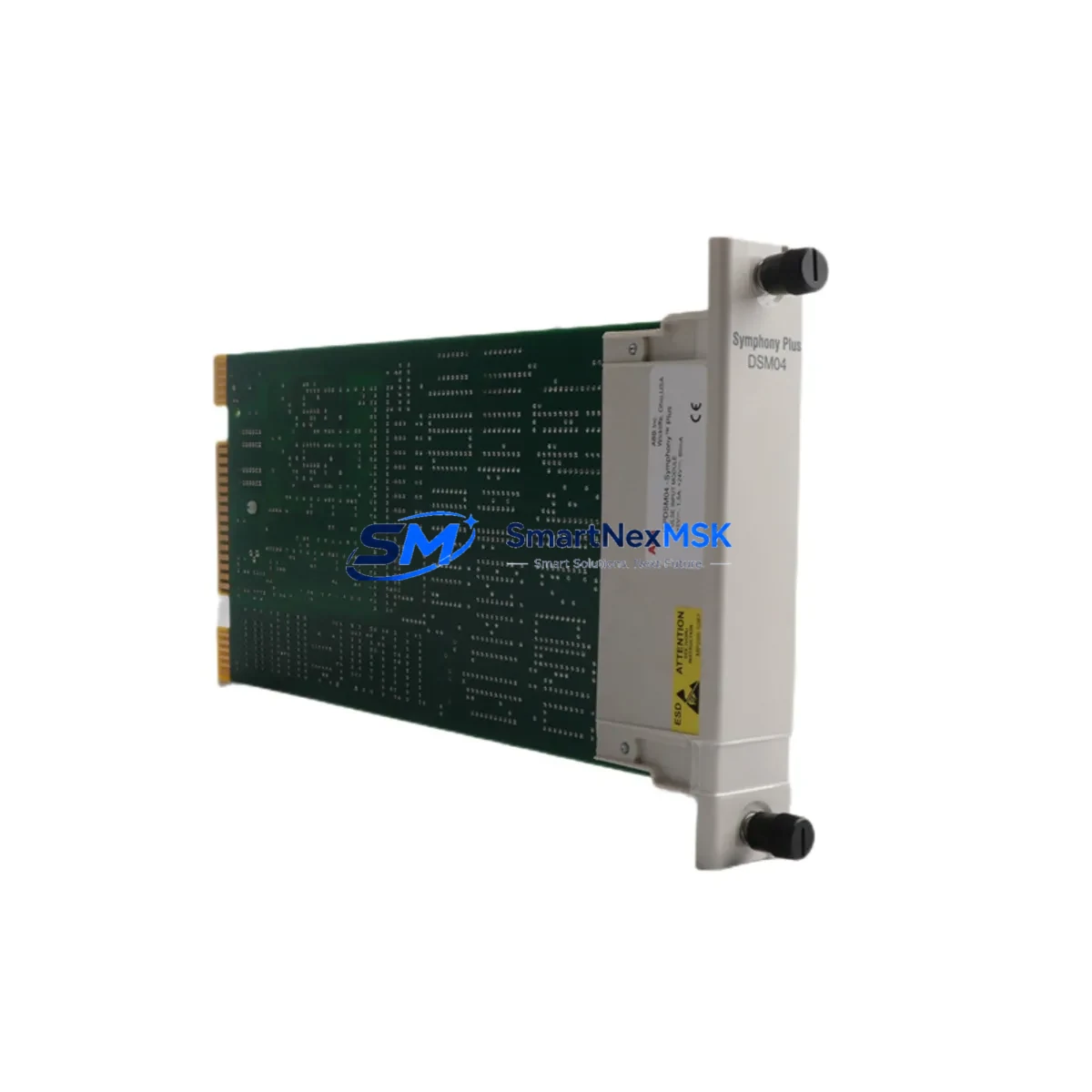

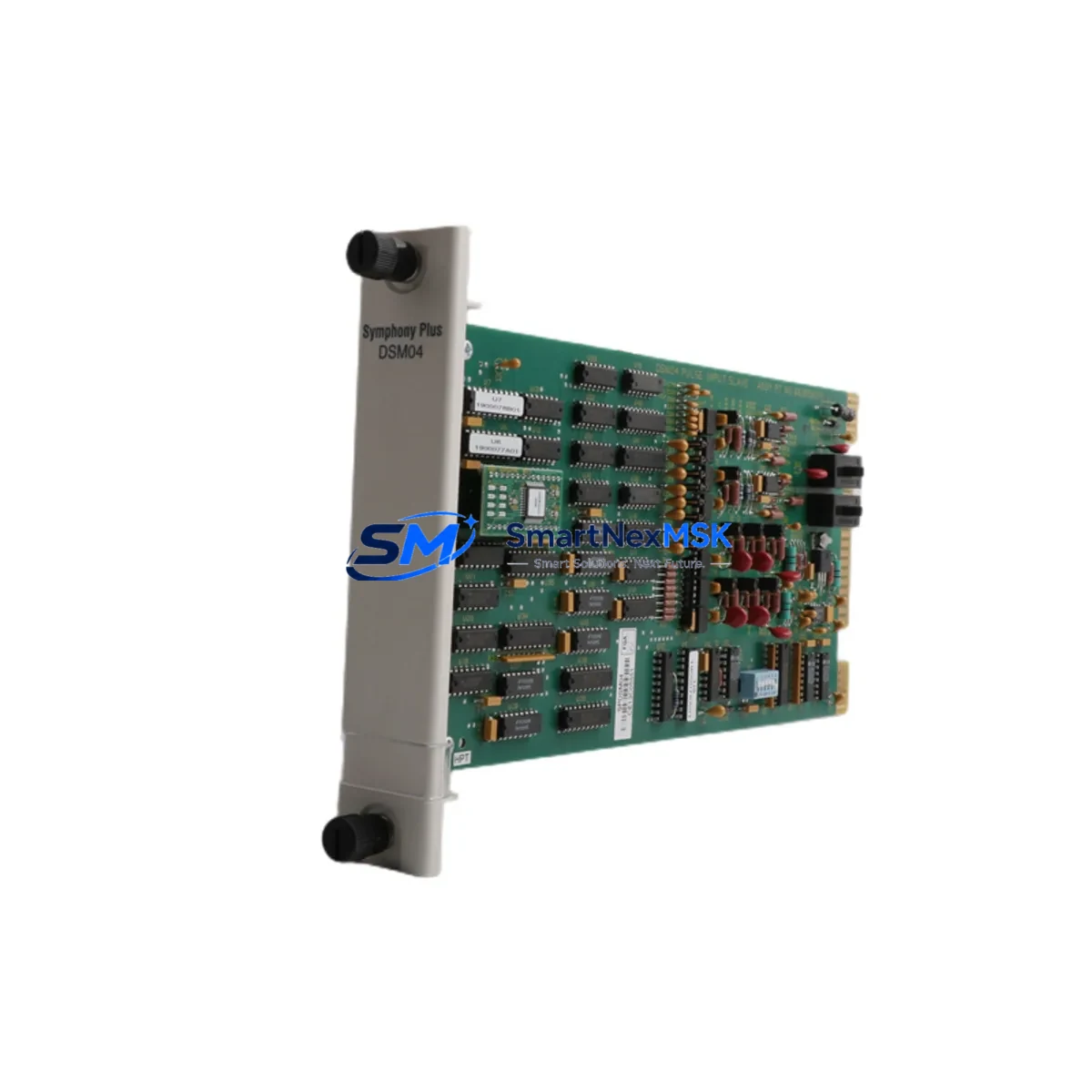

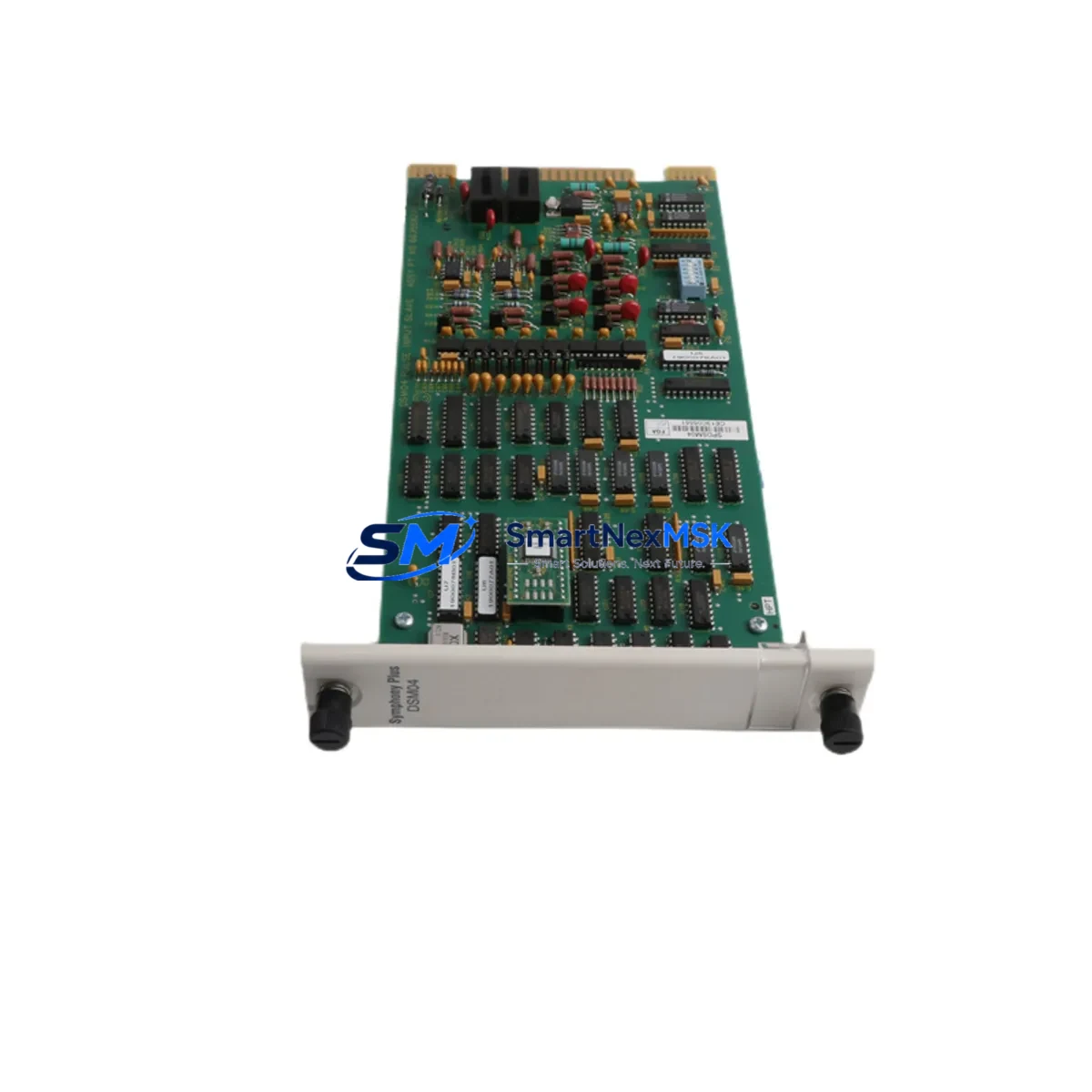

ABB SPDSM04 Safety-Enhanced Pulse Frequency Module Harsh Sites
The ABB SPDSM04 is a 4-channel, 100 kHz pulse and frequency input module engineered for the ABB AC500 programmable logic controller platform. Designed to operate reliably in the most demanding industrial environments — including petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical complexes, and continuous-process manufacturing lines — the SPDSM04 delivers precise speed, frequency, and pulse-count measurement with the signal integrity and electrical robustness that safety-critical control loops demand.
In high-load, high-interference industrial sites, even minor signal drift or module misbehavior in a speed-measurement loop can cascade into unplanned shutdowns, equipment damage, or personnel hazards. The SPDSM04 addresses these risks through hardware-level EMI filtering, wide operating temperature tolerance, and deterministic scan-cycle behavior that integrates seamlessly with the AC500’s safety-oriented CPU architecture. Whether deployed in a rotating-machinery protection circuit, a conveyor speed interlock, or a turbine overspeed trip loop, the SPDSM04 provides the measurement confidence that plant engineers and safety system designers require.
Safety Reliability Table
| Parameter | Specification / Rating |
|---|---|
| Model / SKU | ABB SPDSM04 |
| Platform | ABB AC500 PLC Series |
| Input Channels | 4 × Pulse / Frequency / Speed |
| Maximum Input Frequency | 100 kHz per channel |
| Signal Types Supported | HTL, TTL, NPN, PNP, NAMUR proximity sensors |
| Measurement Modes | Pulse count, frequency measurement, period measurement, speed (RPM) |
| EMI / Surge Protection | Hardware-level EMI filtering; surge-protected inputs per IEC 61000-4 series |
| Operating Temperature | −25 °C to +60 °C (standard); extended range with AC500 ruggedized CPUs |
| Humidity Tolerance | 5–95 % RH, non-condensing |
| Protection Class | IP20 (module); IP65 achievable in rated AC500 enclosures |
| Power Supply | Supplied via AC500 backplane bus; no external 24 V wiring required |
| Vibration / Shock | IEC 60068-2-6 / IEC 60068-2-27 compliant |
| Certifications | CE, UL, cUL; compatible with AC500-S Safety CPU for SIL 2 architectures |
| Country of Origin | Germany |
| Warranty | 12 Months — covers manufacturing defects and functional failure under normal industrial use |
| Availability | In stock — ready for immediate dispatch |
Control Cabinet Protection Strategy
A robust industrial control cabinet built around the ABB SPDSM04 relies on a coordinated ecosystem of complementary components to ensure uninterrupted, safe operation. The SPDSM04 mounts directly onto the ABB AC500 TB5600 backplane, sharing a deterministic communication bus with the ABB PM5650-2ETH CPU module, which handles real-time program execution and Ethernet-based SCADA connectivity. For applications requiring functional safety certification, the SPDSM04 is paired with the ABB AC500-S Safety CPU (PM5650-S) to form a SIL 2-capable speed monitoring and overspeed protection loop.
Power integrity is maintained by an ABB CP-E 24/10.0 24 VDC power supply module, which provides stable, low-ripple DC power to the backplane and field devices. Upstream surge protection is handled by dedicated ABB OVR surge protective devices installed at the cabinet’s incoming power rail, guarding against transient overvoltages that could otherwise corrupt pulse-count registers or trigger nuisance trips. Signal-side protection for the SPDSM04’s sensor inputs is reinforced by Phoenix Contact TRABTECH signal surge arresters on the terminal strip, particularly important in long cable runs from proximity sensors on rotating machinery.
Communication integrity between the AC500 system and the plant DCS or SCADA layer is maintained through an ABB CI592-CS31 communication interface module or an ABB CI504-PNIO PROFINET IO adapter, depending on the site’s fieldbus architecture. For cabinet-level diagnostics and remote monitoring, the ABB CP600 operator panel provides local HMI access to speed trends, alarm states, and module health indicators without requiring a laptop connection. Thermal management within the cabinet — critical in high-ambient-temperature sites such as steel mills or cement plants — is addressed by ABB cabinet cooling units or filtered fan assemblies that maintain the SPDSM04 within its rated operating envelope.
Together, these components form a layered protection strategy: clean power, surge-arrested signal inputs, deterministic CPU processing, safety-rated interlock logic, and real-time operator visibility — all working in concert to eliminate the control interruptions, signal drift events, and module mis-operations that cause costly unplanned downtime in continuous-process industries.
Critical Industrial Safety Applications
The ABB SPDSM04 is deployed across a wide spectrum of safety-critical and production-critical applications in heavy industry:
Petrochemical & Refinery Plants: The SPDSM04 monitors compressor shaft speeds and pump rotation rates in hazardous-area control systems. Its NAMUR-compatible inputs allow direct connection to intrinsically safe proximity sensors installed in Zone 1 and Zone 2 classified areas (via appropriate IS barriers), providing the overspeed detection data that feeds emergency shutdown (ESD) logic in the safety PLC layer.
Power Generation & Utilities: In coal-fired, gas turbine, and hydroelectric generating stations, the SPDSM04 measures turbine rotor speed and cooling fan RPM with the 100 kHz resolution needed to detect early-stage mechanical anomalies. Its integration with the AC500-S safety CPU enables SIL 2-rated overspeed trip functions that protect both equipment and personnel.
Mining & Mineral Processing: Conveyor belt speed monitoring, crusher rotor speed measurement, and slurry pump protection circuits in underground and open-cut mining operations benefit from the SPDSM04’s vibration-resistant design and wide temperature tolerance. Belt slip detection — a critical safety function that prevents material spillage and belt fires — is a primary application.
Water & Wastewater Treatment: Pump speed feedback in variable-frequency drive (VFD) control loops, blower rotation monitoring, and centrifuge speed interlocks in municipal and industrial water treatment plants rely on the SPDSM04’s accurate frequency measurement to maintain process stability and prevent equipment runaway.
Metallurgy & Steel Production: Rolling mill drive speed synchronization, ladle transfer car positioning, and furnace exhaust fan monitoring in steel and aluminum smelting facilities demand the high-frequency resolution and EMI immunity that the SPDSM04 provides in environments characterized by intense electromagnetic interference from large motor drives and induction furnaces.
Port & Material Handling: Crane hoist speed control, ship loader conveyor monitoring, and stacker-reclaimer drive feedback systems in bulk-material port terminals use the SPDSM04 to ensure precise, safe load movement and to trigger anti-collision interlocks when travel speeds exceed safe limits.
Safety and Quality FAQ
Q1: What does the 12-month warranty cover for the ABB SPDSM04?
The 12-month warranty covers all manufacturing defects, component failures, and functional malfunctions that occur under normal industrial operating conditions. Each unit undergoes pre-shipment functional testing — including channel-by-channel frequency response verification and backplane communication checks — before dispatch. If a unit fails within the warranty period, we provide replacement or repair at no additional cost, with priority handling to minimize your site downtime.
Q2: How is the SPDSM04 tested before shipment, and what documentation is provided?
Every SPDSM04 unit is tested against ABB’s factory acceptance criteria prior to shipment. Testing covers input frequency accuracy across all four channels, EMI susceptibility screening, and backplane interface integrity. A test report and original ABB product documentation are included with each shipment. Units are packaged in anti-static, shock-absorbing materials to prevent transit damage.
Q3: Is the SPDSM04 compatible with existing AC500 installations, and can it replace older pulse input modules?
Yes. The SPDSM04 is fully compatible with all AC500 V2 and V3 CPU generations and backplane configurations. It is a direct functional replacement for earlier ABB AC500 pulse input modules and can be substituted without PLC program restructuring in most applications — only the I/O configuration table in Automation Builder requires updating. Compatibility with specific CPU firmware versions is confirmed upon request.
Q4: Can you guarantee long-term supply and spare-parts availability for the SPDSM04?
We maintain dedicated stock of the SPDSM04 and key AC500 series modules to support planned maintenance schedules, emergency replacements, and capital project procurement. Our sourcing network covers authorized ABB distribution channels and verified secondary-market suppliers, ensuring continuity of supply even for modules approaching end-of-catalog status. Long-term supply agreements and reserved-stock arrangements are available for customers with multi-site or multi-year maintenance contracts.
