ABB SPDSO14 Safety-Enhanced Digital Output for Harsh Industrial Sites

ABB SPDSO14 Safety-Enhanced Digital Output for Harsh Industrial Sites

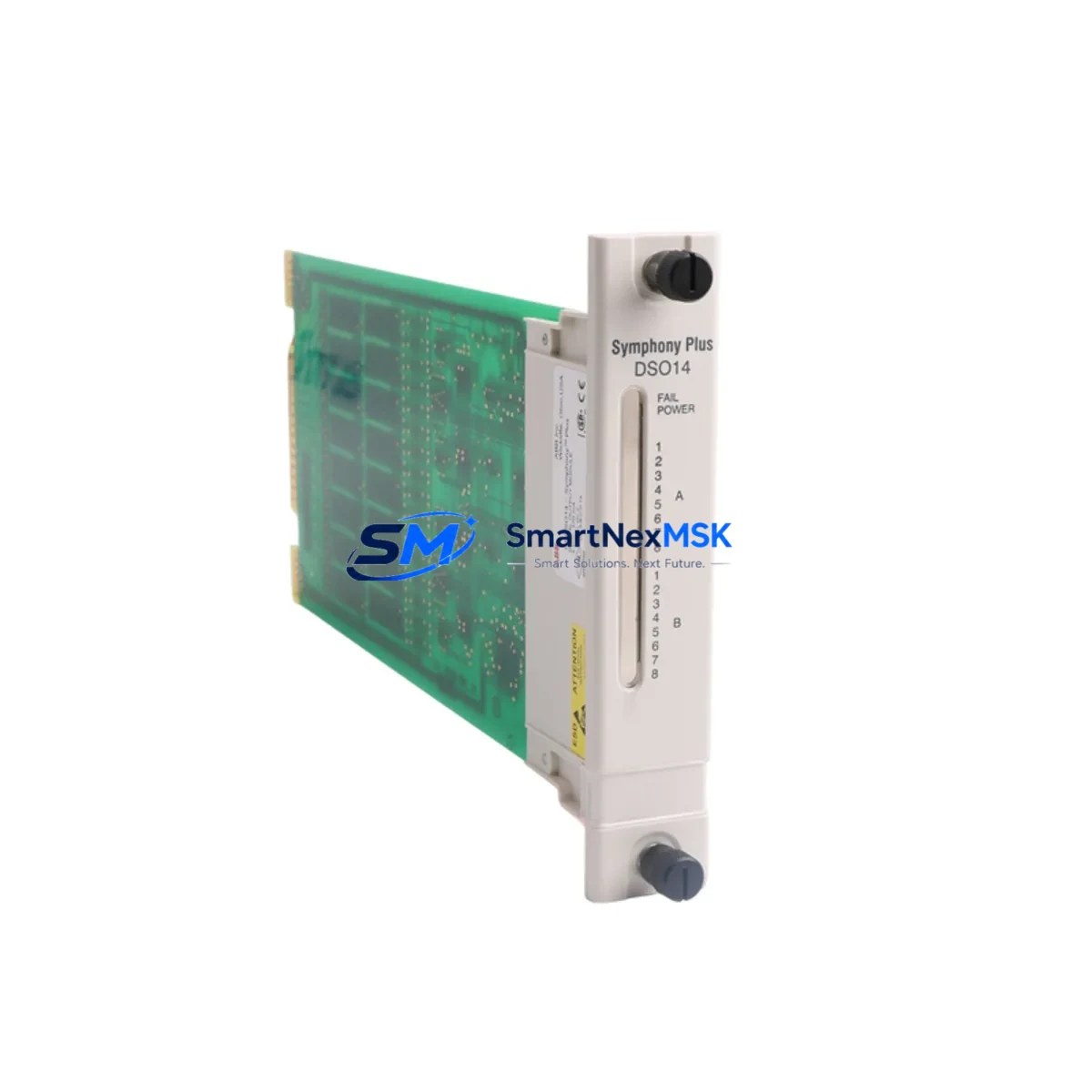

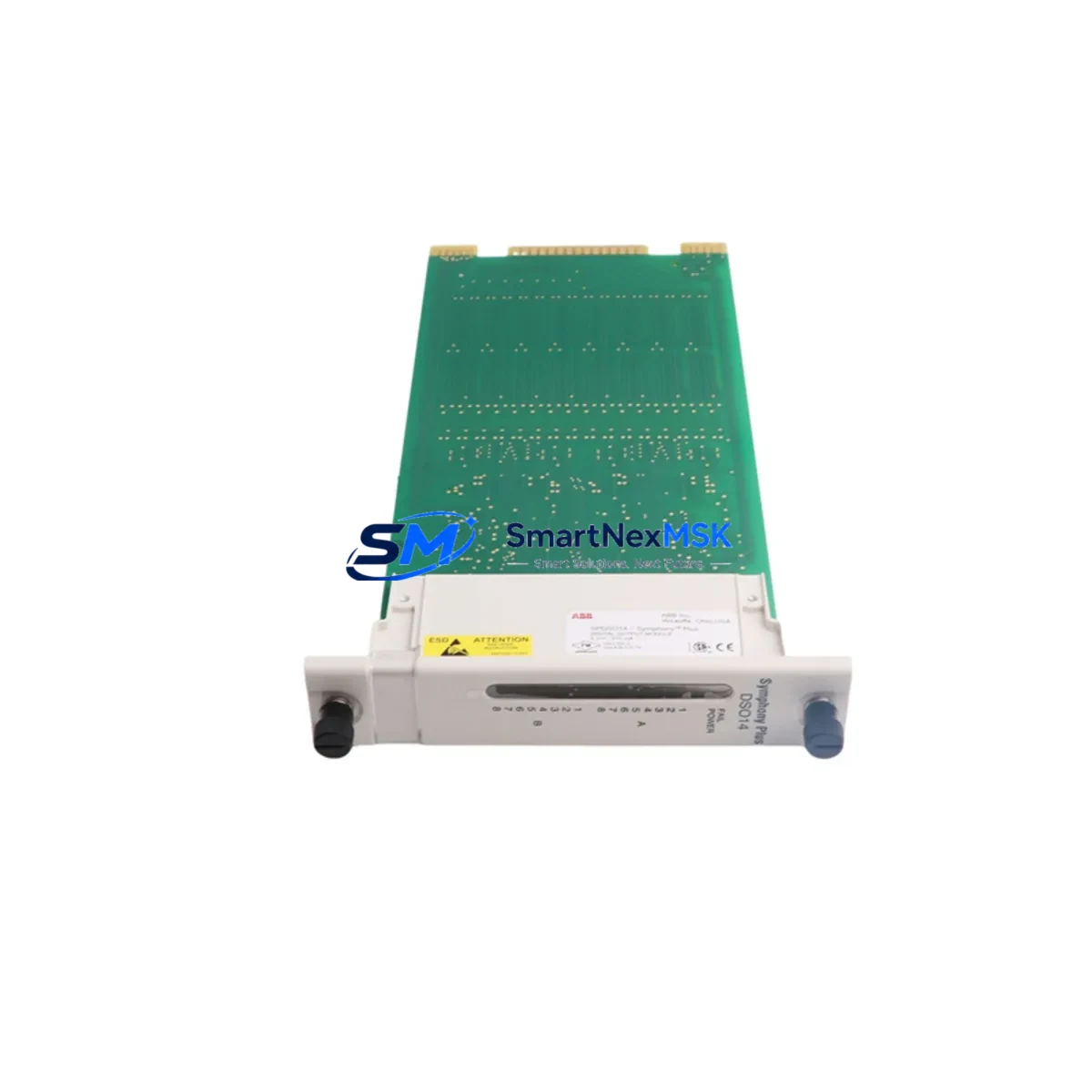

The ABB SPDSO14 is a 14-channel, 24 VDC digital output slave module engineered for the ABB AC500 PLC platform — one of the most widely deployed programmable logic controller families in heavy industrial automation. Designed to operate reliably in high-load, high-interference, and continuously running production environments, the SPDSO14 delivers deterministic output switching with robust protection against the electrical and mechanical stresses that define real-world industrial sites: voltage surges, electromagnetic interference, ground loops, thermal cycling, and vibration.

In critical control architectures — including safety interlocks, emergency shutdown (ESD) circuits, motor starter command loops, and valve actuator control — output module reliability is not optional. A single channel failure or spurious output trip can cascade into unplanned downtime, process safety incidents, or equipment damage. The SPDSO14 is built to eliminate these risks through hardened output driver circuitry, short-circuit protection on every channel, and full electrical isolation between the field side and the backplane bus.

Whether deployed in a petrochemical DCS cabinet, a power plant auxiliary control panel, a mining conveyor safety loop, or a water treatment SCADA system, the SPDSO14 provides the output integrity that safety-critical applications demand.

Safety Reliability Table

Control Cabinet Protection Strategy

A reliable control cabinet is a system — not a collection of individual components. The SPDSO14 performs at its best when integrated into a well-engineered AC500 I/O architecture that addresses every layer of electrical risk. In high-interference environments such as steel mills, cement plants, and offshore platforms, the SPDSO14 is typically paired with the ABB SPDSI14 digital input slave module to form a matched I/O pair on the same S500 bus segment, ensuring consistent signal timing and simplified diagnostics.

Power supply integrity is foundational to output module safety. Installations in demanding sites commonly use the ABB CP-E 24/5.0 or CP-E 24/10.0 SMPS power supply units to deliver clean, regulated 24 VDC to the I/O bus and field devices. These units provide active power factor correction and output overvoltage protection, preventing the voltage spikes that can damage output driver transistors or cause spurious channel activation.

For applications where the SPDSO14 drives inductive loads — solenoid valves, relay coils, or contactor coils — surge energy reflected back from load switching is a primary cause of premature output driver failure. Proper suppression using ABB RC snubber modules or external freewheeling diode assemblies at the load terminals is standard practice in safety-rated installations. Similarly, in cabinets where variable frequency drives (VFDs) or servo amplifiers are co-located, ABB EMC filter modules and shielded cable assemblies are used to prevent high-frequency noise from coupling into the SPDSO14’s output channels.

Communication reliability between the AC500 CPU and the SPDSO14 depends on the integrity of the S500 backplane bus. In extended I/O configurations, the ABB SPBRC410 bus repeater coupler is used to extend the bus segment without signal degradation, maintaining deterministic scan cycle performance even in large cabinet assemblies. For Ethernet-based architectures, the ABB AC500 PM5xx-ETH CPU modules provide PROFINET or Modbus TCP connectivity, enabling remote diagnostics and real-time output status monitoring from the SCADA layer.

In safety interlock applications — particularly those governed by IEC 61511 (functional safety for process industries) — the SPDSO14 is often used in conjunction with ABB safety relay modules and hardwired ESD logic to provide a redundant output path for critical actuators. This layered approach ensures that even in the event of a CPU fault or communication loss, the field device receives the correct safe-state command.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In continuous process environments, the SPDSO14 controls solenoid-operated shutdown valves, pump motor starters, and flare ignition systems. Its short-circuit protection and electrical isolation prevent a single field fault from propagating into the control backplane, protecting the entire process control loop. Installations in classified hazardous areas (Zone 2 / Division 2) use the SPDSO14 in purged and pressurized enclosures compliant with IEC 60079-2.

Electric Power Generation and Transmission: In power plant auxiliary systems — boiler feed pump control, turbine lube oil system management, and generator excitation control — the SPDSO14 provides the deterministic output response required for time-critical protection functions. Its wide operating temperature range and vibration resistance make it suitable for installation in turbine hall control panels subject to continuous mechanical vibration.

Mining and Mineral Processing: Underground and surface mining operations subject control equipment to extreme dust, humidity, and vibration. The SPDSO14’s IP20-rated housing, combined with proper cabinet sealing and positive-pressure ventilation, supports reliable operation in conveyor belt safety systems, crusher interlock circuits, and ventilation fan control loops where unplanned stops carry significant safety and production consequences.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities rely on the SPDSO14 for pump station control, chemical dosing valve actuation, and UV disinfection system management. The module’s resistance to ground loop interference — common in facilities with large motor loads and long cable runs — ensures accurate output switching without nuisance trips.

Metallurgy and Steel Production: In electric arc furnace (EAF) and continuous casting environments, electromagnetic interference levels are among the highest in any industrial setting. The SPDSO14’s EMC-hardened design, combined with proper cabinet grounding and cable segregation practices, maintains output signal integrity in these extreme conditions, supporting electrode position control, cooling water valve management, and casting speed regulation.

Port and Material Handling Automation: Container crane control systems, automated stacker-reclaimers, and ship loader control panels use the SPDSO14 to manage drive enable signals, brake release commands, and limit switch override outputs. The module’s ability to handle the high cycle rates and inductive load switching typical of crane duty applications without degradation makes it a preferred choice for port automation integrators.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover, and how is a warranty claim processed?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions. If a module fails within the warranty period, we provide a replacement unit or full refund after verification. Claims are processed within 3–5 business days of receiving the returned unit. Warranty coverage begins from the date of shipment and applies to all SPDSO14 units supplied by SMARTNEXMSK.

Q2: What pre-shipment testing is performed on each SPDSO14 unit?
Every SPDSO14 undergoes a full functional test prior to dispatch. This includes channel-by-channel output activation verification, isolation resistance measurement between field terminals and backplane connector, and visual inspection for physical damage or connector pin deformation. Units that do not pass all test criteria are quarantined and not shipped. A test record is available upon request for quality-critical procurement.

Q3: Is the SPDSO14 compatible with all AC500 CPU generations, and can it replace an existing module in a running system?
The SPDSO14 is compatible with the full ABB AC500 S500 I/O bus and is designed for use with AC500 PM5xx and PM5xx-ETH CPU families. Hot-swap capability depends on the specific CPU firmware version and system configuration — consult the AC500 system manual (document 1SAP130000R0270) for hot-plug procedures. For replacement in a running system, we recommend having a spare unit on-site before removing the existing module to minimize process interruption.

Q4: Can SMARTNEXMSK guarantee long-term supply continuity for the SPDSO14?
Yes. SMARTNEXMSK maintains dedicated stock of the SPDSO14 and other AC500 I/O modules to support both immediate replacement needs and planned maintenance programs. For customers with multi-site operations or long-term service contracts, we offer reserved inventory arrangements and priority dispatch agreements. Contact our sales team to discuss volume pricing and supply continuity planning for your facility.
