ABB TB806 3BSE008536R1 Spare for AC800 Automation: Spare Replacement & Downtime Risk Control

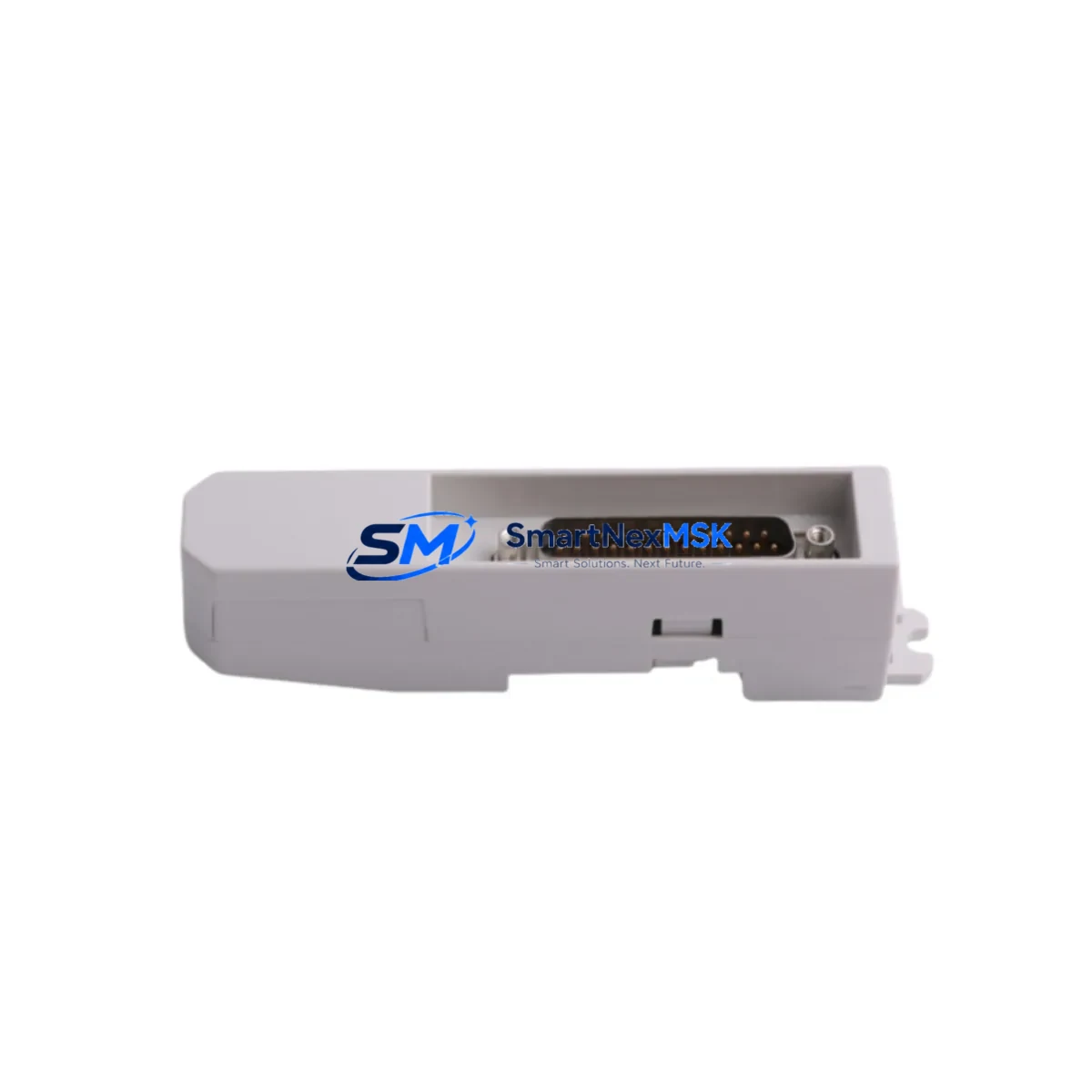

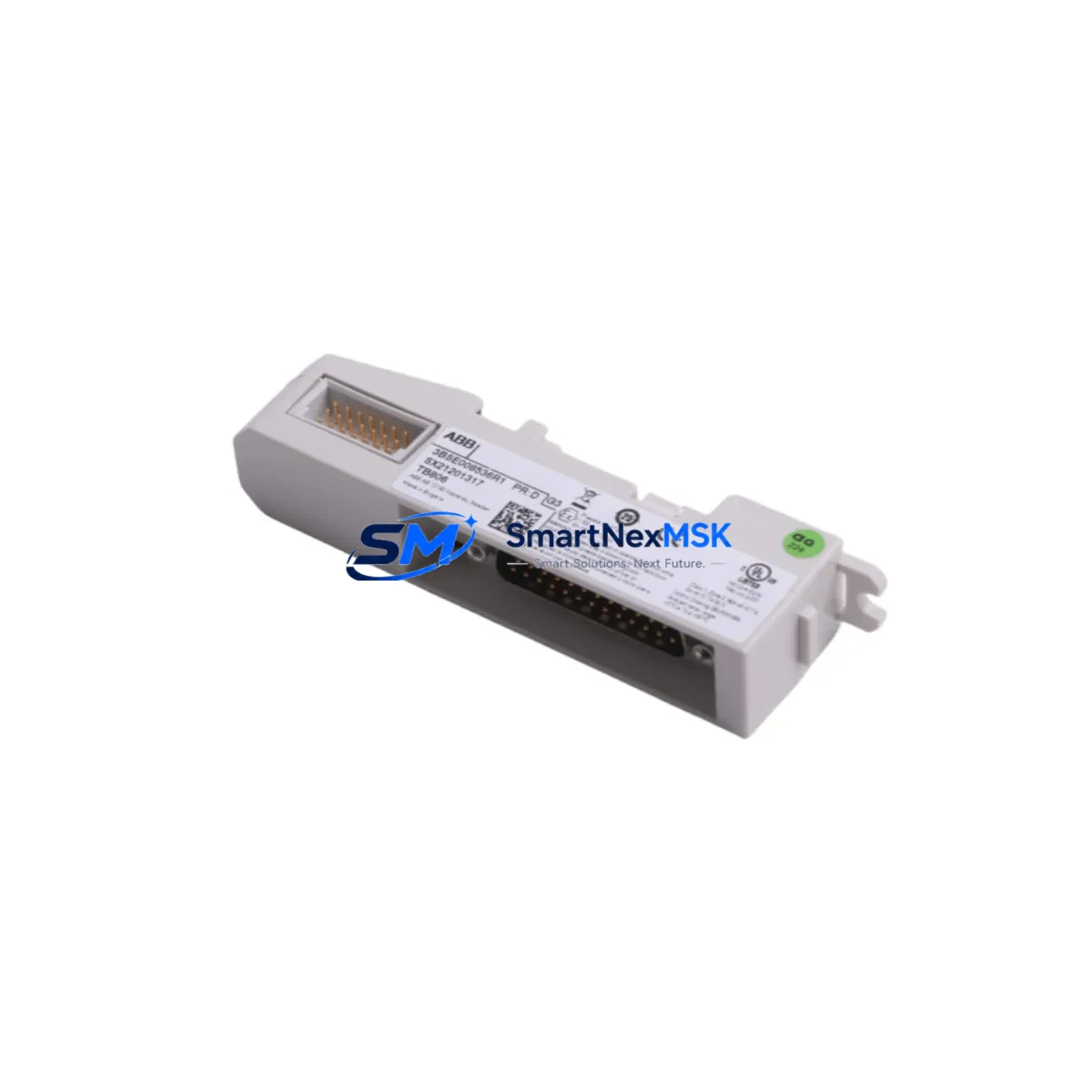

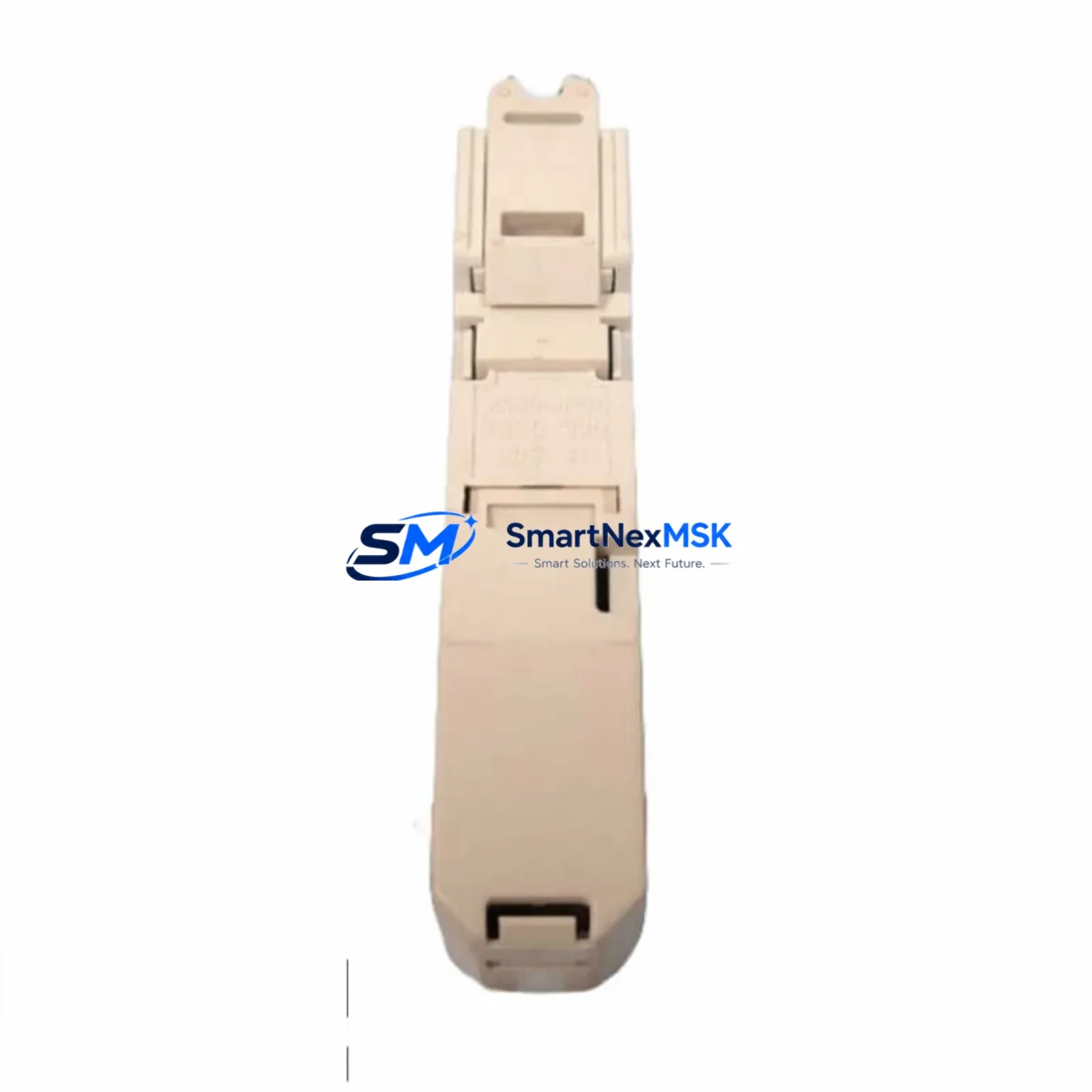

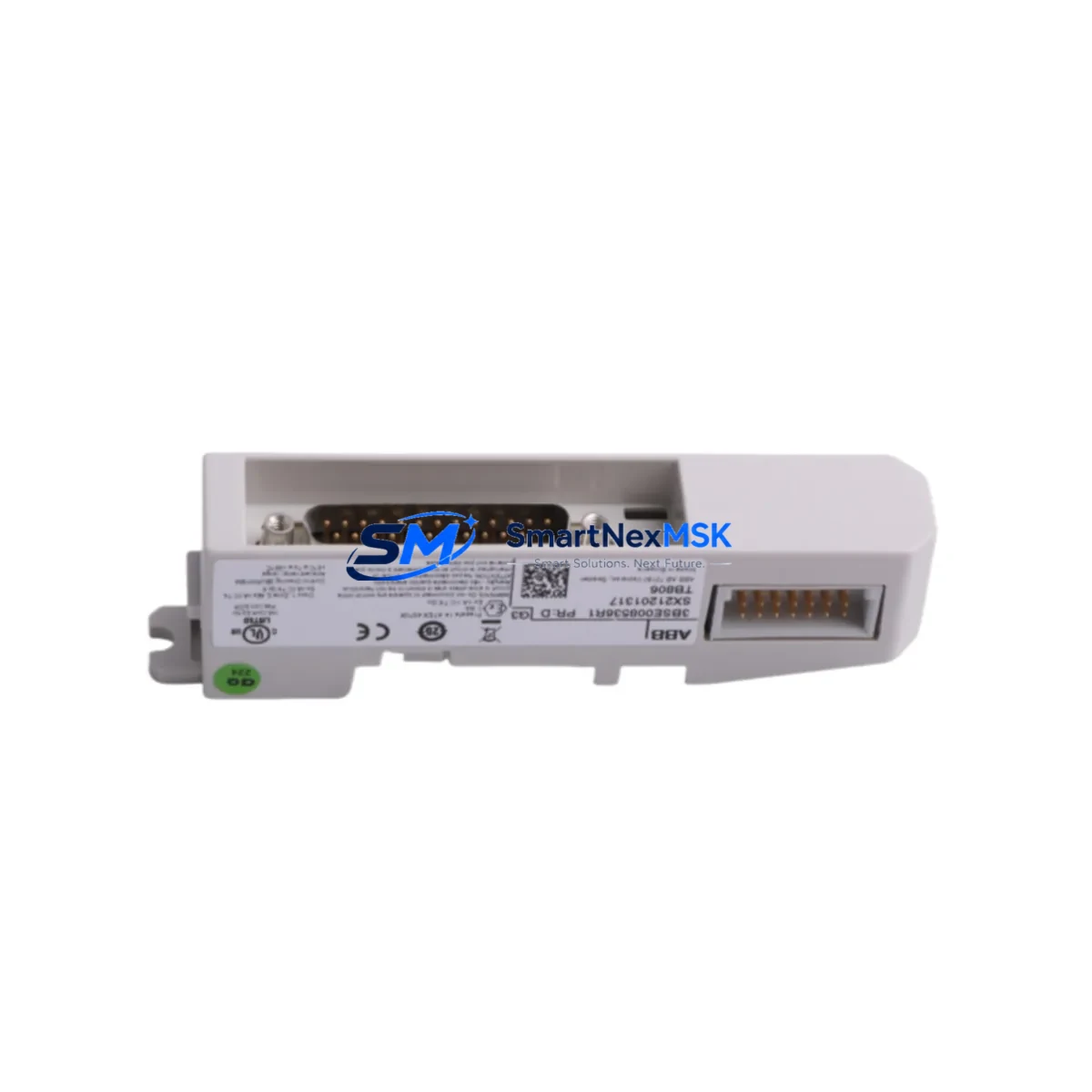

The ABB TB806 (3BSE008536R1) is an original terminal base unit designed for the ABB AC800 series programmable automation controller platform. In industrial maintenance environments — from continuous process plants to discrete manufacturing lines — the TB806 serves as the physical mounting and wiring interface between field I/O modules and the AC800 controller backplane. When this component fails or degrades, the entire I/O channel group it supports goes offline, triggering unplanned downtime that can cascade across dependent control loops.
Sourced as a genuine ABB original spare, this TB806 3BSE008536R1 unit is pre-tested before shipment and backed by a 12-month warranty. It is stocked to support rapid field replacement, emergency procurement, and planned maintenance cycles for facilities operating ABB AC800 controllers in DCS, hybrid, and standalone PLC configurations.
Spare Maintenance Table
| Parameter | Specification |
|---|---|
| Part Number | TB806 / 3BSE008536R1 |
| Brand | ABB |
| Series | AC800 (AC800M / AC800F compatible) |
| Component Type | Terminal Base Unit — I/O Module Mounting Interface |
| Compatible Modules | AI810, AO810, DI810, DO810, DI811, DO811 and related S800 I/O modules |
| Backplane Interface | S800 I/O bus, hot-swap capable |
| Wiring Method | Screw-terminal field wiring, front-access |
| Mounting | DIN rail, standard 35 mm |
| Operating Temperature | 0 °C to +55 °C |
| Protection Class | IP20 |
| Origin | Germany (Original ABB manufacture) |
| Condition | New / Surplus New — tested before shipment |
| Warranty | 12 Months |
| Delivery | Worldwide express shipping available |
| Maintenance Recommendation | Inspect terminal torque, bus connector seating, and field wiring integrity at each planned shutdown |
Maintenance Planning for Continuous Operation
When a maintenance or procurement engineer schedules replacement of the TB806 3BSE008536R1, the terminal base unit is rarely the only component that warrants attention. The TB806 sits at the intersection of field wiring, I/O module logic, and the AC800 backplane bus — making it a natural inspection anchor for the surrounding electrical circuit.
During the same maintenance window, engineers should verify the condition and availability of the S800 I/O modules seated in the terminal base — particularly the AI810 analog input module and DI810 digital input module, which share the same bus segment and are subject to the same environmental stresses. If the TB806 has shown signs of terminal oxidation or bus connector wear, the adjacent AO810 analog output module and DO810 digital output module should be bench-tested before being returned to service.
Power integrity is equally critical. The SD821 24 VDC power supply module feeding the S800 I/O rail should be checked for output voltage stability and ripple, as degraded power delivery is a common root cause of intermittent I/O faults that are misdiagnosed as terminal base failures. Upstream, the AC800M PM860 or PM861 processor module should be confirmed as fault-free before commissioning the replacement TB806, since a processor with corrupted I/O configuration can prevent the new terminal base from initializing correctly.
Field wiring connected to the TB806 should be inspected for insulation integrity, correct torque on screw terminals, and proper cable routing to avoid mechanical stress on the terminal block. Where signal isolation is required — particularly for analog loops connected to field transmitters — the presence and condition of signal isolators or loop-powered barriers in the marshalling cabinet should be confirmed. For installations using PROFIBUS DP or FOUNDATION Fieldbus communication modules such as the CI854 or CI801, the bus termination resistors and cable shielding at the TB806 end of the segment should be verified.
Facilities maintaining older AC800 installations should also audit the condition of TB807 and TB820 terminal bases in the same cabinet, as these units share the same mechanical design generation and are subject to similar aging patterns. Keeping one or two TB806 units in the on-site spare parts inventory — alongside matched I/O modules and a spare TK801V007 or TK801V015 I/O bus cable — is a proven strategy for reducing mean time to repair (MTTR) when unplanned faults occur.
Site Replacement Workflow
Step 1 — Pre-replacement verification: Confirm the replacement TB806 3BSE008536R1 part number matches the installed unit. Cross-check the S800 I/O module type seated in the existing terminal base; the replacement base must be compatible with the same module family. Download or print the current I/O channel configuration from the AC800 engineering tool (Control Builder M) before beginning work.
Step 2 — Safe isolation: Place the affected I/O module in forced manual mode or transfer control to a redundant channel if available. De-energize the field wiring circuits connected to the terminal base following site LOTO (Lockout/Tagout) procedures. Do not remove the I/O module from the bus while the bus is powered unless the system is confirmed hot-swap capable for this slot.
Step 3 — Physical replacement: Remove the I/O module from the existing TB806. Disconnect field wiring terminals, noting wire labels and positions. Release the DIN rail locking tab and slide out the old terminal base. Install the new TB806 3BSE008536R1, secure to DIN rail, and reconnect field wiring to the correct terminal positions. Re-seat the I/O module.
Step 4 — Commissioning and verification: Re-energize the I/O bus segment. Confirm the AC800 processor recognizes the I/O module on the new terminal base without hardware fault alarms. Verify all channel values against known field signals. Check for any diagnostic messages in Control Builder M or the operator HMI. Document the replacement in the site maintenance log.
This workflow minimizes downtime, preserves system compatibility, and ensures the replacement TB806 is correctly integrated into the existing AC800 control architecture without requiring a full system restart.
Spare Parts Support FAQ
Q1: Is the TB806 3BSE008536R1 compatible with both AC800M and AC800F controller platforms?
The TB806 terminal base is designed for the S800 I/O family, which is used across AC800M and AC800F platforms. Compatibility depends on the specific I/O module type being mounted. Always verify the I/O module part number against the AC800 hardware compatibility matrix before ordering.
Q2: How is the TB806 tested before shipment?
Each unit undergoes visual inspection for terminal integrity, bus connector condition, and DIN rail locking mechanism function. Electrical continuity of the terminal block is verified. Units showing any signs of physical damage, corrosion, or connector deformation are rejected. A test report is available upon request.
Q3: What is the recommended spare parts inventory strategy for AC800 installations?
For facilities with more than four AC800 controller cabinets, maintaining a minimum of two TB806 units per cabinet type in on-site stock is recommended. Pair each terminal base spare with the corresponding I/O module type to enable complete channel-group replacement without waiting for procurement. Review spare stock annually against the installed base count and module age.
Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage, environmental contamination beyond IP20 rating, or unauthorized modification. Warranty claims are processed with return of the defective unit and provision of a fault description.
