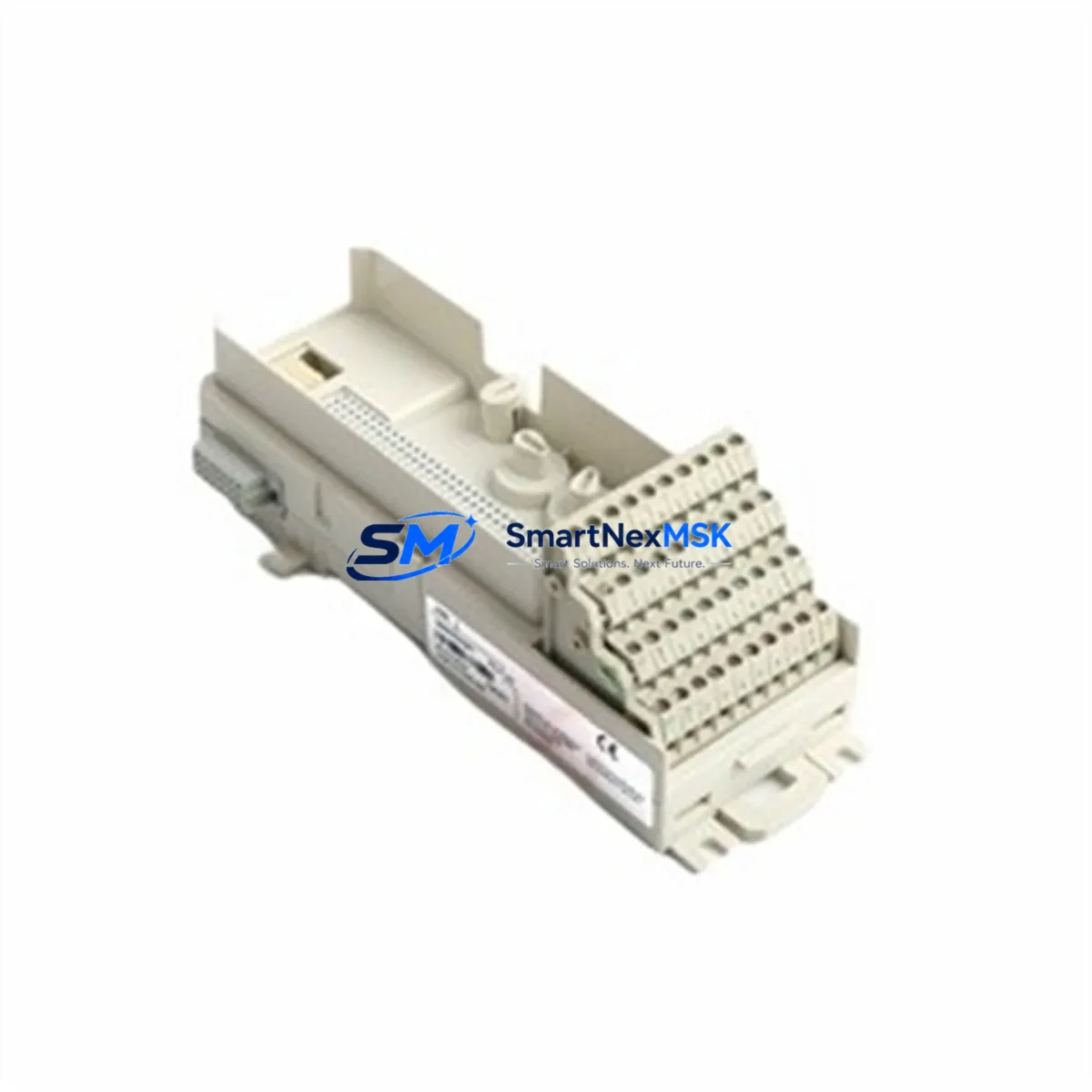

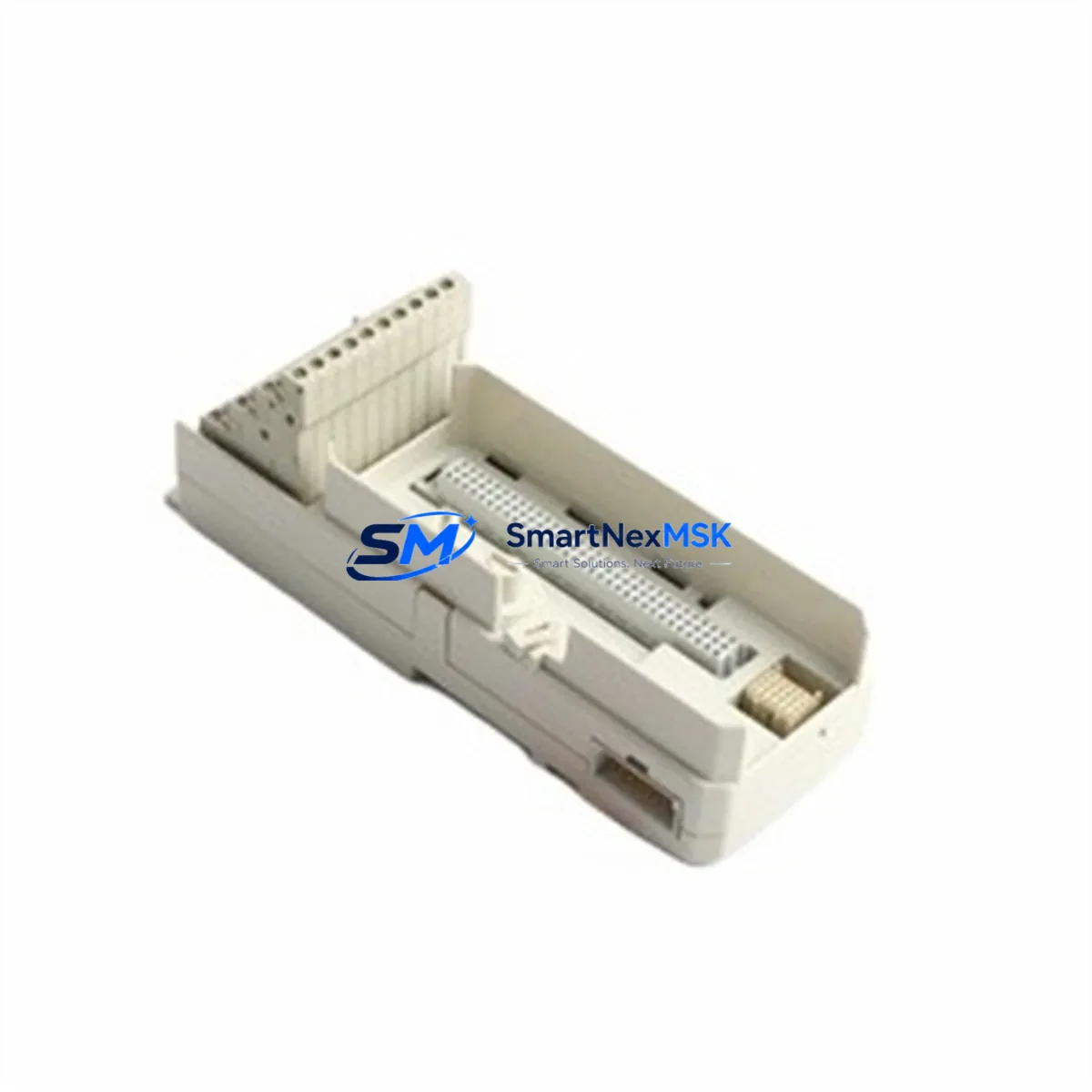

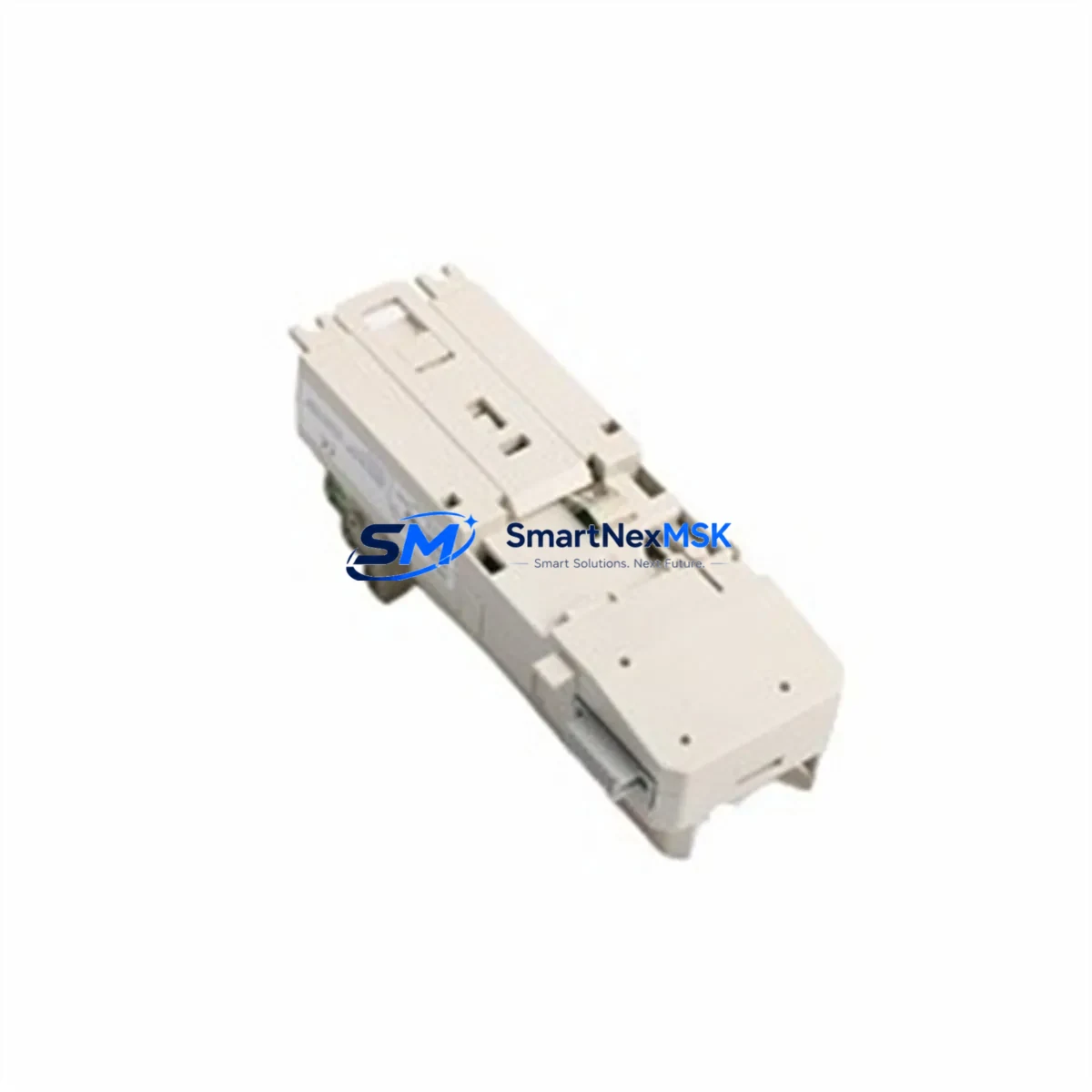

ABB TU818V1 3BSE069209R1 Safety I/O Termination Module

ABB TU818V1 3BSE069209R1 Safety I/O Termination Module: Reliable Control in Harsh Industrial Sites

The ABB TU818V1 (3BSE069209R1) is a ruggedized S800 I/O Module Termination Unit engineered for mission-critical distributed control system (DCS) installations where field wiring integrity, signal stability, and continuous uptime are non-negotiable. Designed and manufactured in Germany to ABB’s stringent quality standards, this termination unit serves as the secure interface between field instruments and S800 I/O modules — eliminating loose-wire risk, reducing signal path resistance variation, and providing a mechanically robust connection point that withstands vibration, thermal cycling, and electromagnetic interference common in heavy industrial environments.

In high-load continuous production facilities — petrochemical plants, power generation stations, metallurgical smelters, mining extraction sites, water treatment infrastructure, and port automation systems — control loop interruptions caused by poor field terminations can cascade into costly unplanned shutdowns. The TU818V1 3BSE069209R1 addresses this risk directly: its screw-clamp terminal design maintains consistent contact force across temperature extremes, preventing the micro-arcing and resistance drift that degrade analog signal accuracy over time. When paired with ABB S800 I/O modules such as the AI810 analog input module or the AO810V2 analog output module, the TU818V1 ensures that 4–20 mA process signals arrive at the controller with full fidelity — critical for pressure, flow, temperature, and level loops in safety instrumented systems (SIS).

Within a control cabinet, the TU818V1 integrates seamlessly into the ABB S800 I/O bus architecture. It mounts on standard DIN rail alongside companion units including the TB820V2 ModuleBus Modem, which handles optical communication between remote I/O clusters and the main controller, and the SD821 or SD822 power supply units that deliver stable 24 VDC to the I/O rail. Voltage sag, surge, or ripple from the power distribution network — a frequent cause of module mis-operation in industrial environments — is absorbed upstream by these power conditioning components, ensuring the TU818V1 and its hosted I/O modules operate within their rated supply window at all times.

For digital safety interlock circuits and emergency shutdown (ESD) loops, the TU818V1 is commonly deployed alongside DI810 digital input modules and DO810 digital output modules. These combinations form the field-side termination layer of critical interlock chains — motor protection, valve position feedback, high-level shutdown, and fire-and-gas detection circuits — where a single wiring fault or contact bounce must not propagate to a spurious trip or, worse, a missed shutdown. The TU818V1’s clearly labeled, individually isolated terminal rows simplify loop verification during commissioning and periodic proof testing, reducing human error during maintenance windows.

In environments with strong electromagnetic interference — variable frequency drives, large motor starters, arc furnaces, or high-voltage switchgear in close proximity — the TU818V1’s shielded cable landing points and grounded chassis provide a first line of defense against induced noise on analog and digital field cables. When combined with the CI854B PROFIBUS DP communication interface module and appropriate cable shielding practices, the S800 I/O network maintains communication integrity even in electrically noisy substations and motor control centers. Surge protection devices such as the PSTX-series or equivalent DIN-rail surge arresters are recommended at the cabinet entry point to protect the termination unit and downstream modules from transient overvoltages caused by lightning strikes or switching events on long field cable runs.

Spare parts availability and long-term supply continuity are critical considerations for plant asset managers. The TU818V1 3BSE069209R1 is stocked and available for immediate dispatch, supporting both planned maintenance replacements and emergency breakdown scenarios. Each unit shipped by SMARTNEXMSK undergoes pre-shipment functional inspection and is covered by a 12-month warranty against manufacturing defects, giving procurement and maintenance teams confidence in the reliability of every replacement module entering service.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust S800-based control cabinet built around the TU818V1 3BSE069209R1 relies on a layered protection architecture. At the power layer, SD821 and SD822 redundant power supply units maintain stable 24 VDC rail voltage, preventing the supply fluctuations that cause I/O module resets or erroneous output states. The TB820V2 ModuleBus Modem provides the optical isolation barrier between the controller and remote I/O clusters, eliminating ground loop currents that would otherwise corrupt analog measurements on the TU818V1’s field terminals.

At the signal layer, AI810 and AO810V2 modules plug directly onto the TU818V1, with each channel’s field wiring landed on dedicated screw terminals — enabling per-channel loop isolation and simplifying fault tracing without disturbing adjacent circuits. For discrete safety functions, DI810 digital input modules capture field device status (valve limit switches, pressure switches, motor run feedback) while DO810 digital output modules drive solenoid valves, motor starters, and alarm annunciators through the same termination unit, keeping the safety interlock wiring consolidated and auditable.

At the communication layer, the CI854B PROFIBUS DP interface module connects the S800 I/O cluster to the plant DCS network, with the TU818V1 providing the stable physical termination foundation that keeps field signal quality high across the entire data acquisition chain. Cabinet-level surge protection devices installed at cable entry glands protect the TU818V1 and all hosted modules from transient overvoltages, ensuring the termination unit’s contact integrity is preserved throughout the plant’s operational lifecycle.

Critical Industrial Safety Applications

The ABB TU818V1 3BSE069209R1 is deployed across the most demanding industrial sectors where control system reliability directly impacts personnel safety and production continuity:

Petrochemical & Refining: In hydrocarbon processing units, the TU818V1 terminates field wiring for pressure transmitters, temperature elements, and flow meters feeding safety instrumented functions (SIF). Its resistance to chemical vapors and thermal cycling ensures interlock loop integrity in environments where a missed shutdown signal can result in catastrophic consequences.

Power Generation: Thermal and hydroelectric power plants use the TU818V1 within turbine control and boiler management systems. The unit’s vibration-resistant terminal design maintains reliable connections on equipment subject to continuous mechanical stress from rotating machinery.

Mining & Mineral Processing: In underground and surface mining operations, the TU818V1 supports conveyor control, crusher automation, and ventilation safety systems. Its wide operating temperature range and EMC immunity make it suitable for electrically noisy environments with large motor drives and long cable runs.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities rely on the TU818V1 for pump control, dosing system automation, and level interlock circuits. Continuous 24/7 operation demands termination hardware that does not require periodic re-torquing or contact maintenance.

Metallurgy & Steel: Electric arc furnace control, rolling mill automation, and ladle handling systems generate extreme electromagnetic interference. The TU818V1’s shielded terminal architecture and compliance with IEC 61000-4 EMC standards ensure signal integrity in these high-interference environments.

Port & Material Handling Automation: Crane control systems, automated stacking equipment, and conveyor networks in port logistics require termination units that maintain reliable I/O connections through constant vibration and wide ambient temperature swings — conditions the TU818V1 is rated to handle.

Safety and Quality FAQ

Q1: What warranty coverage is provided with the ABB TU818V1 3BSE069209R1?
Every TU818V1 3BSE069209R1 unit supplied by SMARTNEXMSK is covered by a 12-month warranty from the date of shipment. This covers manufacturing defects and functional failures under normal operating conditions. Warranty replacement or repair is handled promptly to minimize any impact on your plant’s spare parts inventory.

Q2: How is each unit tested before shipment?
All units undergo a pre-shipment functional inspection to verify terminal integrity, module bus connector condition, and physical conformance to ABB specifications. This process ensures that every TU818V1 arriving at your facility is ready for immediate installation without requiring incoming inspection delays.

Q3: Is the TU818V1 3BSE069209R1 compatible with all ABB S800 I/O modules?
Yes. The TU818V1 is designed as a universal termination unit within the ABB S800 I/O family, compatible with analog input modules (AI810), analog output modules (AO810V2), digital input modules (DI810), digital output modules (DO810), and other S800-series I/O modules. Always verify the specific module-to-MTU pairing against ABB’s S800 I/O hardware documentation for your system revision.

Q4: Can long-term supply continuity be guaranteed for ongoing maintenance programs?
SMARTNEXMSK maintains stock of the TU818V1 3BSE069209R1 to support both planned preventive maintenance schedules and emergency breakdown replacements. For large-scale plant maintenance programs or multi-unit procurement, contact our sales team to discuss volume availability, lead times, and consignment stocking arrangements.
