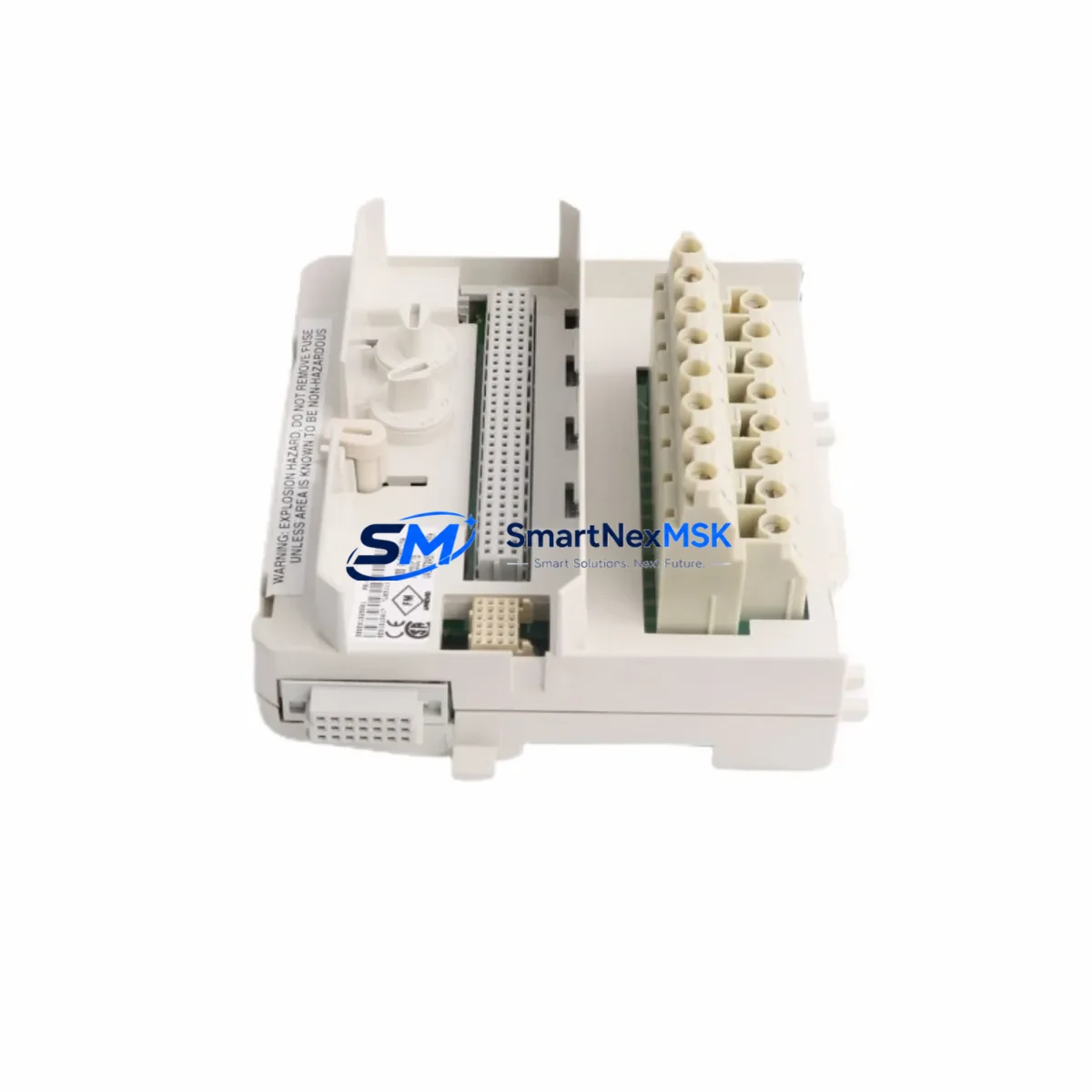

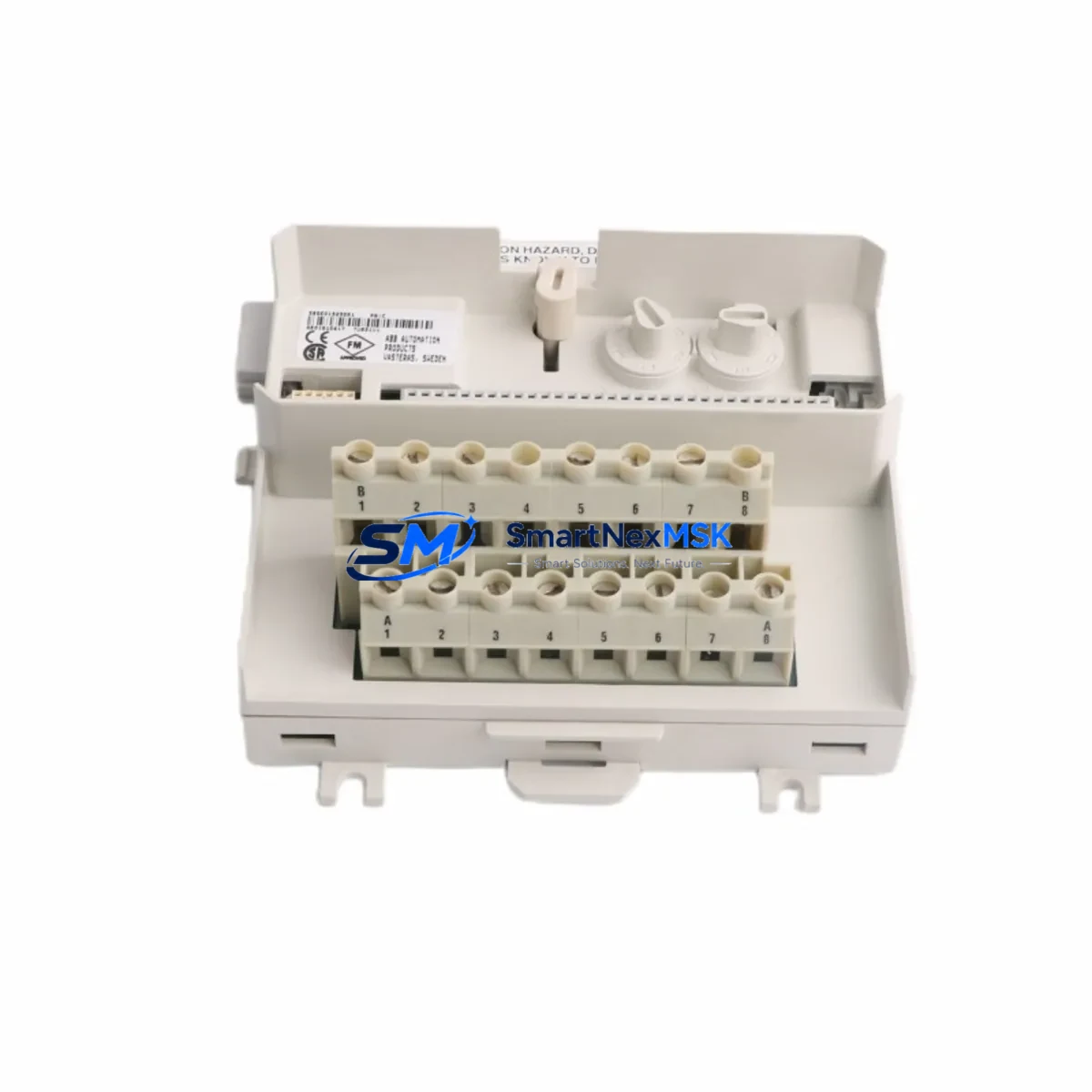

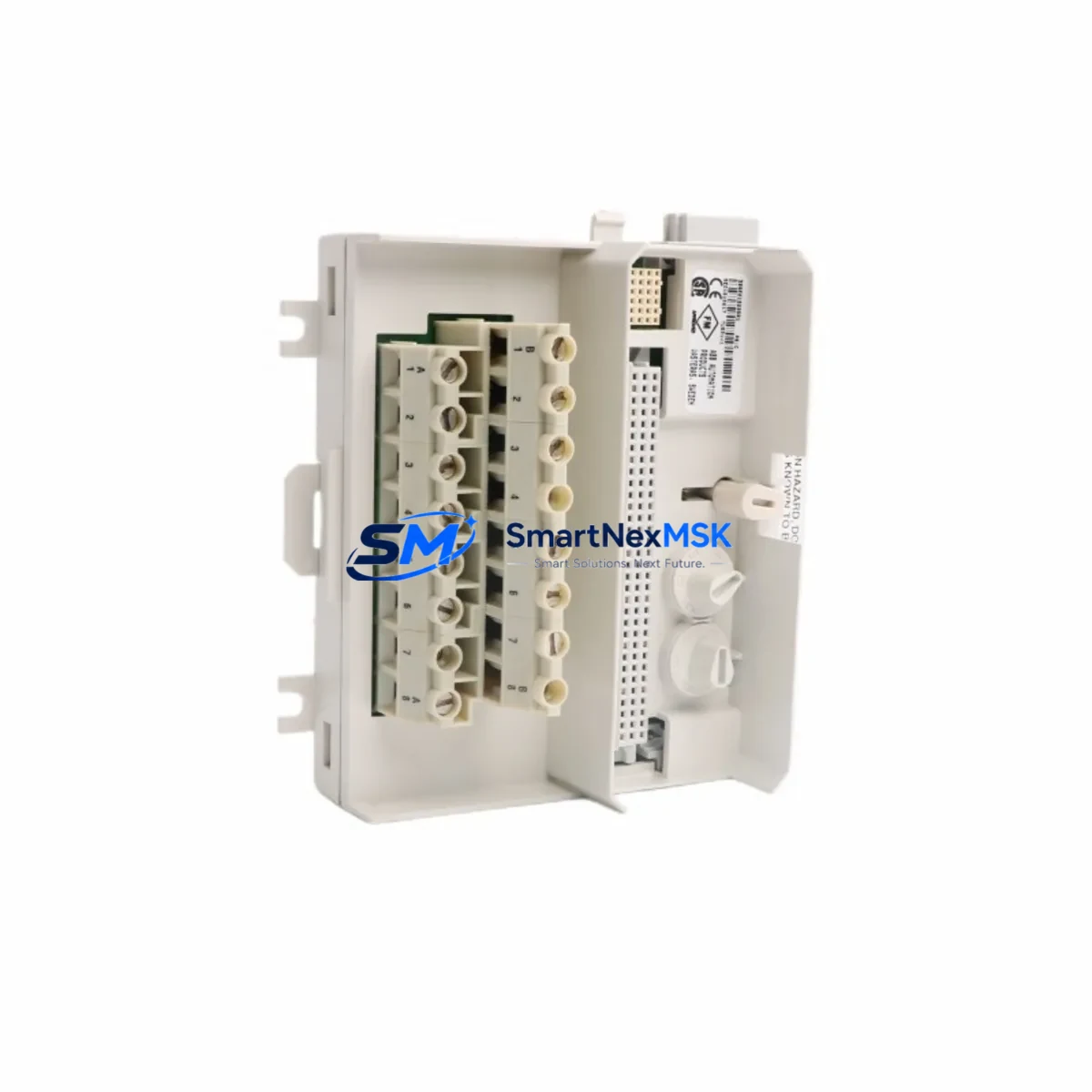

ABB TU831V1 3BSE013235R1 Safety-Enhanced Termination Unit

ABB TU831V1 3BSE013235R1 Safety-Enhanced Termination Unit: Reliable Control in Harsh Industrial Sites

The ABB TU831V1 (3BSE013235R1) is a ruggedized termination unit engineered for ABB’s S800 I/O system — one of the most widely deployed distributed I/O platforms in process automation. Designed to operate reliably in high-noise, high-vibration, and thermally demanding environments, this termination unit serves as the critical interface between field wiring and the S800 I/O modules, ensuring signal integrity and control continuity in applications where failure is not an option.

In continuous production facilities — petrochemical plants, power generation stations, mineral processing sites, water treatment infrastructure, and metallurgical complexes — the termination layer is often the most mechanically stressed point in the control architecture. The TU831V1 addresses this directly with its robust terminal block design, vibration-resistant screw connections, and shielded signal paths that suppress electromagnetic interference from variable frequency drives, high-current bus bars, and adjacent relay coils. When paired with S800 I/O modules such as the AI810 analog input module or the DI810 digital input module, the TU831V1 maintains clean, drift-free signal transmission even under sustained EMI exposure.

Control cabinet protection begins at the termination layer. A loose or degraded termination connection can introduce millivolt-level signal offsets that propagate through the entire control loop, causing false alarms, spurious trips, or — more dangerously — masked faults in safety-critical interlocks. The TU831V1’s field-proven terminal design minimizes contact resistance variation over time, reducing the risk of signal drift that could compromise PID loop stability or safety instrumented system (SIS) response. When integrated into a cabinet alongside the TB820V2 media redundancy module and CI854 PROFIBUS communication interface, the TU831V1 contributes to a fully redundant, fault-tolerant I/O architecture capable of sustaining control through single-point failures.

Safety Reliability Table

Control Cabinet Protection Strategy

A well-engineered S800 I/O cabinet is a layered defense system. The TU831V1 anchors the field-wiring layer, but its reliability depends on the integrity of the components surrounding it. Power supply stability is foundational: the SD823 and SD831 ABB system power supply units deliver regulated 24 VDC to the I/O cluster, and any ripple or dropout at this layer will manifest as erratic module behavior or communication loss. Upstream, a properly rated surge protective device on the incoming AC feed prevents transient overvoltages — common in sites with large motor starters or welding equipment — from reaching the termination layer.

Communication reliability is equally critical. The CI854A PROFIBUS DP communication interface connects the S800 I/O cluster to the AC800M controller, and any degradation in the PROFIBUS segment — caused by cable impedance mismatch, missing termination resistors, or ground loops — can cause cyclic data errors that appear as I/O faults at the termination unit level. Proper cable shielding, grounded at one end, and the use of TB807 or TB811 bus termination units at segment ends are essential practices. For high-availability applications, the CI853 redundant communication interface provides automatic failover, ensuring that a single communication path failure does not interrupt process control.

In safety instrumented systems operating under IEC 61511, the TU831V1 is frequently deployed in the final element and sensor layers of SIL-rated loops. Its mechanical robustness supports long proof-test intervals, reducing the maintenance burden in hazardous area installations. When used alongside the AI895 HART-enabled analog input module, the termination unit supports online diagnostics of field transmitters without breaking the control loop — a key capability for continuous process plants where unplanned shutdowns carry significant safety and financial consequences.

Critical Industrial Safety Applications

Petrochemical and Refinery Sites: In hydrocarbon processing, the TU831V1 supports pressure transmitter and flow meter signal termination in high-EMI environments near compressor trains and fired heaters. Its vibration-resistant terminals maintain connection integrity during equipment startups and load transients.

Power Generation: Thermal and hydroelectric plants rely on S800 I/O for turbine control and protection systems. The TU831V1’s temperature range and shielded design support reliable operation in generator hall environments with strong magnetic fields and thermal cycling.

Mining and Mineral Processing: Crusher control, conveyor interlocks, and slurry pump monitoring systems in mining operations demand termination hardware that withstands dust ingress, mechanical shock, and wide ambient temperature swings. The TU831V1’s ruggedized construction meets these demands.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities use S800 I/O for pump station control and chemical dosing systems. The TU831V1 supports reliable signal termination in high-humidity panel environments where corrosion and condensation are ongoing concerns.

Metallurgy and Steel Production: Rolling mill and furnace control systems operate in extreme thermal and electromagnetic environments. The TU831V1’s robust terminal design and EMI shielding support stable analog signal termination for temperature and position control loops in these demanding applications.

Safety and Quality FAQ

Q: What warranty does the TU831V1 3BSE013235R1 carry?
A: Every unit supplied by SMARTNEXMSK carries a 12-month warranty covering functional defects. Units are tested for electrical continuity, terminal integrity, and mechanical condition prior to dispatch.

Q: How is the unit tested before shipment?
A: Each TU831V1 undergoes pre-shipment inspection including visual examination, terminal resistance verification, and compatibility check against S800 I/O module specifications. Test records are available upon request.

Q: Is the TU831V1 compatible with all S800 I/O modules?
A: The TU831V1 is designed for use with standard S800 I/O modules including AI810, DI810, DO810, AO810V2, DI811, and AI820. Compatibility with specific module revisions should be confirmed against ABB’s S800 I/O hardware documentation for your system version.

Q: Can long-term supply and replacement support be guaranteed?
A: SMARTNEXMSK maintains ongoing inventory of S800 I/O termination units and associated components to support both planned maintenance and emergency replacement requirements. Contact our team to discuss scheduled supply agreements for critical spare parts programs.
