ABB TU845 3BSE021447R1 Spare for S800 Automation

ABB TU845 3BSE021447R1 Spare for S800 Automation: Termination Unit Replacement & Downtime Risk Control

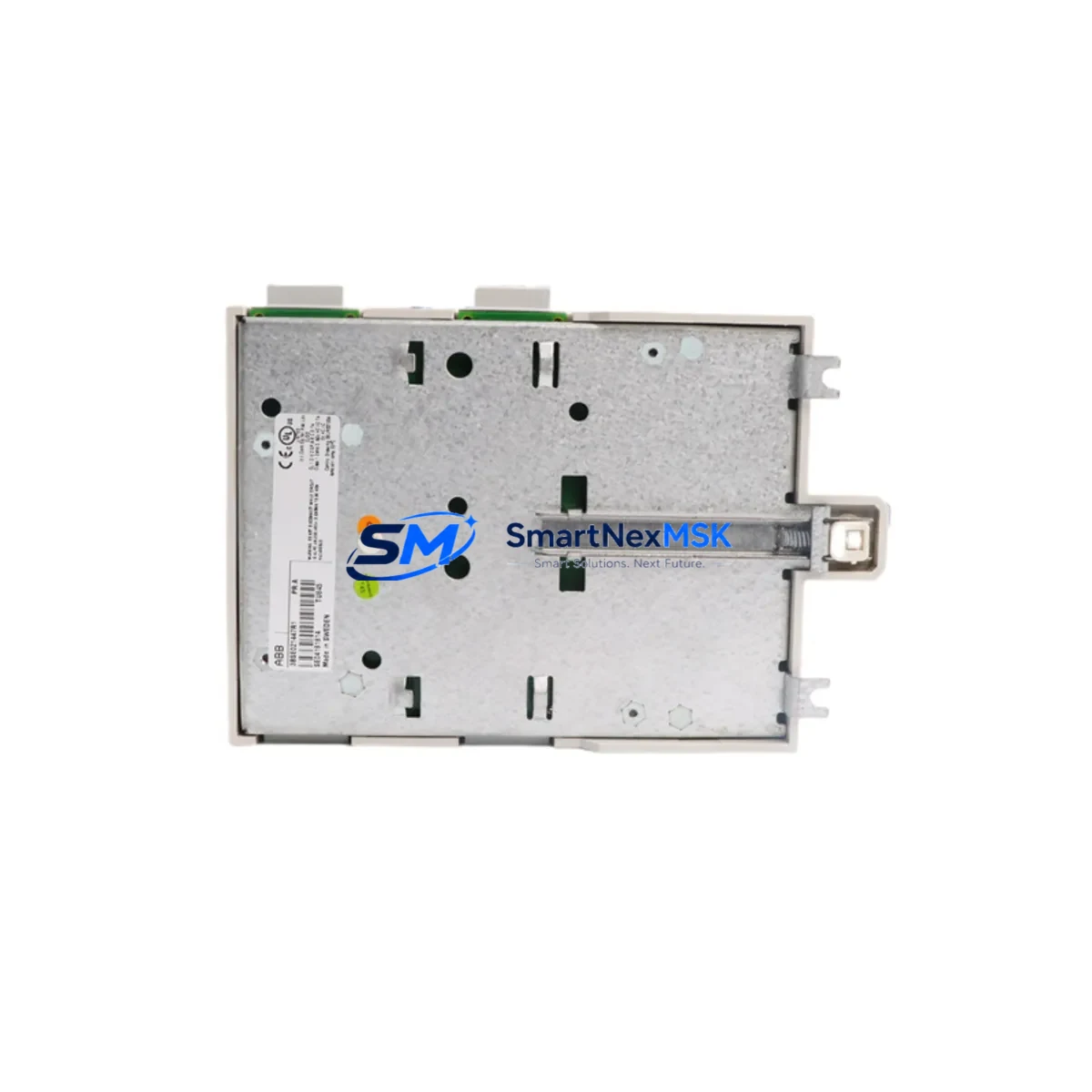

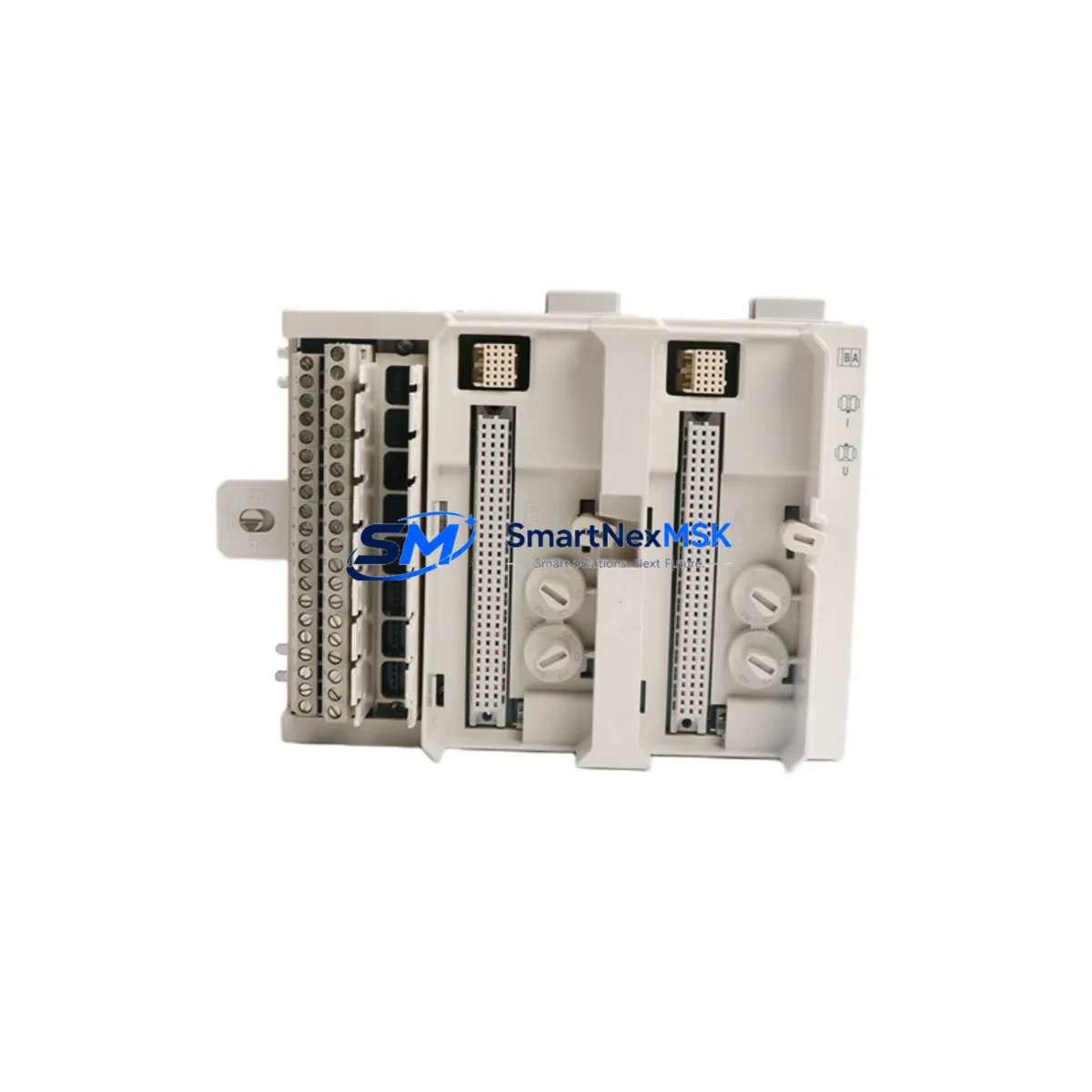

The ABB TU845 (3BSE021447R1) is an original S800 I/O Module Termination Unit designed for use in ABB AC 800M Distributed Control Systems. As a critical interface between field wiring and S800 I/O modules, the TU845 termination unit is a high-priority spare component in any industrial maintenance program. Whether you are managing a planned shutdown, responding to an unscheduled fault, or building a strategic spare parts inventory, having a verified original TU845 on hand is essential to minimizing control system downtime and protecting process continuity.

This unit supports direct field cable termination for S800 I/O modules including the AI810, AO810, DI810, DO810, and DI811 series, making it a universal maintenance spare across a wide range of analog and digital I/O configurations. Its robust screw-terminal design and DIN-rail mounting ensure fast, tool-assisted replacement in live control cabinets without requiring rewiring of field cables — a critical advantage during emergency restoration scenarios.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a TU845 termination unit is flagged during a control cabinet inspection or routine I/O diagnostics, maintenance engineers should treat the replacement as part of a broader S800 I/O subsystem review. The TU845 does not operate in isolation — it is the physical anchor point for the entire I/O channel group, and its condition directly affects signal integrity across all connected field devices.

During a planned replacement of the TU845 3BSE021447R1, it is standard practice to simultaneously inspect the following components within the same I/O station or marshalling cabinet:

• S800 I/O Modules (AI810 / DI810 / DO810 / AO810) — Verify module seating, LED status, and channel diagnostics. A faulty termination unit can mask underlying module faults; always re-test after TU845 replacement.
• TB820 / TB840 ModuleBus Optical Port — Check the ModuleBus communication link between the AC 800M controller and the I/O station. Communication errors on the bus are often misdiagnosed as termination unit failures.
• CI854 / CI858 PROFIBUS DP Communication Interface — If the S800 station is connected via PROFIBUS, inspect the CI854 or CI858 communication module for firmware version compatibility and bus termination resistance settings.
• SD802 / SD812 Power Distribution Units — Confirm that the 24 VDC field power supply to the I/O station is within tolerance. Undervoltage conditions accelerate termination unit wear and cause intermittent signal faults.
• Field Wiring and Cable Shields — Inspect all screw terminals on the TU845 for corrosion, loose connections, or insulation damage. Re-torque all terminals to specification after installation.
• Fuse Modules and Circuit Protection — Check inline fuses and miniature circuit breakers protecting the I/O field circuits. A blown fuse in the same loop is often the root cause of the TU845 fault condition.
• Signal Isolators and Barriers — For hazardous area installations, verify that Zener barriers or galvanic isolators in the same signal loop are within calibration and show no signs of thermal stress.
• Relay Output Modules (DO810 / RB820) — Inspect relay contacts for wear if the TU845 is associated with a digital output module driving inductive loads. Contact erosion can generate voltage spikes that damage termination hardware.
• AC 800M Controller Backplane and PM866 Processor Module — If multiple I/O stations report simultaneous faults, escalate the inspection to the controller backplane and processor module to rule out a systemic communication failure.
• Marshalling Cabinet Grounding and Earthing Bars — Verify cabinet grounding continuity. Poor earthing is a leading cause of signal noise and premature failure of S800 termination units in high-interference industrial environments.

Procurement engineers building a strategic spare parts list for AC 800M-based systems should stock at least one TU845 per I/O station type in active service. Given the long operational lifecycle of ABB DCS installations — often 15 to 25 years — maintaining a verified original spare with a current 12-month warranty is a cost-effective insurance policy against unplanned production stops.

Site Replacement Workflow

Replacing the ABB TU845 3BSE021447R1 on-site is a structured process that, when executed correctly, can restore full I/O functionality within a single maintenance window without requiring controller reconfiguration or field rewiring.

Step 1 — Pre-Replacement Verification: Confirm the replacement unit’s catalog number (3BSE021447R1) matches the installed unit exactly. Photograph the existing terminal wiring layout before disconnection. Verify that the new TU845 has passed pre-shipment functional testing.

Step 2 — Safe Isolation: Follow site LOTO (Lockout/Tagout) procedures. De-energize the field circuits connected to the affected I/O module. Do not remove the I/O module from the termination unit while field power is live.

Step 3 — Module Removal: Unlatch and remove the S800 I/O module (e.g., AI810 or DI810) from the TU845. The module can be hot-swapped in redundant configurations; verify your system’s redundancy status before proceeding.

Step 4 — Termination Unit Replacement: Release the DIN rail locking tab and slide the TU845 off the rail. Install the new TU845 3BSE021447R1 and secure it to the DIN rail. Re-connect all field wiring terminals in the original configuration, re-torquing each screw to the specified torque value.

Step 5 — Module Re-seating and System Verification: Re-seat the I/O module onto the new TU845. Restore field power and observe module LED status. Confirm channel-level diagnostics in the AC 800M engineering tool (Control Builder M) show no active faults. Perform a loop check on critical channels before returning the station to automatic control.

This workflow is compatible with both legacy S800 I/O installations and current AC 800M system revisions, ensuring that the TU845 3BSE021447R1 serves as a direct, configuration-free replacement for aging or failed termination units across all supported hardware generations.

Spare Parts Support FAQ

Q1: Is the TU845 3BSE021447R1 compatible with all S800 I/O modules?
The TU845 is compatible with the standard S800 I/O module range including AI810, AO810, DI810, DO810, DI811, AI820, and AO820. It is not compatible with S800L compact I/O modules or modules requiring the TU810 / TU830 termination unit variants. Always verify the module type before ordering.

Q2: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects, functional failures under normal operating conditions, and DOA (Dead on Arrival) units. Each TU845 3BSE021447R1 is tested before shipment to verify terminal integrity and mechanical fit. Warranty claims are supported with replacement or full refund within the warranty period.

Q3: Can the TU845 replace older or discontinued termination unit variants?
Yes. The TU845 3BSE021447R1 is the current production revision and is backward compatible with earlier S800 I/O termination unit generations used in the same module family. It is the recommended replacement for any obsolete or end-of-life TU845 variant in existing AC 800M installations.

Q4: How should the TU845 be stored as a long-term spare?
Store in original anti-static packaging in a dry, temperature-controlled environment (0–55°C, <85% RH non-condensing). Avoid exposure to corrosive atmospheres or direct UV light. Inspect terminal condition and mechanical integrity annually. For long-term storage beyond 24 months, perform a functional bench test before deployment to confirm terminal contact resistance is within specification.
