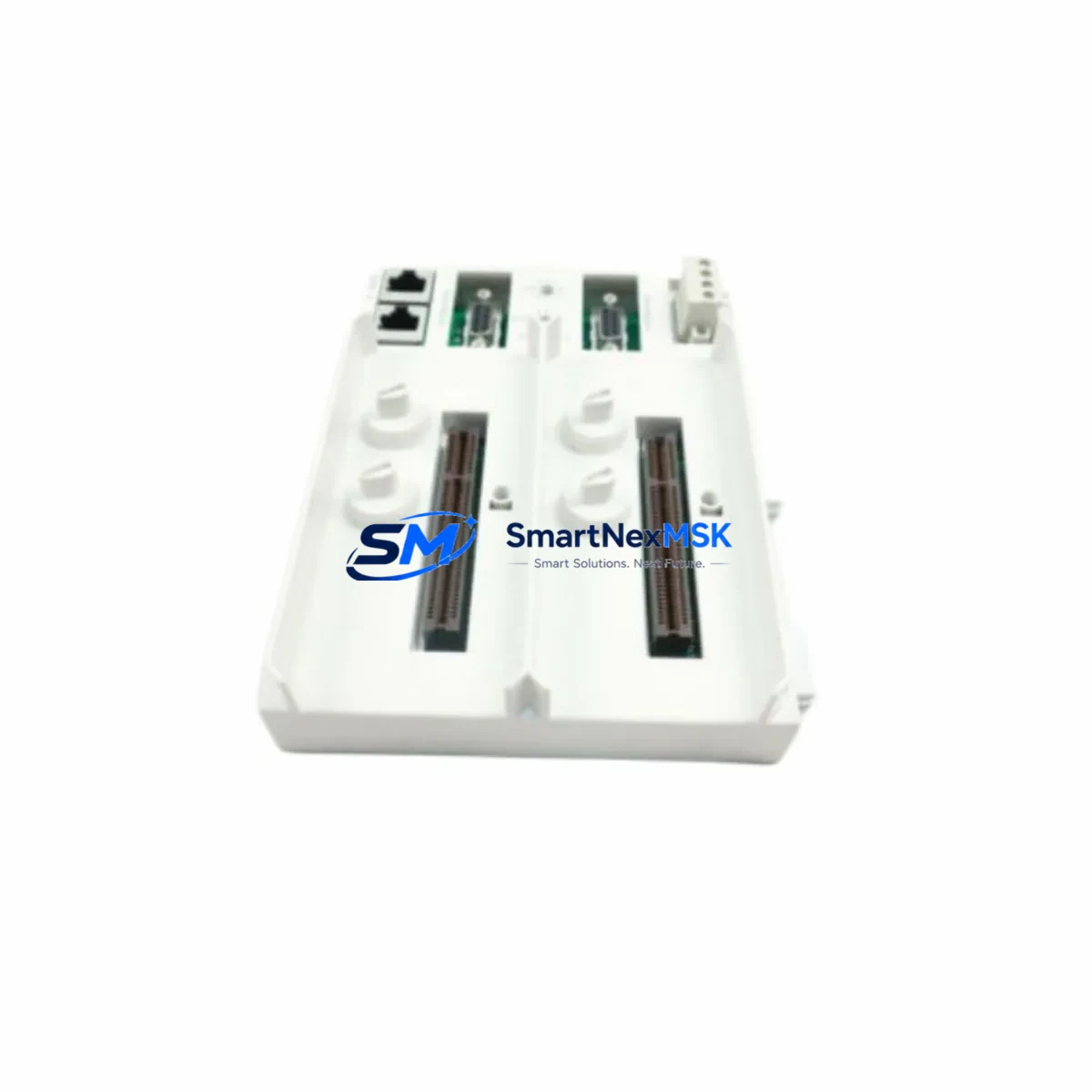

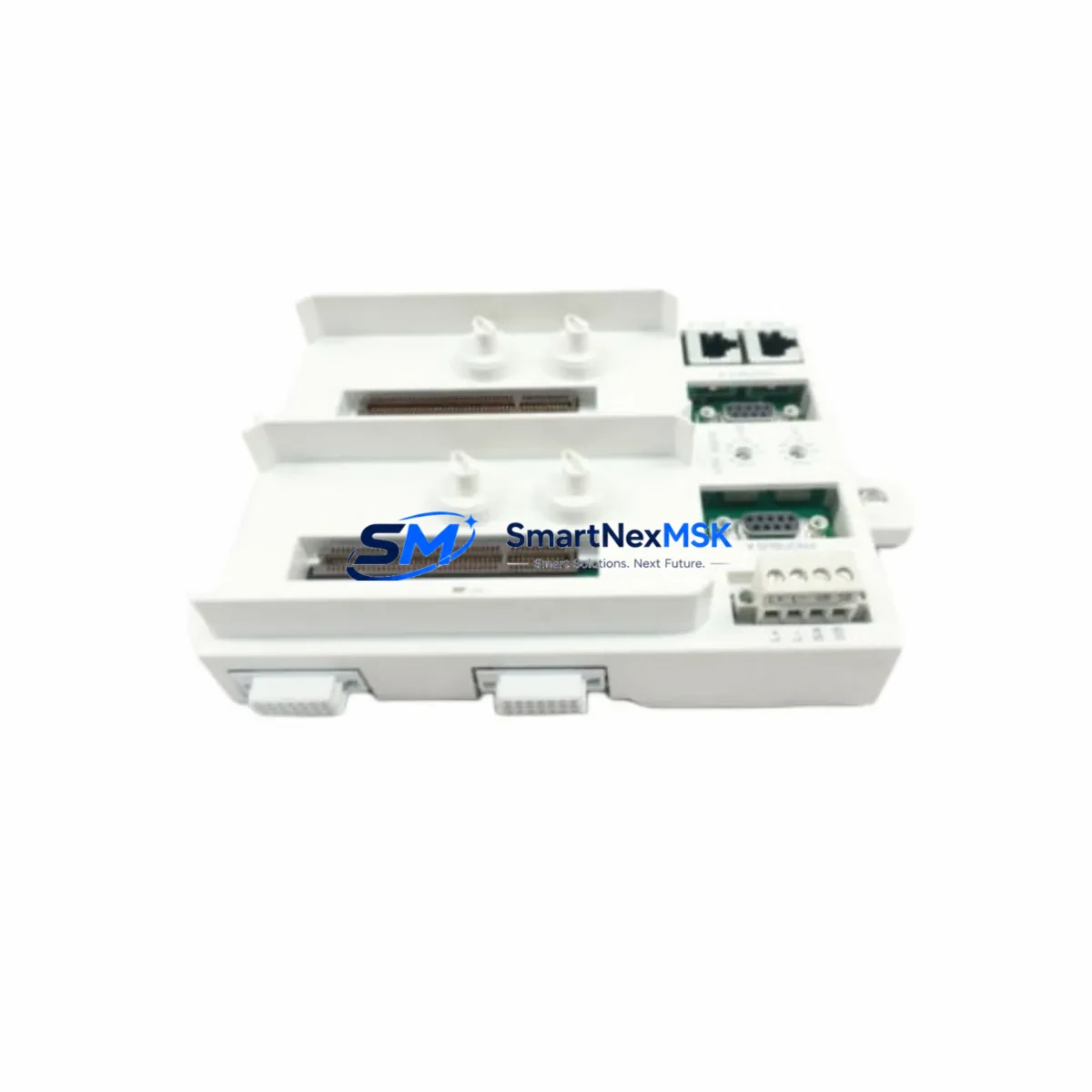

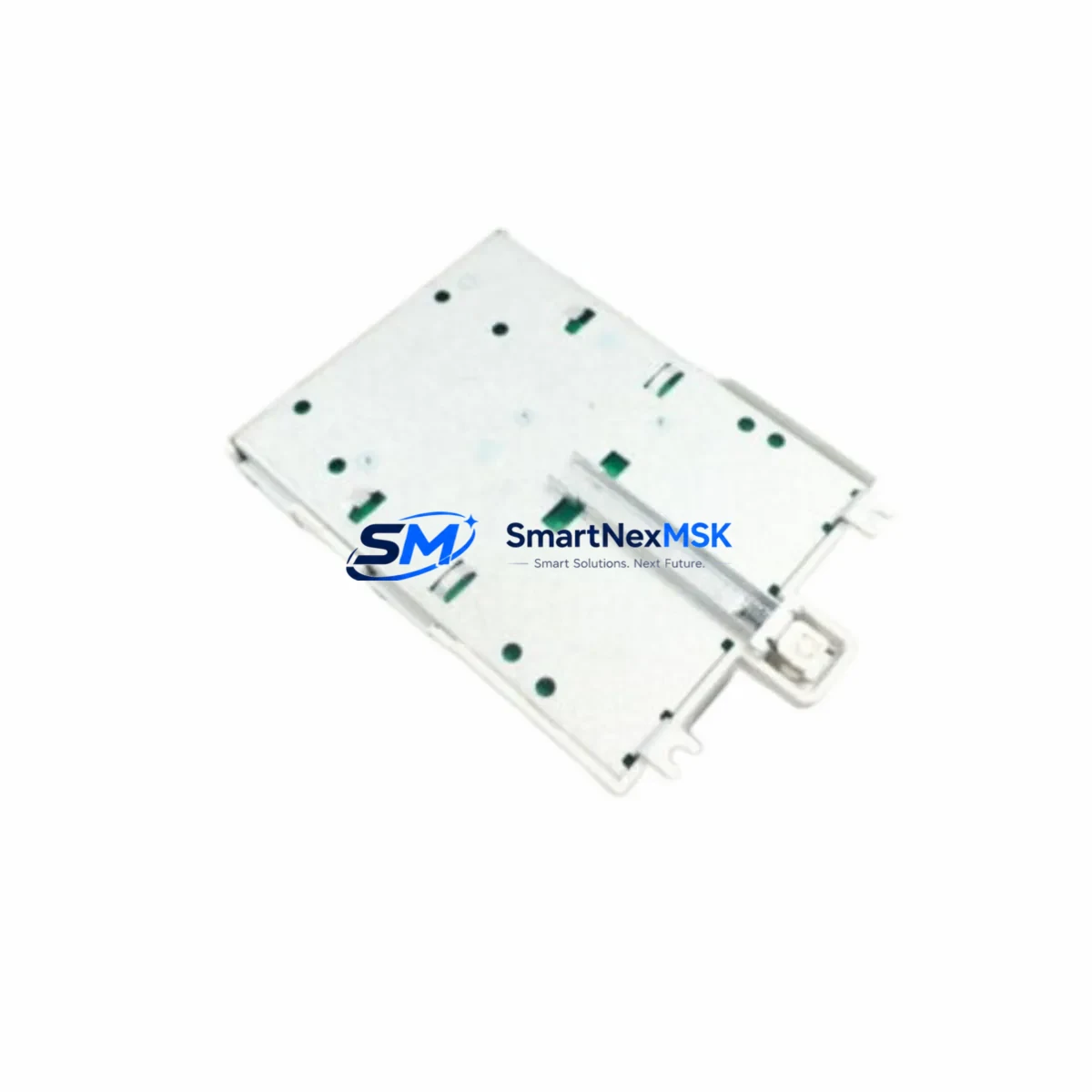

ABB TU846 3BSE022460R1 Safety-Enhanced Termination Module

ABB TU846 3BSE022460R1 Safety-Enhanced Termination Module for Harsh Industrial Sites

The ABB TU846 (3BSE022460R1) is a ruggedized module termination unit engineered for the ABB Advant OCS / AC800M DCS platform, purpose-built to maintain signal integrity and control loop continuity in the most demanding industrial environments. Designed for direct mounting in control cabinets operating under high electrical noise, thermal stress, and continuous-duty cycles, the TU846 3BSE022460R1 serves as the critical interface between field wiring and ABB I/O modules — a role where reliability is not optional.

In heavy industrial facilities — petrochemical plants, power generation stations, metallurgical smelters, mining operations, and continuous-process manufacturing lines — control interruptions caused by poor termination integrity can cascade into costly shutdowns, safety incidents, and equipment damage. The TU846 addresses this risk by providing a mechanically stable, electrically robust termination point that resists vibration-induced loosening, thermal cycling fatigue, and the signal drift that plagues inferior alternatives in high-EMI environments.

Safety Reliability Table

Control Cabinet Protection Strategy

A reliable control cabinet in a continuous-process plant is only as strong as its weakest termination point. The ABB TU846 3BSE022460R1 is typically deployed alongside a coordinated set of protection and control components to form a complete, fault-tolerant I/O infrastructure. In a well-engineered Advant OCS cabinet, the TU846 works in concert with ABB AI810 analog input modules and ABB DI810 digital input modules, which rely on the termination unit to deliver clean, stable field signals free from ground loops and common-mode interference.

On the power supply side, the cabinet’s 24 VDC rail — typically sourced from an ABB CP-E 24/10.0 or equivalent SITOP-class power supply — feeds both the I/O modules and the TU846 termination bus. Voltage fluctuations and micro-interruptions on this rail are among the leading causes of spurious module trips; the TU846’s low-impedance terminal design minimizes resistive voltage drop across the wiring interface, reducing the risk of under-voltage faults reaching the I/O backplane.

For applications involving safety instrumented systems or emergency shutdown (ESD) loops, the TU846 is often paired with ABB DO810 digital output modules driving final control elements such as solenoid valves and motor starters. In these configurations, the termination unit’s mechanical integrity is critical — a loose or corroded terminal in an ESD loop can mean the difference between a controlled shutdown and an uncontrolled process excursion. The ruggedized screw-clamp terminals of the TU846 maintain rated contact force across thousands of thermal cycles, a key advantage over spring-cage alternatives in high-vibration environments such as compressor halls and rolling mills.

Communication reliability is equally important. In Advant OCS architectures, the ABB CI810B fieldbus communication interface module connects the controller to PROFIBUS DP field devices; any signal anomaly introduced at the I/O termination layer can propagate upstream and cause communication timeouts or watchdog faults in the ABB PM864A or PM865A processor modules. By ensuring clean, low-noise signal paths at the TU846 termination level, engineers reduce the diagnostic burden on the controller and extend mean time between unplanned interventions (MTBUI).

Surge protection coordination is another critical consideration. In outdoor substations, port facilities, and open-pit mining operations where lightning and switching transients are common, the TU846 is installed upstream of dedicated surge protective devices (SPDs) on analog loops — such as Phoenix Contact TRABTECH or equivalent DIN-rail SPD modules — to provide a stable mechanical reference point before the protective element. This layered approach to transient protection ensures that neither the I/O module nor the field instrument is exposed to damaging energy spikes.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In hydrocarbon processing facilities, the TU846 3BSE022460R1 is used in DCS cabinets managing reactor temperature loops, pressure safety valves, and emergency depressurization systems. The module’s resistance to chemical vapor ingress and its stable termination under continuous 24/7 operation make it a preferred choice for turnaround-critical control panels where unplanned downtime carries seven-figure cost consequences.

Power Generation and Grid Substations: Thermal and hydroelectric power stations deploy the ABB TU846 in turbine control and excitation system cabinets. In these environments, high-frequency switching noise from power electronics creates severe EMI conditions; the TU846’s shielded terminal architecture maintains signal fidelity on 4–20 mA loops monitoring bearing temperatures, vibration sensors, and generator protection relays.

Mining and Mineral Processing: Underground and open-cut mining operations subject control equipment to extreme vibration, dust, and humidity. The TU846 is specified in conveyor drive control panels, crusher automation systems, and ventilation safety interlock cabinets, where its ruggedized construction ensures that field wiring connections remain secure despite constant mechanical stress.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities use the TU846 in SCADA-integrated DCS panels controlling dosing pumps, UV disinfection systems, and overflow protection interlocks. The module’s compatibility with the full Advant OCS I/O range allows seamless integration into both legacy and modernized treatment plant architectures.

Metallurgy and Steel Production: In electric arc furnace (EAF) and continuous casting control systems, the TU846 handles termination duties for thermocouple and RTD inputs on the ABB AI820 high-density analog input modules. The extreme thermal gradients and electromagnetic interference generated by arc furnace operations demand termination hardware that maintains calibrated signal accuracy — a requirement the TU846 meets through its precision-machined terminal contacts and robust housing.

Port and Material Handling Automation: Container terminal crane control systems and bulk material handling conveyors rely on the TU846 for reliable I/O termination in outdoor-rated control enclosures. The module’s wide operating temperature range and humidity tolerance support year-round operation in coastal environments where salt-laden air accelerates corrosion on inferior terminal hardware.

Safety and Quality FAQ

Q1: What warranty coverage does the ABB TU846 3BSE022460R1 carry?
Every ABB TU846 3BSE022460R1 unit supplied by SMARTNEXMSK is backed by a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. If a unit fails within the warranty period due to a verified product defect, we provide a replacement or full refund — no lengthy claims process.

Q2: What pre-shipment testing is performed on each unit?
Each TU846 3BSE022460R1 undergoes a full functional inspection before dispatch, including terminal continuity verification, visual inspection for mechanical damage, and compatibility confirmation against the Advant OCS I/O module interface specification. Units that do not pass inspection are quarantined and never shipped.

Q3: Is the TU846 3BSE022460R1 compatible with all ABB Advant OCS I/O modules?
The TU846 is designed for use with the ABB Advant OCS and AC800M I/O series, including AI810, AO810, DI810, DO810, AI820, and AO820 modules. For specific compatibility with less common module variants or custom cabinet configurations, contact our technical team with your system architecture details before ordering.

Q4: Can long-term supply continuity be guaranteed for ongoing maintenance and spare parts programs?
Yes. SMARTNEXMSK maintains dedicated stock of the TU846 3BSE022460R1 and other Advant OCS components to support plant maintenance programs, scheduled turnarounds, and emergency spare requirements. We source directly from verified supply channels and can provide volume commitments for customers with multi-year maintenance contracts. Contact us to discuss a tailored spare parts supply agreement.
