ABB TU890 3BSC690075R1 Maintenance-Ready Spare S800 Automation

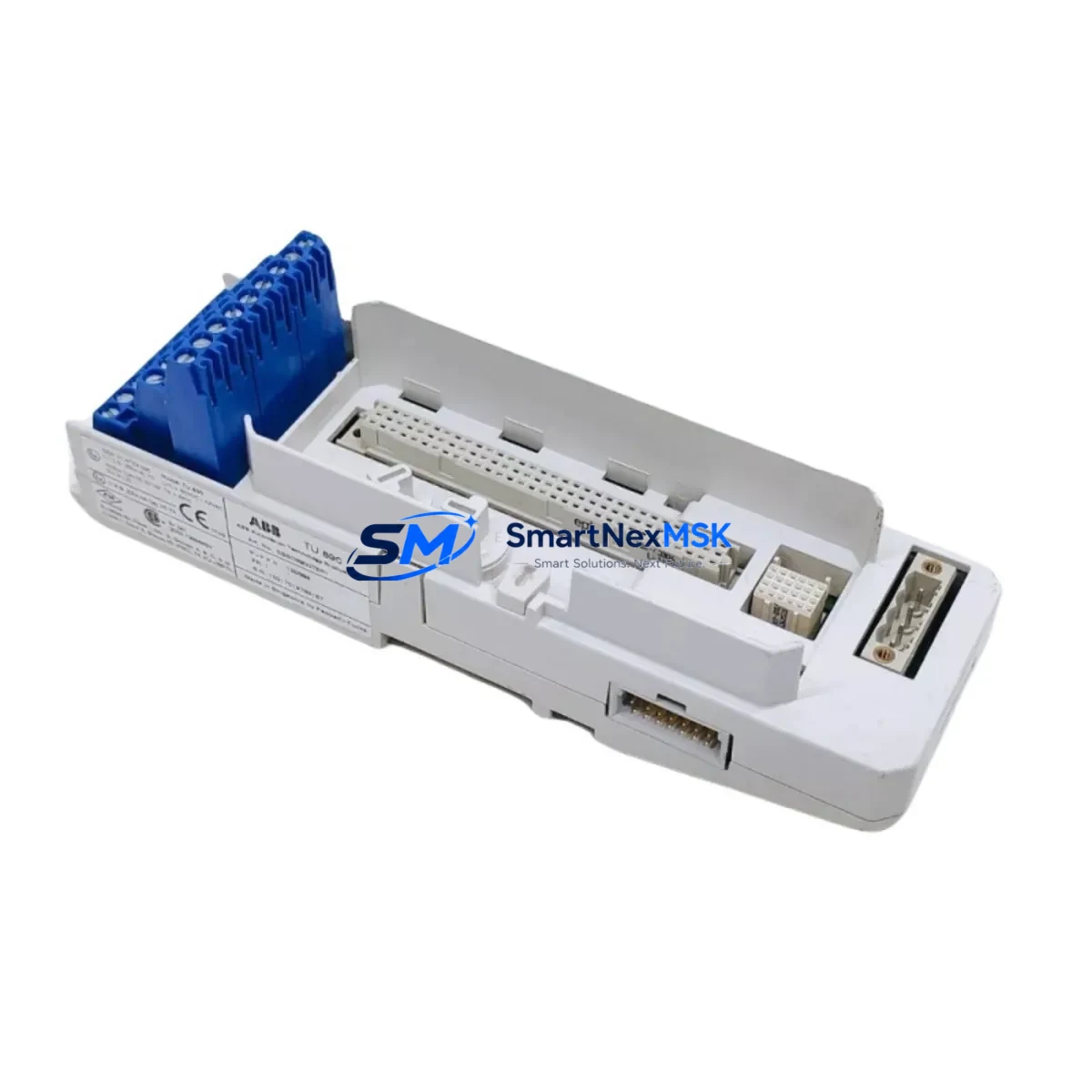

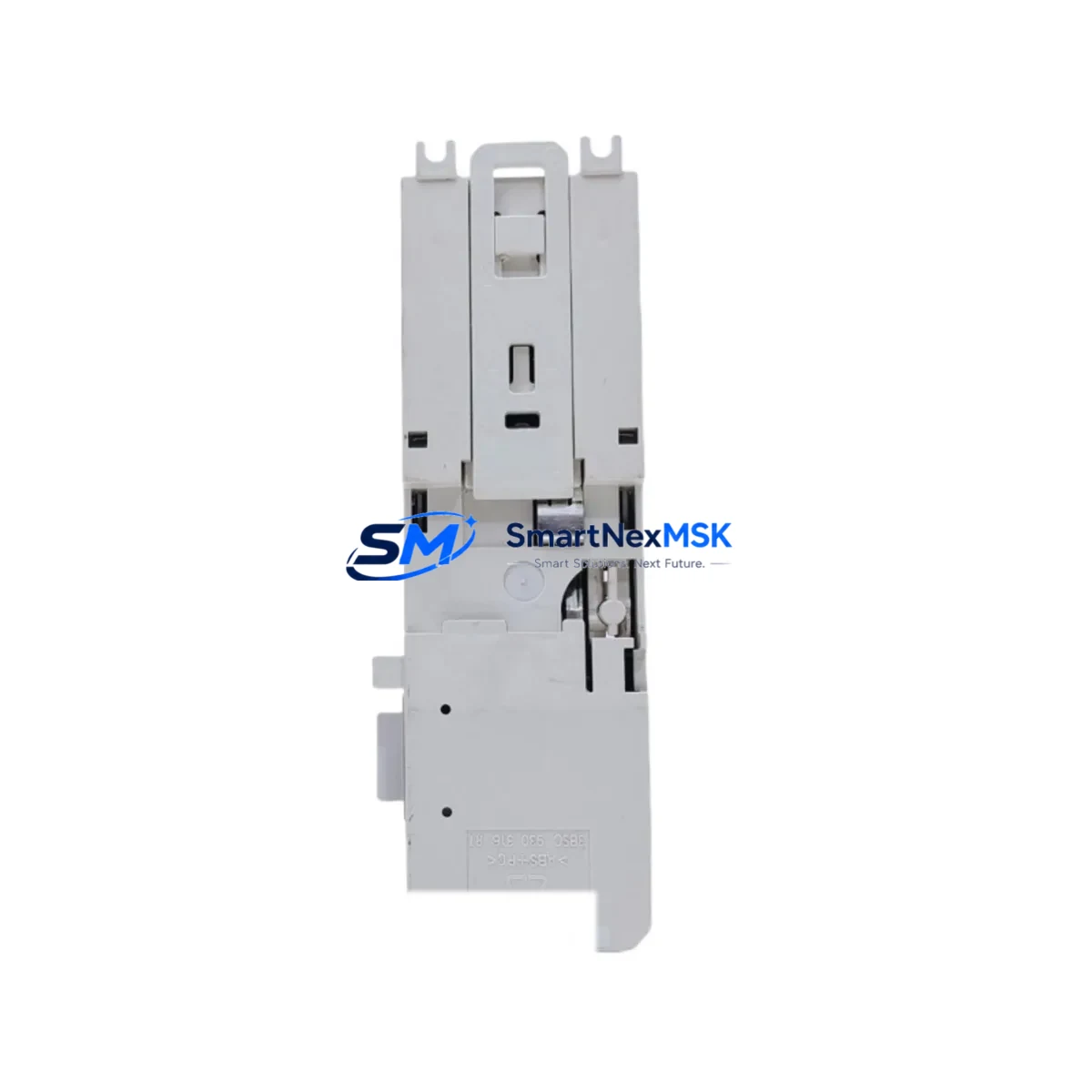

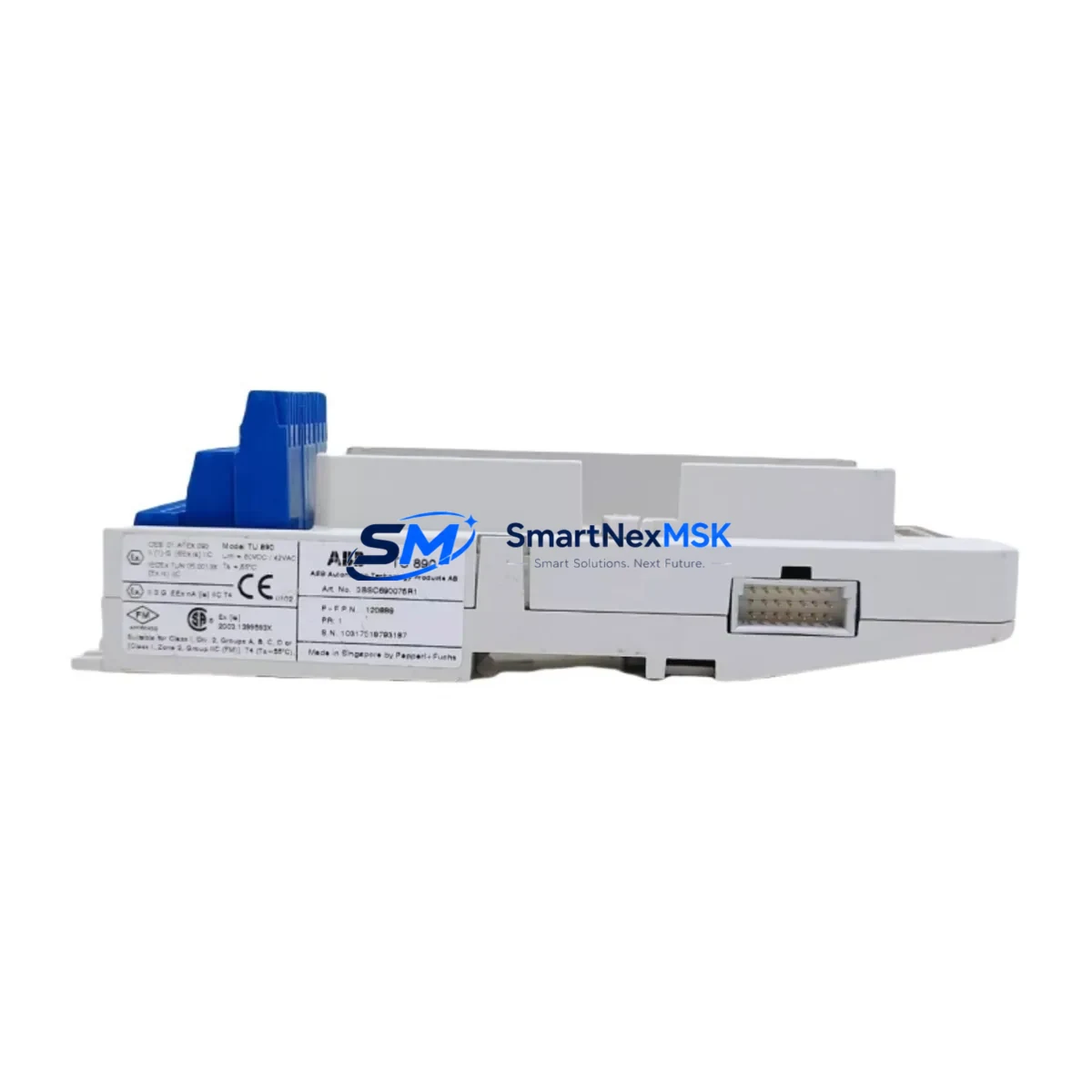

The ABB TU890 (3BSC690075R1) is an original S800 I/O termination unit engineered for continuous-duty industrial environments running on the AC800M Distributed Control System platform. As a maintenance-ready spare, this module supports rapid field replacement during planned shutdowns, emergency fault isolation, and long-term system life extension programs. Sourced directly from verified supply channels, each unit is inspected and tested prior to shipment, backed by a 12-month warranty, and available for fast worldwide delivery to minimize unplanned downtime risk.
For maintenance engineers managing AC800M-based control architectures, the TU890 serves as the critical interface between field wiring and the S800 I/O modules mounted above it. Its compact DIN-rail footprint and screw-terminal design allow technicians to swap the termination unit without disturbing field cable connections — a key advantage during time-critical outages. Procurement engineers will appreciate the long-term supply commitment: this part remains available as a stocked spare, with consistent lead times and documented compatibility across the S800 I/O family.
Spare Maintenance Table
| Parameter | Specification |
|---|---|
| Part Number | TU890 / 3BSC690075R1 |
| Brand | ABB |
| Series | S800 I/O |
| Compatible System | AC800M DCS, S800 I/O Modules |
| Module Type | Termination Unit (Field Wiring Interface) |
| Mounting | DIN Rail |
| Terminal Type | Screw Terminals |
| Country of Origin | Germany |
| Application Environment | Industrial Process Control, DCS Cabinets |
| Maintenance Role | Field Wiring Retention During Module Swap |
| Compatibility | S800 I/O AI, AO, DI, DO Modules |
| Warranty | 12 Months |
| Pre-Shipment Testing | Yes — Functional Inspection Performed |
| Availability | In Stock — Ready to Ship |
Maintenance Planning for Continuous Operation
When replacing the TU890 termination unit in an AC800M control cabinet, a thorough maintenance review of the surrounding components is essential to prevent repeat failures and ensure system integrity. Maintenance engineers should begin by verifying the condition of the S800 I/O modules seated on the termination unit — modules such as the AI810 analog input module, DI810 digital input module, and DO810 digital output module are common companions in the same I/O cluster and should be inspected for fault LEDs, loose connectors, or thermal discoloration.
The 24 VDC power supply feeding the S800 I/O rail is a frequent root cause of termination unit degradation. Confirm that the rail voltage is within specification and that the power supply module — often an SD802 or equivalent — shows no signs of ripple or overload. Inline fuse holders and terminal block fuses protecting the I/O bus should also be checked and replaced if discolored or showing elevated resistance.
Field wiring integrity is equally critical. Inspect the cable shields, ferrule crimps, and screw-terminal torque on all signal cables connected to the TU890. For analog signal loops, verify that signal isolators or barriers in the marshalling cabinet are functioning correctly, as a degraded isolator can introduce noise that mimics a faulty termination unit. Communication modules such as the CI854 PROFIBUS DP interface or CI801 AF100 fieldbus module connected to the same AC800M controller should be checked for communication error counts in the controller diagnostics.
For cabinet-level inspection, review the condition of the DIN rail itself, the grounding bus bar, and any adjacent relay modules or terminal strips sharing the same enclosure. If the system includes an HMI panel linked to the AC800M — such as an ABB CP600 series operator panel — verify that the HMI is displaying live process values correctly after the termination unit swap, confirming end-to-end signal continuity. Maintaining a stocked spare of the TU890 alongside one or two S800 I/O modules of each type used in the plant is a best-practice inventory strategy that significantly reduces mean time to repair (MTTR) during unplanned outages.
Site Replacement Workflow
The TU890 termination unit is designed to simplify in-situ replacement without requiring field cable re-termination. Follow this workflow to minimize downtime:
1. Preparation: Obtain the replacement TU890 3BSC690075R1 and confirm the part number matches the installed unit. Review the cabinet wiring diagram and take a photograph of the existing terminal connections before proceeding.
2. Safe Isolation: Place the AC800M controller in manual or safe state per your site safety procedure. De-energize the I/O rail segment feeding the affected termination unit. Do not disconnect field cables at this stage.
3. Module Removal: Unlatch and remove the S800 I/O module(s) seated on the TU890. The field wiring remains connected to the termination unit throughout this step — this is the key advantage of the TU890 design.
4. Termination Unit Swap: Release the DIN rail locking tab and slide the TU890 off the rail. Install the replacement unit, ensuring the rail clip engages fully. Re-seat the I/O module(s) onto the new termination unit.
5. Verification: Re-energize the I/O rail and confirm that all channel LEDs on the I/O modules return to normal status. Check the AC800M controller diagnostics for any residual I/O fault messages. Verify process values on the HMI match expected readings before returning the loop to automatic control.
6. Documentation: Record the replacement in the maintenance log, noting the date, part number, and technician. Update the spare parts inventory to trigger reorder of a replacement TU890 for the storeroom.
Spare Parts Support FAQ
Q: Is the TU890 3BSC690075R1 compatible with all S800 I/O modules?
A: The TU890 is compatible with the standard S800 I/O module range including AI, AO, DI, and DO modules designed for the AC800M platform. Always verify the specific module type against ABB’s S800 I/O compatibility matrix for your system revision before installation.
Q: What does the 12-month warranty cover?
A: The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional inspection. Warranty claims are supported with replacement or refund, subject to failure analysis.
Q: How quickly can the TU890 be shipped, and what testing is performed before dispatch?
A: In-stock units are dispatched within 1–3 business days. Prior to shipment, each TU890 is visually inspected for physical damage, connector integrity, and labeling accuracy. Functional testing is performed where applicable to confirm the unit meets original specification.
Q: Can the TU890 replace older or discontinued ABB termination unit variants used in legacy S800 systems?
A: In many cases, yes. The TU890 3BSC690075R1 is a current-production replacement that maintains backward compatibility with legacy S800 I/O installations. For systems running older firmware or hardware revisions, we recommend confirming the hardware generation with your ABB system documentation or contacting our technical team before ordering.
