ABB UA C383 AE01 Maintenance-Ready Spare UNITROL Automation

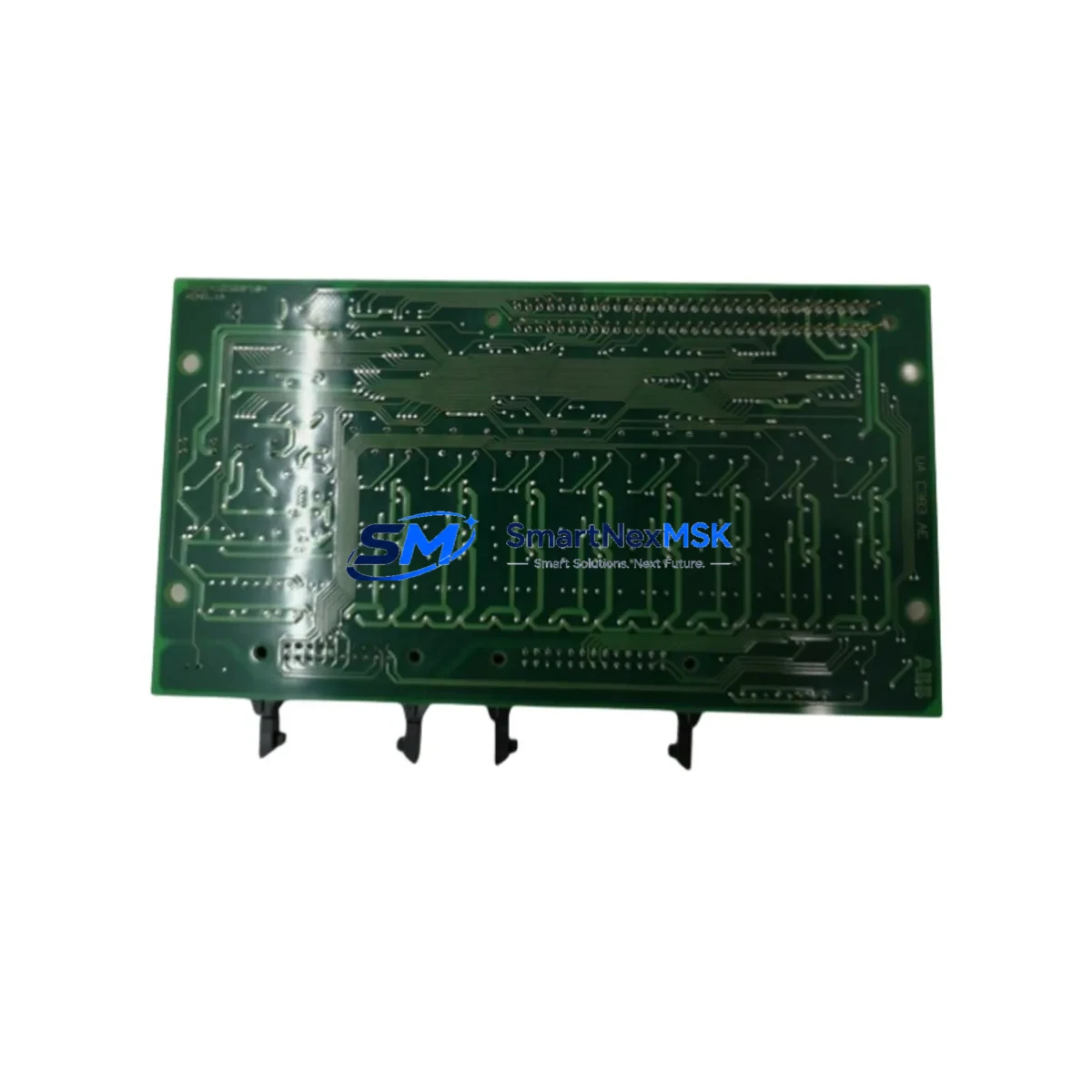

The ABB UA C383 AE01 (HIEE300890R0001) is an original binary input module designed for ABB UNITROL excitation and voltage regulation systems built on the HIEE300 platform. In industrial power generation, hydroelectric, and large motor drive environments, this module serves as the primary digital signal interface between field sensors, protection relays, and the excitation controller. When this module fails or degrades, the entire excitation loop is at risk — leading to unplanned generator trips, voltage instability, and extended downtime that can cost thousands per hour in lost production.
Sourced directly from verified ABB supply channels, each unit is inspected, function-tested, and shipped with a 12-month warranty. Whether you are executing a planned overhaul, responding to a fault alarm, or building a critical spare inventory for a remote power station, the UA C383 AE01 is a drop-in replacement that restores system integrity without firmware reconfiguration or hardware adaptation.
Spare Maintenance Table
| Parameter | Specification |
|---|---|
| Part Number | UA C383 AE01 / HIEE300890R0001 |
| Brand | ABB |
| Series | UNITROL / HIEE300 |
| Module Type | Binary Input Module |
| Function | Digital signal acquisition for excitation control loops |
| Compatible Systems | ABB UNITROL 5000, UNITROL 6000, HIEE300 excitation platforms |
| Signal Type | Binary (digital) inputs from field devices and protection relays |
| Installation | Rack-mount, backplane-integrated within HIEE300 control cabinet |
| Origin | Germany (DE) |
| Weight | 500 g (approx.) |
| Condition | Original, new or refurbished-to-spec |
| Pre-shipment Test | Function-tested and inspected before dispatch |
| Warranty | 12 Months |
| Lead Time | In-stock: ships within 2 business days |
| Application | Power generation, hydro plants, large motor drives, industrial AVR systems |
| Maintenance Interval | Inspect every 12–24 months or upon fault alarm |
Maintenance Planning for Continuous Operation
When a maintenance engineer identifies a fault or degradation in the UA C383 AE01 binary input module, the replacement procedure should be treated as part of a broader control cabinet inspection — not an isolated swap. The HIEE300 excitation cabinet integrates multiple interdependent components, and a single module failure often signals stress across adjacent hardware.
During the same maintenance window, engineers should inspect and verify the condition of the HIEE300 power supply module (e.g., HIEE300024R0001 or equivalent) that feeds the binary input card — voltage ripple or dropout on the 24 VDC rail is a common root cause of intermittent binary input faults. The UNITROL analog output module and pulse encoder interface card share the same backplane bus and should be checked for loose connectors or oxidized contacts.
On the I/O side, inspect the terminal block assemblies and field wiring harnesses connected to the binary input channels. Corroded or loose terminals on the 24 VDC signal lines are a frequent source of false binary states that can be misdiagnosed as module failure. If the system uses signal isolators between field devices and the HIEE300 binary inputs, verify isolator output levels and response times — degraded isolators can cause input signal distortion that damages the module over time.
The UNITROL communication module (typically a PROFIBUS or Modbus interface card) should also be checked during this window, as binary input status is often transmitted upstream to the DCS or SCADA system. A faulty communication module can mask binary input faults or generate spurious alarms. Additionally, inspect the excitation transformer protection relay wiring that feeds binary inputs — relay contact wear is a common source of unreliable binary signals in aging excitation systems.
For sites running legacy UNITROL 5000 or early HIEE300 hardware, it is advisable to stock at least one spare HIEE300 CPU or controller module alongside the binary input card, as these platforms are approaching end-of-active-support and sourcing lead times are increasing. Pairing the UA C383 AE01 with a spare HIEE300 analog input module and a UNITROL field flashing unit creates a practical minimum spare kit for remote or critical sites.
Site Replacement Workflow
Step 1 — Fault Isolation: Confirm the fault is isolated to the UA C383 AE01 by reviewing the UNITROL fault log and verifying binary input channel status via the HMI or engineering workstation. Do not replace the module based solely on a single alarm — cross-check with field device status.
Step 2 — Safe Isolation: Follow site LOTO (Lockout/Tagout) procedures. De-energize the HIEE300 cabinet 24 VDC auxiliary supply before removing the binary input module. Confirm zero voltage on the backplane connector before extraction.
Step 3 — Module Swap: Remove the faulty UA C383 AE01 by releasing the front-panel locking lever and sliding the card from the backplane. Insert the replacement module — no firmware download or address configuration is required for a like-for-like replacement on the HIEE300 platform. The module auto-initializes on power-up.
Step 4 — Functional Verification: Re-energize the cabinet and monitor the UNITROL HMI for binary input channel status. Simulate field device signals (e.g., relay contact closure) to verify all input channels respond correctly. Confirm no residual fault codes remain in the controller log.
Step 5 — Documentation: Record the replacement in the site maintenance log, including the old module serial number, replacement date, and post-swap test results. Update the spare parts inventory to trigger reorder of a replacement UA C383 AE01 for the next maintenance cycle.
This workflow minimizes downtime to under 2 hours for a trained technician and eliminates the need for specialist ABB service attendance in most cases, significantly reducing maintenance cost for sites with in-house electrical teams.
Spare Parts Support FAQ
Q1: Is the UA C383 AE01 compatible with both UNITROL 5000 and UNITROL 6000 systems?
The HIEE300890R0001 binary input module is designed for the HIEE300 hardware platform, which is used across multiple UNITROL generations. Compatibility with your specific system revision should be confirmed against your cabinet’s hardware configuration list (HCL) or ABB documentation. Contact our technical team with your cabinet serial number for confirmation before ordering.
Q2: What is included in the 12-month warranty?
All units are covered by a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failure under normal operating conditions. Each module is function-tested before dispatch. In the event of a warranty claim, we provide a replacement unit or full refund after fault verification.
Q3: How quickly can the UA C383 AE01 be shipped for emergency breakdown situations?
In-stock units are dispatched within 2 business days. For urgent breakdown situations, contact us directly at [email protected] or +86 18259474341 to confirm stock availability and arrange expedited shipping. We support DHL Express, FedEx Priority, and air freight for time-critical orders.
Q4: Can I return a module if it does not resolve the fault after installation?
Yes. If the replacement module does not resolve the fault and the original fault is confirmed to be elsewhere in the system, we accept returns within 30 days of shipment provided the module is in its original condition and has not been damaged during installation. Our technical team can also assist with remote fault diagnosis to help confirm the root cause before you commit to a replacement.
