ABB UFC039A01 Maintenance-Ready Spare for AC800M Automation

ABB UFC039A01 Maintenance-Ready Spare for AC800M Automation

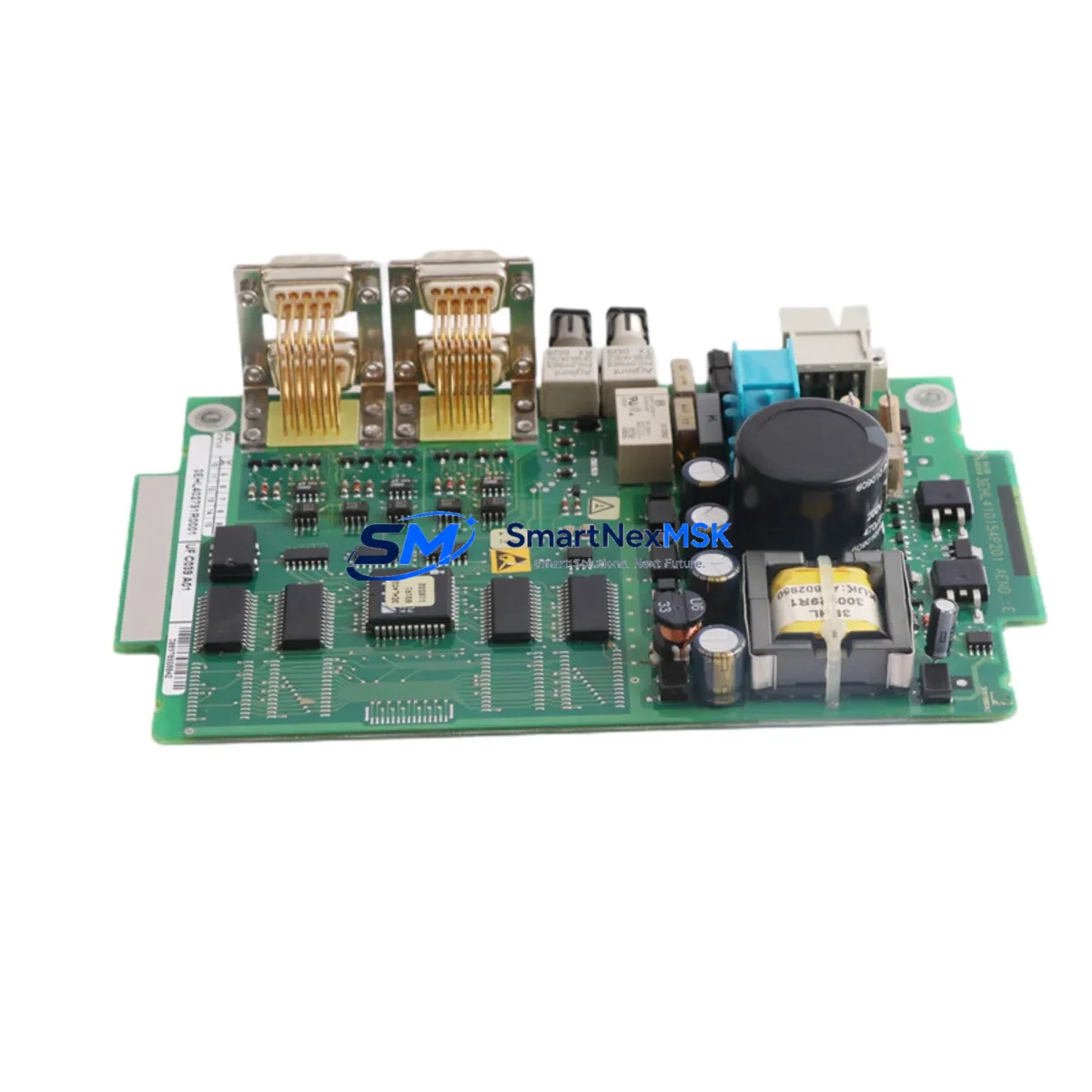

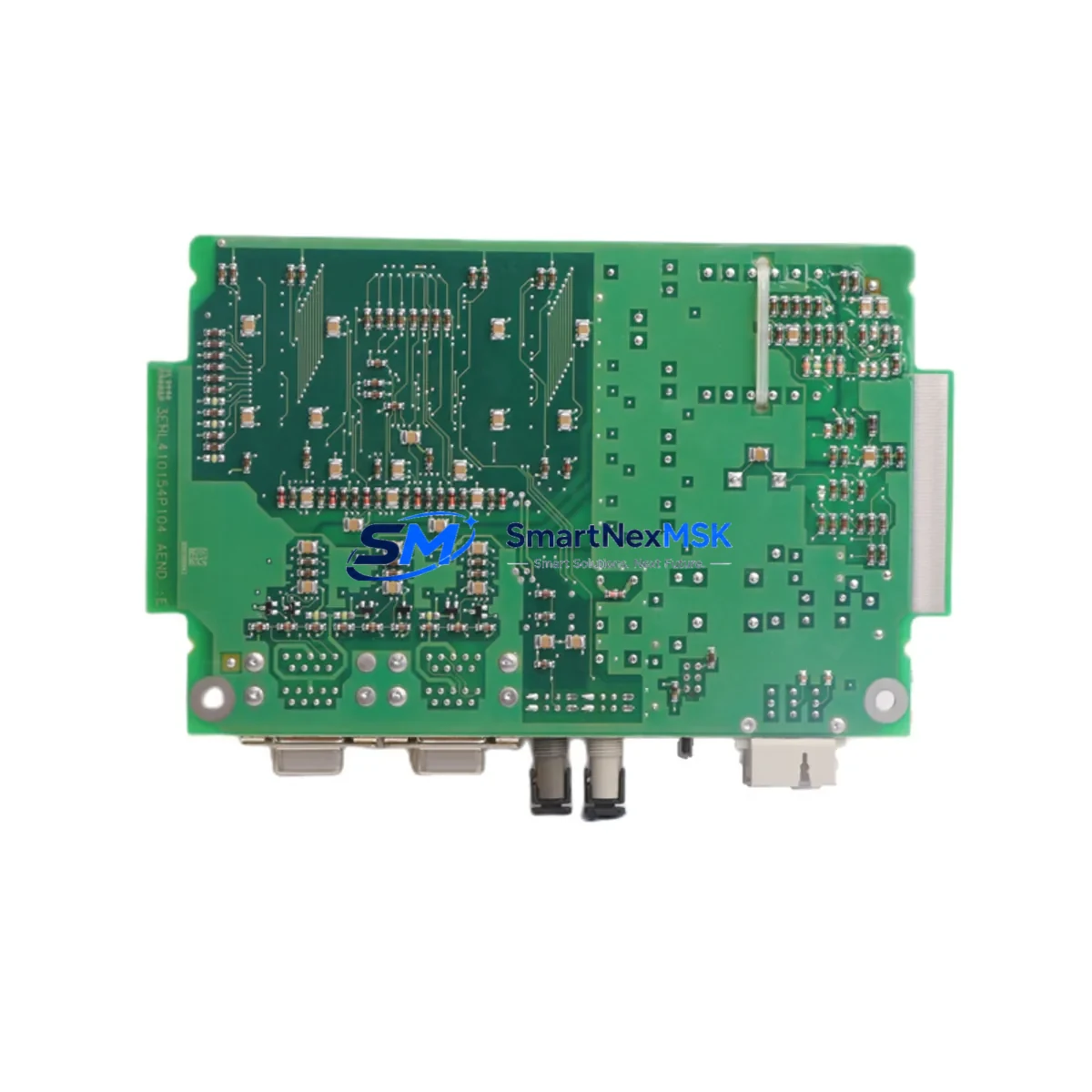

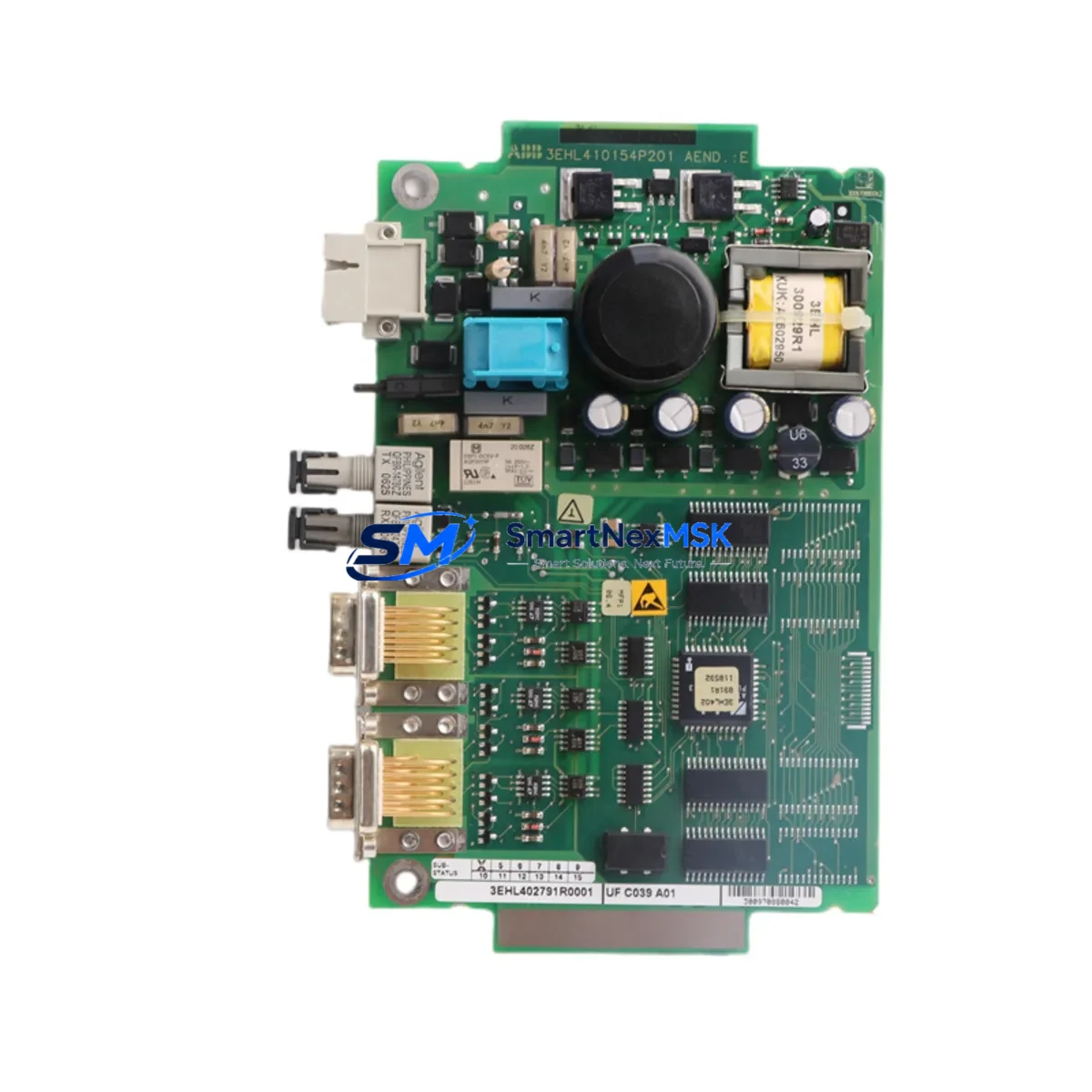

The ABB UFC039A01 (alternate part number 3EHL402791R0001) is an original plug-in communication board designed for the ABB AC800M Distributed Control System platform — one of the most widely deployed DCS architectures in power generation, oil & gas, chemical processing, and heavy manufacturing. Maintaining a verified spare of this module is a critical element of any industrial maintenance strategy where unplanned downtime carries significant operational and financial risk.

This board serves as the communication backbone between the AC800M controller and field devices, I/O buses, or supervisory networks. When this module fails or degrades, the entire control loop it supports can be interrupted, triggering process shutdowns, safety interlocks, or loss of SCADA visibility. Sourcing a pre-tested, original replacement — rather than attempting field repair — is the fastest path to restoring normal operation.

Every UFC039A01 unit shipped by SMARTNEXMSK is inspected, function-tested, and verified against ABB factory specifications before dispatch. Units are packaged in anti-static enclosures with full documentation support. A 12-month warranty is included on all shipments, covering manufacturing defects and functional failures under normal operating conditions.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a UFC039A01 communication board is flagged during routine inspection or generates fault diagnostics on the AC800M engineering station, experienced maintenance engineers know that the communication board itself is rarely the only component requiring attention. A systematic cabinet inspection should accompany any planned replacement.

Begin by verifying the AC800M PM864 or PM866 processor module — the controller CPU that the UFC039A01 plugs into. Communication faults can originate from the processor backplane rather than the board itself. Simultaneously, inspect the TB820V2 or TB840A I/O interface modules connected downstream; degraded I/O modules can generate upstream communication errors that are misattributed to the plug-in board.

Check the SD821 or SD822 power supply modules feeding the AC800M rack. Voltage ripple or marginal power delivery is a leading cause of intermittent communication board failures. Use a calibrated multimeter to verify rail voltages are within ABB-specified tolerances before installing the replacement UFC039A01.

Inspect all PROFIBUS DP trunk cables and connectors at the communication board interface. Damaged shielding, loose 9-pin D-sub connectors, or incorrect termination resistor settings are common root causes of persistent communication faults even after board replacement. Verify bus termination is active only at the two physical ends of the PROFIBUS segment.

For systems using CI854A or CI858 fieldbus communication interfaces in adjacent slots, confirm that these modules are also operating without fault codes. A failing CI854A can create bus contention that stresses the UFC039A01 and accelerates its degradation. Similarly, review the AF100 or FOUNDATION Fieldbus segment health if the plant uses mixed communication architectures.

During cabinet inspection, examine terminal blocks and marshalling wiring for signs of oxidation, loose ferrules, or thermal damage — particularly in high-humidity or high-vibration environments. Verify that signal isolators on analog input channels are functioning correctly, as ground loops introduced through poorly isolated signals can corrupt digital communication on shared backplanes.

Finally, review the AC800M system software version on the engineering workstation. Firmware mismatches between the replacement UFC039A01 and the controller software can cause initialization failures. Confirm compatibility with your ABB System 800xA or Freelance DCS version before commissioning the replacement board.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Download and archive the current AC800M project configuration from the engineering station. Confirm the UFC039A01 slot address and communication parameters (baud rate, node address, bus profile) are documented before powering down.

Step 2 — Safe isolation: Follow your site’s Lockout/Tagout (LOTO) procedure. The AC800M supports hot-swap on some configurations, but verify with your system documentation whether the UFC039A01 slot supports live replacement without controller restart. In most installations, a controlled shutdown of the affected communication segment is recommended.

Step 3 — Physical replacement: Remove the faulty UFC039A01 by releasing the module locking lever and sliding it from the slot. Insert the replacement unit — verify the board seats fully and the locking lever engages. Do not force the module; misalignment can damage backplane connectors.

Step 4 — Configuration restore: Power up the controller and monitor the AC800M diagnostic LEDs. The replacement board should initialize and adopt the stored configuration automatically if the controller project is intact. If the board requires manual address configuration, use the ABB Control Builder engineering tool to assign parameters.

Step 5 — Functional verification: Confirm all PROFIBUS or fieldbus nodes return to active status on the engineering station. Verify I/O values are reading correctly across all connected field devices. Document the replacement in your maintenance management system (CMMS) with the new board serial number and installation date.

Maintaining a UFC039A01 spare on-site reduces mean time to repair (MTTR) from days to hours, protecting production continuity and avoiding costly emergency procurement lead times.

Spare Parts Support FAQ

Q: Is the UFC039A01 compatible with all AC800M controller variants?
A: The UFC039A01 is designed for the AC800M platform and is compatible with PM851, PM856, PM860, PM861, PM864, and PM866 processor modules. Compatibility with specific firmware versions should be verified against your ABB System 800xA release notes. Contact our technical team with your controller firmware version for confirmation before ordering.

Q: How is the UFC039A01 tested before shipment?
A: Every unit undergoes functional testing on an AC800M-compatible test bench prior to dispatch. We verify communication initialization, slot recognition, and basic bus activity. Units that do not pass testing are not shipped. A test report is available upon request for critical installations.

Q: What does the 12-month warranty cover?
A: The warranty covers manufacturing defects and functional failures under normal industrial operating conditions for 12 months from the date of shipment. It does not cover damage caused by incorrect installation, overvoltage events, physical impact, or use outside ABB-specified environmental parameters. Warranty claims are processed with return shipment support.

Q: Can SMARTNEXMSK support long-term or repeat supply of UFC039A01 for multi-site maintenance programs?
A: Yes. We maintain stock and sourcing channels for AC800M spare parts to support planned maintenance schedules, annual procurement contracts, and emergency replenishment. Contact our sales team to discuss volume pricing, reserved stock arrangements, and lead time commitments for your maintenance program.
