ABB UFC092BE01 Maintenance-Ready Spare for Advant DCS

ABB UFC092BE01 Maintenance-Ready Spare for Advant DCS Automation

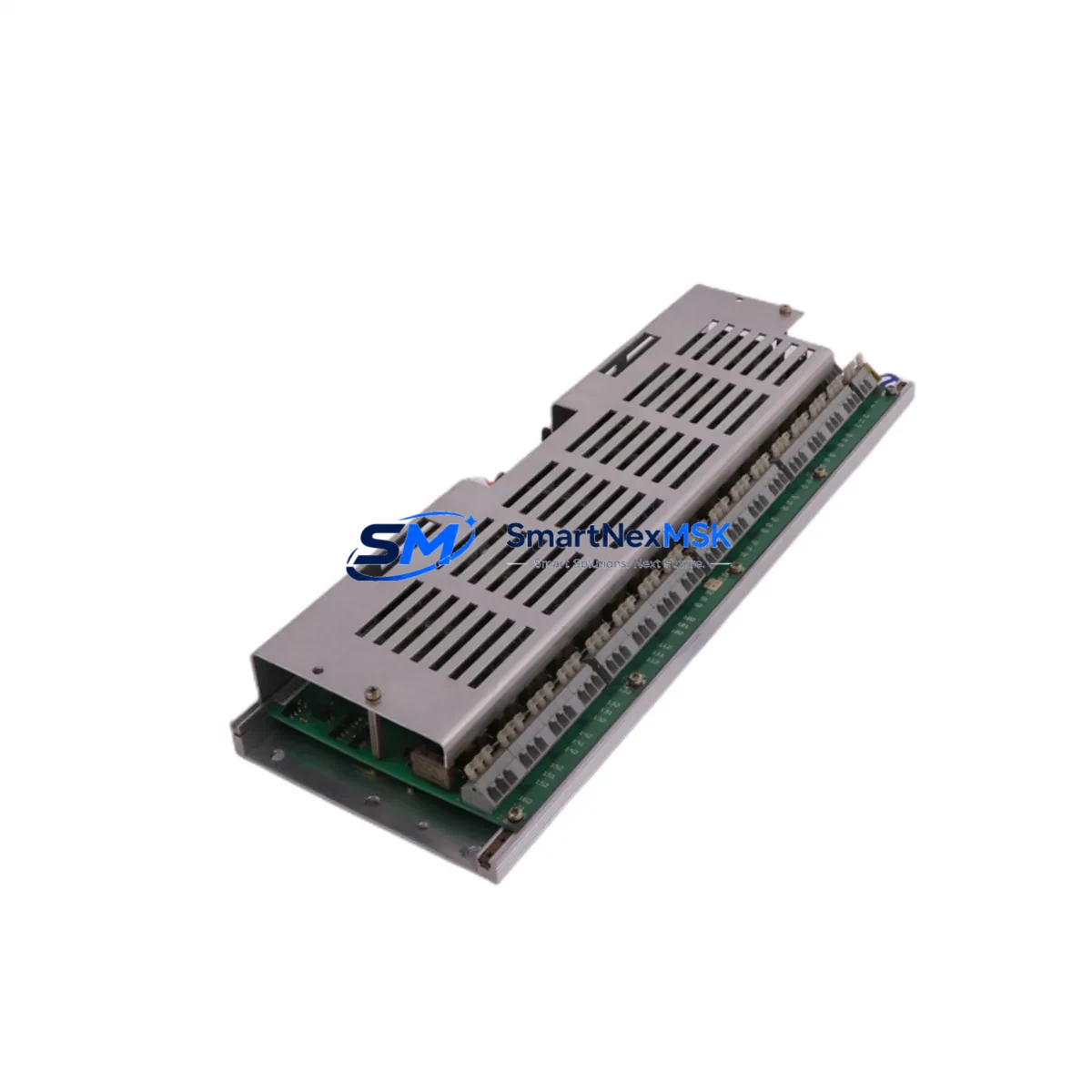

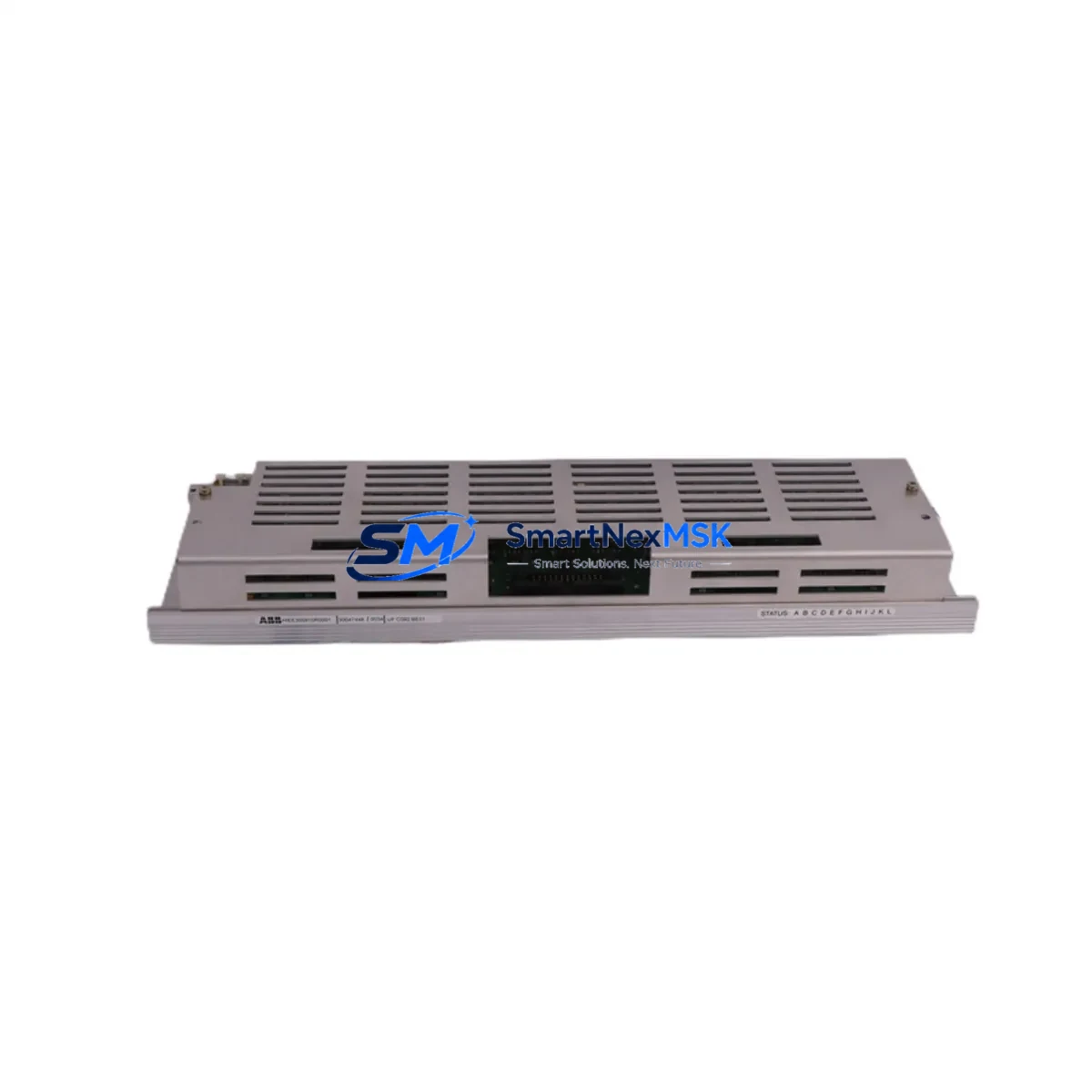

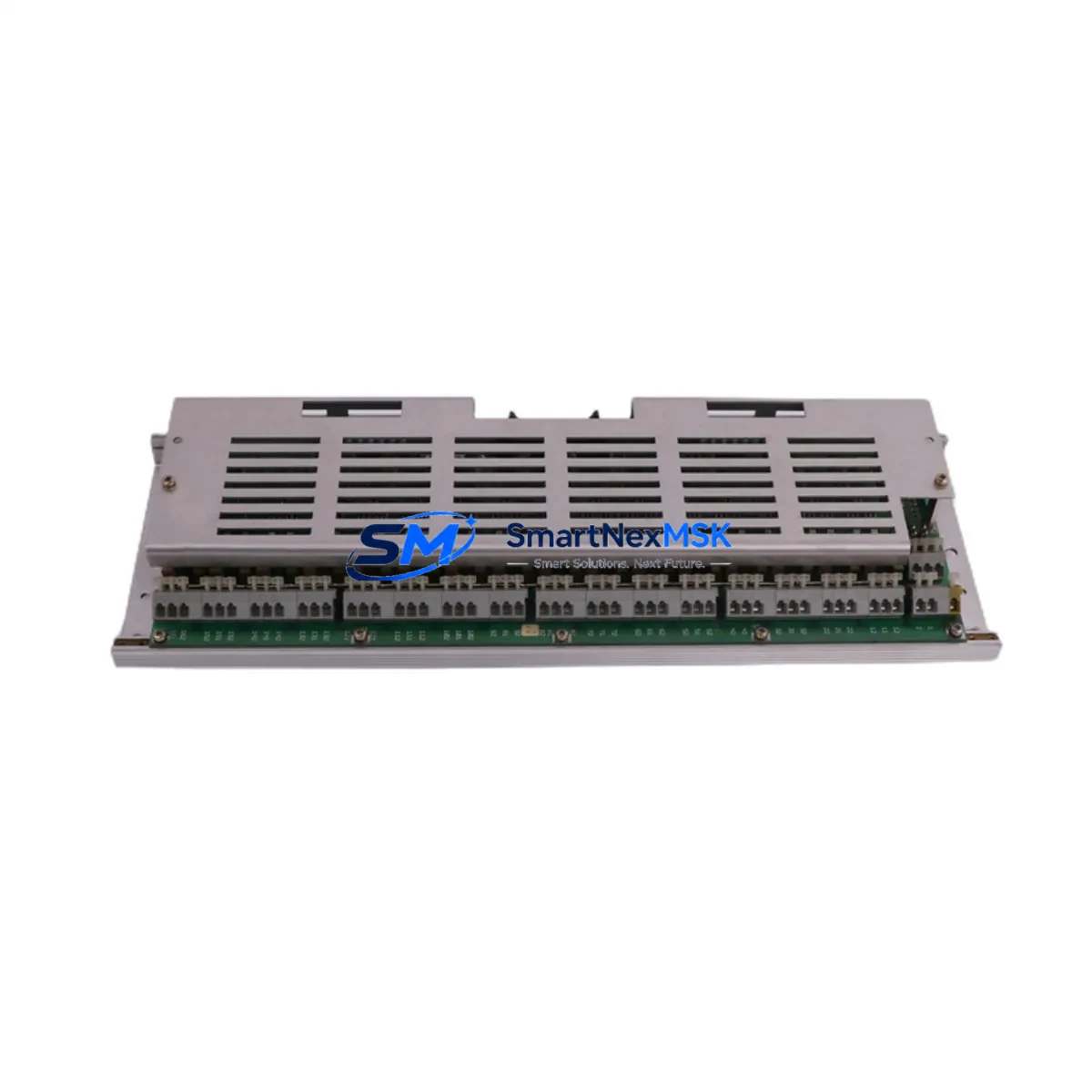

The ABB UFC092BE01 (cross-reference: HIEE300910R0001) is an original binary input module designed for the ABB Advant series distributed control systems, including the AC450 and AC460 controller platforms. As a critical I/O component within the Advant OCS architecture, this module handles discrete signal acquisition from field devices such as limit switches, proximity sensors, valve position feedback, and process interlock circuits. Maintaining a verified spare of the UFC092BE01 in your parts inventory is a proven strategy for minimizing unplanned downtime in continuous process industries including power generation, pulp and paper, chemical processing, and oil and gas.

For maintenance engineers managing aging Advant DCS installations, the UFC092BE01 represents one of the highest-priority modules to stock. Binary input failures are among the most common causes of unexpected shutdowns in legacy DCS environments — a single faulty channel can trigger a cascade of false alarms, interlock trips, or loss of process visibility. Having a tested, ready-to-ship replacement on hand reduces mean time to repair (MTTR) from days to hours.

Each unit supplied by SMARTNEXMSK undergoes functional verification prior to dispatch and is backed by a 12-month warranty. We maintain long-term stock of Advant-series components to support customers through extended system lifecycles and end-of-life procurement challenges.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When scheduling a replacement of the UFC092BE01 binary input module, a thorough site inspection of the surrounding control cabinet is strongly recommended. Experienced maintenance engineers know that a failed I/O module is rarely an isolated event — it often signals broader stress on the electrical environment or aging of adjacent components.

Begin by inspecting the S100 I/O backplane that hosts the UFC092BE01. Backplane connector wear, oxidation, or mechanical damage can cause intermittent faults that mimic module failure. If the backplane shows signs of corrosion or physical stress, plan for its replacement alongside the binary input module.

Check the 24 VDC field power supply feeding the binary input circuits. Voltage ripple or supply instability is a common root cause of spurious input signals and premature module failure. Modules such as the ABB DSDO110 digital output module and DSDP170 pulse counter module sharing the same power rail should be inspected for similar symptoms.

Review the field terminal blocks and wiring harnesses connected to the UFC092BE01. Loose terminations, corroded conductors, or undersized cable cross-sections can introduce noise into binary input channels. Terminal blocks from the Advant S100 series should be torque-checked and visually inspected for insulation degradation.

Evaluate the communication bus integrity between the UFC092BE01 and the AC450 or AC460 controller. The ABB DSMB127 Modulebus coupler and associated bus cables are critical links — a degraded Modulebus connection can cause the controller to lose visibility of entire I/O groups, not just the binary input module. Inspect bus termination resistors and cable shielding.

For sites running the ABB Advant Controller AC450, also verify the status of the DSPC172 or DSPC176 processor modules. A processor nearing end-of-life may generate false diagnostics that are incorrectly attributed to I/O module faults. Keeping a spare processor module in inventory alongside the UFC092BE01 is a best practice for high-availability installations.

Signal isolation should not be overlooked. If the binary input channels interface with field devices operating at different voltage levels or in electrically noisy environments, signal isolators or relay interface modules (such as the ABB DSAI130 analog input module for mixed-signal cabinets) should be checked for proper isolation resistance and contact integrity.

Finally, inspect the cabinet cooling system — fans, filters, and heat exchangers. Elevated ambient temperatures accelerate the aging of all electronic components in the control cabinet, including the UFC092BE01 and neighboring modules such as the DSDP110 digital I/O module and DSDO115 output module. A clean, properly cooled cabinet is the single most effective preventive maintenance measure for extending the service life of Advant DCS hardware.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the failed module’s part number against both the UFC092BE01 label and the HIEE300910R0001 cross-reference. Check the AC450/AC460 controller diagnostic log for the specific channel or group fault code. Document the current I/O configuration and channel assignments before removal.

Step 2 — Safe isolation: Follow your site’s lockout/tagout (LOTO) procedure. De-energize the field supply to the affected I/O group. Do not remove the module under live bus conditions — the S100 Modulebus does not support hot-swap on all firmware revisions.

Step 3 — Module extraction and inspection: Remove the UFC092BE01 from the backplane slot. Inspect the backplane connector for bent pins or debris. Clean the slot with dry compressed air if necessary.

Step 4 — Replacement installation: Insert the new UFC092BE01 / HIEE300910R0001 module firmly into the backplane slot until the locking lever engages. Reconnect field terminal wiring according to the documented channel assignments. Verify terminal torque values per ABB installation guidelines.

Step 5 — System restart and verification: Re-energize the field supply and power up the I/O group. Monitor the AC450/AC460 controller for module recognition and channel status. Verify all binary input channels report correct states against known field device positions before returning the loop to automatic control.

Step 6 — Post-replacement documentation: Record the replacement date, new module serial number, and any observations in your CMMS or maintenance log. Update your spare parts inventory to trigger reorder of a replacement UFC092BE01 for future use.

Spare Parts Support FAQ

Q: Is the UFC092BE01 a direct drop-in replacement for HIEE300910R0001?
A: Yes. UFC092BE01 and HIEE300910R0001 are the same module — UFC092BE01 is the ordering part number and HIEE300910R0001 is the ABB internal hardware reference number. Both designations refer to the identical physical module and are fully interchangeable in Advant AC450 and AC460 systems.

Q: How do you verify the module before shipment?
A: Every UFC092BE01 unit is functionally tested on compatible Advant hardware prior to dispatch. We verify module power-up, bus communication, and channel response. A test report is available upon request. All units ship with a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions.

Q: Can this module be used in both AC450 and AC460 controller systems?
A: Yes. The UFC092BE01 is compatible with the ABB Advant S100 I/O bus architecture used across the AC450 and AC460 platforms. Compatibility with specific firmware revisions should be confirmed against your system’s engineering documentation. Our technical team can assist with compatibility verification prior to purchase.

Q: What is your lead time and long-term supply availability?
A: Units in stock ship within 2 business days. We maintain ongoing inventory of Advant-series modules to support customers through extended system lifecycles. For customers requiring guaranteed long-term supply agreements or bulk spare parts packages, please contact our sales team to discuss dedicated stock arrangements.
