ABB UNS2881B-P 3BHE009319R0001 Safety-Enhanced PC Board

ABB UNS2881B-P 3BHE009319R0001 Safety-Enhanced PC Board: Reliable Excitation Control for Harsh Industrial Sites

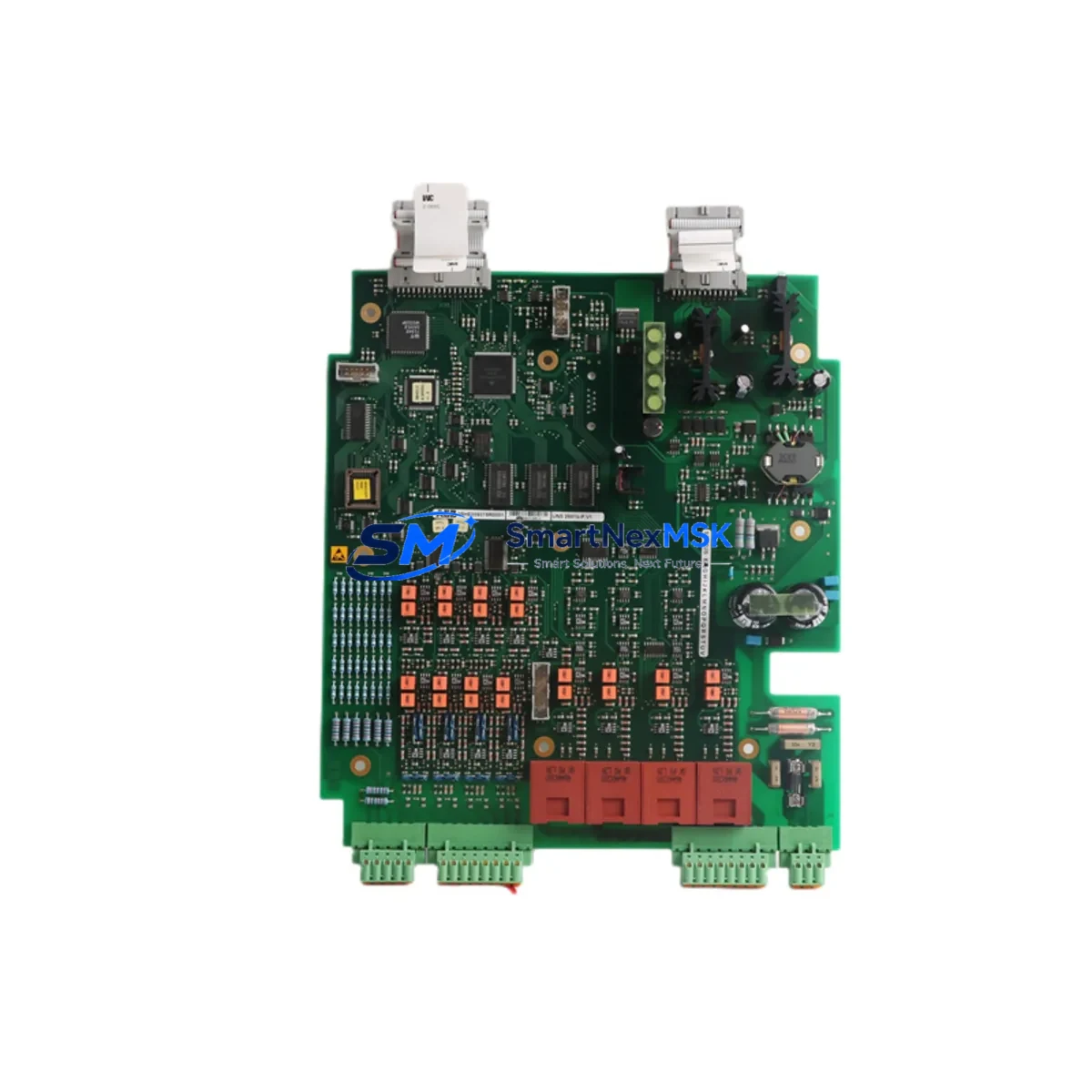

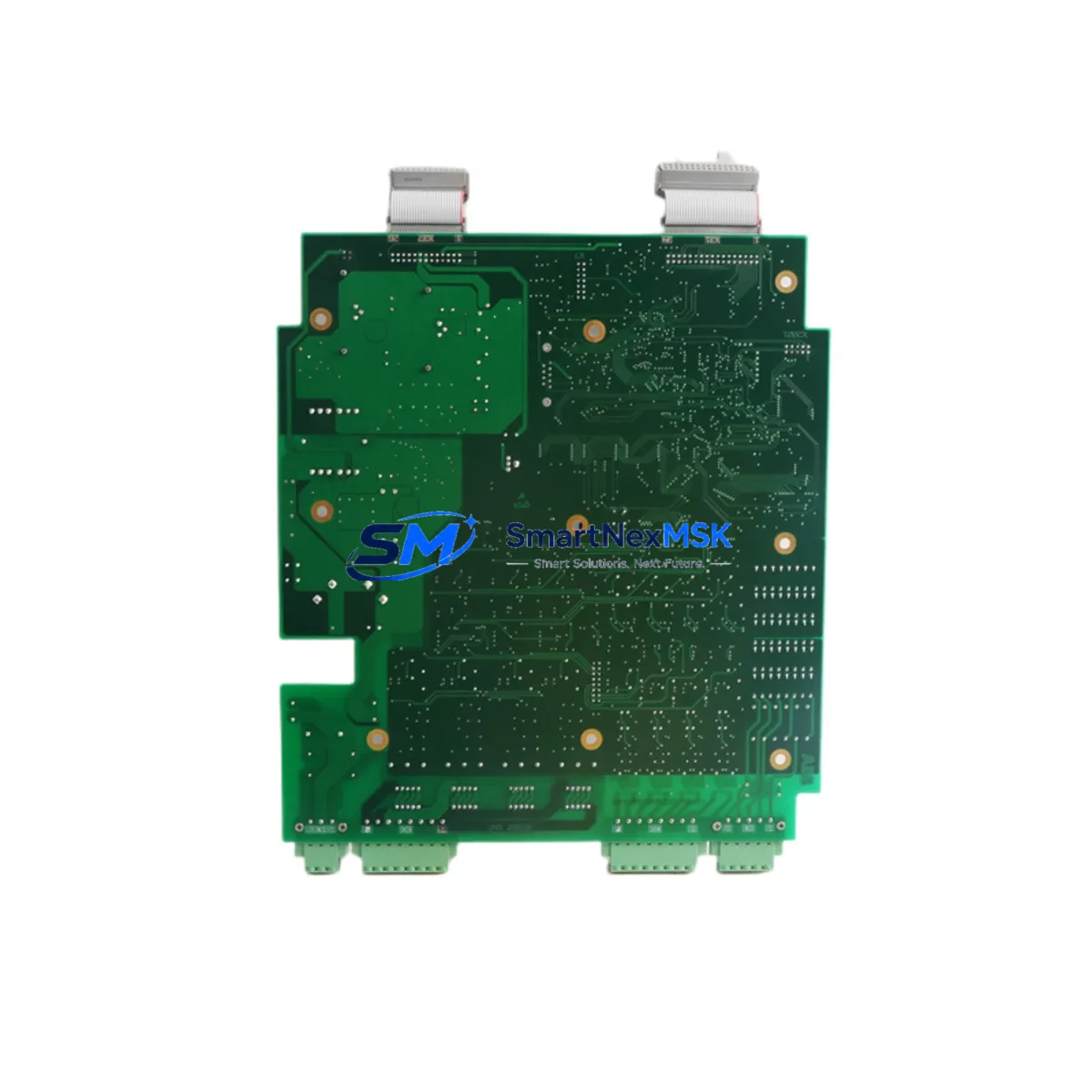

The ABB UNS2881B-P (3BHE009319R0001) is a safety-critical PC board control module engineered for the ABB UNITROL excitation control system — one of the most widely deployed generator excitation platforms in power generation, heavy industry, and critical infrastructure worldwide. Designed to operate continuously in high-load, high-interference environments, this module serves as the core signal processing and regulation board within the UNITROL excitation cabinet, directly governing voltage stability, reactive power output, and generator protection logic.

In demanding industrial environments — including thermal power plants, hydroelectric stations, petrochemical facilities, metallurgical complexes, and offshore platforms — excitation control failures can trigger cascading shutdowns, equipment damage, and safety incidents. The UNS2881B-P addresses these risks through robust hardware design, tight signal integrity, and compatibility with the broader UNITROL protection and control architecture. Its layered EMI shielding and conformal-coated PCB construction ensure stable operation even in the presence of high-frequency switching noise from variable frequency drives, large motor starters, and high-power transformer banks commonly found in the same control cabinet.

Safety Reliability Table

Control Cabinet Protection Strategy

The UNS2881B-P does not operate in isolation — its safety performance is inseparable from the integrity of the surrounding excitation and protection architecture. In a properly configured UNITROL excitation cabinet, this board works in coordination with the ABB UNS0881A-P power interface board, which conditions the AC/DC supply rails feeding the control logic. Upstream, a dedicated ABB UNITROL UNS0776A-P measurement board provides real-time voltage and current feedback signals that the UNS2881B-P processes to maintain tight AVR (Automatic Voltage Regulator) loop stability.

Surge and transient protection is typically handled by coordinated ABB RINT thyristor firing boards and associated RC snubber networks within the power bridge section, preventing voltage spikes from propagating into the sensitive signal processing circuitry of the UNS2881B-P. For communication integrity, the module interfaces with the ABB UNITROL fieldbus communication card (UFC760) or equivalent, enabling real-time diagnostics and remote monitoring via PROFIBUS or Modbus RTU — critical for predictive maintenance in unmanned substations and remote power stations.

Power supply redundancy is a key protection strategy in high-availability installations. Pairing the excitation cabinet with an ABB SDCS-POW-1 or SDCS-POW-4 power supply board ensures that logic supply interruptions — caused by grid disturbances or internal fuse events — do not result in uncontrolled excitation loss. Additionally, ABB UNITROL UNS0882A-P gate driver boards provide the final-stage firing signals to the thyristor bridge, and their health is directly dependent on clean, stable reference signals from the UNS2881B-P. Any signal drift or noise injection at the PC board level can cause misfiring, reactive power oscillation, or generator trip events.

For installations in particularly harsh environments — such as coastal power plants with salt-laden air, or smelting facilities with conductive dust — additional protection measures including ABB IP54-rated enclosure panels and positive-pressure purge systems are recommended to complement the module’s onboard conformal coating. Maintaining a clean, thermally managed cabinet environment is essential to achieving the full rated service life of the UNS2881B-P and its companion boards.

Critical Industrial Safety Applications

The ABB UNS2881B-P 3BHE009319R0001 is deployed across a wide range of safety-critical industrial sectors where generator excitation reliability is non-negotiable:

Thermal & Hydroelectric Power Generation: In grid-connected power stations, the excitation system directly controls generator terminal voltage and reactive power contribution to the grid. A failure of the UNS2881B-P in this context can result in voltage collapse, loss of synchronism, or generator protection relay trips — all of which carry significant safety and financial consequences. The module’s stable AVR loop performance is essential for maintaining grid code compliance under dynamic load conditions.

Petrochemical & Refinery Facilities: Continuous process plants operating in ATEX or IECEx hazardous zones rely on uninterrupted power quality. The UNS2881B-P supports the excitation systems of captive power generators that supply critical process loads — including compressor drives, reactor agitators, and emergency shutdown systems. Any excitation instability in this environment can trigger process upsets with serious safety implications.

Metallurgical & Steel Plants: Arc furnace operations and rolling mill drives impose severe harmonic and reactive power demands on plant generators. The UNS2881B-P’s robust signal processing capability allows the UNITROL system to maintain stable excitation even under rapidly fluctuating load conditions, preventing voltage dips that could disrupt production or damage sensitive downstream equipment.

Mining & Mineral Processing: Remote mine sites with island-mode power generation depend entirely on the reliability of their generator excitation systems. The UNS2881B-P’s proven durability in high-vibration, high-dust environments makes it a preferred replacement module for UNITROL-equipped generators at underground and open-cut mining operations.

Water Treatment & Municipal Infrastructure: Pump stations and water treatment facilities operating critical safety interlocks require excitation systems that maintain voltage stability during motor starting transients. The UNS2881B-P supports reliable AVR response during these high-inrush events, protecting both the generator and the connected process equipment.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the UNS2881B-P 3BHE009319R0001?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions. If the module fails to perform its specified excitation control functions within the warranty period, we provide a replacement or full refund. Warranty claims are processed promptly to minimize your site downtime.

Q2: What pre-shipment testing is performed on this module?
Every UNS2881B-P unit undergoes functional verification testing prior to dispatch, including power-on self-test, signal I/O continuity checks, and visual inspection for PCB defects, component integrity, and connector condition. Units are shipped in ESD-safe anti-static packaging with protective foam inserts to prevent transit damage.

Q3: Is this module compatible with both UNITROL 5000 and UNITROL 6000 excitation systems?
The UNS2881B-P 3BHE009319R0001 is designed for the ABB UNITROL excitation platform. Compatibility with specific system variants (UNITROL 5000, 6000, or earlier generations) should be confirmed against your system’s bill of materials or the original ABB documentation. Our technical team can assist with cross-referencing your system configuration to confirm fit before purchase.

Q4: Can you guarantee long-term supply and replacement support for this module?
Yes. We maintain dedicated stock of ABB UNITROL series modules, including the UNS2881B-P, to support both planned maintenance programs and emergency breakdown situations. Our inventory is sourced from verified supply channels, and we can provide advance procurement for customers managing multi-year maintenance contracts or critical spare parts programs.
