ABB XZC826A102 3BSE036348R0102 Symphony Plus DCS Spare – Rapid Replacement for Industrial Downtime Control

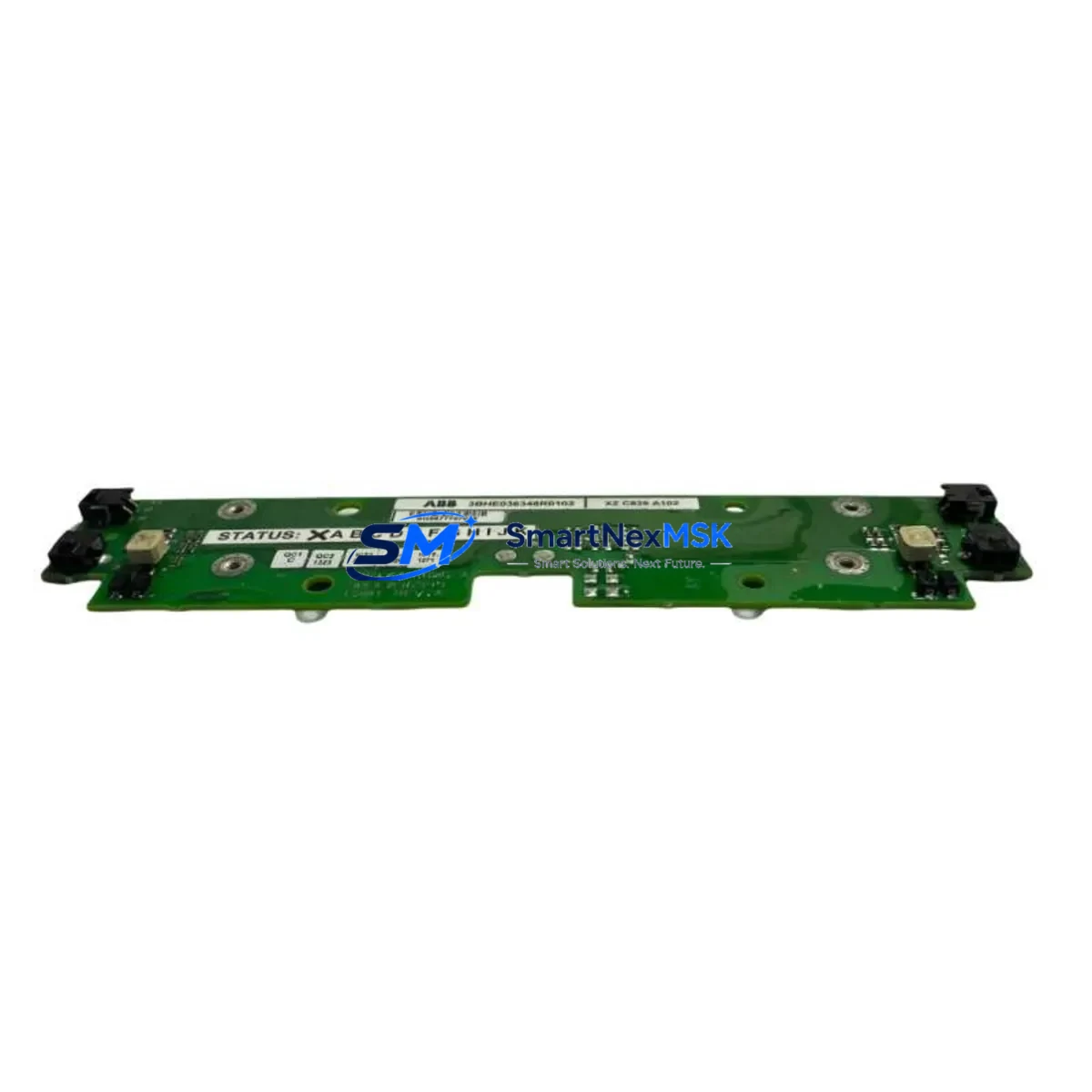

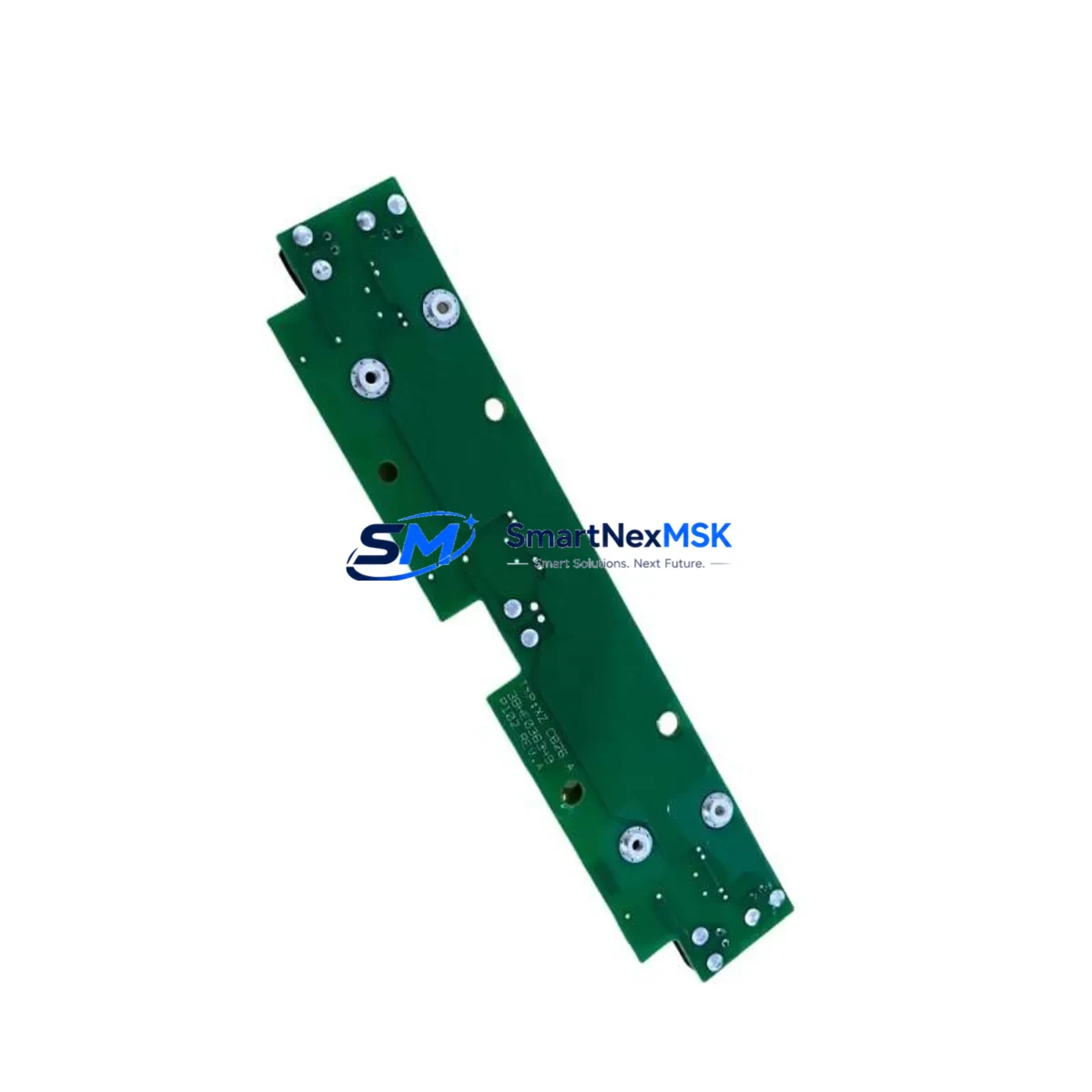

The ABB XZC826A102 (OEM part number 3BSE036348R0102) is an original DCS circuit board designed for ABB Symphony Plus distributed control systems. In process industries where continuous operation is non-negotiable — refining, power generation, pulp and paper, chemical processing — a failed control board can cascade into unplanned shutdowns measured in hours or days. Sourcing a verified, tested replacement from a reliable spare parts supplier is the fastest path back to full production. SMARTNEXMSK maintains ready stock of the XZC826A102 3BSE036348R0102, pre-tested before shipment and backed by a 12-month warranty, to support maintenance engineers and procurement teams who cannot afford to wait on OEM lead times.
Spare Maintenance Table
| Parameter | Specification / Detail |
|---|---|
| Part Number | XZC826A102 |
| OEM Reference | 3BSE036348R0102 |
| Brand | ABB |
| Series | Symphony Plus (S+) |
| Product Type | DCS Circuit Board / Control Module |
| Compatible System | ABB Symphony Plus DCS, Harmony Series |
| Installation | Rack-mount, Symphony Plus backplane compatible |
| Operating Environment | Industrial control cabinet, 0–55 °C, IEC 61131-2 compliant |
| Origin | China (CN) |
| Condition | Original, new or refurbished-tested |
| Pre-shipment Test | Function-verified before dispatch |
| Warranty | 12 Months |
| Lead Time | In stock – ships within 1–3 business days |
| Maintenance Recommendation | Inspect backplane connectors, power rail voltage, and adjacent I/O modules during replacement |
Maintenance Planning for Continuous Operation
When a Symphony Plus DCS circuit board such as the XZC826A102 3BSE036348R0102 is flagged for replacement, experienced maintenance engineers treat the event as a trigger for a broader cabinet inspection rather than a single-component swap. The board interfaces directly with the Symphony Plus backplane, and any degradation in the backplane connectors or power distribution rail can cause premature failure of the replacement module. Before installing the new board, verify that the PM865 or PM891 processor module in the same rack is operating within normal CPU load and memory parameters — a stressed processor can mask or amplify board-level faults.
Check the SD821 or SD822 power supply module output voltages under load; an out-of-tolerance supply is a common root cause of repeated board failures. Inspect the TB820 or TB840 ModuleBus optical interface for signal integrity, as communication errors between the board and the fieldbus segment can be misdiagnosed as board failure. If the system includes CI854 or CI857 PROFIBUS/PROFINET communication interface modules, verify their diagnostic LEDs and event logs — a communication module fault can propagate alarms that appear to originate from the circuit board under review.
For I/O-intensive cabinets, inspect the AI810, AO810, DI810, or DO810 I/O modules on adjacent slots. Loose terminal connections or oxidized contacts on these modules can introduce ground loops or signal noise that stress the control board. Signal isolators and HART multiplexers in the same loop should also be checked for proper grounding. Fuse holders and miniature circuit breakers (MCBs) on the 24 VDC distribution rail are frequently overlooked during board replacements; a marginal fuse can cause intermittent power interruptions that corrupt board initialization. Finally, if the installation includes an OPC800 or AC800M controller in a hybrid architecture, confirm that the firmware version on the replacement board is compatible with the controller’s current software revision before commissioning.
Maintaining a minimum of one spare XZC826A102 3BSE036348R0102 in the site spare parts inventory — alongside spares for the power supply, communication interface, and key I/O modules — is the most cost-effective strategy for reducing mean time to repair (MTTR) in Symphony Plus installations.
Site Replacement Workflow
Step 1 – Isolation: Follow the site’s lockout/tagout (LOTO) procedure. Place the affected control loop in manual mode at the DCS operator station before removing power from the rack slot.
Step 2 – Documentation: Record the existing board’s firmware label, hardware revision, and any DIP switch or jumper settings. Photograph the wiring and terminal assignments before disconnection.
Step 3 – Removal: Release the board retaining latch, extract the XZC826A102 from the backplane slot, and place it in an ESD-safe bag for return or failure analysis.
Step 4 – Inspection: Inspect the backplane connector pins for corrosion or mechanical damage. Clean with isopropyl alcohol if required. Verify slot power rail voltage before insertion.
Step 5 – Installation: Insert the replacement 3BSE036348R0102 board, confirm the retaining latch engages, and restore rack power. The Symphony Plus system should auto-detect the module and load the configuration from the controller database within 60–90 seconds.
Step 6 – Commissioning: Verify all I/O channel diagnostics are clear in the DCS engineering workstation. Return the control loop to automatic mode and monitor for 15–30 minutes. Log the replacement in the site CMMS with the new board serial number and warranty start date.
This workflow minimizes downtime, preserves system compatibility, and ensures the replacement is fully traceable for future maintenance audits.
Spare Parts Support FAQ
Q1: Is the XZC826A102 3BSE036348R0102 compatible with all Symphony Plus system versions?
The XZC826A102 is designed for ABB Symphony Plus (S+) DCS platforms. Compatibility with specific firmware or hardware revisions of the Symphony Plus controller should be confirmed against the ABB system release notes or by contacting our technical team before ordering. We provide compatibility verification support as part of our pre-sales process.
Q2: What pre-shipment testing is performed on this board?
Every XZC826A102 3BSE036348R0102 unit shipped by SMARTNEXMSK undergoes functional verification testing before dispatch. Test records are available upon request. Units are packed in ESD-safe, anti-static packaging with humidity indicators to protect against transit damage.
Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage events, or physical mishandling. Warranty claims are processed with a replacement-first policy to minimize your downtime.
Q4: Can SMARTNEXMSK support long-term or blanket spare parts orders for Symphony Plus systems?
Yes. We support long-term supply agreements for maintenance teams managing aging Symphony Plus installations. Contact our sales team to discuss scheduled delivery, consignment stock arrangements, and volume pricing for multi-site spare parts programs.
