ABB YXU170E YT204001-JH Spare for YU Series Automation

ABB YXU170E YT204001-JH Spare for YU Series Automation: Spare Parts Replacement & Industrial Downtime Risk Control

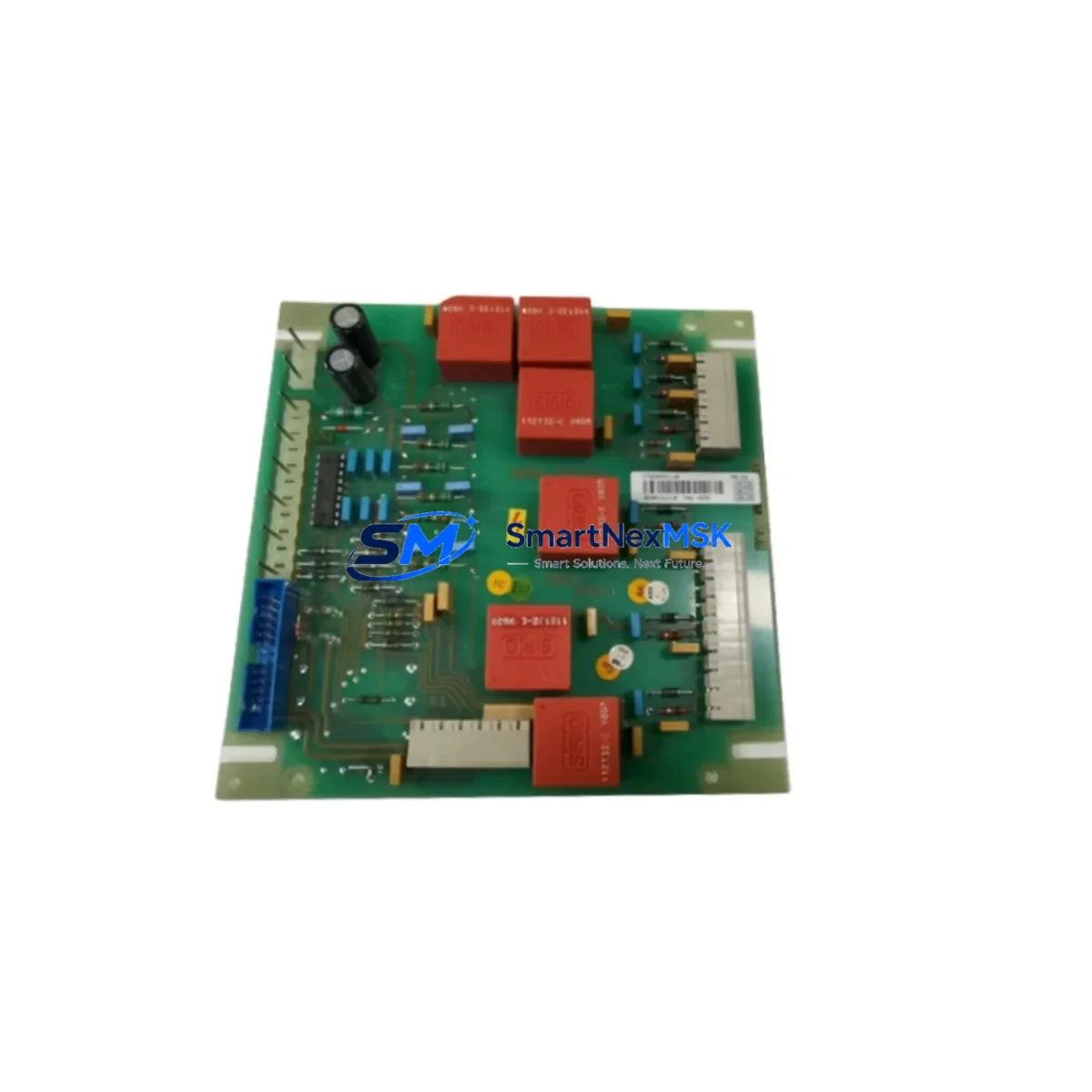

The ABB YXU170E (part number YT204001-JH) is an original control board designed for ABB’s YU Series automation and DCS/PLC control systems. As a critical processing and signal management component within the control cabinet, this board governs I/O coordination, internal bus communication, and system logic execution. When this board fails or degrades, the result is unplanned downtime — a risk that maintenance engineers and procurement teams must actively mitigate through proactive spare parts inventory management.

This listing provides a maintenance-ready, tested, and warranted replacement unit for the ABB YXU170E YT204001-JH, sourced to support fast field replacement, planned overhaul cycles, and long-term system continuity for aging YU Series installations.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or reliability engineer schedules replacement of the ABB YXU170E YT204001-JH control board, the scope of inspection should extend well beyond the board itself. A control board failure in a YU Series cabinet is rarely an isolated event — it is often preceded or accompanied by stress on adjacent components that share the same power rail, backplane, or signal loop.

Begin with the 24VDC power supply module feeding the control rack. Voltage ripple or transient spikes are a leading cause of premature control board failure; verify output stability with a calibrated meter before installing the replacement YXU170E. If the power supply is original to the system and has been in service for more than five years, treat it as a co-replacement candidate alongside the YT204001-JH board.

Next, inspect the backplane or bus termination board within the YU Series rack. Oxidized or damaged backplane connectors can cause intermittent communication faults that are misdiagnosed as board failures. Clean or replace the backplane connector strip as part of the same maintenance window.

The I/O modules connected to the YXU170E — both digital input (DI) and digital output (DO) cards — should be checked for channel faults, blown output drivers, and loose field wiring terminations. An I/O module with a shorted output channel can place excessive load on the control board’s bus interface, accelerating wear. ABB YU Series analog input (AI) and analog output (AO) modules in the same rack should also be verified for signal drift.

Review the communication module (PROFIBUS, MODBUS, or proprietary ABB fieldbus depending on system configuration) installed in the same cabinet. A degraded communication module can generate bus errors that are logged against the control board, masking the true fault source. Replacing the YXU170E without addressing a failing communication module will result in recurring alarms.

Inspect all terminal blocks and field wiring connections on the I/O marshalling panel. Loose or corroded terminals introduce resistance that distorts signal levels and can cause the control board to log spurious faults. Torque-check all terminal screws and apply contact protection spray where corrosion is present.

If the cabinet includes signal isolators or signal conditioners between field instruments and the I/O cards, verify their output ranges are within specification. A drifting isolator can cause the control board to receive out-of-range signals, triggering protective shutdowns that appear to originate from the board itself.

Check the fuse holders and miniature circuit breakers (MCBs) protecting the 24VDC distribution rail. Fuses that have experienced repeated overcurrent events may have degraded elements that pass continuity tests but fail under load. Replace suspect fuses as a precaution during the same maintenance window.

Finally, if the system includes an HMI panel or operator station communicating with the YU Series controller, verify that the HMI communication link is restored and functioning correctly after the YXU170E replacement. A communication timeout between the HMI and the new board is a common post-replacement issue caused by node address or baud rate mismatch — resolve this before returning the system to production.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Confirm the replacement unit SKU (YXU170E / YT204001-JH) matches the installed board label. Cross-reference the ABB YU Series hardware manual for slot position, jumper settings, and firmware version compatibility. Document the current system configuration and alarm status before powering down.

Step 2 — Safe Isolation: Follow your site’s lockout/tagout (LOTO) procedure. De-energize the control cabinet and discharge any residual voltage on the backplane bus. Ground yourself with an ESD wrist strap before handling the board.

Step 3 — Board Removal and Inspection: Remove the faulty YXU170E by releasing the front-panel locking levers and sliding the board out of the rack. Inspect the backplane connector on the removed board for bent pins or burn marks. Inspect the rack slot for debris or damage before inserting the replacement.

Step 4 — Replacement Installation: Insert the new YXU170E YT204001-JH into the correct rack slot, ensuring full backplane engagement. Secure the front-panel locking levers. Restore power and observe the board’s status LEDs during initialization — a solid green RUN indicator confirms successful startup.

Step 5 — System Verification: Confirm all I/O channels are reporting correctly on the HMI or engineering workstation. Clear any latched alarms generated during the fault period. Run a functional test of all outputs controlled by this board before returning the system to automatic operation.

Step 6 — Documentation: Record the replacement in the maintenance log, including the date, technician name, old board serial number, and new board serial number. Update the spare parts inventory to trigger reorder of a replacement YXU170E unit, maintaining minimum stock levels for this critical component.

Spare Parts Support FAQ

Q1: What is the warranty coverage for the ABB YXU170E YT204001-JH spare?
All units supplied through this listing carry a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failures under normal operating conditions. Each unit is tested before dispatch to verify basic electrical functionality. If a unit fails within the warranty period, contact sales@smartnexmsk.com for replacement or credit arrangements.

Q2: How do I verify compatibility before ordering?
Confirm the part number on the installed board label matches YXU170E / YT204001-JH exactly. Cross-reference with your ABB YU Series system documentation or hardware BOM. If you are unsure about firmware version requirements or rack slot compatibility, share your system configuration details with our technical team before placing the order. We recommend keeping a photograph of the installed board label for reference.

Q3: How many units should I stock for a critical YU Series installation?
For a single YU Series control system, a minimum of one spare YXU170E YT204001-JH is recommended. For multi-cabinet or redundant controller configurations, maintain two units. Given the age profile of many YU Series installations and the risk of extended lead times for legacy ABB boards, procurement engineers should consider a two-unit buffer stock to cover both emergency replacement and planned overhaul cycles without supply chain exposure.

Q4: What pre-shipment testing is performed on each unit?
Each ABB YXU170E YT204001-JH unit undergoes visual inspection for physical damage, connector integrity check, and basic power-on functional verification prior to packaging. Units that do not pass inspection are not shipped. Packaging includes ESD-protective bags and foam cushioning to prevent transit damage. A test report is available upon request for critical applications requiring documented quality evidence.
