ABB ZGAD-582 Safety-Enhanced IGBT Gate Driver for Harsh Sites

ABB ZGAD-582 Safety-Enhanced IGBT Gate Driver for Harsh Industrial Sites

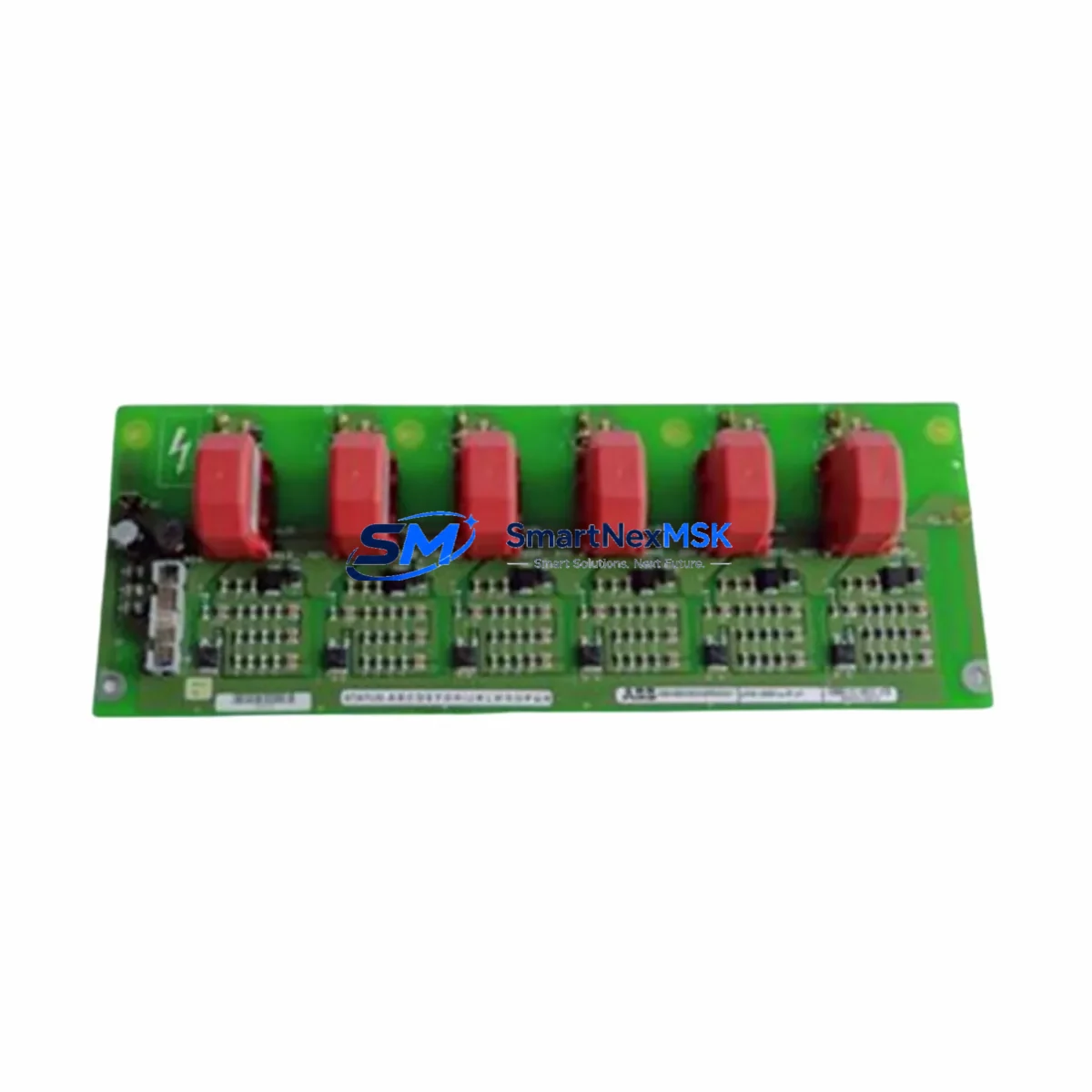

The ABB ZGAD-582 is a precision-engineered IGBT Gate Driver Board designed for deployment within ABB ACS800 series AC variable frequency drives. Built to operate reliably in high-load, high-interference, and continuous-production industrial environments, the ZGAD-582 serves as a critical safety component within the drive’s power conversion stage. Its primary function is to translate low-voltage control signals into the precise gate pulses required to switch high-power IGBT modules safely and efficiently — a role that directly determines whether a drive continues to run or trips under fault conditions.

In heavy industrial settings such as petrochemical plants, steel mills, mining hoists, port crane systems, and water treatment facilities, the integrity of the IGBT gate drive circuit is non-negotiable. A degraded or failed gate driver can cause uncontrolled IGBT switching, shoot-through faults, DC bus overvoltage, or catastrophic module failure — all of which translate to unplanned downtime, equipment damage, and potential safety incidents. The ZGAD-582 is engineered to prevent exactly these failure modes.

Safety Reliability Table

Control Cabinet Protection Strategy

The ZGAD-582 does not operate in isolation — it is one node in a layered protection architecture that spans the entire ACS800 drive cabinet and the broader control system. In a properly configured industrial control cabinet, the gate driver works in concert with the ABB ACS800 AINT-02C Inverter Control Board, which generates the PWM reference signals that the ZGAD-582 translates into gate pulses. Any signal integrity issue between these two boards — caused by connector oxidation, EMI coupling, or power supply ripple — can result in asymmetric switching and thermal stress on the IGBT modules themselves.

Upstream of the gate driver, the ABB PSU-A1 auxiliary power supply board provides the isolated ±15 V rails that the ZGAD-582 depends on for its internal logic and gate charge circuits. A degraded PSU-A1 with excessive ripple or voltage droop will directly impair gate drive performance, increasing switching losses and raising junction temperatures in the IGBT stack. Pairing a replacement ZGAD-582 with a verified PSU-A1 is therefore a recommended practice during any drive overhaul.

On the measurement and feedback side, the ABB AITC-01 current transducer module and associated LEM HAL current sensors feed real-time phase current data back to the drive’s control layer. If these sensors drift or fail, the drive’s overcurrent protection may not respond correctly to fault conditions — placing additional stress on the gate driver to manage abnormal switching events without proper current limiting. Ensuring sensor calibration is part of any safety-critical maintenance cycle involving the ZGAD-582.

For drives installed in environments with significant conducted EMI — such as near large motor starters, welding equipment, or variable-speed compressors — the addition of ABB-compatible line reactors and du/dt output filters on the motor cable side significantly reduces the reflected wave stress that propagates back into the inverter stage and stresses the gate driver circuitry. Similarly, EMC input filters on the supply side protect the drive’s internal power electronics from grid-borne transients and harmonic disturbances.

In safety interlock architectures, the ACS800 drive’s Safe Torque Off (STO) function interfaces with the gate driver enable circuit. The ABB FSIO-21 safety I/O module or equivalent SIL-rated safety relay — such as a Pilz PNOZ X series or Schneider Preventa XPS safety relay — is typically wired into the STO input chain. A properly functioning ZGAD-582 ensures that when the STO signal is asserted, gate pulses are suppressed immediately and reliably, preventing unintended motor torque in emergency stop or guarding scenarios.

Critical Industrial Safety Applications

The ABB ZGAD-582 is deployed across a wide range of safety-critical and continuous-process industrial applications where drive reliability directly impacts operational safety and production continuity.

Petrochemical and Refinery Plants: In hazardous area pump and compressor drives, the ZGAD-582 ensures that ACS800 drives controlling cooling water pumps, feed pumps, and blower systems maintain uninterrupted operation. A gate driver failure in this context can trigger emergency shutdowns that require complex restart procedures and may compromise process safety systems.

Electric Power Generation and Transmission: In power plant auxiliary systems — including boiler feed pumps, induced draft fans, and forced draft fans — ACS800 drives with ZGAD-582 gate driver boards must sustain continuous operation across wide load ranges. The board’s desaturation protection prevents IGBT shoot-through events that could cascade into transformer or switchgear faults.

Mining and Mineral Processing: Hoist drives, conveyor drives, and crusher motor controllers in underground and open-pit mining environments subject drive electronics to extreme vibration, dust ingress, and wide temperature swings. The ZGAD-582’s conformal-coated PCB and robust gate isolation circuitry are specifically suited to these demanding conditions.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities rely on ACS800-driven pumps and aerators for continuous 24/7 operation. Unplanned drive failures in these facilities can result in regulatory non-compliance and environmental incidents. The ZGAD-582 supports predictive maintenance strategies by enabling like-for-like board replacement without full drive changeout.

Metallurgy and Steel Production: Rolling mill drives, ladle transfer cars, and furnace exhaust fan drives in steel plants operate under extreme thermal and electrical stress. The ZGAD-582’s ability to handle high gate charge currents and suppress voltage transients makes it a reliable choice for these high-duty-cycle applications.

Port and Material Handling: Container crane drives, ship loader conveyors, and bulk material handling systems require drives that can handle frequent acceleration and deceleration cycles without gate driver degradation. The ZGAD-582 supports these dynamic load profiles while maintaining switching accuracy across thousands of operating hours.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the ZGAD-582?
The 12-month warranty covers all manufacturing defects, component failures, and functional non-conformances identified under normal operating conditions consistent with the ACS800 drive platform specifications. If the board fails to perform its gate drive function within the warranty period due to a product defect, SMARTNEXMSK will provide a replacement unit. The warranty period begins from the date of confirmed shipment.

Q2: How is the ZGAD-582 tested before shipment?
Every ZGAD-582 unit undergoes a 100% pre-shipment functional verification process. This includes visual inspection for PCB defects, connector integrity checks, and electrical testing to confirm gate signal output characteristics and isolation resistance. Units that do not pass all test criteria are quarantined and not dispatched. A test record is maintained for each shipped unit.

Q3: Is the ZGAD-582 a direct drop-in replacement for the original ABB board?
Yes. The ZGAD-582 is an OEM-specification board designed for direct plug-in replacement within compatible ABB ACS800 drive frames. No firmware changes, parameter adjustments, or mechanical modifications are required for standard installations. Compatibility should be confirmed against the specific ACS800 frame size and software version in use at your site — our technical team can assist with compatibility verification prior to order.

Q4: Can SMARTNEXMSK support long-term and repeat supply of the ZGAD-582?
Yes. SMARTNEXMSK maintains dedicated stock of the ZGAD-582 and other ACS800 spare parts to support ongoing maintenance programs, planned shutdowns, and emergency replacement requirements. We can accommodate blanket purchase orders, scheduled deliveries, and priority dispatch arrangements for customers with critical spare parts programs. Contact our sales team to discuss supply agreements tailored to your maintenance schedule.
