ABB ZINT-592 Retrofit-Ready PROFIBUS DP Adapter for ACS800

ABB ZINT-592 Retrofit-Ready PROFIBUS DP Adapter for ACS800 Control Systems

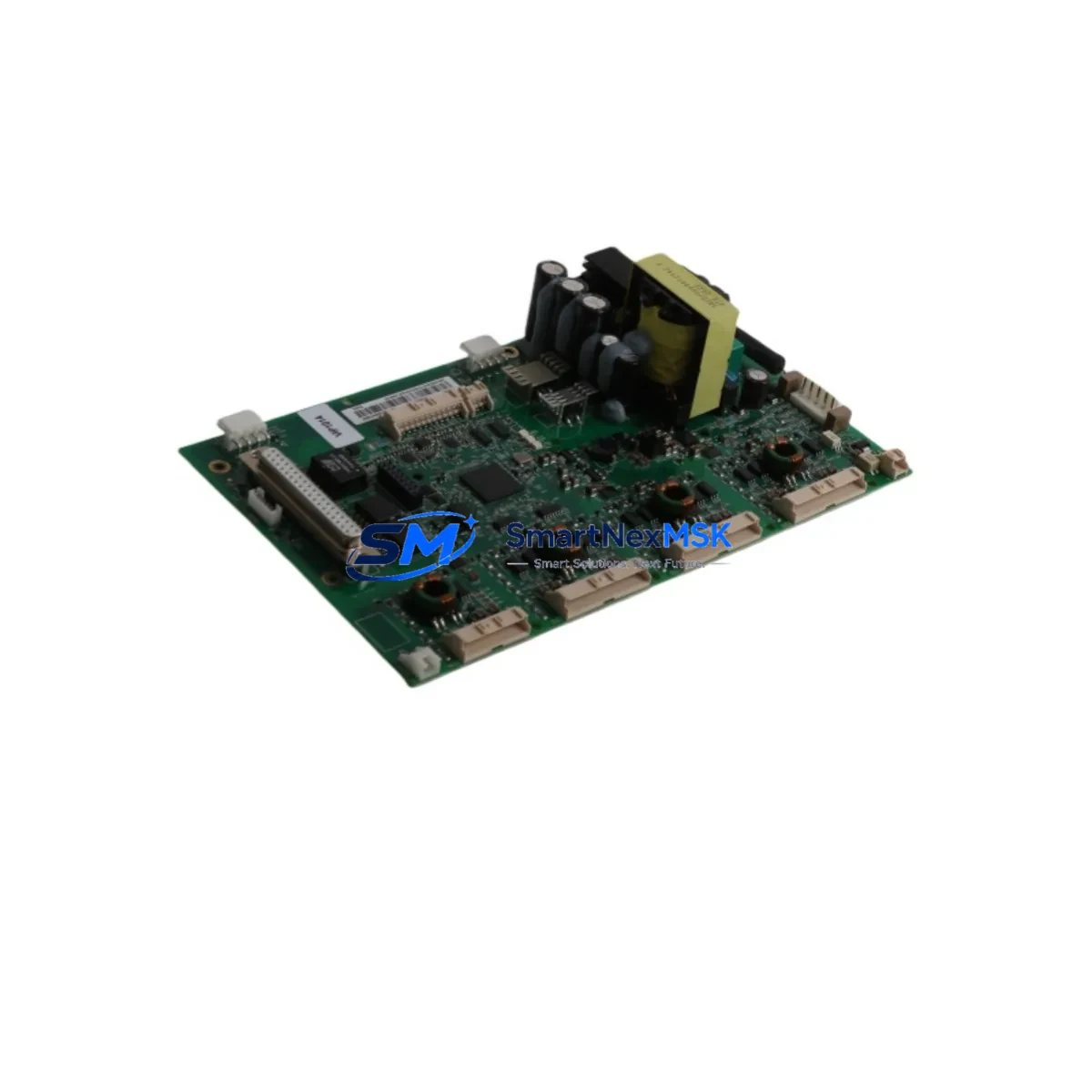

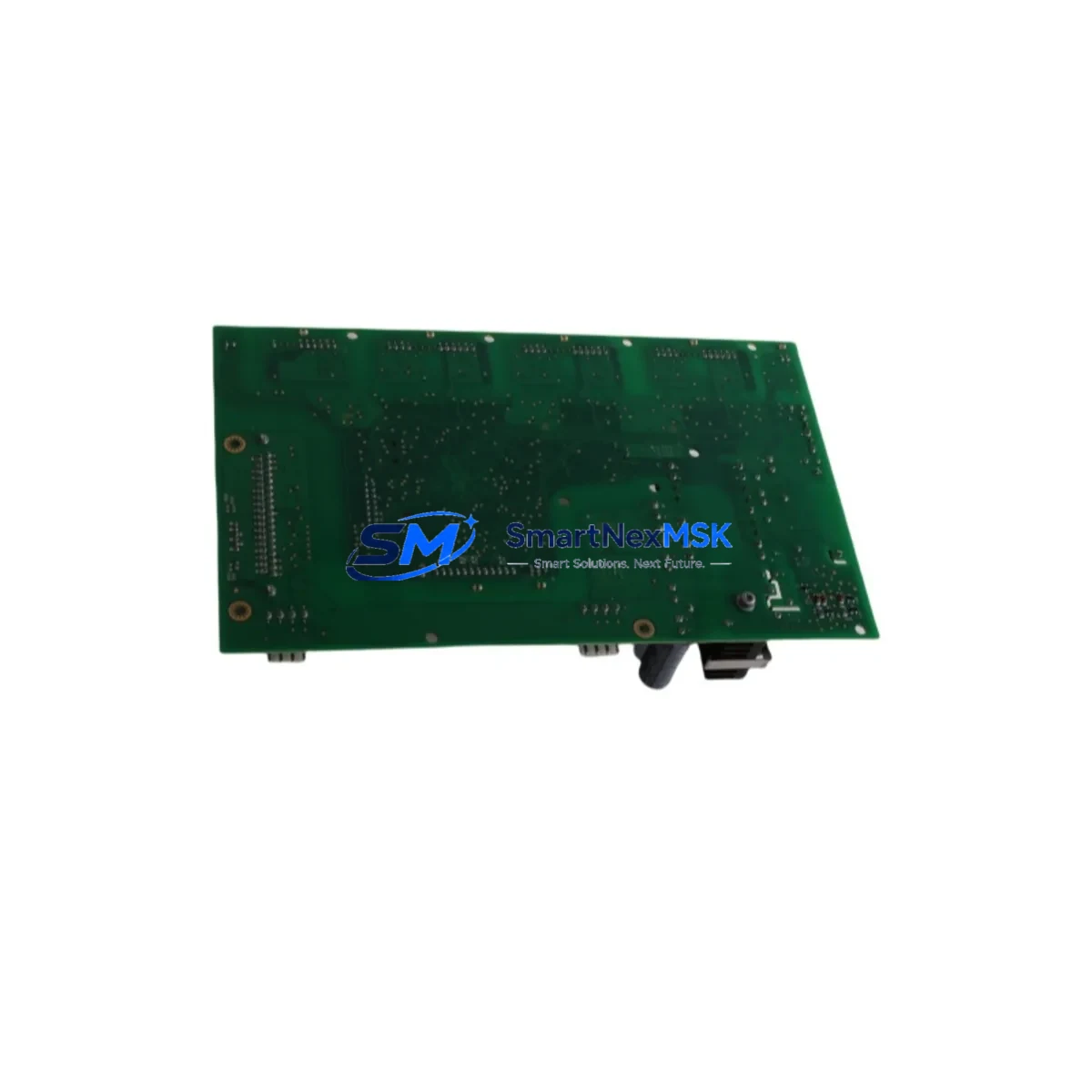

The ABB ZINT-592 (part number 3AUA0000103603) is a PROFIBUS DP fieldbus adapter module designed for seamless integration into ABB ACS800 series variable-speed drives. As legacy automation systems approach end-of-life and original spare parts become increasingly scarce, the ZINT-592 remains one of the most sought-after retrofit components for engineers tasked with modernizing existing drive infrastructure without replacing the entire control cabinet. Whether you are managing a planned upgrade cycle or responding to an unplanned failure of a discontinued fieldbus card, the ZINT-592 provides a direct, compatible replacement path that preserves your existing PROFIBUS DP network topology and minimizes engineering rework.

In retrofit and upgrade projects, the ZINT-592 is typically installed into the option slot of the ACS800 drive — Slot 1 or Slot 2 depending on the existing configuration — and communicates with the host PLC or DCS via a standard 9-pin D-sub PROFIBUS connector. Before installation, engineers should verify the drive’s firmware version to confirm compatibility with the adapter’s parameter set. The ZINT-592 operates using the standard ABB fieldbus adapter protocol, and its PROFIBUS DP node address is configured via the drive’s parameter group 51 (Fieldbus Adapter). When replacing a failed or obsolete ZINT-592 or an earlier-generation NPBA-12 PROFIBUS adapter, the parameter group settings can typically be transferred directly from a backup file, significantly reducing commissioning time on the plant floor.

Power for the ZINT-592 is drawn from the drive’s option slot backplane — no external 24 VDC supply is required. This simplifies wiring in retrofit scenarios where cabinet space is limited and terminal block real estate is already committed to existing I/O wiring. Engineers should confirm that the ACS800 control board (typically the RMIO board) is in good condition and that the option slot connector is free of corrosion or mechanical damage before seating the new adapter. A visual inspection of the backplane interface pins is recommended as part of any planned maintenance or emergency replacement procedure.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the ZINT-592 into an existing automation system requires a structured approach that accounts for the full scope of the control architecture. In a typical ACS800-based drive system, the ZINT-592 sits at the intersection of the PLC network and the drive’s internal control logic. Before beginning the retrofit, the project engineer should document the existing PROFIBUS DP segment topology, including the master station (commonly a Siemens S7-300 or S7-400 PLC with a CP 342-5 or CP 443-5 communication processor), all slave node addresses, and the GSD file version currently loaded in the PROFIBUS configuration tool such as STEP 7 or TIA Portal.

In many legacy installations, the ACS800 drive is paired with an ACS800 control panel (CDP312R or ACS-CP-C) for local parameter access and fault diagnostics. During the adapter swap, the panel should remain connected to allow real-time monitoring of drive status. If the site uses a remote I/O expansion rack — for example, an AIMA-01 I/O extension module or a RDIO-01 digital I/O extension — these modules should be verified for correct addressing before the PROFIBUS segment is re-energized after the adapter replacement.

For sites running mixed-protocol environments, where the ACS800 may also interface with a Modbus RTU segment via an NMBA-01 adapter or an EtherNet/IP network via an NETA-21 remote monitoring tool, the ZINT-592 replacement should be planned to avoid disrupting adjacent communication channels. The NETA-21 data logger, if installed, can provide a valuable pre- and post-retrofit comparison of drive parameter states, helping to confirm that the new adapter has assumed the correct node identity and is exchanging cyclic data with the PLC master as expected.

Terminal wiring on the PROFIBUS segment should be inspected during the retrofit window. Termination resistors at both ends of the PROFIBUS cable must be active, and the cable shield should be grounded at one point only to prevent ground loops. If the existing PROFIBUS cable is older than ten years or shows signs of insulation degradation, this is an appropriate time to replace the segment cable as part of the broader upgrade scope. All wiring changes should be documented in the as-built drawings before the system is returned to service.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern in any drive retrofit project. For the ZINT-592 replacement, the recommended approach is to perform a full parameter backup of the ACS800 drive using DriveWindow or DriveStudio before removing the existing adapter. This backup captures all parameter group settings, including group 51 (Fieldbus Adapter), group 10 (Command Inputs), and group 99 (Start-Up Data), and can be restored to the drive after the new adapter is seated, eliminating the need for manual parameter re-entry on the plant floor.

Where the production schedule permits only a narrow maintenance window, a pre-staging approach is strongly recommended: configure and bench-test the replacement ZINT-592 in a workshop environment using a spare ACS800 drive or a drive simulator, confirm that the PROFIBUS node address and cyclic data mapping match the PLC’s existing configuration, and then perform the physical swap during the scheduled outage. This approach typically reduces the on-site commissioning time to under 30 minutes for a straightforward one-for-one adapter replacement.

If the HMI screens at the operator station reference drive-specific data blocks that are mapped through the PROFIBUS connection, the HMI project (whether running on a Siemens TP700 Comfort panel, a Weintek MT8000 series display, or a SCADA system such as WinCC or iFIX) should be reviewed to confirm that the data block addresses remain valid after the adapter replacement. In most cases, because the ZINT-592 maintains the same cyclic data structure as its predecessors, no HMI project changes are required. However, this should be verified against the PLC’s symbol table before the system is returned to automatic mode.

All replacement units shipped by SMARTNEXMSK are subject to pre-shipment functional testing, including power-on verification, communication interface check, and parameter initialization confirmation. Each unit is shipped with a test report and is covered by a 12-month warranty from the date of shipment, providing assurance for both planned retrofit projects and emergency breakdown situations.

Retrofit Support FAQ

Q: Is the ZINT-592 a direct drop-in replacement for the NPBA-12 PROFIBUS adapter in the ACS800?
A: Yes. The ZINT-592 is the current-generation PROFIBUS DP adapter for the ACS800 platform and is mechanically and electrically compatible with the same option slots used by the earlier NPBA-12. Parameter group 51 settings from an NPBA-12 installation can be applied directly to the ZINT-592 with minor revision, and the GSD file for the ACS800 PROFIBUS slave remains unchanged.

Q: What commissioning steps are required after installing the ZINT-592?
A: After seating the adapter in the option slot, power cycle the drive and navigate to parameter group 51 to confirm the adapter type is recognized. Set the PROFIBUS node address (parameter 51.01) to match the address configured in the PLC master. Perform a PROFIBUS network scan from the master to confirm the drive appears as an active slave, then verify cyclic data exchange by monitoring the process data words in the PLC’s online diagnostic view.

Q: Can the ZINT-592 be used in an ACS800 drive that also has an RDIO-01 or AIMA-01 I/O extension installed?
A: Yes. The ZINT-592 occupies one option slot and does not conflict with I/O extension modules installed in other slots. The drive’s internal option slot bus supports simultaneous operation of the fieldbus adapter and I/O extension modules, provided the total option slot count does not exceed the drive’s hardware limit.

Q: What does the 12-month warranty cover, and what is the return process?
A: The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Units that fail within the warranty period should be returned with a description of the fault symptom and the drive’s parameter backup file if available. SMARTNEXMSK will arrange replacement or repair and return shipping at no additional cost. Contact sales@smartnexmsk.com or +86 18259474341 to initiate a warranty claim.
