ABB ZMAC-542 3AXD50000022463 Spare for ACS880 Automation: Precision Driver Board for Industrial Downtime Recovery

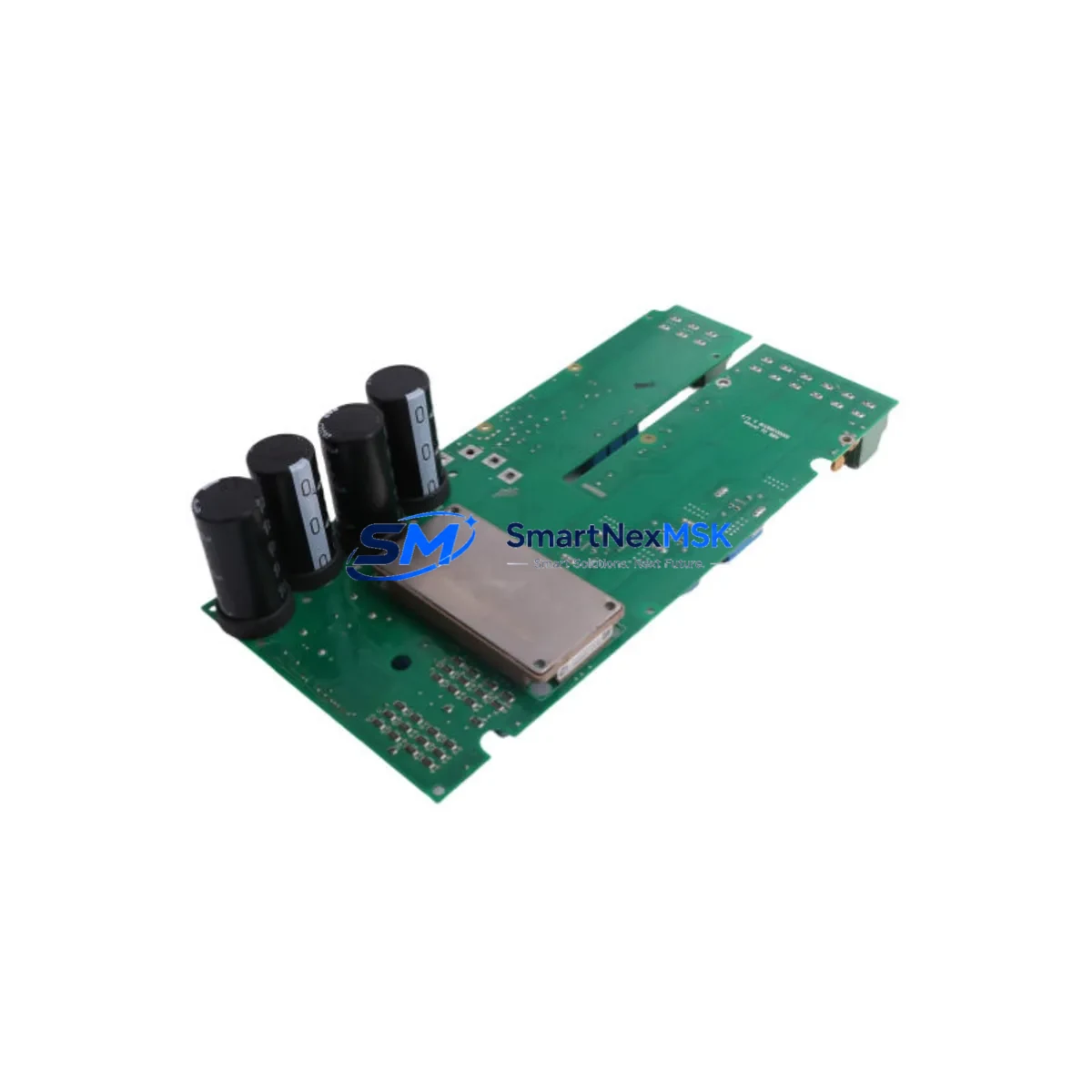

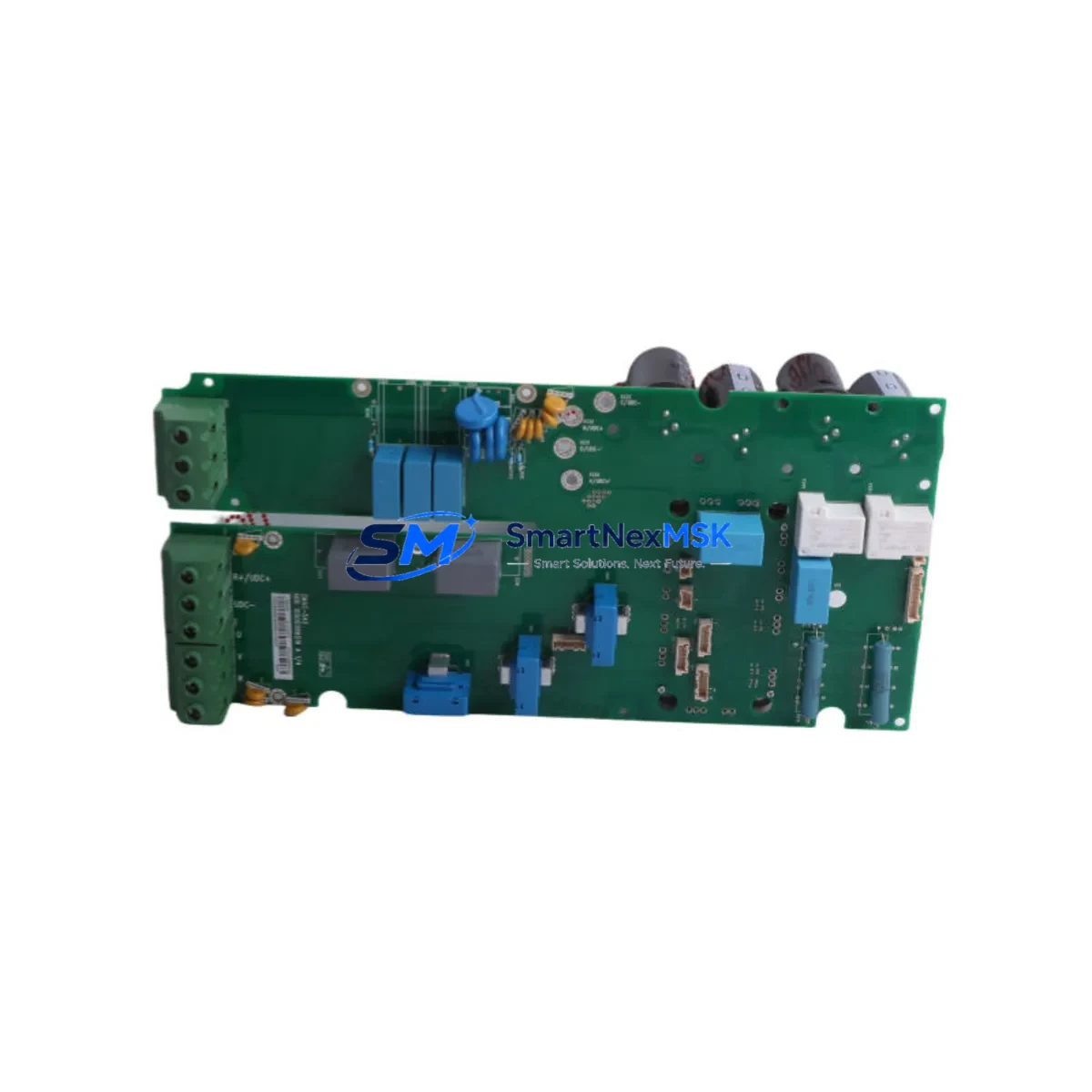

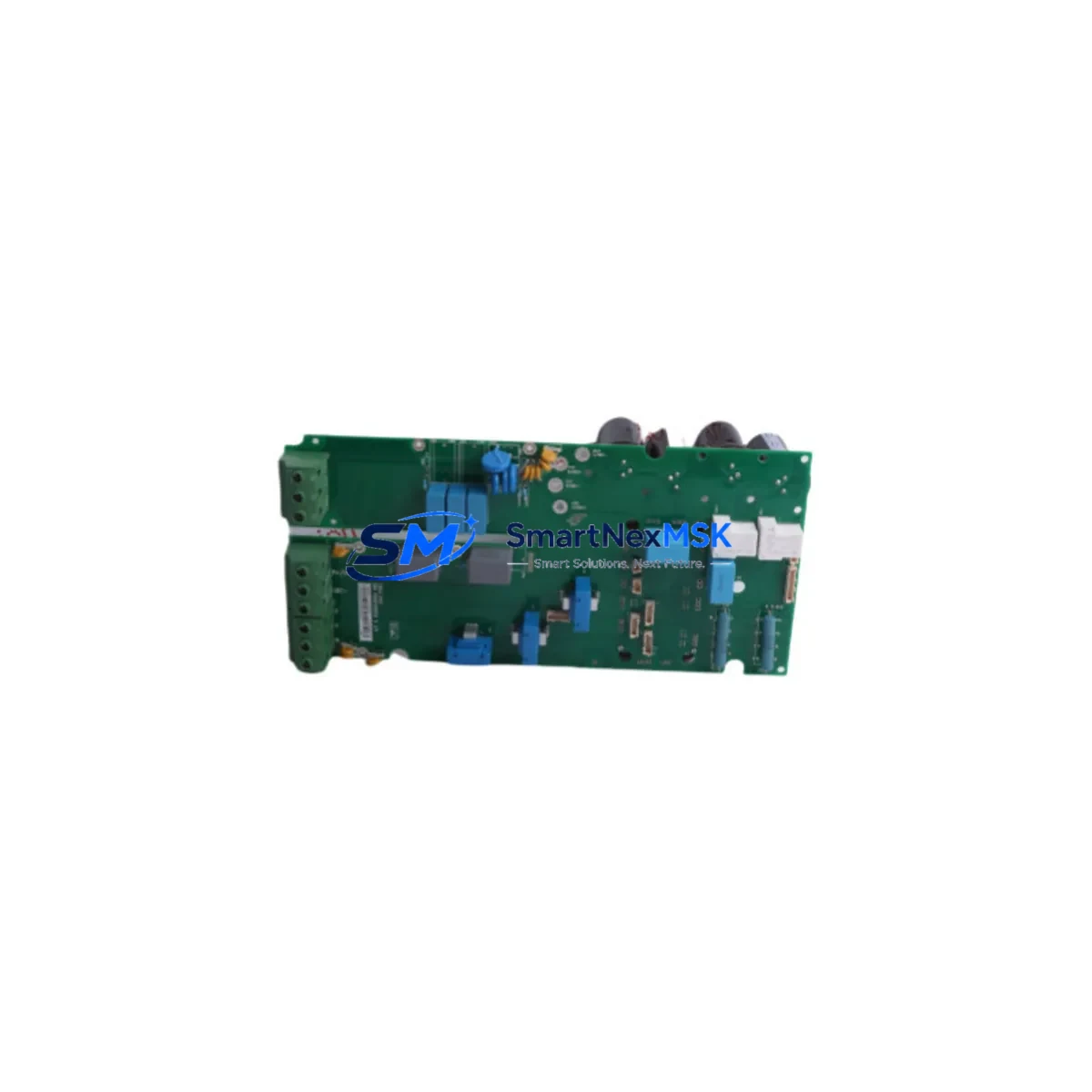

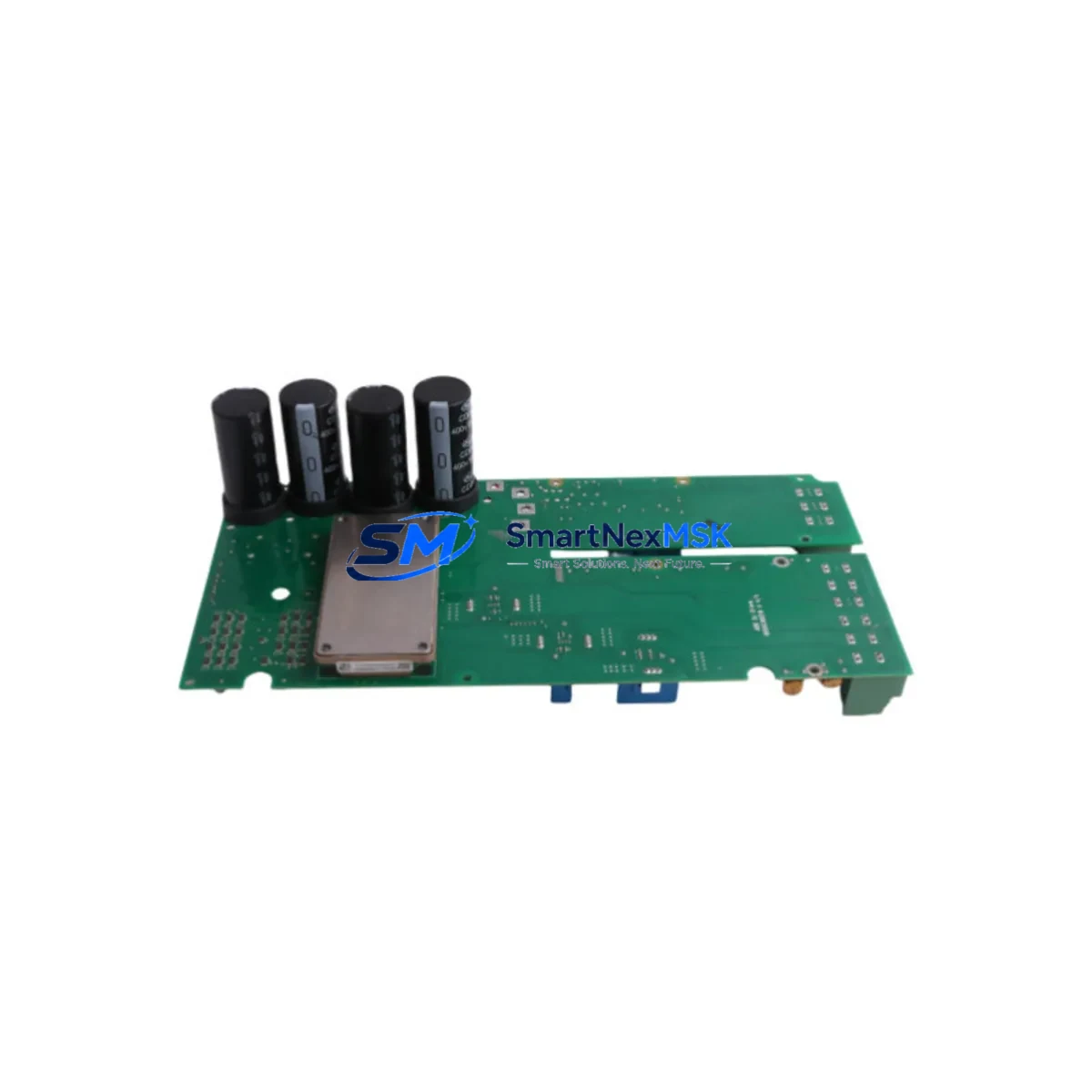

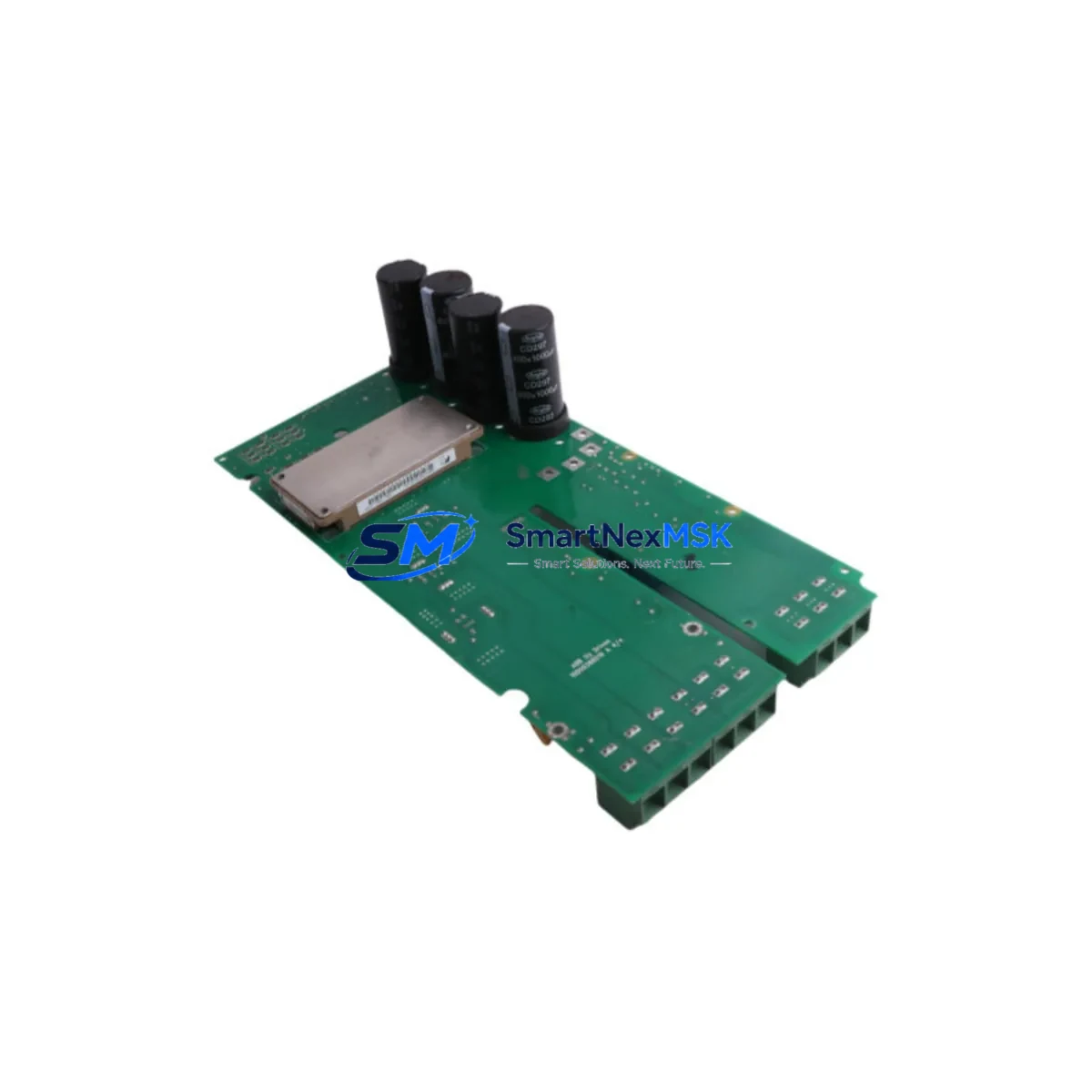

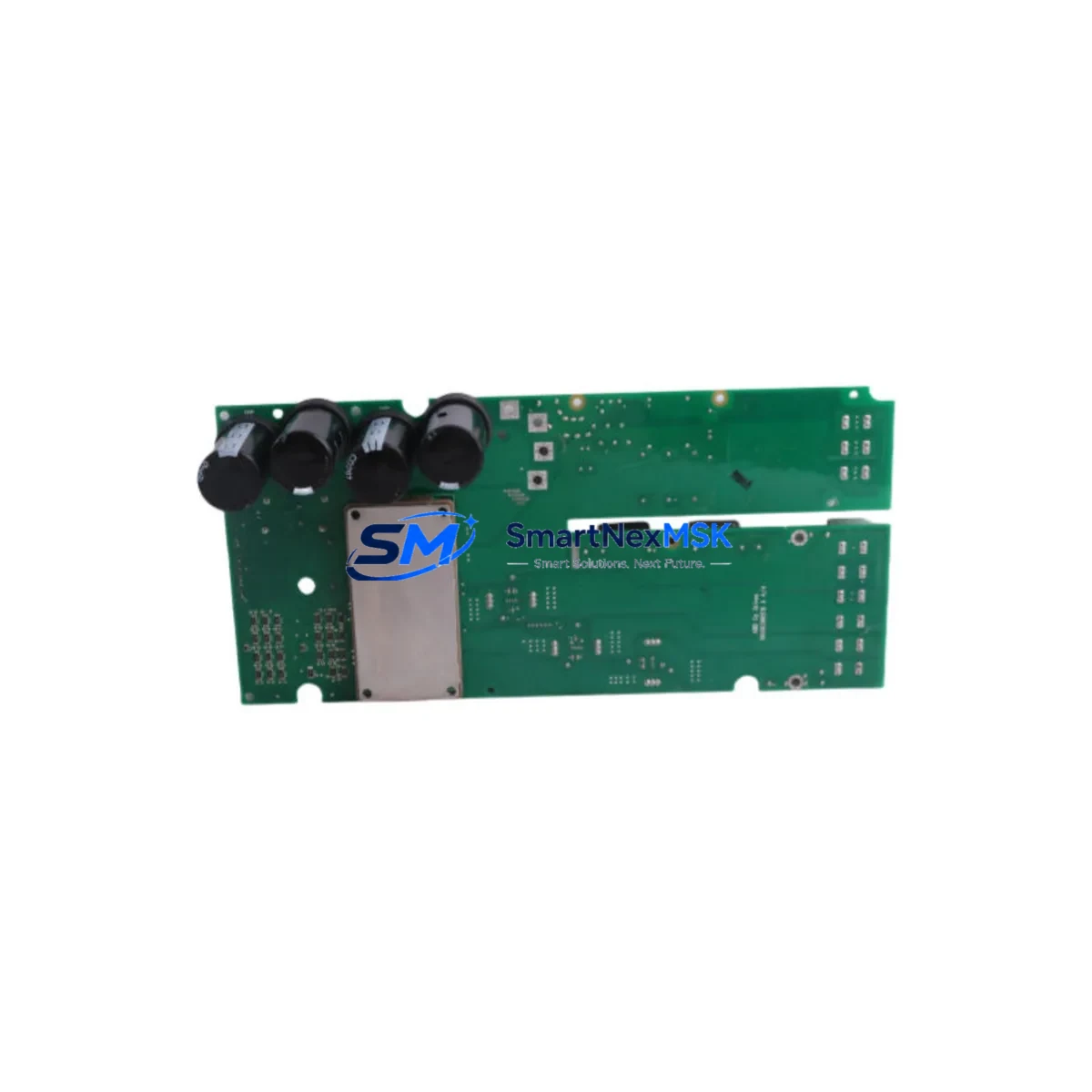

The ABB ZMAC-542 (part number 3AXD50000022463) is an original driver board designed for the ACS880 series industrial AC drives. As a critical control-layer component within the ACS880 drive architecture, this board governs gate-drive signal processing, IGBT firing sequences, and real-time feedback loops that keep variable-speed motor control stable under demanding industrial loads. When this board fails — whether due to overvoltage transients, thermal stress, or aging — the entire drive unit becomes inoperable, triggering unplanned downtime that can cascade across production lines, compressor banks, pump stations, or conveyor systems.

Sourced as an original ABB spare, the ZMAC-542 / 3AXD50000022463 is fully compatible with ACS880 single-drive and multi-drive cabinet configurations. Each unit is inspected, function-tested, and shipped with a 12-month warranty, giving maintenance engineers and procurement teams the confidence to stock this board as a ready-to-deploy replacement in critical spare parts inventories.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or reliability engineer identifies a fault on the ZMAC-542 driver board — typically surfaced through ACS880 fault codes F-0022 (gate driver fault), F-0001 (overcurrent), or repeated drive trips under load — the replacement workflow should extend beyond the board itself. A driver board failure rarely occurs in isolation; it is often preceded or accompanied by stress on adjacent components within the same power stack and control cabinet.

Before commissioning the replacement ZMAC-542, engineers should systematically inspect the following associated components:

• AINT-02 / AINT Control Board: The main control board communicates directly with the ZMAC-542 via fiber-optic links. If the driver board failed due to a feedback signal anomaly, the AINT board may carry latent damage. Verify fiber-optic connectors and run a full diagnostic cycle.
• IGBT Power Module (e.g., 3AXD50000011888 or frame-specific module): Driver board failures are frequently caused by IGBT short-circuit events. Inspect the IGBT module for gate-emitter resistance and collector-emitter leakage before re-energizing.
• DC Bus Capacitor Bank: Overvoltage spikes that damage driver boards often leave residual stress on the DC link capacitors. Measure capacitance and ESR; replace if values deviate more than 20% from nominal.
• ACS880 Power Supply Board (APOW / APOW-01): The auxiliary power supply feeds the driver board logic circuits. A degraded APOW board can cause intermittent driver faults that mimic ZMAC-542 failure. Verify output voltages at ±15 V and +24 V rails.
• Brake Chopper Module (ABRC or equivalent): In regenerative or high-inertia applications, a faulty brake chopper can cause DC bus overvoltage events that stress the driver board. Inspect chopper IGBT and gate resistors.
• I/O Extension Module (AIO-01 / ADIO-01): If the drive is configured with analog or digital I/O extensions, verify that signal wiring is intact and that no ground loops are present — these can inject noise into the control board and trigger spurious driver faults.
• Fieldbus Adapter (FCAN-01, FPBA-01, FENA-21): Communication faults during a drive trip can corrupt parameter sets. After replacing the ZMAC-542, re-verify the fieldbus adapter connection and restore parameters from a saved backup.
• Thermistor / PT100 Temperature Sensor: Overtemperature conditions accelerate driver board aging. Confirm that motor thermistor inputs are correctly wired and that the drive’s thermal model is calibrated to the motor nameplate.
• Input Line Filter (ACH / ACL choke): A damaged or bypassed line reactor or EMC filter can allow voltage spikes to reach the drive’s input rectifier and propagate to the driver stage. Inspect filter capacitors and choke windings.
• Control Panel / HMI (ACS-AP-I or ACS-AP-W): After board replacement, use the ACS880 control panel to clear fault history, restore parameter backup (parameter group 96), and run the motor ID run to re-establish drive tuning.

Stocking the ZMAC-542 alongside the AINT control board and a frame-matched IGBT module as a coordinated spare set is a recognized best practice for ACS880-intensive facilities. This approach reduces mean time to repair (MTTR) from days to hours and eliminates the risk of secondary failures discovered only after the primary board has been replaced.

Site Replacement Workflow

Replacing the ZMAC-542 driver board on an ACS880 drive follows a structured sequence to minimize downtime and ensure system compatibility:

1. Isolate and de-energize: Open the main supply isolator and wait a minimum of 5 minutes for DC bus capacitors to discharge below 50 V DC. Verify with a calibrated multimeter before touching internal components.
2. Document current configuration: Use the ACS880 control panel or Drive Composer PC tool to export the full parameter set (groups 01–99) to a USB drive or laptop. Record the drive’s firmware version and hardware revision from the type designation label.
3. Remove the faulty ZMAC-542: Disconnect fiber-optic cables (label each connector position), release the board retaining clips, and extract the board from the power module stack. Handle by edges only — ESD precautions apply.
4. Verify replacement compatibility: Confirm that the replacement 3AXD50000022463 matches the drive’s frame size and hardware revision. Cross-reference the ABB spare parts catalog or contact your ABB service partner if the revision suffix differs.
5. Install and reconnect: Seat the new ZMAC-542 firmly, reconnect fiber-optic cables in the documented sequence, and torque all fasteners to specification. Inspect for any displaced ribbon connectors or unseated gate resistors.
6. Power-up and diagnostics: Re-energize the drive in local control mode. Clear fault history (parameter 96.10), restore the parameter backup, and run the motor ID run (parameter 99.13) if motor data has changed.
7. Load test and handover: Run the drive at 25%, 50%, and 100% load for a minimum of 15 minutes each. Monitor output current, DC bus voltage, and heatsink temperature. Document results and return the drive to automatic control.

This workflow is applicable whether the ZMAC-542 is replacing a failed board in an emergency shutdown scenario or being installed as part of a planned preventive maintenance cycle. The structured approach ensures that no secondary faults are introduced and that the drive returns to full specification performance.

Spare Parts Support FAQ

Q1: How do I confirm that the ZMAC-542 (3AXD50000022463) is compatible with my specific ACS880 drive frame?
Compatibility depends on the ACS880 frame size (R1–R11) and hardware revision. Locate the type designation label on the drive’s front cover and cross-reference the frame code with ABB’s spare parts catalog. If the revision suffix on the replacement board differs from the installed unit, contact your ABB service partner or our technical team before installation. We can assist with cross-referencing based on your drive’s serial number.

Q2: What is included in the 12-month warranty, and what does it cover?
All ZMAC-542 / 3AXD50000022463 units shipped by SMARTNEXMSK carry a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failures under normal operating conditions. Each board is function-tested prior to dispatch. Warranty claims require the original invoice and a fault description; we will arrange replacement or repair at no additional cost within the warranty period.

Q3: Can I stock the ZMAC-542 as a long-term spare without risk of shelf degradation?
Yes. Driver boards stored in original anti-static packaging in a dry, temperature-controlled environment (15–25°C, <60% RH) maintain full functionality for 3–5 years. We recommend annual visual inspection of stored boards and re-testing before deployment if storage exceeds 24 months. For facilities with multiple ACS880 drives, maintaining one ZMAC-542 per two to three drives is a practical inventory ratio that balances cost against downtime risk.

Q4: What is the typical lead time, and do you offer emergency shipment?
In-stock units are dispatched within 1–3 business days. For emergency downtime situations, we offer priority air freight with same-day or next-day dispatch on confirmed orders placed before 14:00 CST. Contact our team directly at sales@smartnexmsk.com or +86 18259474341 to confirm stock availability and arrange expedited logistics.
